hal_sfc_v150_regs_def.h 文件参考

#include <stdint.h>

hal_sfc_v150_regs_def.h 的引用(Include)关系图:

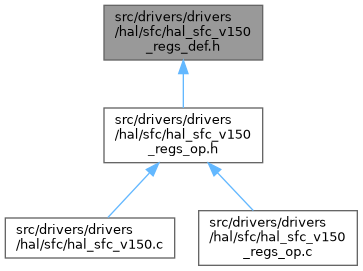

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
union	global_config
	This union represents the bit fields in the SFC global config Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	timing
	This union represents the bit fields in the SFC timing Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_config1
	This union represents the bit fields in the SFC bus config Register 1. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_config2
	This union represents the bit fields in the SFC bus config Register 2. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_flash_size
	This union represents the bit fields in the SFC bus flash size Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_base_addr
	This union represents the bit fields in the SFC bus base addr Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_dma_ctrl
	This union represents the bit fields in the SFC bus dma ctrl Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_dma_len
	This union represents the bit fields in the SFC bus dma len Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	bus_dma_ahb_ctrl
	This union represents the bit fields in the SFC bus dma ahb ctrl Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	cmd_config
	This union represents the bit fields in the SFC command config Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	cmd_ins
	This union represents the bit fields in the SFC command ins Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	cmd_addr
	This union represents the bit fields in the SFC command address Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	cmd_databuf
	This union represents the bit fields in the SFC command data buffer Register. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
struct	global_conf_regs
	Global Config Registers associated with SFC. 更多...
struct	bus_regs
	Bus mode Registers associated with SFC. 更多...
struct	bus_dma_regs
	DMA mode Registers associated with SFC. 更多...
struct	cmd_regs
	SPI mode Registers associated with SFC. 更多...
struct	cmd_databufs
	SPI data buffer Registers associated with SFC. 更多...

宏定义
#define	MAX_DATABUF_NUM   16
#define	MAX_BYTE_PER_DATABUF   4

类型定义
typedef union global_config	global_config_t
	This union represents the bit fields in the SFC global config Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union timing	timing_t
	This union represents the bit fields in the SFC timing Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_config1	bus_config1_t
	This union represents the bit fields in the SFC bus config Register 1. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_config2	bus_config2_t
	This union represents the bit fields in the SFC bus config Register 2. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_flash_size	bus_flash_size_t
	This union represents the bit fields in the SFC bus flash size Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_base_addr	bus_base_addr_t
	This union represents the bit fields in the SFC bus base addr Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_dma_ctrl	bus_dma_ctrl_t
	This union represents the bit fields in the SFC bus dma ctrl Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_dma_len	bus_dma_len_t
	This union represents the bit fields in the SFC bus dma len Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union bus_dma_ahb_ctrl	bus_dma_ahb_ctrl_t
	This union represents the bit fields in the SFC bus dma ahb ctrl Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union cmd_config	cmd_config_t
	This union represents the bit fields in the SFC command config Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union cmd_ins	cmd_ins_t
	This union represents the bit fields in the SFC command ins Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union cmd_addr	cmd_addr_t
	This union represents the bit fields in the SFC command address Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef union cmd_databuf	cmd_databuf_t
	This union represents the bit fields in the SFC command data buffer Register. Read the register into the d32 member then set/clear the bits using the b elements.
typedef struct global_conf_regs	global_conf_regs_t
	Global Config Registers associated with SFC.
typedef struct bus_regs	bus_regs_t
	Bus mode Registers associated with SFC.
typedef struct bus_dma_regs	bus_dma_regs_t
	DMA mode Registers associated with SFC.
typedef struct cmd_regs	cmd_regs_t
	SPI mode Registers associated with SFC.
typedef struct cmd_databufs	cmd_databufs_t
	SPI data buffer Registers associated with SFC.

宏定义说明

MAX_BYTE_PER_DATABUF

#define MAX_BYTE_PER_DATABUF   4

MAX_DATABUF_NUM

#define MAX_DATABUF_NUM   16

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2022-2022. All rights reserved.

Description: Provides v150 SFC register
History:
2022-12-01, Create file.
