hal_dmac_v151_regs_def.h 文件参考

#include <stdint.h>
#include "dma_porting.h"

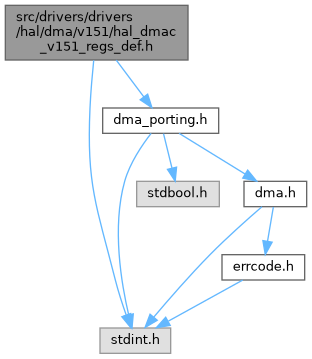

hal_dmac_v151_regs_def.h 的引用(Include)关系图:

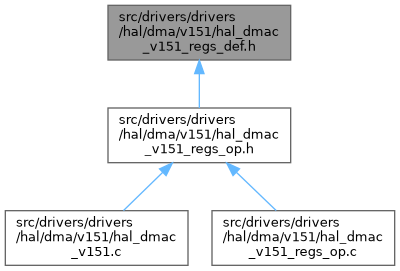

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
union	dam_ch_int_data
	This union represents the bit fields in the DMA channel interrupt. Read the register into the d32 member then set/clear the bits using the b elements. 更多...
union	dma_int_st_t
	Interrupt Status Register 更多...
union	dma_int_clr_t
	Transfer Interrupt Register 更多...
union	dma_ori_int_st_t
	Raw Interrupt Status Register 更多...
union	dma_en_chns_t
	Channel Enable Query Register 更多...
union	dma_burst_req_t
	BURST software configuration register 更多...
union	dma_single_req_t
	SINGLE software configuration register 更多...
union	dma_config_t
	configuration register 更多...
union	dma_sync_t
union	dma_lli_t
	Channel linked list register 更多...
union	dma_chn_config_t
	Channel Configuration Register 更多...
union	dma_chn_control_t
	Channel Control Register 更多...
struct	dma_chn_arg_t
	DMA Channel configuration. 更多...
struct	dma_v151_regs_t
	Registers associated with DMA. 更多...

宏定义
#define	DMA_REGISTER_PAD_LEN   55

类型定义
typedef union dam_ch_int_data	dam_ch_int_data_t
	This union represents the bit fields in the DMA channel interrupt. Read the register into the d32 member then set/clear the bits using the b elements.
typedef dma_config_t	dma_v151_cfg_reg_data_t
typedef dma_chn_config_t	dma_cfg_data_t
typedef dma_chn_control_t	dma_ctrl_data_t
