#include "los_base.h"
#include "los_task.h"
#include "los_perf.h"

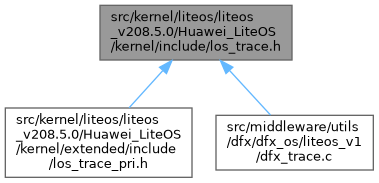

los_trace.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	TraceBaseHeaderInfo

struct	TraceEventFrame

struct	ObjData

struct	OfflineHead

宏定义
#define	LOSCFG_TRACE_OBJ_MAX_NAME_SIZE LOS_TASK_NAMELEN

#define	LOSCFG_TRACE_OBJ_MAX_NUM 0

#define	LOSCFG_TRACE_TLV_BUF_SIZE 100

#define	LOS_ERRNO_TRACE_ERROR_STATUS LOS_ERRNO_OS_ERROR(LOS_MOD_TRACE, 0x00)

#define	LOS_ERRNO_TRACE_NO_MEMORY LOS_ERRNO_OS_ERROR(LOS_MOD_TRACE, 0x01)

#define	LOS_ERRNO_TRACE_BUF_TOO_SMALL LOS_ERRNO_OS_ERROR(LOS_MOD_TRACE, 0x02)

#define	LOS_ERRNO_TRACE_BUF_IS_NULL LOS_ERRNO_OS_ERROR(LOS_MOD_TRACE, 0x03)

#define	TASK_SWITCH_PARAMS(taskId, oldPriority, oldTaskStatus, newPriority, newTaskStatus) taskId, oldPriority, oldTaskStatus, newPriority, newTaskStatus

#define	TASK_PRIOSET_PARAMS(taskId, taskStatus, oldPrio, newPrio) taskId, taskStatus, oldPrio, newPrio

#define	TASK_CREATE_PARAMS(taskId, taskStatus, prio) taskId, taskStatus, prio

#define	TASK_DELETE_PARAMS(taskId, taskStatus, usrStack) taskId, taskStatus, usrStack

#define	TASK_SUSPEND_PARAMS(taskId, taskStatus, runTaskId) taskId, taskStatus, runTaskId

#define	TASK_RESUME_PARAMS(taskId, taskStatus, prio) taskId, taskStatus, prio

#define	TASK_SIGNAL_PARAMS(taskId, signal)

#define	SWTMR_START_PARAMS(swtmrId, mode, overrun, interval, expiry) swtmrId, mode, overrun, interval, expiry

#define	SWTMR_DELETE_PARAMS(swtmrId) swtmrId

#define	SWTMR_EXPIRED_PARAMS(swtmrId) swtmrId

#define	SWTMR_STOP_PARAMS(swtmrId) swtmrId

#define	SWTMR_CREATE_PARAMS(swtmrId) swtmrId

#define	HWI_CREATE_PARAMS(hwiNum, hwiPrio, hwiMode, hwiHandler) hwiNum, hwiPrio, hwiMode, hwiHandler

#define	HWI_CREATE_NODE_PARAMS(hwiNum, pDevId, ret) hwiNum, pDevId, ret

#define	HWI_DELETE_PARAMS(hwiNum) hwiNum

#define	HWI_DELETE_NODE_PARAMS(hwiNum, pDevId, ret) hwiNum, pDevId, ret

#define	HWI_RESPONSE_IN_PARAMS(hwiNum) hwiNum

#define	HWI_RESPONSE_OUT_PARAMS(hwiNum) hwiNum

#define	HWI_ENABLE_PARAMS(hwiNum) hwiNum

#define	HWI_DISABLE_PARAMS(hwiNum) hwiNum

#define	HWI_TRIGGER_PARAMS(hwiNum) hwiNum

#define	HWI_SETPRI_PARAMS(hwiNum, priority) hwiNum, priority

#define	HWI_CLEAR_PARAMS(hwiNum) hwiNum

#define	HWI_SETAFFINITY_PARAMS(hwiNum, cpuMask) hwiNum, cpuMask

#define	HWI_SENDIPI_PARAMS(hwiNum, cpuMask) hwiNum, cpuMask

#define	EVENT_CREATE_PARAMS(eventCB) eventCB

#define	EVENT_DELETE_PARAMS(eventCB, delRetCode) eventCB, delRetCode

#define	EVENT_READ_PARAMS(eventCB, eventId, mask, mode, timeout) eventCB, eventId, mask, mode, timeout

#define	EVENT_WRITE_PARAMS(eventCB, eventId, events) eventCB, eventId, events

#define	EVENT_CLEAR_PARAMS(eventCB, eventId, events) eventCB, eventId, events

#define	EVENT_COND_READ_PARAMS(eventCB, eventId) eventCB, eventId

#define	EVENT_COND_WRITE_PARAMS(eventCB, eventId) eventCB, eventId

#define	QUEUE_CREATE_PARAMS(queueId, queueSz, itemSz, queueAddr, memType) queueId, queueSz, itemSz, queueAddr, memType

#define	QUEUE_DELETE_PARAMS(queueId, state, readable) queueId, state, readable

#define	QUEUE_RW_PARAMS(queueId, queueSize, bufSize, operateType, readable, writable, timeout) queueId, queueSize, bufSize, operateType, readable, writable, timeout

#define	SEM_CREATE_PARAMS(semId, type, count) semId, type, count

#define	SEM_DELETE_PARAMS(semId, delRetCode) semId, delRetCode

#define	SEM_PEND_PARAMS(semId, count, timeout) semId, count, timeout

#define	SEM_POST_PARAMS(semId, type, count) semId, type, count

#define	MUX_CREATE_PARAMS(muxId) muxId

#define	MUX_DELETE_PARAMS(muxId, state, count, owner) muxId, state, count, owner

#define	MUX_PEND_PARAMS(muxId, count, owner, timeout) muxId, count, owner, timeout

#define	MUX_POST_PARAMS(muxId, count, owner) muxId, count, owner

#define	MEM_ALLOC_PARAMS(pool, ptr, size) pool, ptr, size

#define	MEM_ALLOC_ALIGN_PARAMS(pool, ptr, size, boundary) pool, ptr, size, boundary

#define	MEM_REALLOC_PARAMS(pool, ptr, size) pool, ptr, size

#define	MEM_FREE_PARAMS(pool, ptr) pool, ptr

#define	MEM_INFO_REQ_PARAMS(pool) pool

#define	MEM_INFO_PARAMS(pool, usedSize, freeSize) pool, usedSize, freeSize

#define	SYS_ERROR_PARAMS(errno) errno

#define	LOS_TRACE(TYPE, ...) LOS_PERF(TYPE)

#define	LOS_TRACE_EASY(...)

类型定义
typedef BOOL(*	TRACE_HWI_FILTER_HOOK) (UINT32 hwiNum)
	Define the type of trace hardware interrupt filter hook function.

typedef void(*	TRACE_EVENT_HOOK) (UINT32 eventType, UINTPTR identity, const UINTPTR *params, UINT16 paramCount)

枚举
enum	TraceState { TRACE_UNINIT = 0 , TRACE_INITED , TRACE_STARTED , TRACE_STOPED }

enum	LOS_TRACE_MASK { TRACE_SYS_FLAG = 0x10 , TRACE_HWI_FLAG = 0x20 , TRACE_TASK_FLAG = 0x40 , TRACE_SWTMR_FLAG = 0x80 , TRACE_MEM_FLAG = 0x100 , TRACE_QUE_FLAG = 0x200 , TRACE_EVENT_FLAG = 0x400 , TRACE_SEM_FLAG = 0x800 , TRACE_MUX_FLAG = 0x1000 , TRACE_MAX_FLAG = 0x80000000 , TRACE_USER_DEFAULT_FLAG = 0xFFFFFFF0 }

enum	LOS_TRACE_TYPE { SYS_ERROR = TRACE_SYS_FLAG \| 0 , SYS_START = TRACE_SYS_FLAG \| 1 , SYS_STOP = TRACE_SYS_FLAG \| 2 , HWI_CREATE = TRACE_HWI_FLAG \| 0 , HWI_CREATE_NODE = TRACE_HWI_FLAG \| 1 , HWI_DELETE = TRACE_HWI_FLAG \| 2 , HWI_DELETE_NODE = TRACE_HWI_FLAG \| 3 , HWI_RESPONSE_IN = TRACE_HWI_FLAG \| 4 , HWI_RESPONSE_OUT = TRACE_HWI_FLAG \| 5 , HWI_ENABLE = TRACE_HWI_FLAG \| 6 , HWI_DISABLE = TRACE_HWI_FLAG \| 7 , HWI_TRIGGER = TRACE_HWI_FLAG \| 8 , HWI_SETPRI = TRACE_HWI_FLAG \| 9 , HWI_CLEAR = TRACE_HWI_FLAG \| 10 , HWI_SETAFFINITY = TRACE_HWI_FLAG \| 11 , HWI_SENDIPI = TRACE_HWI_FLAG \| 12 , TASK_CREATE = TRACE_TASK_FLAG \| 0 , TASK_PRIOSET = TRACE_TASK_FLAG \| 1 , TASK_DELETE = TRACE_TASK_FLAG \| 2 , TASK_SUSPEND = TRACE_TASK_FLAG \| 3 , TASK_RESUME = TRACE_TASK_FLAG \| 4 , TASK_SWITCH = TRACE_TASK_FLAG \| 5 , TASK_SIGNAL = TRACE_TASK_FLAG \| 6 , SWTMR_CREATE = TRACE_SWTMR_FLAG \| 0 , SWTMR_DELETE = TRACE_SWTMR_FLAG \| 1 , SWTMR_START = TRACE_SWTMR_FLAG \| 2 , SWTMR_STOP = TRACE_SWTMR_FLAG \| 3 , SWTMR_EXPIRED = TRACE_SWTMR_FLAG \| 4 , MEM_ALLOC = TRACE_MEM_FLAG \| 0 , MEM_ALLOC_ALIGN = TRACE_MEM_FLAG \| 1 , MEM_REALLOC = TRACE_MEM_FLAG \| 2 , MEM_FREE = TRACE_MEM_FLAG \| 3 , MEM_INFO_REQ = TRACE_MEM_FLAG \| 4 , MEM_INFO = TRACE_MEM_FLAG \| 5 , QUEUE_CREATE = TRACE_QUE_FLAG \| 0 , QUEUE_DELETE = TRACE_QUE_FLAG \| 1 , QUEUE_RW = TRACE_QUE_FLAG \| 2 , EVENT_CREATE = TRACE_EVENT_FLAG \| 0 , EVENT_DELETE = TRACE_EVENT_FLAG \| 1 , EVENT_READ = TRACE_EVENT_FLAG \| 2 , EVENT_WRITE = TRACE_EVENT_FLAG \| 3 , EVENT_CLEAR = TRACE_EVENT_FLAG \| 4 , EVENT_COND_READ = TRACE_EVENT_FLAG \| 5 , EVENT_COND_WRITE = TRACE_EVENT_FLAG \| 6 , SEM_CREATE = TRACE_SEM_FLAG \| 0 , SEM_DELETE = TRACE_SEM_FLAG \| 1 , SEM_PEND = TRACE_SEM_FLAG \| 2 , SEM_POST = TRACE_SEM_FLAG \| 3 , MUX_CREATE = TRACE_MUX_FLAG \| 0 , MUX_DELETE = TRACE_MUX_FLAG \| 1 , MUX_PEND = TRACE_MUX_FLAG \| 2 , MUX_POST = TRACE_MUX_FLAG \| 3 }

函数
UINT32	LOS_TraceInit (void *buf, UINT32 size)
	Initialize the trace when the system startup.

UINT32	LOS_TraceStart (void)
	Start trace.

void	LOS_TraceStop (void)
	Stop trace sample.

void	LOS_TraceReset (void)
	Clear the trace buf.

void	LOS_TraceEventMaskSet (UINT32 mask)
	Set trace event mask.

void	LOS_TraceRecordDump (BOOL toClient)
	Offline trace buffer display.

OfflineHead *	LOS_TraceRecordGet (void)
	Offline trace buffer export.

void	LOS_TraceHwiFilterHookReg (TRACE_HWI_FILTER_HOOK hook)
	Hwi num filter hook.

变量
TRACE_EVENT_HOOK	g_traceEventHook

宏定义说明

◆ EVENT_CLEAR_PARAMS

#define EVENT_CLEAR_PARAMS	(	eventCB,
		eventId,
		events
	)	eventCB, eventId, events

◆ EVENT_COND_READ_PARAMS

#define EVENT_COND_READ_PARAMS	(	eventCB,
		eventId
	)	eventCB, eventId

◆ EVENT_COND_WRITE_PARAMS

#define EVENT_COND_WRITE_PARAMS	(	eventCB,
		eventId
	)	eventCB, eventId

◆ EVENT_CREATE_PARAMS

#define EVENT_CREATE_PARAMS ( eventCB ) eventCB

◆ EVENT_DELETE_PARAMS

#define EVENT_DELETE_PARAMS	(	eventCB,
		delRetCode
	)	eventCB, delRetCode

◆ EVENT_READ_PARAMS

#define EVENT_READ_PARAMS	(	eventCB,
		eventId,
		mask,
		mode,
		timeout
	)	eventCB, eventId, mask, mode, timeout

◆ EVENT_WRITE_PARAMS

#define EVENT_WRITE_PARAMS	(	eventCB,
		eventId,
		events
	)	eventCB, eventId, events

◆ HWI_CLEAR_PARAMS

#define HWI_CLEAR_PARAMS ( hwiNum ) hwiNum

◆ HWI_CREATE_NODE_PARAMS

#define HWI_CREATE_NODE_PARAMS	(	hwiNum,
		pDevId,
		ret
	)	hwiNum, pDevId, ret

◆ HWI_CREATE_PARAMS

#define HWI_CREATE_PARAMS	(	hwiNum,
		hwiPrio,
		hwiMode,
		hwiHandler
	)	hwiNum, hwiPrio, hwiMode, hwiHandler

◆ HWI_DELETE_NODE_PARAMS

#define HWI_DELETE_NODE_PARAMS	(	hwiNum,
		pDevId,
		ret
	)	hwiNum, pDevId, ret

◆ HWI_DELETE_PARAMS

#define HWI_DELETE_PARAMS ( hwiNum ) hwiNum

◆ HWI_DISABLE_PARAMS

#define HWI_DISABLE_PARAMS ( hwiNum ) hwiNum

◆ HWI_ENABLE_PARAMS

#define HWI_ENABLE_PARAMS ( hwiNum ) hwiNum

◆ HWI_RESPONSE_IN_PARAMS

#define HWI_RESPONSE_IN_PARAMS ( hwiNum ) hwiNum

◆ HWI_RESPONSE_OUT_PARAMS

#define HWI_RESPONSE_OUT_PARAMS ( hwiNum ) hwiNum

◆ HWI_SENDIPI_PARAMS

#define HWI_SENDIPI_PARAMS	(	hwiNum,
		cpuMask
	)	hwiNum, cpuMask

◆ HWI_SETAFFINITY_PARAMS

#define HWI_SETAFFINITY_PARAMS	(	hwiNum,
		cpuMask
	)	hwiNum, cpuMask

◆ HWI_SETPRI_PARAMS

#define HWI_SETPRI_PARAMS	(	hwiNum,
		priority
	)	hwiNum, priority

◆ HWI_TRIGGER_PARAMS

#define HWI_TRIGGER_PARAMS ( hwiNum ) hwiNum

◆ LOS_TRACE

#define LOS_TRACE	(	TYPE,
		...
	)	LOS_PERF(TYPE)

◆ LOS_TRACE_EASY

#define LOS_TRACE_EASY ( ... )

◆ LOSCFG_TRACE_OBJ_MAX_NAME_SIZE

#define LOSCFG_TRACE_OBJ_MAX_NAME_SIZE LOS_TASK_NAMELEN

◆ MEM_ALLOC_ALIGN_PARAMS

#define MEM_ALLOC_ALIGN_PARAMS	(	pool,
		ptr,
		size,
		boundary
	)	pool, ptr, size, boundary

◆ MEM_ALLOC_PARAMS

#define MEM_ALLOC_PARAMS	(	pool,
		ptr,
		size
	)	pool, ptr, size

◆ MEM_FREE_PARAMS

#define MEM_FREE_PARAMS	(	pool,
		ptr
	)	pool, ptr

◆ MEM_INFO_PARAMS

#define MEM_INFO_PARAMS	(	pool,
		usedSize,
		freeSize
	)	pool, usedSize, freeSize

◆ MEM_INFO_REQ_PARAMS

#define MEM_INFO_REQ_PARAMS ( pool ) pool

◆ MEM_REALLOC_PARAMS

#define MEM_REALLOC_PARAMS	(	pool,
		ptr,
		size
	)	pool, ptr, size

◆ MUX_CREATE_PARAMS

#define MUX_CREATE_PARAMS ( muxId ) muxId

◆ MUX_DELETE_PARAMS

#define MUX_DELETE_PARAMS	(	muxId,
		state,
		count,
		owner
	)	muxId, state, count, owner

◆ MUX_PEND_PARAMS

#define MUX_PEND_PARAMS	(	muxId,
		count,
		owner,
		timeout
	)	muxId, count, owner, timeout

◆ MUX_POST_PARAMS

#define MUX_POST_PARAMS	(	muxId,
		count,
		owner
	)	muxId, count, owner

◆ QUEUE_CREATE_PARAMS

#define QUEUE_CREATE_PARAMS	(	queueId,
		queueSz,
		itemSz,
		queueAddr,
		memType
	)	queueId, queueSz, itemSz, queueAddr, memType

◆ QUEUE_DELETE_PARAMS

#define QUEUE_DELETE_PARAMS	(	queueId,
		state,
		readable
	)	queueId, state, readable

◆ QUEUE_RW_PARAMS

#define QUEUE_RW_PARAMS	(	queueId,
		queueSize,
		bufSize,
		operateType,
		readable,
		writable,
		timeout
	)	queueId, queueSize, bufSize, operateType, readable, writable, timeout

◆ SEM_CREATE_PARAMS

#define SEM_CREATE_PARAMS	(	semId,
		type,
		count
	)	semId, type, count

◆ SEM_DELETE_PARAMS

#define SEM_DELETE_PARAMS	(	semId,
		delRetCode
	)	semId, delRetCode

◆ SEM_PEND_PARAMS

#define SEM_PEND_PARAMS	(	semId,
		count,
		timeout
	)	semId, count, timeout

◆ SEM_POST_PARAMS

#define SEM_POST_PARAMS	(	semId,
		type,
		count
	)	semId, type, count

◆ SWTMR_CREATE_PARAMS

#define SWTMR_CREATE_PARAMS ( swtmrId ) swtmrId

◆ SWTMR_DELETE_PARAMS

#define SWTMR_DELETE_PARAMS ( swtmrId ) swtmrId

◆ SWTMR_EXPIRED_PARAMS

#define SWTMR_EXPIRED_PARAMS ( swtmrId ) swtmrId

◆ SWTMR_START_PARAMS

#define SWTMR_START_PARAMS	(	swtmrId,
		mode,
		overrun,
		interval,
		expiry
	)	swtmrId, mode, overrun, interval, expiry

◆ SWTMR_STOP_PARAMS

#define SWTMR_STOP_PARAMS ( swtmrId ) swtmrId

◆ SYS_ERROR_PARAMS

#define SYS_ERROR_PARAMS ( errno ) errno

◆ TASK_CREATE_PARAMS

#define TASK_CREATE_PARAMS	(	taskId,
		taskStatus,
		prio
	)	taskId, taskStatus, prio

◆ TASK_DELETE_PARAMS

#define TASK_DELETE_PARAMS	(	taskId,
		taskStatus,
		usrStack
	)	taskId, taskStatus, usrStack

◆ TASK_PRIOSET_PARAMS

#define TASK_PRIOSET_PARAMS	(	taskId,
		taskStatus,
		oldPrio,
		newPrio
	)	taskId, taskStatus, oldPrio, newPrio

◆ TASK_RESUME_PARAMS

#define TASK_RESUME_PARAMS	(	taskId,
		taskStatus,
		prio
	)	taskId, taskStatus, prio

◆ TASK_SIGNAL_PARAMS

#define TASK_SIGNAL_PARAMS	(	taskId,
		signal
	)

◆ TASK_SUSPEND_PARAMS

#define TASK_SUSPEND_PARAMS	(	taskId,
		taskStatus,
		runTaskId
	)	taskId, taskStatus, runTaskId

◆ TASK_SWITCH_PARAMS

#define TASK_SWITCH_PARAMS	(	taskId,
		oldPriority,
		oldTaskStatus,
		newPriority,
		newTaskStatus
	)	taskId, oldPriority, oldTaskStatus, newPriority, newTaskStatus

类型定义说明

◆ TRACE_EVENT_HOOK

typedef void(* TRACE_EVENT_HOOK) (UINT32 eventType, UINTPTR identity, const UINTPTR *params, UINT16 paramCount)

变量说明

◆ g_traceEventHook

TRACE_EVENT_HOOK g_traceEventHook

extern
