hmac_fsm.h 文件参考

#include "hmac_vap.h"
#include "hmac_rx_filter.h"
#include "hmac_config.h"

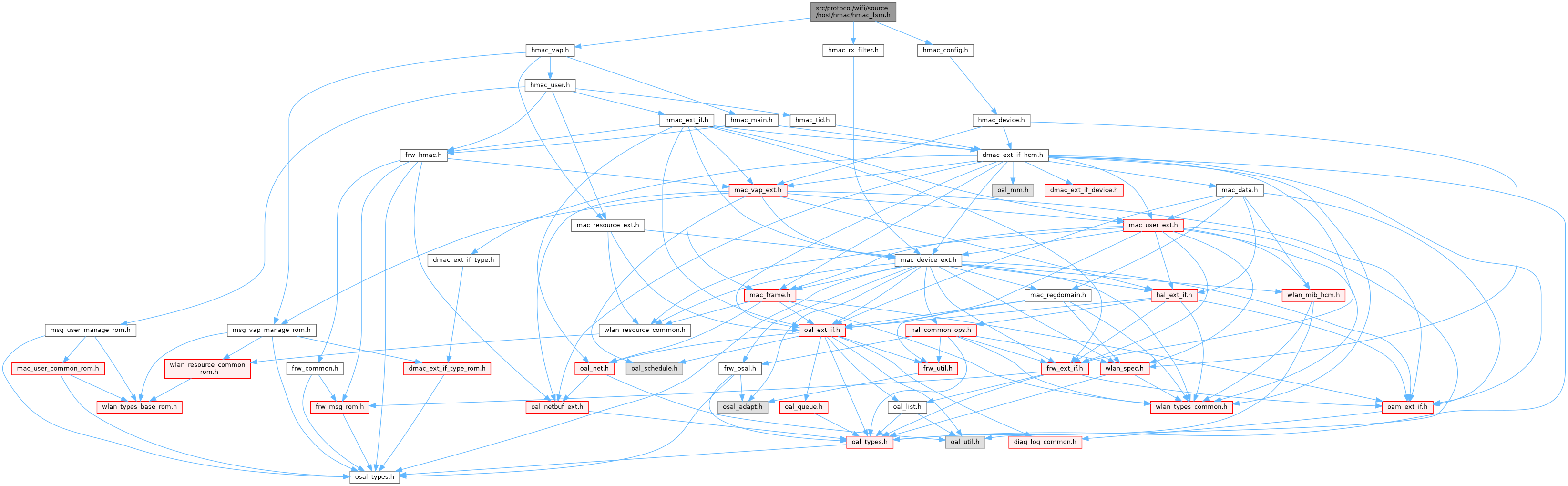

hmac_fsm.h 的引用(Include)关系图:

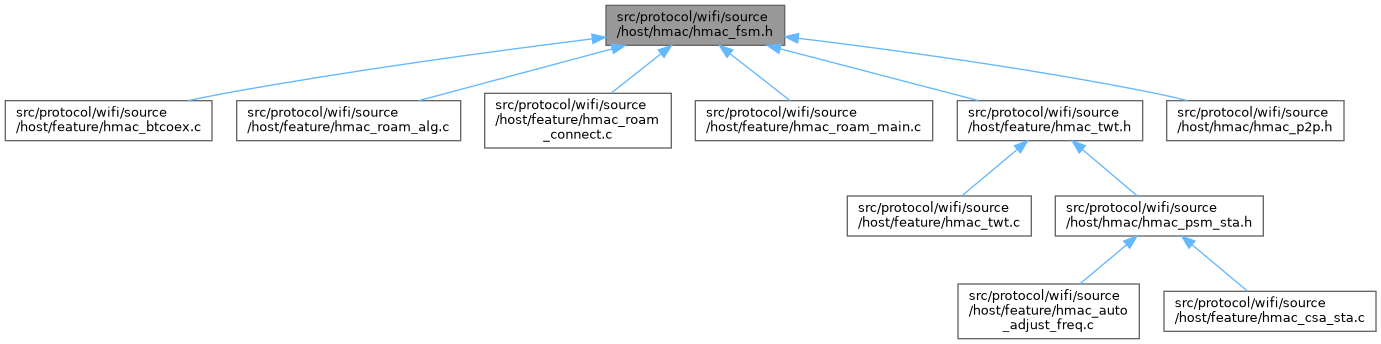

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	hmac_misc_input_stru

宏定义
#define	THIS_FILE_ID   OAM_FILE_ID_HMAC_FSM_H
#define	HMAC_FSM_AP_INPUT_TYPE_BUTT   (HMAC_FSM_INPUT_MISC + 1)
#define	HMAC_FSM_STA_INPUT_TYPE_BUTT   HMAC_FSM_INPUT_TYPE_BUTT
#define	HMAC_SWITCH_STA_PSM_PERIOD   120000
#define	HMAC_SWITCH_STA_PSM_MAX_CNT   (HMAC_SWITCH_STA_PSM_PERIOD / WLAN_SLEEP_TIMER_PERIOD)

类型定义
typedef osal_u32(*	hmac_fsm_func) (hmac_vap_stru *hmac_vap, osal_void *p_param)
typedef osal_u8	hmac_fsm_input_type_enum_uint8
typedef osal_u8	hmac_misc_input_enum_uint8

枚举
enum	hmac_fsm_input_type_enum {   HMAC_FSM_INPUT_RX_MGMT , HMAC_FSM_INPUT_RX_DATA , HMAC_FSM_INPUT_TX_DATA , HMAC_FSM_INPUT_TIMER0_OUT ,   HMAC_FSM_INPUT_LISTEN_REQ , HMAC_FSM_INPUT_LISTEN_TIMEOUT , HMAC_FSM_INPUT_MISC , HMAC_FSM_INPUT_START_REQ ,   HMAC_FSM_INPUT_SCAN_REQ , HMAC_FSM_INPUT_JOIN_REQ , HMAC_FSM_INPUT_AUTH_REQ , HMAC_FSM_INPUT_ASOC_REQ ,   HMAC_FSM_INPUT_TYPE_BUTT }
enum	hmac_misc_input_enum { HMAC_MISC_TBTT , HMAC_MISC_ERROR , HMAC_MISC_RADAR , HMAC_MISC_BUTT }

函数
osal_u32	hmac_config_sta_update_rates_etc (hmac_vap_stru *hmac_vap, mac_cfg_mode_param_stru *cfg_mode, mac_bss_dscr_stru *bss_dscr)
osal_void	hmac_fsm_init_etc (osal_void)
osal_u32	hmac_fsm_call_func_ap_etc (hmac_vap_stru *hmac_vap, hmac_fsm_input_type_enum_uint8 input, osal_void *p_param)
osal_u32	hmac_fsm_call_func_sta_etc (hmac_vap_stru *hmac_vap, hmac_fsm_input_type_enum_uint8 input, osal_void *p_param)
osal_void	hmac_fsm_change_state_etc (hmac_vap_stru *hmac_vap, mac_vap_state_enum_uint8 vap_state)

宏定义说明

HMAC_FSM_AP_INPUT_TYPE_BUTT

#define HMAC_FSM_AP_INPUT_TYPE_BUTT   (HMAC_FSM_INPUT_MISC + 1)

HMAC_FSM_STA_INPUT_TYPE_BUTT

#define HMAC_FSM_STA_INPUT_TYPE_BUTT   HMAC_FSM_INPUT_TYPE_BUTT

HMAC_SWITCH_STA_PSM_MAX_CNT

#define HMAC_SWITCH_STA_PSM_MAX_CNT   (HMAC_SWITCH_STA_PSM_PERIOD / WLAN_SLEEP_TIMER_PERIOD)

HMAC_SWITCH_STA_PSM_PERIOD

#define HMAC_SWITCH_STA_PSM_PERIOD   120000

THIS_FILE_ID

#define THIS_FILE_ID   OAM_FILE_ID_HMAC_FSM_H

类型定义说明

hmac_fsm_func

typedef osal_u32(* hmac_fsm_func) (hmac_vap_stru *hmac_vap, osal_void *p_param)

hmac_fsm_input_type_enum_uint8

typedef osal_u8 hmac_fsm_input_type_enum_uint8

hmac_misc_input_enum_uint8

typedef osal_u8 hmac_misc_input_enum_uint8

枚举类型说明

hmac_fsm_input_type_enum

enum hmac_fsm_input_type_enum

枚举值
HMAC_FSM_INPUT_RX_MGMT
HMAC_FSM_INPUT_RX_DATA
HMAC_FSM_INPUT_TX_DATA
HMAC_FSM_INPUT_TIMER0_OUT
HMAC_FSM_INPUT_LISTEN_REQ
HMAC_FSM_INPUT_LISTEN_TIMEOUT
HMAC_FSM_INPUT_MISC
HMAC_FSM_INPUT_START_REQ
HMAC_FSM_INPUT_SCAN_REQ
HMAC_FSM_INPUT_JOIN_REQ
HMAC_FSM_INPUT_AUTH_REQ
HMAC_FSM_INPUT_ASOC_REQ
HMAC_FSM_INPUT_TYPE_BUTT

hmac_misc_input_enum

enum hmac_misc_input_enum

枚举值
HMAC_MISC_TBTT
HMAC_MISC_ERROR
HMAC_MISC_RADAR
HMAC_MISC_BUTT

函数说明

hmac_config_sta_update_rates_etc()

osal_u32 hmac_config_sta_update_rates_etc ( hmac_vap_stru *  hmac_vap, mac_cfg_mode_param_stru *  cfg_mode, mac_bss_dscr_stru *  bss_dscr  )

extern

hmac_fsm_call_func_ap_etc()

osal_u32 hmac_fsm_call_func_ap_etc ( hmac_vap_stru *  hmac_vap, hmac_fsm_input_type_enum_uint8  input, osal_void *  p_param  )

extern

hmac_fsm_call_func_sta_etc()

osal_u32 hmac_fsm_call_func_sta_etc ( hmac_vap_stru *  hmac_vap, hmac_fsm_input_type_enum_uint8  input, osal_void *  p_param  )

extern

hmac_fsm_change_state_etc()

osal_void hmac_fsm_change_state_etc ( hmac_vap_stru *  hmac_vap, mac_vap_state_enum_uint8  vap_state  )

extern

hmac_fsm_init_etc()

osal_void hmac_fsm_init_etc ( osal_void  )

extern
