#include "td_type.h"
#include "frw_ext_common_rom.h"
#include "wlan_mib_type.h"
#include "hal_ops_common_rom.h"
#include "oal_types_device_rom.h"
#include "wlan_types_base_rom.h"

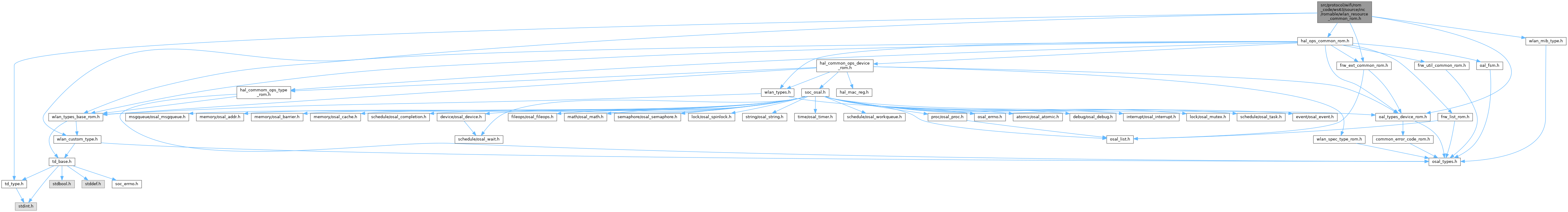

wlan_resource_common_rom.h 的引用(Include)关系图:

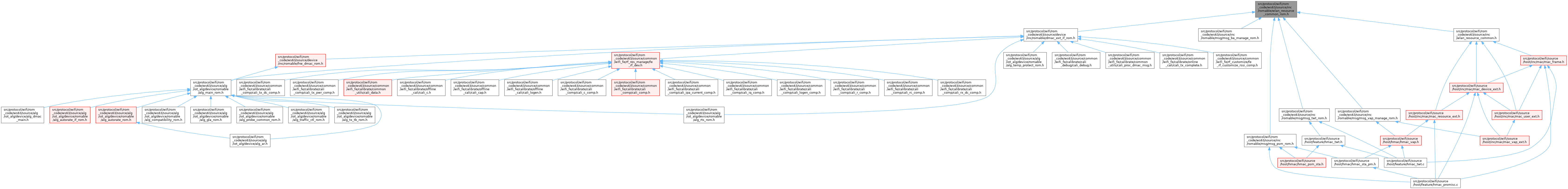

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	_mac_sta_pm_handler

struct	mac_cfg_p2p_ops_param_stru

struct	mac_cfg_p2p_noa_param_stru

struct	mac_cfg_uapsd_sta_stru

struct	mac_cfg_twt_basic_param_stru

struct	mac_cfg_twt_stru

struct	mac_scanned_all_bss_info

struct	mac_fcs_cfg_stru

struct	mac_fcs_event_stru

struct	tag_mac_fcs_mgr_stru

struct	mac_cfg_tx_user_rate_stru

struct	mac_cfg_meminfo_stru

struct	mac_cfg_soft_retry_times_stru

struct	mac_res_user_idx_size_stru

struct	mac_res_user_cnt_size_stru

union	mac_pkt_debug_ctl_stru

struct	mac_performance_stru

struct	service_control_msg

struct	mac_cfg_ar_tx_params_stru

宏定义
#define	MAC_FCS_DEFAULT_PROTECT_TIME_OUT 5120 /* us */

#define	MAC_FCS_DEFAULT_PROTECT_TIME_OUT3 15000 /* us */

#define	MAC_ONE_PACKET_TIME_OUT_DEFAULT 500

#define	MAC_ONE_PACKET_TIME_OUT 1000

#define	MAC_ONE_PACKET_TIME_OUT3 2000

#define	MAC_FCS_CTS_MAX_DURATION 32767 /* us */

#define	PF_HAL_BYPASS_LEN 1300

#define	SERVICE_CONTROL_SDP BIT7

类型定义
typedef osal_u8	mac_back_variant_enum_uint8

typedef osal_u8	mac_vap_state_enum_uint8

typedef struct _mac_sta_pm_handler	mac_sta_pm_handler_stru

typedef osal_u8	mac_pm_switch_enum_uint8

typedef osal_u8	mac_pm_ctrl_type_enum_uint8

typedef osal_u8	mac_fcs_notify_type_enum_uint8

typedef osal_u8	mac_fcs_state_enum_uint8

typedef osal_u8	mac_fcs_err_enum_uint8

typedef osal_u8	mac_fcs_type_enum_uint8

typedef osal_void(*	mac_fcs_notify_func) (const mac_fcs_event_stru *)

typedef struct tag_mac_fcs_mgr_stru	mac_fcs_mgr_stru

typedef osal_u8	mac_meminfo_cmd_enum_uint8

枚举
enum	mac_back_variant_enum { MAC_BACK_BASIC = 0 , MAC_BACK_COMPRESSED = 2 , MAC_BACK_MULTI_TID = 3 , MAC_BACK_BUTT }

enum	mac_vap_state_enum { MAC_VAP_STATE_INIT = 0 , MAC_VAP_STATE_UP = 1 , MAC_VAP_STATE_PAUSE = 2 , MAC_VAP_STATE_LISTEN = 3 , MAC_VAP_STATE_AP_WAIT_START = 4 , MAC_VAP_STATE_STA_FAKE_UP = 5 , MAC_VAP_STATE_STA_WAIT_SCAN = 6 , MAC_VAP_STATE_STA_SCAN_COMP = 7 , MAC_VAP_STATE_STA_JOIN_COMP = 8 , MAC_VAP_STATE_STA_WAIT_AUTH_SEQ2 = 9 , MAC_VAP_STATE_STA_WAIT_AUTH_SEQ4 = 10 , MAC_VAP_STATE_STA_AUTH_COMP = 11 , MAC_VAP_STATE_STA_WAIT_ASOC = 12 , MAC_VAP_STATE_STA_OBSS_SCAN = 13 , MAC_VAP_STATE_STA_BG_SCAN = 14 , MAC_VAP_STATE_ROAMING = 15 , MAC_VAP_STATE_BUTT }

enum	mac_pm_switch_enum { MAC_STA_PM_SWITCH_OFF = 0 , MAC_STA_PM_SWITCH_ON = 1 , MAC_STA_PM_MANUAL_MODE_ON = 2 , MAC_STA_PM_MANUAL_MODE_OFF = 3 , MAC_STA_PM_SWITCH_RESET = 4 , MAC_STA_PM_SWITCH_BUTT , MAC_STA_PM_DISABLE_FOREVER = 255 }

enum	mac_pm_ctrl_type_enum { MAC_STA_PM_CTRL_TYPE_HOST = 0 , MAC_STA_PM_CTRL_TYPE_MVAP = 1 , MAC_STA_PM_CTRL_TYPE_MONITOR = 2 , MAC_STA_PM_CTRL_TYPE_ROAM = 3 , MAC_STA_PM_CTRL_TYPE_TWT = 4 , MAC_STA_PM_CTRL_TYPE_SDP = 5 , MAC_STA_PM_CTRL_TYPE_BUTT }

enum	ps_user_mode_enum { NO_POWERSAVE = 0 , MIN_FAST_PS = 1 , MAX_FAST_PS = 2 , MIN_PSPOLL_PS = 3 , MAX_PSPOLL_PS = 4 , NUM_PS_MODE = 5 }

enum	mac_fcs_notify_type_enum { MAC_FCS_NOTIFY_TYPE_SWITCH_AWAY = 0 , MAC_FCS_NOTIFY_TYPE_SWITCH_BACK , MAC_FCS_NOTIFY_TYPE_BUTT }

enum	mac_fcs_state_enum { MAC_FCS_STATE_STANDBY = 0 , MAC_FCS_STATE_REQUESTED , MAC_FCS_STATE_IN_PROGESS , MAC_FCS_STATE_BUTT }

enum	mac_fcs_err_enum { MAC_FCS_SUCCESS = 0 , MAC_FCS_ERR_NULL_PTR , MAC_FCS_ERR_INVALID_CFG , MAC_FCS_ERR_BUSY , MAC_FCS_ERR_UNKNOWN_ERR }

enum	mac_fcs_type_enum { MAC_FCS_START_SWITCH_CHNL = 0 , MAC_FCS_START_SAME_CHNL , MAC_FCS_START_SWITCH_CHNL_ENHANCED , MAC_FCS_START_SAME_CHNL_ENHANCED , MAC_FCS_START_SEND_ONE_PACKET , MAC_FCS_START_BUTT }

enum	mac_meminfo_cmd_enum { MAC_MEMINFO_USER = 0 , MAC_MEMINFO_VAP , MAC_MEMINFO_POOL_INFO , MAC_MEMINFO_SDIO_TRX , MAC_MEMINFO_ALL , MAC_MEMINFO_BUTT }

enum	mac_performance_mode_enum { PF_HAL_BYPASS , PF_FIX_AGGR , PF_BYPASS_SCHE , PF_FIX_RATE , PF_TYPE_BUTT }

宏定义说明

◆ MAC_FCS_CTS_MAX_DURATION

#define MAC_FCS_CTS_MAX_DURATION 32767 /* us */

◆ MAC_FCS_DEFAULT_PROTECT_TIME_OUT

#define MAC_FCS_DEFAULT_PROTECT_TIME_OUT 5120 /* us */

◆ MAC_FCS_DEFAULT_PROTECT_TIME_OUT3

#define MAC_FCS_DEFAULT_PROTECT_TIME_OUT3 15000 /* us */

◆ MAC_ONE_PACKET_TIME_OUT

#define MAC_ONE_PACKET_TIME_OUT 1000

◆ MAC_ONE_PACKET_TIME_OUT3

#define MAC_ONE_PACKET_TIME_OUT3 2000

◆ MAC_ONE_PACKET_TIME_OUT_DEFAULT

#define MAC_ONE_PACKET_TIME_OUT_DEFAULT 500

◆ PF_HAL_BYPASS_LEN

#define PF_HAL_BYPASS_LEN 1300

◆ SERVICE_CONTROL_SDP

#define SERVICE_CONTROL_SDP BIT7

类型定义说明

◆ mac_back_variant_enum_uint8

typedef osal_u8 mac_back_variant_enum_uint8

◆ mac_fcs_err_enum_uint8

typedef osal_u8 mac_fcs_err_enum_uint8

◆ mac_fcs_mgr_stru

typedef struct tag_mac_fcs_mgr_stru mac_fcs_mgr_stru

◆ mac_fcs_notify_func

typedef osal_void(* mac_fcs_notify_func) (const mac_fcs_event_stru *)

◆ mac_fcs_notify_type_enum_uint8

typedef osal_u8 mac_fcs_notify_type_enum_uint8

◆ mac_fcs_state_enum_uint8

typedef osal_u8 mac_fcs_state_enum_uint8

◆ mac_fcs_type_enum_uint8

typedef osal_u8 mac_fcs_type_enum_uint8

◆ mac_meminfo_cmd_enum_uint8

typedef osal_u8 mac_meminfo_cmd_enum_uint8

◆ mac_pm_ctrl_type_enum_uint8

typedef osal_u8 mac_pm_ctrl_type_enum_uint8

◆ mac_pm_switch_enum_uint8

typedef osal_u8 mac_pm_switch_enum_uint8

◆ mac_sta_pm_handler_stru

typedef struct _mac_sta_pm_handler mac_sta_pm_handler_stru

◆ mac_vap_state_enum_uint8

typedef osal_u8 mac_vap_state_enum_uint8

枚举类型说明

◆ mac_back_variant_enum

enum mac_back_variant_enum

枚举值
MAC_BACK_BASIC
MAC_BACK_COMPRESSED
MAC_BACK_MULTI_TID
MAC_BACK_BUTT

◆ mac_fcs_err_enum

enum mac_fcs_err_enum

枚举值
MAC_FCS_SUCCESS
MAC_FCS_ERR_NULL_PTR
MAC_FCS_ERR_INVALID_CFG
MAC_FCS_ERR_BUSY
MAC_FCS_ERR_UNKNOWN_ERR

◆ mac_fcs_notify_type_enum

enum mac_fcs_notify_type_enum

枚举值
MAC_FCS_NOTIFY_TYPE_SWITCH_AWAY
MAC_FCS_NOTIFY_TYPE_SWITCH_BACK
MAC_FCS_NOTIFY_TYPE_BUTT

◆ mac_fcs_state_enum

enum mac_fcs_state_enum

枚举值
MAC_FCS_STATE_STANDBY
MAC_FCS_STATE_REQUESTED
MAC_FCS_STATE_IN_PROGESS
MAC_FCS_STATE_BUTT

◆ mac_fcs_type_enum

enum mac_fcs_type_enum

枚举值
MAC_FCS_START_SWITCH_CHNL
MAC_FCS_START_SAME_CHNL
MAC_FCS_START_SWITCH_CHNL_ENHANCED
MAC_FCS_START_SAME_CHNL_ENHANCED
MAC_FCS_START_SEND_ONE_PACKET
MAC_FCS_START_BUTT

◆ mac_meminfo_cmd_enum

enum mac_meminfo_cmd_enum

枚举值
MAC_MEMINFO_USER
MAC_MEMINFO_VAP
MAC_MEMINFO_POOL_INFO
MAC_MEMINFO_SDIO_TRX
MAC_MEMINFO_ALL
MAC_MEMINFO_BUTT

◆ mac_performance_mode_enum

enum mac_performance_mode_enum

枚举值
PF_HAL_BYPASS
PF_FIX_AGGR
PF_BYPASS_SCHE
PF_FIX_RATE
PF_TYPE_BUTT

◆ mac_pm_ctrl_type_enum

enum mac_pm_ctrl_type_enum

枚举值
MAC_STA_PM_CTRL_TYPE_HOST
MAC_STA_PM_CTRL_TYPE_MVAP
MAC_STA_PM_CTRL_TYPE_MONITOR
MAC_STA_PM_CTRL_TYPE_ROAM
MAC_STA_PM_CTRL_TYPE_TWT
MAC_STA_PM_CTRL_TYPE_SDP
MAC_STA_PM_CTRL_TYPE_BUTT

◆ mac_pm_switch_enum

enum mac_pm_switch_enum

枚举值
MAC_STA_PM_SWITCH_OFF
MAC_STA_PM_SWITCH_ON
MAC_STA_PM_MANUAL_MODE_ON
MAC_STA_PM_MANUAL_MODE_OFF
MAC_STA_PM_SWITCH_RESET
MAC_STA_PM_SWITCH_BUTT
MAC_STA_PM_DISABLE_FOREVER

◆ mac_vap_state_enum

enum mac_vap_state_enum

枚举值
MAC_VAP_STATE_INIT
MAC_VAP_STATE_UP
MAC_VAP_STATE_PAUSE
MAC_VAP_STATE_LISTEN
MAC_VAP_STATE_AP_WAIT_START
MAC_VAP_STATE_STA_FAKE_UP
MAC_VAP_STATE_STA_WAIT_SCAN
MAC_VAP_STATE_STA_SCAN_COMP
MAC_VAP_STATE_STA_JOIN_COMP
MAC_VAP_STATE_STA_WAIT_AUTH_SEQ2
MAC_VAP_STATE_STA_WAIT_AUTH_SEQ4
MAC_VAP_STATE_STA_AUTH_COMP
MAC_VAP_STATE_STA_WAIT_ASOC
MAC_VAP_STATE_STA_OBSS_SCAN
MAC_VAP_STATE_STA_BG_SCAN
MAC_VAP_STATE_ROAMING
MAC_VAP_STATE_BUTT

◆ ps_user_mode_enum

enum ps_user_mode_enum

枚举值
NO_POWERSAVE
MIN_FAST_PS
MAX_FAST_PS
MIN_PSPOLL_PS
MAX_PSPOLL_PS
NUM_PS_MODE
