#include "dmac_ext_if_hcm.h"
#include "hmac_fsm.h"
#include "msg_twt_rom.h"

hmac_twt.h 的引用(Include)关系图:

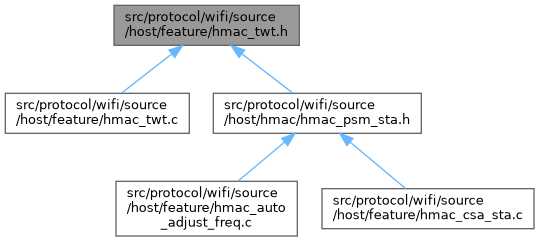

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	mac_device_twt_custom_stru

struct	mac_cfg_twt_information_req_param_stru

struct	mac_cfg_twt_setup_req_param_stru

struct	mac_cfg_twt_teardown_req_param_stru

struct	sta_twt_para_stru

宏定义
#define	THIS_FILE_ID OAM_FILE_ID_HMAC_TWT_H

#define	HMAC_TWT_P2P_RUNNING_VAP_NUM 3

#define	HMAC_TWT_CATEGORY 0

#define	HMAC_TWT_ACTION 1

#define	HMAC_TWT_FLOW_ID 2

#define	HMAC_TWT_BITS_OFFSET 32

#define	TWT_RX_PARA_NUM 11

#define	WAKE_DURATION_UNIT0 256

#define	WAKE_DURATION_UNIT1 1024

#define	MAC_XCAPS_EX_TWT_LEN 10

类型定义
typedef osal_u32	hmac_d2h_twt_sync_type_enum_u32

typedef osal_u8(*	hmac_twt_is_session_enable_cb) (const hmac_vap_stru *hmac_vap)

typedef osal_bool(*	hmac_is_twt_processed_not_need_buff_cb) (const hmac_vap_stru *hmac_vap)

typedef osal_bool(*	hmac_is_twt_need_buff_cb) (hmac_vap_stru *hmac_vap)

typedef osal_u32(*	hmac_twt_tx_action_cb) (hmac_vap_stru hmac_vap, const hmac_user_stru hmac_user, const hmac_ctx_action_event_stru ctx_action_event, oal_netbuf_stru netbuf, const mac_tx_ctl_stru *tx_ctl)

typedef osal_u32(*	hmac_p2p_teardown_twt_session_cb) (hmac_device_stru *hmac_device)

typedef osal_void(*	hmac_process_update_twt_cb) (hmac_vap_stru hmac_vap, hmac_user_stru hmac_user, osal_u8 *payload, osal_u16 msg_len)

typedef osal_u8(*	hmac_twt_get_req_bit_cb) (osal_u8 vap_id)

typedef osal_void(*	hmac_set_ext_cap_twt_req_cb) (hmac_vap_stru hmac_vap, mac_ext_cap_ie_stru ext_cap_ie, osal_u8 *ie_len)

枚举
enum	hmac_twt_status_enum { TWT_SESSION_OFF = 0 , TWT_SESSION_ON = 1 , TWT_SESSION_SUSPEND = 2 }

enum	hmac_next_twt_subfield_size_enum { HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_0 = 0 , HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_32 = 1 , HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_48 = 2 , HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_64 = 3 , HMAC_NEXT_TWT_SUBFIELD_SIZE_MAX }

enum	hmac_twt_event_type_enum { HMAC_TWT_START_EVENT = 0 , HMAC_TWT_END_EVENT = 1 , HMAC_TWT_EVENT_TYPE_MAX }

enum	hmac_d2hd_twt_sync_type_enum { TWT_UPDATE_SESSION_CFG = 0 , TWT_UPDATE_PS_PAUSE_CFG = 1 , TWT_PS_HANDLE_CFG = 2 }

变量
static osal_u32	used

宏定义说明

◆ HMAC_TWT_ACTION

#define HMAC_TWT_ACTION 1

◆ HMAC_TWT_BITS_OFFSET

#define HMAC_TWT_BITS_OFFSET 32

◆ HMAC_TWT_CATEGORY

#define HMAC_TWT_CATEGORY 0

◆ HMAC_TWT_FLOW_ID

#define HMAC_TWT_FLOW_ID 2

◆ HMAC_TWT_P2P_RUNNING_VAP_NUM

#define HMAC_TWT_P2P_RUNNING_VAP_NUM 3

◆ MAC_XCAPS_EX_TWT_LEN

#define MAC_XCAPS_EX_TWT_LEN 10

◆ THIS_FILE_ID

#define THIS_FILE_ID OAM_FILE_ID_HMAC_TWT_H

◆ TWT_RX_PARA_NUM

#define TWT_RX_PARA_NUM 11

◆ WAKE_DURATION_UNIT0

#define WAKE_DURATION_UNIT0 256

◆ WAKE_DURATION_UNIT1

#define WAKE_DURATION_UNIT1 1024

类型定义说明

◆ hmac_d2h_twt_sync_type_enum_u32

typedef osal_u32 hmac_d2h_twt_sync_type_enum_u32

◆ hmac_is_twt_need_buff_cb

typedef osal_bool(* hmac_is_twt_need_buff_cb) (hmac_vap_stru *hmac_vap)

◆ hmac_is_twt_processed_not_need_buff_cb

typedef osal_bool(* hmac_is_twt_processed_not_need_buff_cb) (const hmac_vap_stru *hmac_vap)

◆ hmac_p2p_teardown_twt_session_cb

typedef osal_u32(* hmac_p2p_teardown_twt_session_cb) (hmac_device_stru *hmac_device)

◆ hmac_process_update_twt_cb

typedef osal_void(* hmac_process_update_twt_cb) (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user, osal_u8 *payload, osal_u16 msg_len)

◆ hmac_set_ext_cap_twt_req_cb

typedef osal_void(* hmac_set_ext_cap_twt_req_cb) (hmac_vap_stru *hmac_vap, mac_ext_cap_ie_stru *ext_cap_ie, osal_u8 *ie_len)

◆ hmac_twt_get_req_bit_cb

typedef osal_u8(* hmac_twt_get_req_bit_cb) (osal_u8 vap_id)

◆ hmac_twt_is_session_enable_cb

typedef osal_u8(* hmac_twt_is_session_enable_cb) (const hmac_vap_stru *hmac_vap)

◆ hmac_twt_tx_action_cb

typedef osal_u32(* hmac_twt_tx_action_cb) (hmac_vap_stru *hmac_vap, const hmac_user_stru *hmac_user, const hmac_ctx_action_event_stru *ctx_action_event, oal_netbuf_stru *netbuf, const mac_tx_ctl_stru *tx_ctl)

枚举类型说明

◆ hmac_d2hd_twt_sync_type_enum

enum hmac_d2hd_twt_sync_type_enum

枚举值
TWT_UPDATE_SESSION_CFG
TWT_UPDATE_PS_PAUSE_CFG
TWT_PS_HANDLE_CFG

◆ hmac_next_twt_subfield_size_enum

enum hmac_next_twt_subfield_size_enum

枚举值
HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_0
HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_32
HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_48
HMAC_NEXT_TWT_SUBFIELD_SIZE_BITS_64
HMAC_NEXT_TWT_SUBFIELD_SIZE_MAX

◆ hmac_twt_event_type_enum

enum hmac_twt_event_type_enum

枚举值
HMAC_TWT_START_EVENT
HMAC_TWT_END_EVENT
HMAC_TWT_EVENT_TYPE_MAX

◆ hmac_twt_status_enum

enum hmac_twt_status_enum

枚举值
TWT_SESSION_OFF
TWT_SESSION_ON
TWT_SESSION_SUSPEND

变量说明

◆ used

osal_void used
