hmac_beacon.h 文件参考

#include "hmac_vap.h"
#include "mac_resource_ext.h"
#include "mac_vap_ext.h"

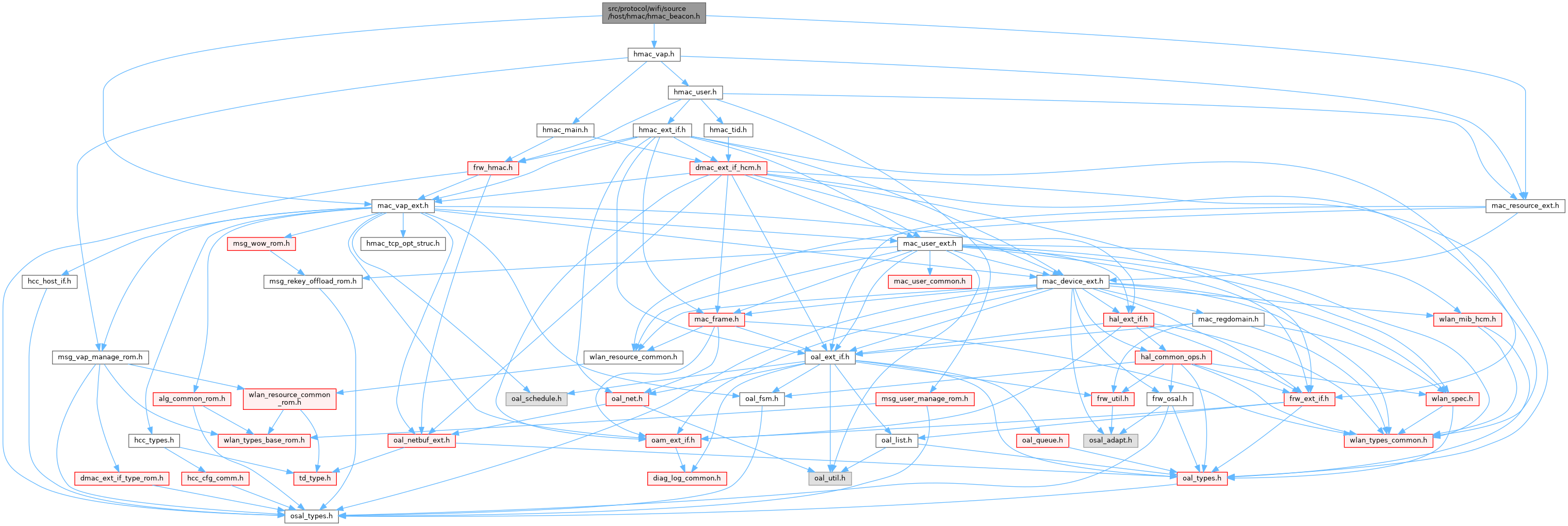

hmac_beacon.h 的引用(Include)关系图:

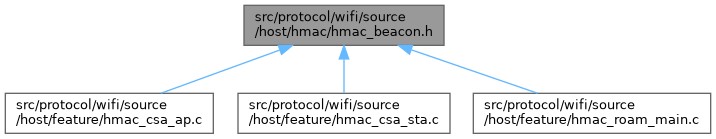

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	hmac_beacon_ie_offset_stru

宏定义
#define	HMAC_WMM_QOS_PARAMS_HDR_LEN   8
#define	HMAC_MAX_WAIT_BEACON_TIMES   5
#define	WLAN_PROTECTION_NON_ERP_AGING_THRESHOLD   (60) /* ERP 老化计数最大值 */
#define	WLAN_PROTECTION_NON_HT_AGING_THRESHOLD   (60) /* HT 老化计数最大值 */
#define	LINKLOSS_THRESHOLD_INCR   1
#define	LINKLOSS_THRESHOLD_BEACON_MAX_INTVAL   400
#define	LINKLOSS_PROBE_REQ_MIN_CNT   10 /* linkloss发送probe req最小阈值 */
#define	LINKLOSS_PORBE_REQ_MAX_CNT   60 /* linkloss发送probe req最大阈值 */
#define	LINKLOSS_PROBE_REQ_MIN_MOD   3 /* 每3次tbtt中断发送一次probe req */
#define	LINKLOSS_PROBE_REQ_MAX_MOD   10 /* 每10次tbtt中断发送一次probe req */
#define	RX_DATA_RATE   (50000) /* 50M */
#define	STA_TBTT_INTERVAL_TH   5

函数
osal_void	hmac_sta_post_bw_verify_switch (const hmac_vap_stru *hmac_vap, hmac_sta_bw_switch_type_enum_enum_uint8 verify_reslt)
osal_u32	hmac_sta_set_bandwith_handler (hmac_vap_stru *hmac_vap, wlan_channel_bandwidth_enum_uint8 sta_new_bandwidth)
osal_u32	hmac_beacon_alloc (hmac_vap_stru *hmac_vap)
osal_u32	hmac_beacon_free (hmac_vap_stru *hmac_vap)
osal_s32	hmac_tbtt_event_handler (hmac_vap_stru *hmac_vap, frw_msg *msg)
osal_u32	hmac_tbtt_event_sta (osal_void *arg)
osal_void	hmac_vap_linkloss_channel_clean (hmac_vap_stru *hmac_vap, oal_netbuf_stru *netbuf)
osal_u32	hmac_sta_up_rx_beacon_check (hmac_vap_stru *hmac_vap, oal_netbuf_stru *netbuf, osal_u8 *go_on)
osal_u16	hmac_encap_beacon (hmac_vap_stru *hmac_vap, osal_u8 *beacon_buffer)
osal_void	hmac_sta_beacon_offload_test (hmac_vap_stru *hmac_vap, osal_u8 *host_sleep)
osal_u32	hmac_protection_update_mib_ap (hmac_vap_stru *hmac_vap)
osal_u32	hmac_protection_del_user (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user)
osal_void	hmac_protection_stop_timer (hmac_vap_stru *hmac_vap)
osal_u32	hmac_set_protection_mode (hmac_vap_stru *hmac_vap, const hmac_user_stru *hmac_user, wlan_prot_mode_enum_uint8 prot_mode)
osal_void	hmac_ap_up_rx_obss_beacon (hmac_vap_stru *hmac_vap, oal_netbuf_stru *netbuf)
osal_void	hmac_ap_wait_start_rx_obss_beacon (hmac_device_stru *hmac_device, const hmac_vap_stru *hmac_vap, oal_netbuf_stru *netbuf)
osal_void	hmac_vap_linkloss_init (hmac_vap_stru *hmac_vap)
osal_void	hmac_vap_linkloss_clean (hmac_vap_stru *hmac_vap)
osal_s32	hmac_config_set_linkloss_params (hmac_vap_stru *hmac_vap, frw_msg *msg)
osal_u32	hmac_irq_tbtt_ap_isr (osal_u8 mac_vap_id)
osal_void	hmac_sta_stop_tbtt_timer (hmac_vap_stru *hmac_vap)
osal_void	hmac_sta_align_tbtt_timer (hmac_vap_stru *hmac_vap, oal_bool_enum_uint8 need_addition)

宏定义说明

HMAC_MAX_WAIT_BEACON_TIMES

#define HMAC_MAX_WAIT_BEACON_TIMES   5

HMAC_WMM_QOS_PARAMS_HDR_LEN

#define HMAC_WMM_QOS_PARAMS_HDR_LEN   8

LINKLOSS_PORBE_REQ_MAX_CNT

#define LINKLOSS_PORBE_REQ_MAX_CNT   60 /* linkloss发送probe req最大阈值 */

LINKLOSS_PROBE_REQ_MAX_MOD

#define LINKLOSS_PROBE_REQ_MAX_MOD   10 /* 每10次tbtt中断发送一次probe req */

LINKLOSS_PROBE_REQ_MIN_CNT

#define LINKLOSS_PROBE_REQ_MIN_CNT   10 /* linkloss发送probe req最小阈值 */

LINKLOSS_PROBE_REQ_MIN_MOD

#define LINKLOSS_PROBE_REQ_MIN_MOD   3 /* 每3次tbtt中断发送一次probe req */

LINKLOSS_THRESHOLD_BEACON_MAX_INTVAL

#define LINKLOSS_THRESHOLD_BEACON_MAX_INTVAL   400

LINKLOSS_THRESHOLD_INCR

#define LINKLOSS_THRESHOLD_INCR   1

RX_DATA_RATE

#define RX_DATA_RATE   (50000) /* 50M */

STA_TBTT_INTERVAL_TH

#define STA_TBTT_INTERVAL_TH   5

WLAN_PROTECTION_NON_ERP_AGING_THRESHOLD

#define WLAN_PROTECTION_NON_ERP_AGING_THRESHOLD   (60) /* ERP 老化计数最大值 */

WLAN_PROTECTION_NON_HT_AGING_THRESHOLD

#define WLAN_PROTECTION_NON_HT_AGING_THRESHOLD   (60) /* HT 老化计数最大值 */

函数说明

hmac_ap_up_rx_obss_beacon()

osal_void hmac_ap_up_rx_obss_beacon	(	hmac_vap_stru *	hmac_vap,
		oal_netbuf_stru *	netbuf
	)

hmac_ap_wait_start_rx_obss_beacon()

osal_void hmac_ap_wait_start_rx_obss_beacon	(	hmac_device_stru *	hmac_device,
		const hmac_vap_stru *	hmac_vap,
		oal_netbuf_stru *	netbuf
	)

hmac_beacon_alloc()

osal_u32 hmac_beacon_alloc

(

hmac_vap_stru *

hmac_vap

)

hmac_beacon_free()

osal_u32 hmac_beacon_free

(

hmac_vap_stru *

hmac_vap

)

hmac_config_set_linkloss_params()

osal_s32 hmac_config_set_linkloss_params	(	hmac_vap_stru *	hmac_vap,
		frw_msg *	msg
	)

hmac_encap_beacon()

osal_u16 hmac_encap_beacon	(	hmac_vap_stru *	hmac_vap,
		osal_u8 *	beacon_buffer
	)

hmac_irq_tbtt_ap_isr()

osal_u32 hmac_irq_tbtt_ap_isr

(

osal_u8

mac_vap_id

)

hmac_protection_del_user()

osal_u32 hmac_protection_del_user	(	hmac_vap_stru *	hmac_vap,
		hmac_user_stru *	hmac_user
	)

hmac_protection_stop_timer()

osal_void hmac_protection_stop_timer

(

hmac_vap_stru *

hmac_vap

)

hmac_protection_update_mib_ap()

osal_u32 hmac_protection_update_mib_ap

(

hmac_vap_stru *

hmac_vap

)

hmac_set_protection_mode()

osal_u32 hmac_set_protection_mode	(	hmac_vap_stru *	hmac_vap,
		const hmac_user_stru *	hmac_user,
		wlan_prot_mode_enum_uint8	prot_mode
	)

hmac_sta_align_tbtt_timer()

osal_void hmac_sta_align_tbtt_timer	(	hmac_vap_stru *	hmac_vap,
		oal_bool_enum_uint8	need_addition
	)

hmac_sta_beacon_offload_test()

osal_void hmac_sta_beacon_offload_test	(	hmac_vap_stru *	hmac_vap,
		osal_u8 *	host_sleep
	)

hmac_sta_post_bw_verify_switch()

osal_void hmac_sta_post_bw_verify_switch ( const hmac_vap_stru *  hmac_vap, hmac_sta_bw_switch_type_enum_enum_uint8  verify_reslt  )

extern

hmac_sta_set_bandwith_handler()

osal_u32 hmac_sta_set_bandwith_handler	(	hmac_vap_stru *	hmac_vap,
		wlan_channel_bandwidth_enum_uint8	sta_new_bandwidth
	)

hmac_sta_stop_tbtt_timer()

osal_void hmac_sta_stop_tbtt_timer

(

hmac_vap_stru *

hmac_vap

)

hmac_sta_up_rx_beacon_check()

osal_u32 hmac_sta_up_rx_beacon_check	(	hmac_vap_stru *	hmac_vap,
		oal_netbuf_stru *	netbuf,
		osal_u8 *	go_on
	)

hmac_tbtt_event_handler()

osal_s32 hmac_tbtt_event_handler	(	hmac_vap_stru *	hmac_vap,
		frw_msg *	msg
	)

hmac_tbtt_event_sta()

osal_u32 hmac_tbtt_event_sta

(

osal_void *

arg

)

hmac_vap_linkloss_channel_clean()

osal_void hmac_vap_linkloss_channel_clean	(	hmac_vap_stru *	hmac_vap,
		oal_netbuf_stru *	netbuf
	)

hmac_vap_linkloss_clean()

osal_void hmac_vap_linkloss_clean

(

hmac_vap_stru *

hmac_vap

)

hmac_vap_linkloss_init()

osal_void hmac_vap_linkloss_init

(

hmac_vap_stru *

hmac_vap

)
