at_wifi.h 文件参考

#include "td_base.h"
#include "wifi_device_config.h"

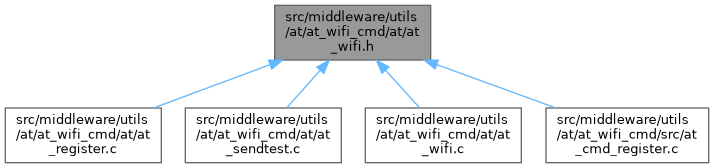

at_wifi.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	wifi_wps_config

宏定义
#define	EXT_RECONN_PERIOD_MAX   65535
#define	EXT_RECONN_PERIOD_MIN   1
#define	EXT_RECONN_COUNT_MAX   65535
#define	EXT_RECONN_COUNT_MIN   1
#define	EXT_RECONN_TIMEOUT_MIN   2
#define	EXT_WIFI_AP_KEY_LEN_MAX   64
#define	EXT_WIFI_AP_KEY_LEN_MIN   8
#define	EXT_WIFI_AP_WEP_KEY_LEN_MAX   13
#define	EXT_WIFI_AP_WEP_KEY_LEN_MIN   5
#define	EXT_WIFI_AP_WEP_HEX_KEY_LEN_MAX   26
#define	EXT_WIFI_AP_WEP_HEX_KEY_LEN_MIN   10
#define	EXT_WIFI_MS_KEY_LEN_MAX   63
#define	EXT_WIFI_MS_KEY_LEN_MIN   8
#define	EXT_WIFI_CONTRY_CODE_LEN   3
#define	EXT_WIFI_AP_KEY_LEN   64
#define	WIFI_IFNAME_MAX_SIZE   16
#define	EXT_WIFI_TXT_ADDR_LEN   17
#define	WIFI_SCAN_AP_LIMIT   64
#define	EXT_WIFI_USR_IE_MAX_SIZE   257
#define	WIFI_WPS_PIN_LEN   8
#define	EXT_WIFI_OK   0
#define	EXT_WIFI_FAIL   (-1)
#define	WIFI_MAX_NUM_USER   6

类型定义
typedef enum wifi_wps_method	wifi_wps_method
typedef struct wifi_wps_config	wifi_wps_config

枚举
enum	wifi_wps_method { WIFI_WPS_PBC , WIFI_WPS_PIN , WIFI_WPS_BUTT }

函数
TD_CONST char *	at_ssid_txt (TD_CONST td_u8 *ssid, td_u32 ssid_len)
td_void	los_at_wifi_cmd_register (td_void)
td_void	los_at_sta_factory_test_cmd_register (td_void)
td_void	los_at_mesh_cmd_register (td_void)

宏定义说明

EXT_RECONN_COUNT_MAX

#define EXT_RECONN_COUNT_MAX   65535

EXT_RECONN_COUNT_MIN

#define EXT_RECONN_COUNT_MIN   1

EXT_RECONN_PERIOD_MAX

#define EXT_RECONN_PERIOD_MAX   65535

EXT_RECONN_PERIOD_MIN

#define EXT_RECONN_PERIOD_MIN   1

EXT_RECONN_TIMEOUT_MIN

#define EXT_RECONN_TIMEOUT_MIN   2

EXT_WIFI_AP_KEY_LEN

#define EXT_WIFI_AP_KEY_LEN   64

EXT_WIFI_AP_KEY_LEN_MAX

#define EXT_WIFI_AP_KEY_LEN_MAX   64

EXT_WIFI_AP_KEY_LEN_MIN

#define EXT_WIFI_AP_KEY_LEN_MIN   8

EXT_WIFI_AP_WEP_HEX_KEY_LEN_MAX

#define EXT_WIFI_AP_WEP_HEX_KEY_LEN_MAX   26

EXT_WIFI_AP_WEP_HEX_KEY_LEN_MIN

#define EXT_WIFI_AP_WEP_HEX_KEY_LEN_MIN   10

EXT_WIFI_AP_WEP_KEY_LEN_MAX

#define EXT_WIFI_AP_WEP_KEY_LEN_MAX   13

EXT_WIFI_AP_WEP_KEY_LEN_MIN

#define EXT_WIFI_AP_WEP_KEY_LEN_MIN   5

EXT_WIFI_CONTRY_CODE_LEN

#define EXT_WIFI_CONTRY_CODE_LEN   3

EXT_WIFI_FAIL

#define EXT_WIFI_FAIL   (-1)

EXT_WIFI_MS_KEY_LEN_MAX

#define EXT_WIFI_MS_KEY_LEN_MAX   63

EXT_WIFI_MS_KEY_LEN_MIN

#define EXT_WIFI_MS_KEY_LEN_MIN   8

EXT_WIFI_OK

#define EXT_WIFI_OK   0

EXT_WIFI_TXT_ADDR_LEN

#define EXT_WIFI_TXT_ADDR_LEN   17

EXT_WIFI_USR_IE_MAX_SIZE

#define EXT_WIFI_USR_IE_MAX_SIZE   257

WIFI_IFNAME_MAX_SIZE

#define WIFI_IFNAME_MAX_SIZE   16

WIFI_MAX_NUM_USER

#define WIFI_MAX_NUM_USER   6

WIFI_SCAN_AP_LIMIT

#define WIFI_SCAN_AP_LIMIT   64

WIFI_WPS_PIN_LEN

#define WIFI_WPS_PIN_LEN   8

类型定义说明

wifi_wps_config

typedef struct wifi_wps_config wifi_wps_config

wifi_wps_method

typedef enum wifi_wps_method wifi_wps_method

枚举类型说明

wifi_wps_method

enum wifi_wps_method

枚举值
WIFI_WPS_PBC	Connection mode of WPS PBC. CNcomment:WPS PBC连接方式.CNend
WIFI_WPS_PIN	Connection mode of WPS PIN. CNcomment:WPS PIN连接方式.CNend
WIFI_WPS_BUTT

函数说明

at_ssid_txt()

TD_CONST char * at_ssid_txt	(	TD_CONST td_u8 *	ssid,
		td_u32	ssid_len
	)

at_ssid_txt - Convert SSID to a printable string @ssid: SSID (32-octet string) @ssid_len: Length of ssid in octets Returns: Pointer to a printable string

This function can be used to convert SSIDs into printable form. In most cases, SSIDs do not use unprintable characters, but IEEE 802.11 standard does not limit the used character set, so anything could be used in an SSID.

This function uses a TD_PRV buffer, so only one call can be used at the time, i.e., this is not re-entrant and the returned buffer must be used before calling this again.

los_at_mesh_cmd_register()

td_void los_at_mesh_cmd_register

(

td_void

)

los_at_sta_factory_test_cmd_register()

td_void los_at_sta_factory_test_cmd_register

(

td_void

)

los_at_wifi_cmd_register()

td_void los_at_wifi_cmd_register

(

td_void

)
