service_wifi_api.h 文件参考

#include "wifi_device_config.h"

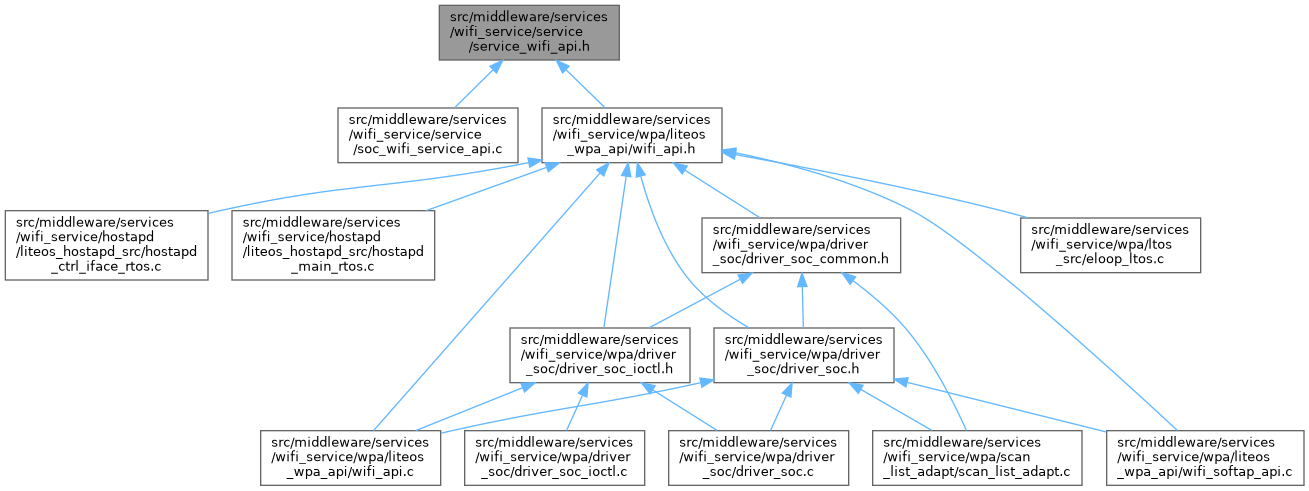

service_wifi_api.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	wifi_wps_config

类型定义
typedef enum wifi_wps_method	wifi_wps_method
typedef struct wifi_wps_config	wifi_wps_config

枚举
enum	wifi_device_type_enum { WIFI_TYPE_STA , WIFI_TYPE_HOTSPOT , WIFI_TYPE_P2P , WIFI_TYPE_BUTT }
enum	wifi_wps_method { WIFI_WPS_PBC , WIFI_WPS_PIN , WIFI_WPS_BUTT }
enum	wow_pattern_type { WOW_PATTERN_ADD , WOW_PATTERN_DEL , WOW_PATTERN_CLR , WOW_PATTERN_BUTT }
enum	wifi_return_code {   WIFI_SUCCESS = 0 , ERROR_WIFI_INVALID_ARGS = -1 , ERROR_WIFI_CHIP_INVALID = -2 , ERROR_WIFI_IFACE_INVALID = -3 ,   ERROR_WIFI_RTT_CONTROLLER_INVALID = -4 , ERROR_WIFI_NOT_SUPPORTED = -5 , ERROR_WIFI_NOT_AVAILABLE = -6 , ERROR_WIFI_NOT_STARTED = -7 ,   ERROR_WIFI_BUSY = -8 , ERROR_WIFI_INVALID_PASSWORD = -9 , ERROR_WIFI_UNKNOWN = -128 }

函数
int	uapi_wifi_sta_set_protocol_mode (protocol_mode_enum mode)
	Set protocol mode of sta.CNcomment:设置station接口的protocol模式.CNend
protocol_mode_enum	uapi_wifi_sta_get_protocol_mode (void)
	Get protocol mode of.CNcomment:获取station接口的protocol模式.CNend
int	uapi_wifi_softap_set_protocol_mode (protocol_mode_enum mode)
	Set protocol mode of softap.CNcomment:设置softap接口的protocol模式.CNend
protocol_mode_enum	uapi_wifi_softap_get_protocol_mode (void)
	Get protocol mode of softap.CNcomment:获取softap接口的protocol模式.CNend
int	uapi_wifi_set_pmf (wifi_pmf_option_enum pmf)
	Config pmf settings of sta.CNcomment:配置station的pmf.CNend
wifi_pmf_option_enum	uapi_wifi_get_pmf (void)
struct ext_wifi_dev *	wifi_dev_get (ext_wifi_iftype iftype)
	Get wifi device config.CNcomment:获取wifi device的配置.CNend

类型定义说明

wifi_wps_config

typedef struct wifi_wps_config wifi_wps_config

Config of wps.
CNcomment:wps的配置.CNend

wifi_wps_method

typedef enum wifi_wps_method wifi_wps_method

Connection mode of WPS.
CNcomment:WPS的连接方式.CNend

枚举类型说明

wifi_device_type_enum

enum wifi_device_type_enum

Type of WiFi device.
CNcomment:WiFi设备的类型. CNend

枚举值
WIFI_TYPE_STA	STAION. CNcomment:STAION.CNend
WIFI_TYPE_HOTSPOT	HOTSPOT. CNcomment:HOTSPOT.CNend
WIFI_TYPE_P2P	P2P. CNcomment:P2P.CNend
WIFI_TYPE_BUTT

wifi_return_code

enum wifi_return_code

Enumeration of return codes.
CNcomment:返回码的枚举. CNend

枚举值
WIFI_SUCCESS	No errors. CNcomment:没有错误.CNend
ERROR_WIFI_INVALID_ARGS	Invalid parameters.CNcomment:无效参数.CNend
ERROR_WIFI_CHIP_INVALID	Invalid chip.CNcomment:无效芯片.CNend
ERROR_WIFI_IFACE_INVALID	Invalid WiFi interface.CNcomment:无效的WiFi接口.CNend
ERROR_WIFI_RTT_CONTROLLER_INVALID	Invalid RTT controller.CNcomment:无效的RTT控制器.CNend
ERROR_WIFI_NOT_SUPPORTED	WiFi not supported by the current version or device. CNcomment:当前版本或设备不支持WiFi.CNend
ERROR_WIFI_NOT_AVAILABLE	WiFi unavailable.CNcomment:WiFi不可用.CNend
ERROR_WIFI_NOT_STARTED	Wi-Fi not initialized or starte.CNcomment:WiFi未初始化或者开启.CNend
ERROR_WIFI_BUSY	System busy.CNcomment:系统忙.CNend
ERROR_WIFI_INVALID_PASSWORD	WiFi invalid password.CNcomment:WiFi密码无效.CNend
ERROR_WIFI_UNKNOWN	Unknown error.CNcomment:未知的错误.CNend

wifi_wps_method

enum wifi_wps_method

Connection mode of WPS.
CNcomment:WPS的连接方式.CNend

枚举值
WIFI_WPS_PBC	Connection mode of WPS PBC. CNcomment:WPS PBC连接方式.CNend
WIFI_WPS_PIN	Connection mode of WPS PIN. CNcomment:WPS PIN连接方式.CNend
WIFI_WPS_BUTT

wow_pattern_type

enum wow_pattern_type

Type of wow pattern.
CNcomment:wow pattern类型.CNend

枚举值
WOW_PATTERN_ADD	Add Pattern. CNcomment:添加模式.CNend
WOW_PATTERN_DEL	DEL Pattern. CNcomment:删除模式.CNend
WOW_PATTERN_CLR	CLR Pattern. CNcomment:清除模式.CNend
WOW_PATTERN_BUTT

函数说明

uapi_wifi_get_pmf()

wifi_pmf_option_enum uapi_wifi_get_pmf

(

void

)
