upg_patch.h 文件参考

#include <stdint.h>
#include <stdbool.h>
#include "errcode.h"
#include "upg_common_porting.h"
#include "upg.h"
#include "upg_definitions.h"

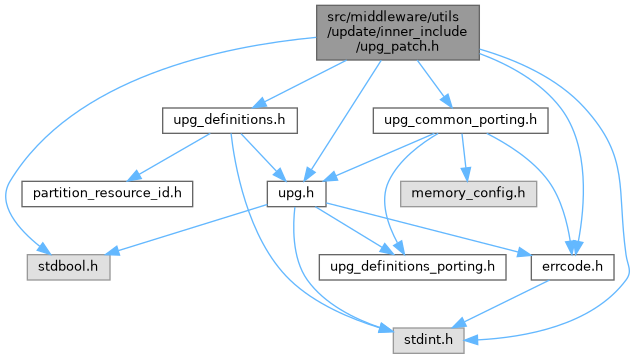

upg_patch.h 的引用(Include)关系图:

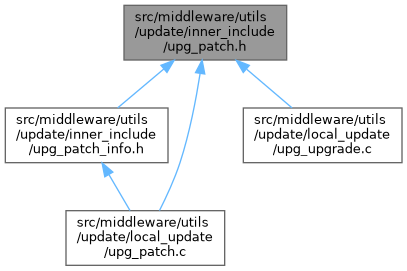

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	patch_description

宏定义
#define	DIFF_STATUS_FLASH_SIZE   0x800000
#define	FLASH_PAGES   (DIFF_STATUS_FLASH_SIZE / UPG_FLASH_PAGE_SIZE)
#define	NUM_BITS_PER_BYTE   8

类型定义
typedef struct patch_description	patch
typedef void(*	failfunc) (patch *desc)
	The function to be called when a deliberate failure is injected.
typedef errcode_t(*	fetch_image_contents) (patch *desc, uint32_t size, int32_t location, uint8_t *dest)
	The function to be called to obtain firmware image contents.
typedef errcode_t(*	prep_image_contents_for_write) (patch *desc, uint32_t image_page_no, uint8_t *page_contents)
	Update the image contents prior to writing to flash.
typedef errcode_t(*	copy_recovered_buffer_to_flash_cache) (patch *desc, int32_t flash_page, uint8_t *recover_buffer)
	Creates a plaintext copy of the recovered 4K flash. It assumes metadata pages are populated with the information about updated pages during FOTA It assumes FOTA Section is populated with the right key areas.
typedef errcode_t(*	plaintext_flash_cache_init) (patch *desc)
	Creates a plaintext version of the image flash in RAM It assumes metadata pages are populated with the information about updated pages during FOTA It assumes FOTA Section is populated with the right key areas.
typedef errcode_t(*	encrypt_one_flash_page) (upg_key_area_data_t *aes_ctrl, uint8_t *src, uint8_t *dst, int32_t ptxt_len)

函数
errcode_t	process_patch (patch *desc)
	Process the patch provided.
errcode_t	fota_pkg_task_apply_code_diff (const upg_image_header_t *image)
	Apply a FOTA core task for an image.

宏定义说明

DIFF_STATUS_FLASH_SIZE

#define DIFF_STATUS_FLASH_SIZE   0x800000

FLASH_PAGES

#define FLASH_PAGES   (DIFF_STATUS_FLASH_SIZE / UPG_FLASH_PAGE_SIZE)

NUM_BITS_PER_BYTE

#define NUM_BITS_PER_BYTE   8

类型定义说明

copy_recovered_buffer_to_flash_cache

typedef errcode_t(* copy_recovered_buffer_to_flash_cache) (patch *desc, int32_t flash_page, uint8_t *recover_buffer)

Creates a plaintext copy of the recovered 4K flash. It assumes metadata pages are populated with the information about updated pages during FOTA It assumes FOTA Section is populated with the right key areas.

参数

desc	Patch description
flash_page	Number of flash pages from base
recover_buffer	Buffer to decrypt and copy

返回

ERRCODE_SUCC errcode_t or an error code.

encrypt_one_flash_page

typedef errcode_t(* encrypt_one_flash_page) (upg_key_area_data_t *aes_ctrl, uint8_t *src, uint8_t *dst, int32_t ptxt_len)

Encrypt a UPG_FLASH_PAGE_SIZE RAM buffer and optionally specify a block of data at the start or at the end of the buffer that is to remain plaintext and not to be encrypted. It can encrypt in place if required where the the output encrypted buffer is set to the same as the plaintext source buffer.

参数

aes_ctrl	aes control structure.
src	UPG_FLASH_PAGE_SIZE RAM buffer where the plaintext version of the page is located.
dst	UPG_FLASH_PAGE_SIZE RAM buffer where the encrypted version of the page will be produced.
ptxt_len	Number of bytes in the plaintext page (#src) that is to remain plaintext and not to be encrypted. Defined either from the start (>0) or from the end (<0) of the buffer #src. Its valid range of values is: -UPG_FLASH_PAGE_SIZE < ptxt_len < UPG_FLASH_PAGE_SIZE. If ptxt_len = 0 The whole page will be encrypted. If ptxt_len > 0 Everything except the first ptxt_len bytes will will be encrypted. If ptxt_len < 0 Everything except the last ptxt_len bytes will will be encrypted.

返回

ERRCODE_SUCC errcode_t or an error code.

failfunc

typedef void(* failfunc) (patch *desc)

The function to be called when a deliberate failure is injected.

参数

desc	The patch to be applied

fetch_image_contents

typedef errcode_t(* fetch_image_contents) (patch *desc, uint32_t size, int32_t location, uint8_t *dest)

The function to be called to obtain firmware image contents.

参数

desc	The patch description.
size	The size of the contents.
location	The byte position within the image to get the contents from.
dest	The buffer to put the contents into.

patch

typedef struct patch_description patch

plaintext_flash_cache_init

typedef errcode_t(* plaintext_flash_cache_init) (patch *desc)

Creates a plaintext version of the image flash in RAM It assumes metadata pages are populated with the information about updated pages during FOTA It assumes FOTA Section is populated with the right key areas.

参数

desc	Patch description

返回

ERRCODE_SUCC errcode_t or an error code

prep_image_contents_for_write

typedef errcode_t(* prep_image_contents_for_write) (patch *desc, uint32_t image_page_no, uint8_t *page_contents)

Update the image contents prior to writing to flash.

参数

desc	The patch description.
image_page_no	The page to be written.
page_contents	The buffer containing the page contents that will be written.

函数说明

fota_pkg_task_apply_code_diff()

errcode_t fota_pkg_task_apply_code_diff

(

const upg_image_header_t *


)

Apply a FOTA core task for an image.

参数

task	The FOTA code task header in SCPU RAM.

返回

errcode_t ERRCODE_SUCC or an error code.

process_patch()

errcode_t process_patch

(

patch *

desc

)

Process the patch provided.

参数

desc	The patch description to apply.

返回

errcode_t ERRCODE_SUCC or an error code.
