#include "memory_config.h"
#include "errcode.h"
#include "upg.h"
#include "upg_definitions_porting.h"

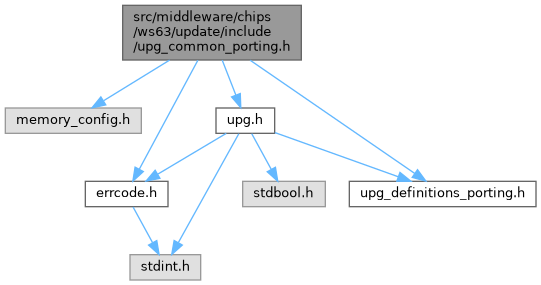

upg_common_porting.h 的引用(Include)关系图:

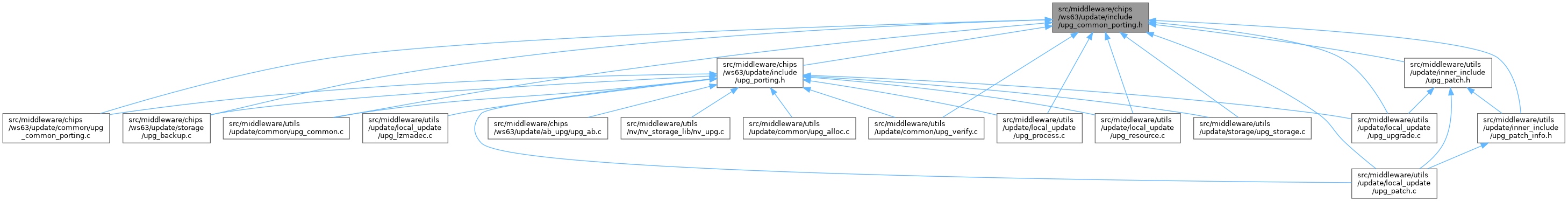

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	root_public_key

宏定义
#define	BOOT_PORTING_RESET_REG 0x40002110

#define	BOOT_PORTING_RESET_VALUE 0x4

#define	SIZE_MAX UINT32_MAX

#define	UPG_FILE_PATH "/update/"

#define	UPG_FILE_NAME "/update/update.fwpkg"

#define	UPG_RES_INDEX_PATH "/update/res_index.bin"

#define	UPG_FLASH_SIZE (FLASH_MAX_END - FLASH_START)

#define	FLASH_PAGE_SIZE 4096

#define	UPG_FLASH_PAGE_SIZE FLASH_PAGE_SIZE /* Bytes per sector */

#define	FOTA_DATA_STATUS_AREA_LEN UPG_FLASH_PAGE_SIZE

#define	FOTA_DATA_BUFFER_AREA_LEN UPG_FLASH_PAGE_SIZE

#define	FOTA_DATA_FLAG_AREA_LEN UPG_FLASH_PAGE_SIZE

#define	UPG_UPGRADE_FLAG_LENGTH (FOTA_DATA_STATUS_AREA_LEN + FOTA_DATA_BUFFER_AREA_LEN + FOTA_DATA_FLAG_AREA_LEN)

#define	UPG_META_DATA_LENGTH 0x0

#define	APP_FLASH_REGION_START (0x104000)

#define	APP_FLASH_REGION_LENGTH (0x203000)

#define	PARAMS_PARTITION_IMAGE_ID 0x4B87A52D

#define	PARAMS_PARTITION_START_ADDR 0x200000

#define	PARAMS_PARTITION_LENGTH 0x780

#define	EFUSE_REE_SSB_VERSION 0xF0

#define	EFUSE_REE_RECOVERT_VERSION 0xF0

#define	EFUSE_REE_APP_VERSION 0xF0

#define	EFUSE_REE_BT_VERSION 0xF0

#define	EFUSE_REE_DSP_MAIN_VERSION 0xF0

#define	EFUSE_REE_DSP_OVERLAY_VERSION 0xF0

#define	ROOT_PUBLIC_KEY_RSV 32

函数
errcode_t	upg_image_backups_update (void)
	Upgrade the backup area of each image before start the upgrade. CNcomment:升级开始前对各个镜像的备区升级。CNend

void	upg_progress_callback_register (void)

errcode_t	ws63_upg_init (void)

errcode_t	upg_erase_whole_image (const upg_image_header_t *img_header)

宏定义说明

◆ APP_FLASH_REGION_LENGTH

#define APP_FLASH_REGION_LENGTH (0x203000)

◆ APP_FLASH_REGION_START

#define APP_FLASH_REGION_START (0x104000)

◆ BOOT_PORTING_RESET_REG

#define BOOT_PORTING_RESET_REG 0x40002110

◆ BOOT_PORTING_RESET_VALUE

#define BOOT_PORTING_RESET_VALUE 0x4

◆ EFUSE_REE_APP_VERSION

#define EFUSE_REE_APP_VERSION 0xF0

◆ EFUSE_REE_BT_VERSION

#define EFUSE_REE_BT_VERSION 0xF0

◆ EFUSE_REE_DSP_MAIN_VERSION

#define EFUSE_REE_DSP_MAIN_VERSION 0xF0

◆ EFUSE_REE_DSP_OVERLAY_VERSION

#define EFUSE_REE_DSP_OVERLAY_VERSION 0xF0

◆ EFUSE_REE_RECOVERT_VERSION

#define EFUSE_REE_RECOVERT_VERSION 0xF0

◆ EFUSE_REE_SSB_VERSION

#define EFUSE_REE_SSB_VERSION 0xF0

◆ FLASH_PAGE_SIZE

#define FLASH_PAGE_SIZE 4096

◆ FOTA_DATA_BUFFER_AREA_LEN

#define FOTA_DATA_BUFFER_AREA_LEN UPG_FLASH_PAGE_SIZE

◆ FOTA_DATA_FLAG_AREA_LEN

#define FOTA_DATA_FLAG_AREA_LEN UPG_FLASH_PAGE_SIZE

◆ FOTA_DATA_STATUS_AREA_LEN

#define FOTA_DATA_STATUS_AREA_LEN UPG_FLASH_PAGE_SIZE

◆ PARAMS_PARTITION_IMAGE_ID

#define PARAMS_PARTITION_IMAGE_ID 0x4B87A52D

◆ PARAMS_PARTITION_LENGTH

#define PARAMS_PARTITION_LENGTH 0x780

◆ PARAMS_PARTITION_START_ADDR

#define PARAMS_PARTITION_START_ADDR 0x200000

◆ ROOT_PUBLIC_KEY_RSV

#define ROOT_PUBLIC_KEY_RSV 32

◆ SIZE_MAX

#define SIZE_MAX UINT32_MAX

◆ UPG_FILE_NAME

#define UPG_FILE_NAME "/update/update.fwpkg"

◆ UPG_FILE_PATH

#define UPG_FILE_PATH "/update/"

◆ UPG_FLASH_PAGE_SIZE

#define UPG_FLASH_PAGE_SIZE FLASH_PAGE_SIZE /* Bytes per sector */

◆ UPG_FLASH_SIZE

#define UPG_FLASH_SIZE (FLASH_MAX_END - FLASH_START)

◆ UPG_META_DATA_LENGTH

#define UPG_META_DATA_LENGTH 0x0

◆ UPG_RES_INDEX_PATH

#define UPG_RES_INDEX_PATH "/update/res_index.bin"

◆ UPG_UPGRADE_FLAG_LENGTH

#define UPG_UPGRADE_FLAG_LENGTH (FOTA_DATA_STATUS_AREA_LEN + FOTA_DATA_BUFFER_AREA_LEN + FOTA_DATA_FLAG_AREA_LEN)

函数说明

◆ upg_erase_whole_image()

errcode_t upg_erase_whole_image ( const upg_image_header_t * img_header )

◆ upg_image_backups_update()

errcode_t upg_image_backups_update ( void )

Upgrade the backup area of each image before start the upgrade. CNcomment:升级开始前对各个镜像的备区升级。CNend

返回值

ERRCODE_SUCC	Success.
#Other	Failure. For details, see soc_errno.h.

◆ upg_progress_callback_register()

void upg_progress_callback_register ( void )

◆ ws63_upg_init()

errcode_t ws63_upg_init ( void )
