#include "los_task_base.h"
#include "los_task.h"
#include "los_sched_pri.h"
#include "los_stackinfo_pri.h"
#include "los_lockdep.h"
#include "arch/task.h"

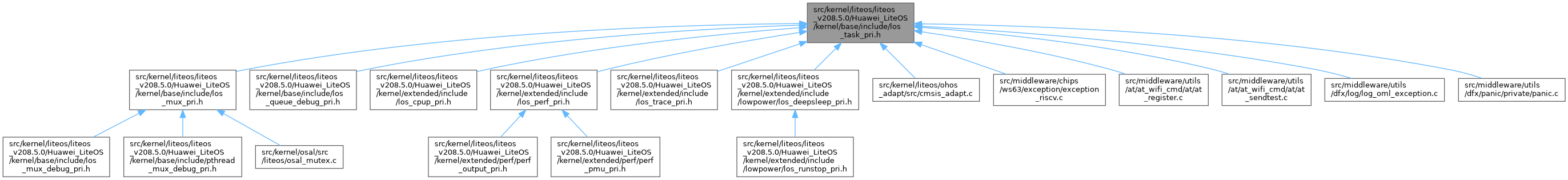

los_task_pri.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	OsTaskRobin

宏定义
#define	SIGNAL_NONE 0U

#define	SIGNAL_KILL (1U << 0)

#define	SIGNAL_SUSPEND (1U << 1)

#define	SIGNAL_AFFI (1U << 2)

#define	OS_INVALID_VALUE 0xFFFFFFFF

#define	OS_TASK_INVALID_CPUID 0xFFFF

#define	OS_TASK_ERRORID 0xFFFFFFFF

#define	OS_CHECK_TASK_BLOCK

#define	OS_TSK_PRINUM (LOS_TASK_PRIORITY_LOWEST - LOS_TASK_PRIORITY_HIGHEST + 1)

#define	OS_TSK_GET_INDEX(taskId) (taskId)

#define	OS_TASK_ID_CHECK_INVALID(taskId) (OS_TSK_GET_INDEX(taskId) >= g_taskMaxNum)

#define	OS_TCB_FROM_PENDLIST(ptr) LOS_DL_LIST_ENTRY(ptr, LosTaskCB, pendList)

#define	OS_TCB_FROM_TID(taskId) (((LosTaskCB *)g_osTaskCBArray) + (taskId))

#define	OS_TASK_STACK_POOL m_aucSysMem1

#define	OS_ALL_TASK_MASK 0xFFFFFFFF

类型定义
typedef VOID(*	TASK_RECYCLE_HOOK) (UINT32 taskId)

typedef VOID(*	TASK_DELETE_HOOK) (UINT32 taskId)

函数
STATIC INLINE LosTaskCB *	OsCurrTaskGet (VOID)

STATIC INLINE VOID	OsCurrTaskSet (LosTaskCB *task)

VOID	ArchTaskSchedule (LosTaskCB , LosTaskCB )

VOID	ArchStartToRun (LosTaskCB *)

VOID	OsTaskScan (VOID)

VOID	OsIdleTask (VOID)

UINT32	OsIdleTaskCreate (VOID)

UINT32	OsTaskInit (VOID)

UINT32	OsShellCmdDumpTask (INT32 argc, const CHAR **argv)

UINT32	OsDbgTskInfoGet (UINT32 taskId)

UINT32	OsGetIdleTaskId (VOID)

CHAR *	OsCurTaskNameGet (VOID)

VOID	OsTaskAdd2TimerList (LosTaskCB *taskCB, UINT32 timeout)

VOID	OsTimerListDelete (LosTaskCB *taskCB)

VOID	OsTaskEntry (UINT32 taskId)

VOID	OsTaskProcSignal (VOID)

STATIC INLINE UINT32	OsSysTaskSuspend (LosTaskCB *taskCB)

VOID	OsIdleHandler (VOID)

STATIC INLINE BOOL	OsTaskIsSchedAfterDelete (LosTaskCB *taskCB)

STATIC INLINE BOOL	OsTaskIsSchedCanBeAborted (LosTaskCB *taskCB)

STATIC INLINE BOOL	OsTaskIsRunOrSched (LosTaskCB *taskCB)

STATIC INLINE VOID	OsTaskExtStatusSet (LosTaskCB *task, UINT32 extStatus)

STATIC INLINE VOID	OsTaskExtStatusClear (LosTaskCB *task, UINT32 extStatus)

STATIC INLINE VOID	OsTaskWaitCanOperate (LosTaskCB *task)

STATIC INLINE BOOL	OsTaskIsInoperable (LosTaskCB *task)

STATIC INLINE VOID	OsTaskReSched (VOID)

STATIC INLINE VOID	OsTaskCancelJoin (LosTaskCB *taskCB)

STATIC INLINE VOID	OsTaskSignalSet (LosTaskCB *taskCB, UINT32 signal)

STATIC INLINE BOOL	OsTaskSuspendCheckOnRun (LosTaskCB taskCB, UINT32 ret)

变量
UINT32	g_taskMaxNum

LosTaskCB *	g_osTaskCBArray

UINT8 *	g_osIdleTaskStack [LOSCFG_KERNEL_CORE_NUM]

TASK_RECYCLE_HOOK	g_taskRecycleHook

TASK_DELETE_HOOK	g_taskDeleteHook

宏定义说明

◆ OS_ALL_TASK_MASK

#define OS_ALL_TASK_MASK 0xFFFFFFFF

◆ OS_CHECK_TASK_BLOCK

#define OS_CHECK_TASK_BLOCK

值:

                                     (OS_TASK_STATUS_DELAY |    \
                                     OS_TASK_STATUS_PEND |     \
                                     OS_TASK_STATUS_SUSPEND)

◆ OS_INVALID_VALUE

#define OS_INVALID_VALUE 0xFFFFFFFF

◆ OS_TASK_ERRORID

#define OS_TASK_ERRORID 0xFFFFFFFF

◆ OS_TASK_ID_CHECK_INVALID

#define OS_TASK_ID_CHECK_INVALID ( taskId ) (OS_TSK_GET_INDEX(taskId) >= g_taskMaxNum)

◆ OS_TASK_INVALID_CPUID

#define OS_TASK_INVALID_CPUID 0xFFFF

◆ OS_TASK_STACK_POOL

#define OS_TASK_STACK_POOL m_aucSysMem1

◆ OS_TCB_FROM_PENDLIST

#define OS_TCB_FROM_PENDLIST ( ptr ) LOS_DL_LIST_ENTRY(ptr, LosTaskCB, pendList)

◆ OS_TCB_FROM_TID

#define OS_TCB_FROM_TID ( taskId ) (((LosTaskCB *)g_osTaskCBArray) + (taskId))

◆ OS_TSK_GET_INDEX

#define OS_TSK_GET_INDEX ( taskId ) (taskId)

◆ OS_TSK_PRINUM

#define OS_TSK_PRINUM (LOS_TASK_PRIORITY_LOWEST - LOS_TASK_PRIORITY_HIGHEST + 1)

◆ SIGNAL_AFFI

#define SIGNAL_AFFI (1U << 2)

◆ SIGNAL_KILL

#define SIGNAL_KILL (1U << 0)

◆ SIGNAL_NONE

#define SIGNAL_NONE 0U

◆ SIGNAL_SUSPEND

#define SIGNAL_SUSPEND (1U << 1)

类型定义说明

◆ TASK_DELETE_HOOK

typedef VOID(* TASK_DELETE_HOOK) (UINT32 taskId)

◆ TASK_RECYCLE_HOOK

typedef VOID(* TASK_RECYCLE_HOOK) (UINT32 taskId)

函数说明

◆ ArchStartToRun()

VOID ArchStartToRun ( LosTaskCB * )

extern

◆ ArchTaskSchedule()

VOID ArchTaskSchedule	(	LosTaskCB *	,
		LosTaskCB *
	)

extern

◆ OsCurrTaskGet()

STATIC INLINE LosTaskCB * OsCurrTaskGet ( VOID )

◆ OsCurrTaskSet()

STATIC INLINE VOID OsCurrTaskSet ( LosTaskCB * task )

◆ OsCurTaskNameGet()

CHAR * OsCurTaskNameGet ( VOID )

extern

◆ OsDbgTskInfoGet()

UINT32 OsDbgTskInfoGet ( UINT32 taskId )

extern

◆ OsGetIdleTaskId()

UINT32 OsGetIdleTaskId ( VOID )

extern

◆ OsIdleHandler()

VOID OsIdleHandler ( VOID )

extern

◆ OsIdleTask()

VOID OsIdleTask ( VOID )

extern

◆ OsIdleTaskCreate()

UINT32 OsIdleTaskCreate ( VOID )

extern

◆ OsShellCmdDumpTask()

UINT32 OsShellCmdDumpTask	(	INT32	argc,
		const CHAR **	argv
	)

extern

◆ OsSysTaskSuspend()

STATIC INLINE UINT32 OsSysTaskSuspend ( LosTaskCB * taskCB )

◆ OsTaskAdd2TimerList()

VOID OsTaskAdd2TimerList	(	LosTaskCB *	taskCB,
		UINT32	timeout
	)

extern

◆ OsTaskCancelJoin()

STATIC INLINE VOID OsTaskCancelJoin ( LosTaskCB * taskCB )

◆ OsTaskEntry()

VOID OsTaskEntry ( UINT32 taskId )

extern

◆ OsTaskExtStatusClear()

STATIC INLINE VOID OsTaskExtStatusClear	(	LosTaskCB *	task,
		UINT32	extStatus
	)

◆ OsTaskExtStatusSet()

STATIC INLINE VOID OsTaskExtStatusSet	(	LosTaskCB *	task,
		UINT32	extStatus
	)

◆ OsTaskInit()

UINT32 OsTaskInit ( VOID )

extern

◆ OsTaskIsInoperable()

STATIC INLINE BOOL OsTaskIsInoperable ( LosTaskCB * task )

◆ OsTaskIsRunOrSched()

STATIC INLINE BOOL OsTaskIsRunOrSched ( LosTaskCB * taskCB )

◆ OsTaskIsSchedAfterDelete()

STATIC INLINE BOOL OsTaskIsSchedAfterDelete ( LosTaskCB * taskCB )

◆ OsTaskIsSchedCanBeAborted()

STATIC INLINE BOOL OsTaskIsSchedCanBeAborted ( LosTaskCB * taskCB )

◆ OsTaskProcSignal()

VOID OsTaskProcSignal ( VOID )

extern

◆ OsTaskReSched()

STATIC INLINE VOID OsTaskReSched ( VOID )

◆ OsTaskScan()

VOID OsTaskScan ( VOID )

extern

◆ OsTaskSignalSet()

STATIC INLINE VOID OsTaskSignalSet	(	LosTaskCB *	taskCB,
		UINT32	signal
	)

◆ OsTaskSuspendCheckOnRun()

STATIC INLINE BOOL OsTaskSuspendCheckOnRun	(	LosTaskCB *	taskCB,
		UINT32 *	ret
	)

◆ OsTaskWaitCanOperate()

STATIC INLINE VOID OsTaskWaitCanOperate ( LosTaskCB * task )

◆ OsTimerListDelete()

VOID OsTimerListDelete ( LosTaskCB * taskCB )

extern

变量说明

◆ g_osIdleTaskStack

UINT8* g_osIdleTaskStack[LOSCFG_KERNEL_CORE_NUM]

extern

◆ g_osTaskCBArray

LosTaskCB* g_osTaskCBArray

extern

◆ g_taskDeleteHook

TASK_DELETE_HOOK g_taskDeleteHook

extern

◆ g_taskMaxNum

UINT32 g_taskMaxNum

extern

◆ g_taskRecycleHook

TASK_RECYCLE_HOOK g_taskRecycleHook

extern
