hal_uart_v151_regs_def.h 文件参考

#include <stdint.h>
#include "uart_porting.h"

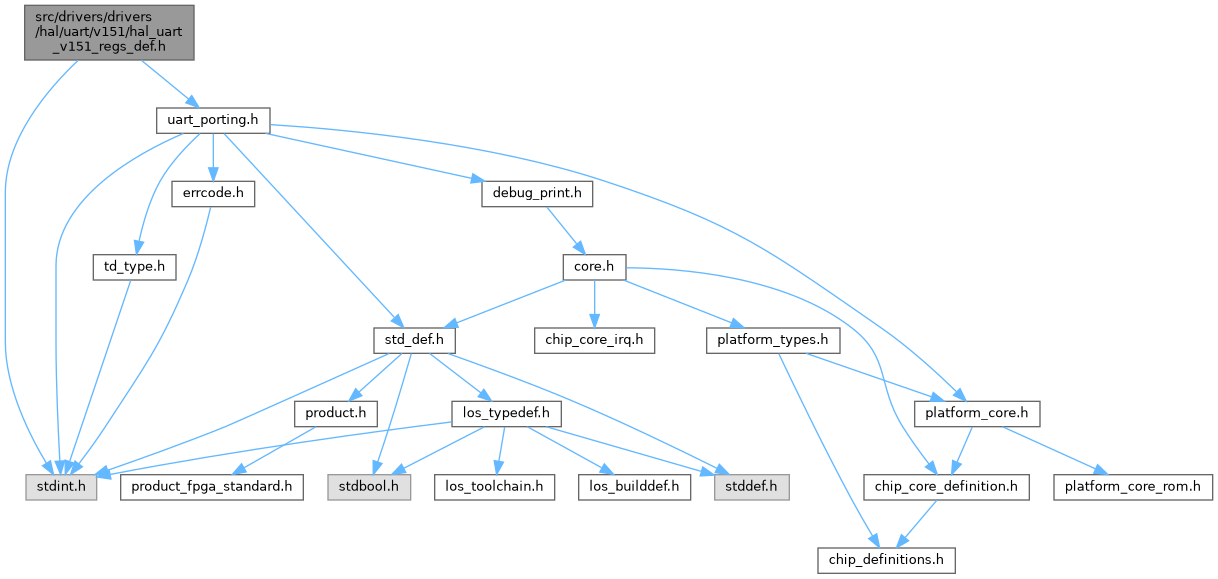

hal_uart_v151_regs_def.h 的引用(Include)关系图:

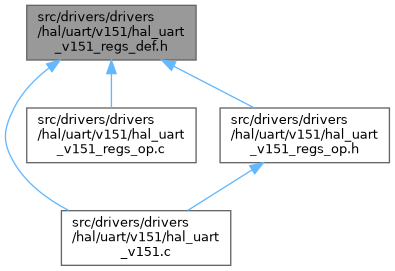

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
union	uart_id
union	data
union	uart_ctl
union	div_h
union	div_l
union	div_fra
union	intr_en
union	intr_status
union	intr_id
union	fifo_ctl
union	far
union	modem_ctl
union	modem_status
union	line_status
union	uart_gp_reg
union	tx_fifo_read
union	rx_fifo_write
union	fifo_status
union	tx_fifo_cnt
union	rx_fifo_cnt
union	halt_tx
union	dma_sw_ack
union	baud_ctl
union	stp_ctl
union	uart_parameter
union	lp_ctl
union	receive_ctl
struct	uart_regs
struct	uart_regs1

宏定义
#define	UART_SHADOW_RECIEVE_BUFFER_REG_LEN   16
#define	UART_SHADOW_TRANSMIT_HOLDING_REG_LEN   16
#define	UART_LCR_EXT_RESERVE_LEN   9

类型定义
typedef union uart_id	uart_id_t
typedef union data	data_t
typedef union uart_ctl	uart_ctl_t
typedef union div_h	div_h_t
typedef union div_l	div_l_t
typedef union div_fra	div_fra_t
typedef union intr_en	intr_en_t
typedef union intr_status	intr_status_t
typedef union intr_id	intr_id_t
typedef union fifo_ctl	fifo_ctl_t
typedef union far	far_t
typedef union modem_ctl	modem_ctl_t
typedef union modem_status	modem_status_t
typedef union line_status	line_status_t
typedef union uart_gp_reg	uart_gp_reg_t
typedef union tx_fifo_read	tx_fifo_read_t
typedef union rx_fifo_write	rx_fifo_write_t
typedef union fifo_status	fifo_status_t
typedef union tx_fifo_cnt	tx_fifo_cnt_t
typedef union rx_fifo_cnt	rx_fifo_cnt_t
typedef union halt_tx	halt_tx_t
typedef union dma_sw_ack	dma_sw_ack_t
typedef union baud_ctl	baud_ctl_t
typedef union stp_ctl	stp_ctl_t
typedef union uart_parameter	uart_parameter_t
typedef union lp_ctl	lp_ctl_t
typedef union receive_ctl	receive_ctl_t
typedef struct uart_regs	uart_reg_t
typedef struct uart_regs1	uart_reg_1_t

函数
void	hal_uart_specific_reset_uart (uart_bus_t uart)
	Resets the uarts on the protocol and apps cores using the RESET_REG register The security core does not have that register, this function does nothing on the security core
void	hal_uart_specific_priority_irq (uart_bus_t uart)
	Specific priority of IRQ associated with a UART
void	hal_uart_specific_enable_irq (uart_bus_t uart)
	Enable IRQ associated with a UART
void	hal_uart_specific_disable_irq (uart_bus_t uart)
	Disable IRQ associated with a UART
void	hal_uart_specific_set_pending_irq (uart_bus_t uart)
	Set IRQ associated with a UART pending

变量
uart_reg_t *	g_hal_uart_reg [UART_BUS_MAX_NUMBER]

宏定义说明

UART_LCR_EXT_RESERVE_LEN

#define UART_LCR_EXT_RESERVE_LEN   9

UART_SHADOW_RECIEVE_BUFFER_REG_LEN

#define UART_SHADOW_RECIEVE_BUFFER_REG_LEN   16

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved.

Description: Provides v151 uart register
History:
2023-02-17, Create file.

UART_SHADOW_TRANSMIT_HOLDING_REG_LEN

#define UART_SHADOW_TRANSMIT_HOLDING_REG_LEN   16
