#include <stdint.h>
#include <stdbool.h>
#include "securec.h"
#include "platform_core_rom.h"
#include "chip_io.h"

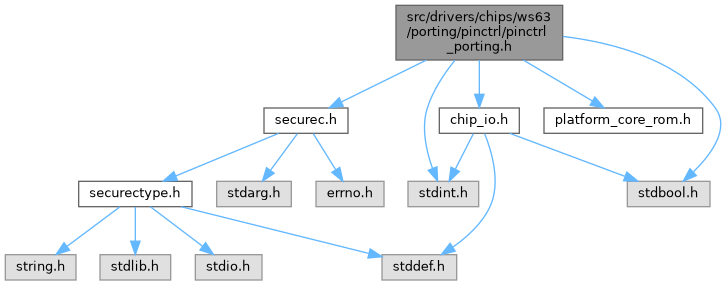

pinctrl_porting.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	HAL_PIO_PULL_NONE PIN_PULL_TYPE_DISABLE

#define	HAL_PIO_FUNC_GPIO PIN_MODE_0

#define	HAL_PIO_FUNC_INVALID HAL_PIO_FUNC_MAX

枚举
enum	pin_mode_t { PIN_MODE_0 = 0 , PIN_MODE_1 = 1 , PIN_MODE_2 = 2 , PIN_MODE_3 = 3 , PIN_MODE_4 = 4 , PIN_MODE_5 = 5 , PIN_MODE_6 = 6 , PIN_MODE_7 = 7 , PIN_MODE_MAX = 8 }
	Definition of mode-multiplexing. 更多...

enum	pin_drive_strength_t { PIN_DS_0 = 0 , PIN_DS_1 = 1 , PIN_DS_2 = 2 , PIN_DS_3 = 3 , PIN_DS_4 = 4 , PIN_DS_5 = 5 , PIN_DS_6 = 6 , PIN_DS_7 = 7 , PIN_DS_MAX = 8 }
	Definition of drive-strength. 更多...

enum	pin_pull_t { PIN_PULL_TYPE_DISABLE = 0 , PIN_PULL_TYPE_DOWN = 1 , PIN_PULL_TYPE_STRONG_UP = 2 , PIN_PULL_TYPE_UP = 3 , PIN_PULL_MAX = 4 }
	Definition of pull-up/pull-down. 更多...

enum	pin_input_enable_t { PIN_IE_DISABLE = 0 , PIN_IE_ENABLE = 1 , PIN_IE_MAX }
	Definition of input-enable. 更多...

enum	pin_schmitt_trigger_t { PIN_ST_DISABLE = 0 , PIN_ST_ENABLE = 1 , PIN_ST_MAX }
	Definition of schmitt-trigger. 更多...

函数
bool	pin_check_mode_is_valid (pin_t pin, pin_mode_t mode)
	Check whether the mode configured for the pin is valid.

void	pin_port_register_hal_funcs (void)
	Register hal funcs objects into hal_pinctrl module.

void	pin_port_unregister_hal_funcs (void)
	Unregister hal funcs objects from hal_pinctrl module.

宏定义说明

◆ HAL_PIO_FUNC_INVALID

#define HAL_PIO_FUNC_INVALID HAL_PIO_FUNC_MAX
