#include "core.h"
#include "memory_config.h"

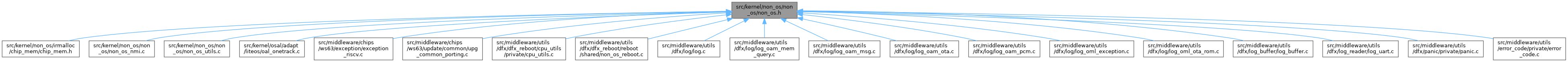

non_os.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	THREAD_MODE_PRIORITY 4

#define	__return_address() ((uintptr_t)0)

#define	NON_OS_NMI_CWDT_INT_FLAG BIT(NMI_CWDT)

#define	NON_OS_NMI_XIP_CTRL_INT_FLAG BIT(NMI_XIP_CTRL)

#define	NON_OS_NMI_XIP_CACHE_INT_FLAG BIT(NMI_XIP_CACHE)

#define	NON_OS_NMI_MDMA_INT_FLAG BIT(NMI_MDMA)

#define	NON_OS_NMI_SMDMAINT_FLAG BIT(NMI_SMDMA)

#define	NON_OS_BT_NMI_MASK_REG 0x59000300

#define	NON_OS_BT_NMI_STATUS_REG 0x59000304

#define	NON_OS_BNMI_BT_INT_FLAG BIT(BNMI_BT_INT)

#define	NON_OS_BNMI_BLE_INT_FLAG BIT(BNMI_BLE_INT)

#define	NON_OS_BNMI_BWDT_INT_FLAG BIT(BNMI_BWDT)

类型定义
typedef enum AON_INIT_BIT_E	aon_init_bit_e

typedef void(*	critical_statistic_handler) (critical_statistic_mode_e mode, uint32_t address)
	hook function type for crititcal interval statisitic tool

typedef void(*	critical_record_handler) (critical_statistic_mode_e mode, uint32_t address, uint16_t nestings)
	hook function type for crititcal interval record tool

枚举
enum	driver_init_bit_e { DRIVER_INIT_WATCHDOG = 0 , DRIVER_INIT_RTC , DRIVER_INIT_TIMER , DRIVER_INIT_GPIO , DRIVER_INIT_IPC , DRIVER_INIT_SYS_STATUS , DRIVER_INIT_IPC_FLASH , DRIVER_INIT_UART , DRIVER_INIT_REBOOT , DRIVER_INIT_LPC , DRIVER_INIT_SPI , DRIVER_INIT_QSPI , DRIVER_INIT_PWM , DRIVER_INIT_DMA , DRIVER_INIT_TSENSOR , DRIVER_INIT_ADC , DRIVER_INIT_IFLASH , DRIVER_INIT_IFLASH_CONFIG , DRIVER_INIT_FLASH , DRIVER_INIT_MEMORY , DRIVER_INIT_OTP , DRIVER_INIT_IPC_FLASH_BT , DRIVER_INIT_PMU , DRIVER_INIT_LOG_MEMORY , DRIVER_INIT_KV , DRIVER_INIT_TCXO , DRIVER_INIT_PLL , DRIVER_INIT_SEC_TRNG , DRIVER_INIT_PATCH , DRIVER_INTI_AP_COMMU , DRIVER_INIT_I2C , DRIVER_INIT_CAP_SENSOR , DRIVER_INIT_PSRAM , DRIVER_INIT_MX25U32 , DRIVER_INIT_SEC_KEY_DRIV , DRIVER_INIT_SEC_TRNG1 , DRIVER_INIT_SEC_SHA , DRIVER_INIT_SEC_AES , DRIVER_INIT_SEC_RSA , DRIVER_INIT_SEC_TRNG2 , DRIVER_INIT_CLOCKS_CORE , DRIVER_INIT_FLASH_TO_QSPI , DRIVER_INIT_RGB888 , DRIVER_INIT_UICC , DRIVER_INIT_MAX_VALUE }

enum	AON_INIT_BIT_E { AON_FLASH_QSPI = 0 , AON_XIP = 1 , AON_DEBUG_MODE = 2 , AON_ROMLOADER_DOWNLOAD_KEY_MODE = 3 , AON_FLASH_BACKUP_MODE = 4 }

enum	critical_statistic_mode_e { CRITICAL_ENTER = 0 , CRITICAL_EXIT = 1 }
	flag mark the mode if enter or exit critical when call critical statistic hook function 更多...

enum	nmi_types_e { NMI_GWDT = 0 , NMI_CWDT = 1 , NMI_BWDT = 2 , NMI_XIP_CTRL = 2 , NMI_XIP_CACHE = 3 , NMI_MDMA = 4 , NMI_SMDMA = 5 , NMI_NONE = 6 }

enum	bnmi_types_e { BNMI_BT_INT = 0 , BNMI_BLE_INT = 1 , BNMI_BWDT = 2 }

函数
	cassert (DRIVER_INIT_MAX_VALUE<=64, NON_OS_H_)

void	non_os_enter_critical (void)
	Enter in a critical section.

void	non_os_exit_critical (void)
	Exit a critical section.

bool	non_os_is_in_critical_section (void)
	Checks if the system is running on a critical section.

void	non_os_critical_section_init (void)
	Ensures interrupts are enabled and the interrupt nested counter is reset.

bool	non_os_is_driver_initialised (driver_init_bit_e driver)
	Gets the value of the drivers flag bit, then converts into a bool

void	non_os_set_driver_initalised (driver_init_bit_e driver, bool value)
	Sets the value of the specified bit

bool	non_os_is_aon_flag_initialised (aon_init_bit_e driver)
	check aon flag is set flag save on aon only rst when all rst(not only cpu reset)

void	non_os_set_aon_flag_initalised (aon_init_bit_e driver, bool value)
	set aon flag flag save on aon only rst when all rst(not only cpu reset)

void	non_os_register_critical_statistic (critical_statistic_handler handler)
	register critical statistic hook function

void	non_os_unregister_critical_statistic (void)
	unregister critical statistic hook function

void	non_os_register_critical_record (critical_record_handler handler)
	register critical record hook function

void	non_os_unregister_critical_record (void)
	unregister critical record hook function

void	non_os_nmi_config (nmi_types_e nmi, bool on)
	Config the nmi.

uint16_t	non_os_get_nmi_mask_status (void)
	Get NMI interrupt status after mask.

uint16_t	non_os_get_nmi_raw_status (void)
	get NMI raw interrupt status.

nmi_types_e	non_os_get_nmi_type (void)
	get NMI mask interrupt type.

const char *	non_os_get_bt_rom_version (void)
	get bt rom version.

bool	non_os_is_dcache_enabled (void)
	Checks if the DCache is enabled.
