#include "pinctrl_porting.h"
#include "hal_pinctrl.h"
#include "hal_pinctrl_ws63.h"

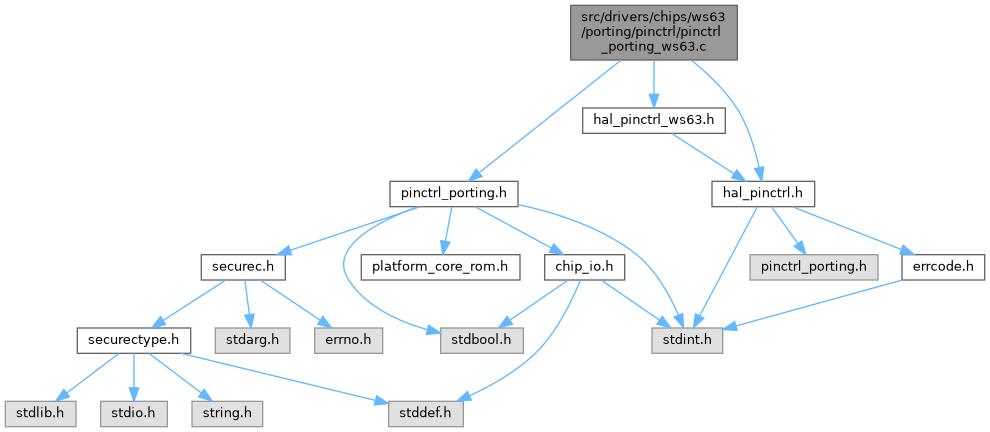

pinctrl_porting_ws63.c 的引用(Include)关系图:

枚举
enum	pin_mode_func_t { PIN_FUNC_0 = (1UL << (uint32_t)( PIN_MODE_0 )) , PIN_FUNC_1 = (1UL << (uint32_t)( PIN_MODE_1 )) , PIN_FUNC_2 = (1UL << (uint32_t)( PIN_MODE_2 )) , PIN_FUNC_3 = (1UL << (uint32_t)( PIN_MODE_3 )) , PIN_FUNC_4 = (1UL << (uint32_t)( PIN_MODE_4 )) , PIN_FUNC_5 = (1UL << (uint32_t)( PIN_MODE_5 )) , PIN_FUNC_6 = (1UL << (uint32_t)( PIN_MODE_6 )) , PIN_FUNC_7 = (1UL << (uint32_t)( PIN_MODE_7 )) , PIN_FUNC_NONE = 0 }

enum	pio_mode_t { PIO_MODE_0 = (1UL << (uint32_t)( 0 )) , PIO_MODE_1 = (1UL << (uint32_t)( 1 )) , PIO_MODE_2 = (1UL << (uint32_t)( 2 )) , PIO_MODE_3 = (1UL << (uint32_t)( 3 )) , PIO_MODE_4 = (1UL << (uint32_t)( 4 )) , PIO_MODE_5 = (1UL << (uint32_t)( 5 )) , PIO_MODE_6 = (1UL << (uint32_t)( 6 )) , PIO_MODE_7 = (1UL << (uint32_t)( 7 )) , PIO_MODE_NONE = 0 }

函数
bool	pin_check_mode_is_valid (pin_t pin, pin_mode_t mode)
	Check whether the mode configured for the pin is valid.

void	pin_port_register_hal_funcs (void)
	Register hal funcs objects into hal_pinctrl module.

void	pin_port_unregister_hal_funcs (void)
	Unregister hal funcs objects from hal_pinctrl module.

宏定义说明

◆ BIT

#define BIT ( x ) (1UL << (uint32_t)(x))

Description: Provides pinctrl port
History:
2022-08-25， Create file.
