#include <stdint.h>
#include <stdbool.h>
#include "platform_core.h"
#include "platform_types.h"
#include "hal_gpio_v150_comm_def.h"

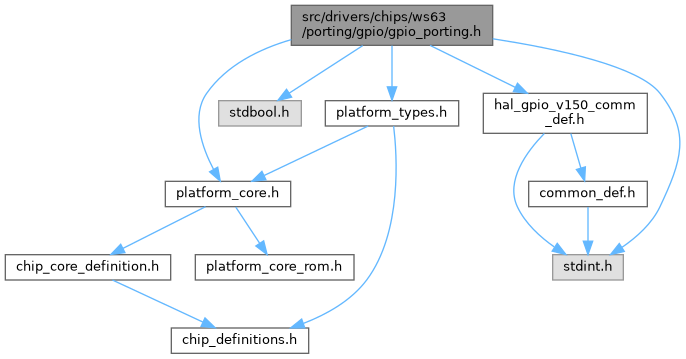

gpio_porting.h 的引用(Include)关系图:

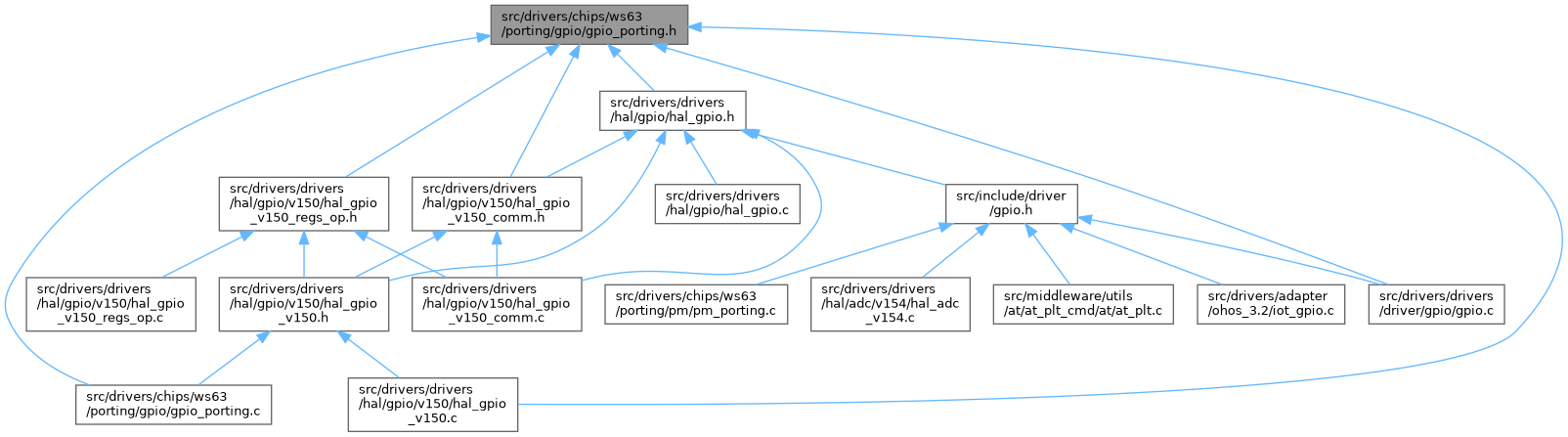

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	GPIO_CHANNEL_0_GROUP_NUM 1
	GPIO info definition of each channel and group. Developer should adapt GPIO info here.

#define	GPIO_CHANNEL_0_GROUP_0_PIN_NUM 8

#define	GPIO_CHANNEL_0_GROUP_0_CB_START_ID 0

#define	GPIO_CHANNEL_0_PIN_NUM (GPIO_CHANNEL_0_GROUP_0_PIN_NUM)

#define	GPIO_CHANNEL_1_GROUP_NUM 1

#define	GPIO_CHANNEL_1_GROUP_0_PIN_NUM 8

#define	GPIO_CHANNEL_1_GROUP_0_CB_START_ID (GPIO_CHANNEL_0_GROUP_0_CB_START_ID + GPIO_CHANNEL_0_PIN_NUM)

#define	GPIO_CHANNEL_1_PIN_NUM (GPIO_CHANNEL_1_GROUP_0_PIN_NUM)

#define	GPIO_CHANNEL_2_GROUP_NUM 1

#define	GPIO_CHANNEL_2_GROUP_0_PIN_NUM 3

#define	GPIO_CHANNEL_2_GROUP_0_CB_START_ID (GPIO_CHANNEL_1_GROUP_0_CB_START_ID + GPIO_CHANNEL_1_PIN_NUM)

#define	GPIO_CHANNEL_2_PIN_NUM (GPIO_CHANNEL_2_GROUP_0_PIN_NUM)

#define	GPIO_PIN_NUM (GPIO_CHANNEL_0_PIN_NUM + GPIO_CHANNEL_1_PIN_NUM + GPIO_CHANNEL_2_PIN_NUM)

#define	GPIO_CHANNELS_NUM GPIO_CHANNEL_MAX_NUM

类型定义
typedef enum gpio_channel	gpio_channel_t
	Definition of GPIO Channel index.

枚举
enum	gpio_channel { GPIO_CHANNEL_0 = 0 , GPIO_CHANNEL_1 , GPIO_CHANNEL_2 , GPIO_CHANNEL_MAX_NUM }
	Definition of GPIO Channel index. 更多...

函数
hal_gpio_channel_info_t *	gpio_porting_channel_info_get (uint32_t channel)
	Get GPIO channel info.

hal_gpio_group_context_t *	gpio_porting_group_context_get (uint32_t channel, uint32_t group)
	Get GPIO group context of target channel and group.

void	gpio_porting_channel_context_clean (uint32_t channel, uint32_t group_num)
	Clean all GPIO context of target channel.

uintptr_t	gpio_porting_base_addr_get (uint32_t channel)
	Get GPIO base addr of of target channel.

void	gpio_ulp_int_en (bool on)
	Enable ulp gpio interrupt, set ulp gpio clk as 32K.

void	gpio_select_core (pin_t pin, cores_t core)
