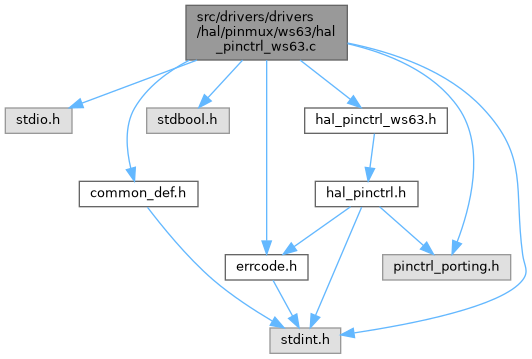

hal_pinctrl_ws63.c 的引用(Include)关系图:

结构体
struct	hal_pin_config_group_t
	PIN config addr group struct. 更多...

struct	hal_pin_config_map_t
	PIN config addr map struct. 更多...

宏定义
#define	HAL_IO_CFG_BASE_ADDR 0x4400D000

#define	HAL_PIN_GPIO_SEL_START_OFFSET 0x000

#define	HAL_PIN_UART_SEL_START_OFFSET 0x03C

#define	HAL_PIN_GPIO_CTRL_START_OFFSET 0x800

#define	HAL_PIN_SFC_CTRL_START_OFFSET 0x868

#define	HAL_PIN_GPIO_SEL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_GPIO_SEL_START_OFFSET)

#define	HAL_PIN_UART_SEL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_UART_SEL_START_OFFSET)

#define	HAL_PIN_GPIO_CTRL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_GPIO_CTRL_START_OFFSET)

#define	HAL_PIN_SFC_CTRL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_SFC_CTRL_START_OFFSET)

#define	HAL_PIN_MODE_GROUP_NUM 2

#define	HAL_PIN_DS_GROUP_NUM 2

#define	HAL_PIN_PULL_GROUP_NUM 2

#define	HAL_PIN_IE_GROUP_NUM 2

#define	HAL_PIN_ST_GROUP_NUM 2

#define	HAL_PIN_CONFIG_PER_NUM 1

#define	HAL_PIN_GPIO_SEL_START_BIT 0

#define	HAL_PIN_GPIO_SEL_BITS_NUM 3

#define	HAL_PIN_UART_SEL_START_BIT 0

#define	HAL_PIN_UART_SEL_BITS_NUM 2

#define	HAL_PIN_ST_START_BIT 3

#define	HAL_PIN_ST_BITS_NUM 1

#define	HAL_PIN_DS_START_BIT 4

#define	HAL_PIN_DS_BITS_NUM 3

#define	HAL_PIN_PULL_START_BIT 9

#define	HAL_PIN_PULL_BITS_NUM 2

#define	HAL_PIN_IE_START_BIT 11

#define	HAL_PIN_IE_BITS_NUM 1

枚举
enum	hal_pin_config_type_t { PIN_CONFIG_TYPE_MODE = 0 , PIN_CONFIG_TYPE_DS , PIN_CONFIG_TYPE_PULL , PIN_CONFIG_TYPE_NUM }
	PIN config type enum. 更多...

函数
STATIC errcode_t	hal_pin_get_config_map (uint32_t config_type, hal_pin_config_group_t *pin_map, uint32_t map_size)

STATIC hal_pin_config_group_t *	hal_pin_get_config_group (uint32_t config_type, pin_t pin)

STATIC errcode_t	hal_pin_set_config_val (uint32_t config_type, pin_t pin, uint32_t val)

STATIC errcode_t	hal_pin_get_config_val (uint32_t config_type, pin_t pin, uint32_t *val)

STATIC errcode_t	hal_pin_ws63_set_mode (pin_t pin, pin_mode_t mode)

STATIC pin_mode_t	hal_pin_ws63_get_mode (pin_t pin)

STATIC errcode_t	hal_pin_ws63_set_ds (pin_t pin, pin_drive_strength_t ds)

STATIC pin_drive_strength_t	hal_pin_ws63_get_ds (pin_t pin)

STATIC errcode_t	hal_pin_ws63_set_pull (pin_t pin, pin_pull_t pull_type)

STATIC pin_pull_t	hal_pin_ws63_get_pull (pin_t pin)

hal_pin_funcs_t *	hal_pin_ws63_funcs_get (void)
	Get configuration functions of pins.

宏定义说明

◆ HAL_IO_CFG_BASE_ADDR

#define HAL_IO_CFG_BASE_ADDR 0x4400D000

Description: Provides hal pinctrl
History:
2022-08-29, Create file.

◆ HAL_PIN_CONFIG_PER_NUM

#define HAL_PIN_CONFIG_PER_NUM 1

◆ HAL_PIN_DS_BITS_NUM

#define HAL_PIN_DS_BITS_NUM 3

◆ HAL_PIN_DS_GROUP_NUM

#define HAL_PIN_DS_GROUP_NUM 2

◆ HAL_PIN_DS_START_BIT

#define HAL_PIN_DS_START_BIT 4

◆ HAL_PIN_GPIO_CTRL_START_ADDR

#define HAL_PIN_GPIO_CTRL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_GPIO_CTRL_START_OFFSET)

◆ HAL_PIN_GPIO_CTRL_START_OFFSET

#define HAL_PIN_GPIO_CTRL_START_OFFSET 0x800

◆ HAL_PIN_GPIO_SEL_BITS_NUM

#define HAL_PIN_GPIO_SEL_BITS_NUM 3

◆ HAL_PIN_GPIO_SEL_START_ADDR

#define HAL_PIN_GPIO_SEL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_GPIO_SEL_START_OFFSET)

◆ HAL_PIN_GPIO_SEL_START_BIT

#define HAL_PIN_GPIO_SEL_START_BIT 0

◆ HAL_PIN_GPIO_SEL_START_OFFSET

#define HAL_PIN_GPIO_SEL_START_OFFSET 0x000

◆ HAL_PIN_IE_BITS_NUM

#define HAL_PIN_IE_BITS_NUM 1

◆ HAL_PIN_IE_GROUP_NUM

#define HAL_PIN_IE_GROUP_NUM 2

◆ HAL_PIN_IE_START_BIT

#define HAL_PIN_IE_START_BIT 11

◆ HAL_PIN_MODE_GROUP_NUM

#define HAL_PIN_MODE_GROUP_NUM 2

◆ HAL_PIN_PULL_BITS_NUM

#define HAL_PIN_PULL_BITS_NUM 2

◆ HAL_PIN_PULL_GROUP_NUM

#define HAL_PIN_PULL_GROUP_NUM 2

◆ HAL_PIN_PULL_START_BIT

#define HAL_PIN_PULL_START_BIT 9

◆ HAL_PIN_SFC_CTRL_START_ADDR

#define HAL_PIN_SFC_CTRL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_SFC_CTRL_START_OFFSET)

◆ HAL_PIN_SFC_CTRL_START_OFFSET

#define HAL_PIN_SFC_CTRL_START_OFFSET 0x868

◆ HAL_PIN_ST_BITS_NUM

#define HAL_PIN_ST_BITS_NUM 1

◆ HAL_PIN_ST_GROUP_NUM

#define HAL_PIN_ST_GROUP_NUM 2

◆ HAL_PIN_ST_START_BIT

#define HAL_PIN_ST_START_BIT 3

◆ HAL_PIN_UART_SEL_BITS_NUM

#define HAL_PIN_UART_SEL_BITS_NUM 2

◆ HAL_PIN_UART_SEL_START_ADDR

#define HAL_PIN_UART_SEL_START_ADDR (HAL_IO_CFG_BASE_ADDR + HAL_PIN_UART_SEL_START_OFFSET)

◆ HAL_PIN_UART_SEL_START_BIT

#define HAL_PIN_UART_SEL_START_BIT 0

◆ HAL_PIN_UART_SEL_START_OFFSET

#define HAL_PIN_UART_SEL_START_OFFSET 0x03C

枚举类型说明

◆ hal_pin_config_type_t

enum hal_pin_config_type_t

PIN config type enum.

枚举值
PIN_CONFIG_TYPE_MODE
PIN_CONFIG_TYPE_DS
PIN_CONFIG_TYPE_PULL
PIN_CONFIG_TYPE_NUM

函数说明

◆ hal_pin_get_config_group()

STATIC hal_pin_config_group_t * hal_pin_get_config_group	(	uint32_t	config_type,
		pin_t	pin
	)

◆ hal_pin_get_config_map()

STATIC errcode_t hal_pin_get_config_map	(	uint32_t	config_type,
		hal_pin_config_group_t **	pin_map,
		uint32_t *	map_size
	)

◆ hal_pin_get_config_val()

STATIC errcode_t hal_pin_get_config_val	(	uint32_t	config_type,
		pin_t	pin,
		uint32_t *	val
	)

◆ hal_pin_set_config_val()

STATIC errcode_t hal_pin_set_config_val	(	uint32_t	config_type,
		pin_t	pin,
		uint32_t	val
	)

◆ hal_pin_ws63_get_ds()

STATIC pin_drive_strength_t hal_pin_ws63_get_ds ( pin_t pin )

◆ hal_pin_ws63_get_mode()

STATIC pin_mode_t hal_pin_ws63_get_mode ( pin_t pin )

◆ hal_pin_ws63_get_pull()

STATIC pin_pull_t hal_pin_ws63_get_pull ( pin_t pin )

◆ hal_pin_ws63_set_ds()

STATIC errcode_t hal_pin_ws63_set_ds	(	pin_t	pin,
		pin_drive_strength_t	ds
	)

◆ hal_pin_ws63_set_mode()

STATIC errcode_t hal_pin_ws63_set_mode	(	pin_t	pin,
		pin_mode_t	mode
	)

◆ hal_pin_ws63_set_pull()

STATIC errcode_t hal_pin_ws63_set_pull	(	pin_t	pin,
		pin_pull_t	pull_type
	)

结构体
