adc_porting.h 文件参考

#include <stdint.h>
#include <stdbool.h>
#include "adc.h"
#include "osal_interrupt.h"

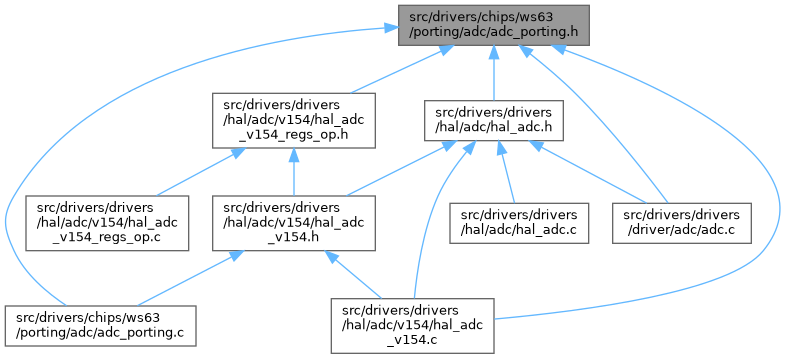

adc_porting.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

宏定义
#define	ADC_LOCK_GET_ATTE   0xFFFFFFFF
#define	HAL_ADC_SCAN_CH0_1_ADDR   0x4400D01C
#define	HAL_ADC_SCAN_CH2_3_ADDR   0x4400D024
#define	HAL_ADC_SCAN_CH0_ADDR   0x4400D01C
#define	HAL_ADC_SCAN_CH1_ADDR   0x4400D020
#define	HAL_ADC_SCAN_CH2_ADDR   0x4400D024
#define	HAL_ADC_SCAN_CH3_ADDR   0x4400D028
#define	HAL_ADC_SCAN_CH4_ADDR   0x4400D02C
#define	HAL_ADC_SCAN_CH5_ADDR   0x4400D030
#define	HAL_ADC_CH0_PIN   0
#define	HAL_ADC_CH1_PIN   0
#define	HAL_ADC_CH2_PIN   0
#define	HAL_ADC_CH3_PIN   0
#define	HAL_ADC_CH4_PIN   0
#define	HAL_ADC_CH5_PIN   0
#define	HAL_ADC_CH6_PIN   0
#define	HAL_ADC_CH7_PIN   0
#define	HAL_ADC_CH8_PIN   0

枚举
enum	adc_channel_t {   ADC_CHANNEL_0 , ADC_CHANNEL_1 , ADC_CHANNEL_2 , ADC_CHANNEL_3 ,   ADC_CHANNEL_4 , ADC_CHANNEL_5 , ADC_CHANNEL_MAX_NUM , ADC_CHANNEL_NONE = ADC_CHANNEL_MAX_NUM }
	ADC channels definition. 更多...
enum	port_adc_scan_freq_t {   HAL_ADC_SCAN_FREQ_2HZ , HAL_ADC_SCAN_FREQ_4HZ , HAL_ADC_SCAN_FREQ_8HZ , HAL_ADC_SCAN_FREQ_16HZ ,   HAL_ADC_SCAN_FREQ_32HZ , HAL_ADC_SCAN_FREQ_64HZ , HAL_ADC_SCAN_FREQ_128HZ , HAL_ADC_SCAN_FREQ_256HZ ,   HAL_ADC_SCAN_FREQ_MAX , HAL_ADC_SCAN_FREQ_NONE = HAL_ADC_SCAN_FREQ_MAX }
	adc自动扫描频率，用于所有通道。 更多...

函数
uintptr_t	adc_porting_base_addr_get (void)
	获取指定ADC的基地址。
uintptr_t	cldo_addr_get (void)
	获取指定ADC复位寄存器的基地址。
void	adc_port_register_hal_funcs (void)
	Register hal funcs objects into hal_adc module.
void	adc_port_unregister_hal_funcs (void)
	Unregister hal funcs objects from hal_adc module.
void	adc_port_init_clock (adc_clock_t clock)
	Set the divider number of the peripheral device clock.
void	adc_port_clock_enable (bool on)
	Set the divider number of the peripheral device clock.
void	adc_port_register_irq (void)
	Register the interrupt of adc.
void	adc_port_unregister_irq (void)
	Unregister the interrupt of adc.
void	adc_port_power_on (bool on)
	Power on or power off the peripheral device.
void	adc_port_calibration (void)
	ADC calibratio.
void	adc_port_pull_disable (adc_channel_t channel)
	ADC disadle channel pull.
void	adc_port_set_scan_discard_and_average_num (adc_channel_t channel)
	ADC set scan discard number and average number.
uint32_t	adc_irq_lock (void)
	Lock of the interrupt.
void	adc_irq_unlock (uint32_t irq_sts)
	Unlock of the interrupt.
errcode_t	adc_port_get_cali_param (uint8_t *data_s, uint8_t *data_b, uint8_t *data_k)
errcode_t	adc_port_read (uint8_t channel, uint16_t *data)
