#include "hal_ext_if.h"
#include "hal_device.h"
#include "fe_rf_customize.h"
#include "fe_hal_rf_reg_if.h"
#include "fe_rf_customize_rx_insert_loss.h"
#include "fe_rf_dev.h"

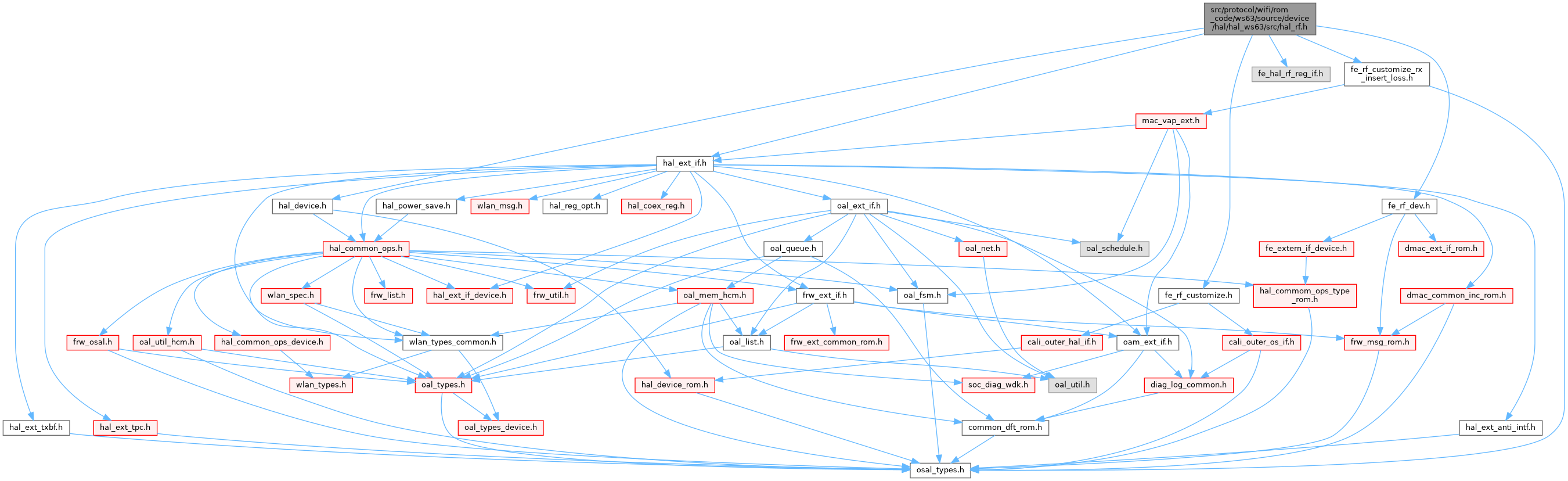

hal_rf.h 的引用(Include)关系图:

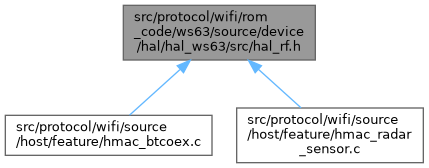

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	hh503_cali_chn_idx_stru

struct	hal_rf

宏定义
#define	THIS_FILE_ID OAM_FILE_ID_HAL_RF_H

#define	HH503_SOC_BUCK_RO 0x400032B4

#define	RF_CALI_DATA_BUF_LEN (0x6cd8)

#define	RF_SINGLE_CHAN_CALI_DATA_BUF_LEN (RF_CALI_DATA_BUF_LEN >> 1)

#define	HH503_TEMPERATURE_THRESH 50

#define	HH503_RF_TCXO_25MHZ 1

#define	HH503_RF_TCXO_40MHZ 2

#define	HH503_RF_TCXO_384MHZ 3

#define	HH503_RF_LPF_GAIN_DEFAULT_VAL 0x4688

#define	HH503_RF_DAC_GAIN_DEFAULT_VAL 0x24

#define	HH503_RF_2G_CHANNEL_NUM 13

#define	HH503_RF_5G_CHANNEL_NUM 7

#define	HH503_RF_FREQ_2_CHANNEL_NUM 14 /* 2g支持信道数目 */

#define	HH503_RF_FREQ_5_CHANNEL_NUM 29 /* 5g支持信道数目 */

#define	HH503_CALI_CHN_INDEX_2422 0

#define	HH503_CALI_CHN_INDEX_2447 1

#define	HH503_CALI_CHN_INDEX_2472 2

#define	CHANNEL_NUM5_IDX 4

#define	CHANNEL_NUM10_IDX 9

#define	HH503_CALI_CHN_INDEX_4950 0

#define	HH503_CALI_CHN_INDEX_5210 1

#define	HH503_CALI_CHN_INDEX_5290 2

#define	HH503_CALI_CHN_INDEX_5530 3

#define	HH503_CALI_CHN_INDEX_5610 4

#define	HH503_CALI_CHN_INDEX_5690 5

#define	HH503_CALI_CHN_INDEX_5775 6

#define	HH503_RF_TEMP_STS_RSV 0x7

#define	HH503_RF_TEMP_INVALID (-100) /* 温度非法值 */

类型定义
typedef osal_u8	hh503_rf_bandwidth_enum_uint8

typedef osal_u8	rf_off_flag_enum_uint8

typedef osal_u8(*	hh503_get_rx_chain_cb) (osal_void)

typedef osal_void(*	hh503_set_rf_bw_cb) (wlan_bw_cap_enum_uint8 bw)

typedef osal_void(*	hh503_rf_set_trx_type_cb) (hal_rf_trx_type_enum trx_type)

typedef osal_void(*	hh503_dpd_cfr_set_11b_cb) (hal_to_dmac_device_stru *hal_device, osal_u8 is_11b)

typedef osal_void(*	hh503_cali_send_func_cb) (hal_to_dmac_device_stru hal_device, osal_u8 cali_data, osal_u16 frame_len, osal_u16 remain)

typedef osal_u32(*	hh503_config_custom_rf_cb) (const osal_u8 *param)

typedef osal_void(*	hh503_config_rssi_for_loss_cb) (osal_u8 channel_num, osal_s8 *rssi)

typedef osal_void(*	hh503_set_rf_custom_reg_cb) (hal_to_dmac_device_stru *hal_device)

typedef osal_void(*	hh503_initialize_rf_sys_cb) (hal_to_dmac_device_stru *hal_device)

typedef osal_void(*	hh503_adjust_tx_power_cb) (osal_u8 ch, osal_s8 power)

typedef osal_void(*	hh503_restore_tx_power_cb) (osal_u8 ch)

typedef osal_u8(*	hh503_rf_get_subband_idx_cb) (wlan_channel_band_enum_uint8 band, osal_u8 channel_idx)

typedef osal_void(*	hh503_pow_set_rf_regctl_enable_cb) (hal_to_dmac_device_stru *hal_device, oal_bool_enum_uint8 rf_linectl)

枚举
enum	hh503_rf_bandwidth_enum { HH503_RF_BAND_CTRL_10M , HH503_RF_BAND_CTRL_20M , HH503_RF_BAND_CTRL_40M , HH503_RF_BAND_CTRL_80M , HH503_RF_BAND_CTRL_BUTT }

enum	rf_off_flag_enum { RFLDO_EN_OFF , RF_EN_OFF , RF_OFF_BUTT }

函数
osal_void	hh503_set_rf_bw (wlan_bw_cap_enum_uint8 bw)

osal_void	hh503_rf_set_trx_type_ext (hal_rf_trx_type_enum trx_type)

osal_void	hh503_dpd_cfr_set_11b_ext (const hal_to_dmac_device_stru *hal_device, osal_u8 is_11b)

osal_void	hh503_cali_send_func_ext (hal_to_dmac_device_stru hal_device, osal_u8 cali_data, osal_u16 frame_len, osal_u16 remain)

osal_u32	hh503_config_custom_rf_ext (const osal_u8 *param)

osal_void	hh503_config_rssi_for_loss_ext (osal_u8 channel_num, osal_s8 *rssi)

osal_void	hh503_set_rf_custom_reg_ext (const hal_to_dmac_device_stru *hal_device)

osal_void	hh503_initialize_rf_sys_ext (hal_to_dmac_device_stru *hal_device)

osal_void	hh503_pow_set_rf_regctl_enable_ext (const hal_to_dmac_device_stru *hal_device, oal_bool_enum_uint8 rf_linectl)

osal_u8	hh503_get_tpc_code_ext (osal_void)

osal_void	hh503_adjust_tx_power_level_ext (osal_u8 ch, osal_s8 power)

osal_void	hal_radar_sensing_switch_abb_lo_tx_top_test_reg12 (osal_bool is_on)

osal_void	hal_set_cal_tone (osal_u32 tone_cfg)

宏定义说明

◆ CHANNEL_NUM10_IDX

#define CHANNEL_NUM10_IDX 9

◆ CHANNEL_NUM5_IDX

#define CHANNEL_NUM5_IDX 4

◆ HH503_CALI_CHN_INDEX_2422

#define HH503_CALI_CHN_INDEX_2422 0

◆ HH503_CALI_CHN_INDEX_2447

#define HH503_CALI_CHN_INDEX_2447 1

◆ HH503_CALI_CHN_INDEX_2472

#define HH503_CALI_CHN_INDEX_2472 2

◆ HH503_CALI_CHN_INDEX_4950

#define HH503_CALI_CHN_INDEX_4950 0

◆ HH503_CALI_CHN_INDEX_5210

#define HH503_CALI_CHN_INDEX_5210 1

◆ HH503_CALI_CHN_INDEX_5290

#define HH503_CALI_CHN_INDEX_5290 2

◆ HH503_CALI_CHN_INDEX_5530

#define HH503_CALI_CHN_INDEX_5530 3

◆ HH503_CALI_CHN_INDEX_5610

#define HH503_CALI_CHN_INDEX_5610 4

◆ HH503_CALI_CHN_INDEX_5690

#define HH503_CALI_CHN_INDEX_5690 5

◆ HH503_CALI_CHN_INDEX_5775

#define HH503_CALI_CHN_INDEX_5775 6

◆ HH503_RF_2G_CHANNEL_NUM

#define HH503_RF_2G_CHANNEL_NUM 13

◆ HH503_RF_5G_CHANNEL_NUM

#define HH503_RF_5G_CHANNEL_NUM 7

◆ HH503_RF_DAC_GAIN_DEFAULT_VAL

#define HH503_RF_DAC_GAIN_DEFAULT_VAL 0x24

◆ HH503_RF_FREQ_2_CHANNEL_NUM

#define HH503_RF_FREQ_2_CHANNEL_NUM 14 /* 2g支持信道数目 */

◆ HH503_RF_FREQ_5_CHANNEL_NUM

#define HH503_RF_FREQ_5_CHANNEL_NUM 29 /* 5g支持信道数目 */

◆ HH503_RF_LPF_GAIN_DEFAULT_VAL

#define HH503_RF_LPF_GAIN_DEFAULT_VAL 0x4688

◆ HH503_RF_TCXO_25MHZ

#define HH503_RF_TCXO_25MHZ 1

◆ HH503_RF_TCXO_384MHZ

#define HH503_RF_TCXO_384MHZ 3

◆ HH503_RF_TCXO_40MHZ

#define HH503_RF_TCXO_40MHZ 2

◆ HH503_RF_TEMP_INVALID

#define HH503_RF_TEMP_INVALID (-100) /* 温度非法值 */

◆ HH503_RF_TEMP_STS_RSV

#define HH503_RF_TEMP_STS_RSV 0x7

◆ HH503_SOC_BUCK_RO

#define HH503_SOC_BUCK_RO 0x400032B4

◆ HH503_TEMPERATURE_THRESH

#define HH503_TEMPERATURE_THRESH 50

◆ RF_CALI_DATA_BUF_LEN

#define RF_CALI_DATA_BUF_LEN (0x6cd8)

◆ RF_SINGLE_CHAN_CALI_DATA_BUF_LEN

#define RF_SINGLE_CHAN_CALI_DATA_BUF_LEN (RF_CALI_DATA_BUF_LEN >> 1)

◆ THIS_FILE_ID

#define THIS_FILE_ID OAM_FILE_ID_HAL_RF_H

类型定义说明

◆ hh503_adjust_tx_power_cb

typedef osal_void(* hh503_adjust_tx_power_cb) (osal_u8 ch, osal_s8 power)

◆ hh503_cali_send_func_cb

typedef osal_void(* hh503_cali_send_func_cb) (hal_to_dmac_device_stru *hal_device, osal_u8 *cali_data, osal_u16 frame_len, osal_u16 remain)

◆ hh503_config_custom_rf_cb

typedef osal_u32(* hh503_config_custom_rf_cb) (const osal_u8 *param)

◆ hh503_config_rssi_for_loss_cb

typedef osal_void(* hh503_config_rssi_for_loss_cb) (osal_u8 channel_num, osal_s8 *rssi)

◆ hh503_dpd_cfr_set_11b_cb

typedef osal_void(* hh503_dpd_cfr_set_11b_cb) (hal_to_dmac_device_stru *hal_device, osal_u8 is_11b)

◆ hh503_get_rx_chain_cb

typedef osal_u8(* hh503_get_rx_chain_cb) (osal_void)

◆ hh503_initialize_rf_sys_cb

typedef osal_void(* hh503_initialize_rf_sys_cb) (hal_to_dmac_device_stru *hal_device)

◆ hh503_pow_set_rf_regctl_enable_cb

typedef osal_void(* hh503_pow_set_rf_regctl_enable_cb) (hal_to_dmac_device_stru *hal_device, oal_bool_enum_uint8 rf_linectl)

◆ hh503_restore_tx_power_cb

typedef osal_void(* hh503_restore_tx_power_cb) (osal_u8 ch)

◆ hh503_rf_bandwidth_enum_uint8

typedef osal_u8 hh503_rf_bandwidth_enum_uint8

◆ hh503_rf_get_subband_idx_cb

typedef osal_u8(* hh503_rf_get_subband_idx_cb) (wlan_channel_band_enum_uint8 band, osal_u8 channel_idx)

◆ hh503_rf_set_trx_type_cb

typedef osal_void(* hh503_rf_set_trx_type_cb) (hal_rf_trx_type_enum trx_type)

◆ hh503_set_rf_bw_cb

typedef osal_void(* hh503_set_rf_bw_cb) (wlan_bw_cap_enum_uint8 bw)

◆ hh503_set_rf_custom_reg_cb

typedef osal_void(* hh503_set_rf_custom_reg_cb) (hal_to_dmac_device_stru *hal_device)

◆ rf_off_flag_enum_uint8

typedef osal_u8 rf_off_flag_enum_uint8

枚举类型说明

◆ hh503_rf_bandwidth_enum

enum hh503_rf_bandwidth_enum

枚举值
HH503_RF_BAND_CTRL_10M
HH503_RF_BAND_CTRL_20M
HH503_RF_BAND_CTRL_40M
HH503_RF_BAND_CTRL_80M
HH503_RF_BAND_CTRL_BUTT

◆ rf_off_flag_enum

enum rf_off_flag_enum

枚举值
RFLDO_EN_OFF
RF_EN_OFF
RF_OFF_BUTT

函数说明

◆ hal_radar_sensing_switch_abb_lo_tx_top_test_reg12()

osal_void hal_radar_sensing_switch_abb_lo_tx_top_test_reg12 ( osal_bool is_on )

◆ hal_set_cal_tone()

osal_void hal_set_cal_tone ( osal_u32 tone_cfg )

◆ hh503_adjust_tx_power_level_ext()

osal_void hh503_adjust_tx_power_level_ext	(	osal_u8	ch,
		osal_s8	power
	)

◆ hh503_cali_send_func_ext()

osal_void hh503_cali_send_func_ext	(	hal_to_dmac_device_stru *	hal_device,
		osal_u8 *	cali_data,
		osal_u16	frame_len,
		osal_u16	remain
	)

◆ hh503_config_custom_rf_ext()

osal_u32 hh503_config_custom_rf_ext ( const osal_u8 * param )

◆ hh503_config_rssi_for_loss_ext()

osal_void hh503_config_rssi_for_loss_ext	(	osal_u8	channel_num,
		osal_s8 *	rssi
	)

◆ hh503_dpd_cfr_set_11b_ext()

osal_void hh503_dpd_cfr_set_11b_ext	(	const hal_to_dmac_device_stru *	hal_device,
		osal_u8	is_11b
	)

◆ hh503_get_tpc_code_ext()

osal_u8 hh503_get_tpc_code_ext ( osal_void )

◆ hh503_initialize_rf_sys_ext()

osal_void hh503_initialize_rf_sys_ext ( hal_to_dmac_device_stru * hal_device )

◆ hh503_pow_set_rf_regctl_enable_ext()

osal_void hh503_pow_set_rf_regctl_enable_ext	(	const hal_to_dmac_device_stru *	hal_device,
		oal_bool_enum_uint8	rf_linectl
	)

◆ hh503_rf_set_trx_type_ext()

osal_void hh503_rf_set_trx_type_ext ( hal_rf_trx_type_enum trx_type )

◆ hh503_set_rf_bw()

osal_void hh503_set_rf_bw ( wlan_bw_cap_enum_uint8 bw )

◆ hh503_set_rf_custom_reg_ext()

osal_void hh503_set_rf_custom_reg_ext ( const hal_to_dmac_device_stru * hal_device )
