#include <stdint.h>
#include "osal_types.h"
#include "td_type.h"

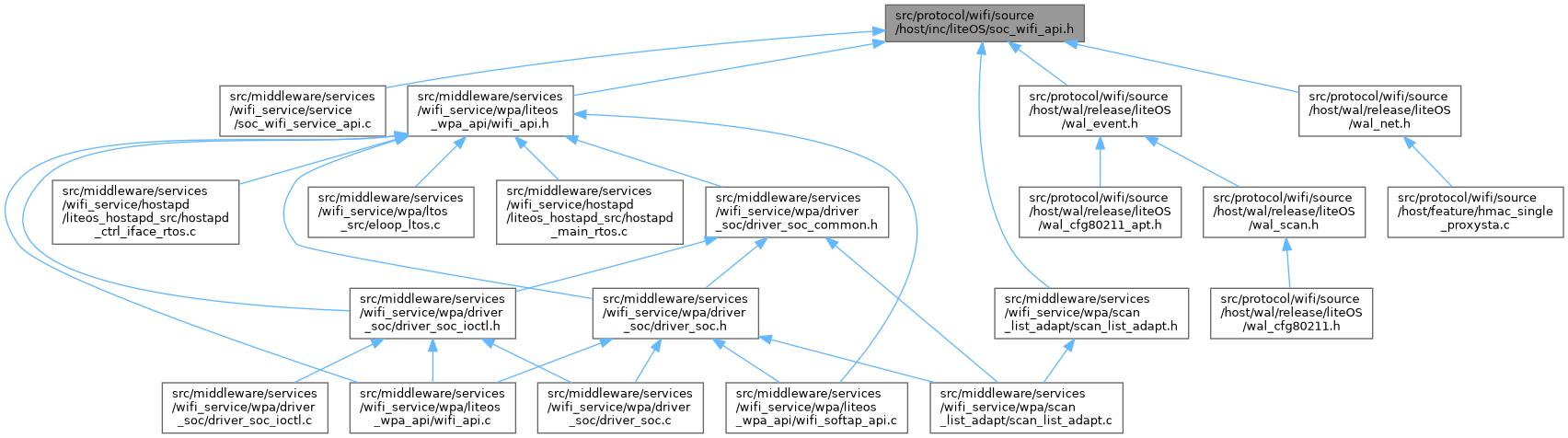

soc_wifi_api.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	ext_alg_param_stru

struct	psd_option_param

struct	ext_wifi_ptype_filter_stru

struct	ext_wifi_scan_params

struct	ext_wifi_scan_param_stru

struct	ext_wifi_ap_info

struct	wifi_app_common_input_param

struct	wifi_app_common_output_param

struct	wifi_app_common_param

struct	ext_wifi_assoc_request

struct	ext_wifi_fast_assoc_request

struct	ext_wifi_status

struct	event_wifi_scan_done

struct	event_wifi_connected

struct	event_wifi_disconnected

struct	event_wifi_interface_name

struct	event_wifi_wps_fail

struct	event_ap_sta_connected

struct	event_ap_sta_disconnected

struct	event_mesh_connected

struct	event_mesh_disconnected

struct	event_p2p_prov_disc_pbc_request

struct	event_p2p_prov_disc_pbc_response

struct	event_p2p_go_neg_request

struct	event_p2p_go_neg_success

struct	event_p2p_go_neg_failure

struct	event_p2p_group_started

struct	event_p2p_invite_recieve

struct	event_p2p_invite_result

struct	event_p2p_invite_accept

union	ext_wifi_event_info

struct	ext_wifi_event

struct	ext_wifi_softap_config

struct	ext_wifi_ap_sta_info

struct	ext_wifi_sta_psk_config

struct	ext_wifi_scan_result_stru

struct	ext_wifi_report_tx_params

struct	ext_wifi_ent_import_callback

struct	ext_csi_config

struct	data_segment
	设置eth data相关参数。更多...

宏定义
#define	MACSTR "%02x:%02x:%02x:%02x:%02x:%02x"

#define	mac2str(a) (a)[0], (a)[1], (a)[2], (a)[3], (a)[4], (a)[5]

#define	bit(x) (1U << (x))

#define	WIFI_CIPHER_TKIP bit(3)

#define	WIFI_CIPHER_CCMP bit(4)

#define	WIFI_24G_CHANNEL_NUMS 14

#define	WIFI_IFNAME_MAX_SIZE 16

#define	WIFI_MIN_RECONNECT_TIMEOUT 2

#define	WIFI_MAX_RECONNECT_TIMEOUT 65535

#define	WIFI_MIN_RECONNECT_PERIOD 1

#define	WIFI_MAX_RECONNECT_PERIOD 65535

#define	WIFI_MIN_RECONNECT_TIMES 1

#define	WIFI_MAX_RECONNECT_TIMES 65535

#define	WIFI_SCAN_AP_LIMIT 64

#define	WIFI_STATUS_BUF_LEN_LIMIT 512

#define	WIFI_WPS_PIN_LEN 8

#define	WIFI_DEFAULT_MAX_NUM_STA 8

#define	WIFI_SCAN_CNT_DEFAULT_ENABLE (1 << 0)

#define	WIFI_SCAN_TIME_DEFAULT_ENABLE (1 << 1)

#define	WIFI_SCAN_CHANNEL_INTERVAL_DEFAULT_ENABLE (1 << 2)

#define	WIFI_WORK_TIME_ON_HOME_CHANNEL_DEFAULT_ENABLE (1 << 3)

#define	WIFI_SINGLE_PROBE_REQ_SEND_TIMES_DEFAULT_ENABLE (1 << 4)

#define	EXT_WIFI_OK 0

#define	EXT_WIFI_FAIL (-1)

#define	EXT_WIFI_MAX_SSID_LEN 32

#define	EXT_WIFI_MAC_LEN 6

#define	EXT_WIFI_DEV_TYPE_LEN 8

#define	EXT_WIFI_DEV_NAME_LEN 32

#define	EXT_WIFI_GROUP_NAME_LEN 100

#define	EXT_WIFI_TXT_ADDR_LEN 17

#define	EXT_WIFI_AP_KEY_LEN 64

#define	EXT_WIFI_MAX_KEY_LEN 64

#define	EXT_WIFI_INVALID_CHANNEL 0xFF

#define	EXT_WIFI_VENDOR_IE_MAX_IDX 1

#define	EXT_WIFI_VENDOR_IE_MAX_LEN 255

#define	EXT_WIFI_CUSTOM_PKT_MIN_LEN 24

#define	EXT_WIFI_CUSTOM_PKT_MAX_LEN 1400

#define	EXT_WIFI_STA_PSK_LEN 32

#define	EXT_WIFI_RETRY_MAX_NUM 15

#define	EXT_WIFI_RETRY_MAX_TIME 200

#define	EXT_WIFI_CB_MIN_PRIO 10

#define	EXT_WIFI_CB_MAX_PRIO 30

#define	EXT_WIFI_USR_IE_MAX_SIZE 257

#define	EXT_WIFI_IDENTITY_LEN 64

#define	WIFI_MAC_REPORT_DISCONNECT_OFFSET 5200

#define	WIFI_NETWORK_NOT_FOUND_ERROR 5300

#define	WLAN_REASON_MIC_FAILURE 14

类型定义
typedef void(*	ext_wifi_scan_no_save_cb) (ext_wifi_scan_result_stru *scan_result)

typedef int(*	uapi_wifi_ent_import_cb) (unsigned char *buf, unsigned int len)

typedef int32_t(*	wifi_psd_cb) (void *recv_buf, uint32_t data_len)

typedef int32_t(*	wifi_promis_cb) (void *recv_buf, int32_t frame_len, int8_t rssi)

typedef void(*	uapi_wifi_event_cb) (const ext_wifi_event *event)

typedef void(*	wifi_csi_data_cb) (unsigned char *csi_data, int len)

typedef unsigned int(*	uapi_wifi_report_tx_params_callback) (ext_wifi_report_tx_params *)

typedef int32_t(*	wifi_rx_mgmt_cb) (void *recv_buf, int32_t frame_len, int8_t rssi)

typedef struct data_segment	data_segment_t
	设置eth data相关参数。

枚举
enum	ext_wifi_cap { EXT_WIFI_CAP_DISABLE = 0 , EXT_WIFI_CAP_ENABLE , EXT_WIFI_CAP_BUTT }

enum	ext_wifi_monitor_mode { EXT_WIFI_MONITOR_OFF , EXT_WIFI_MONITOR_MCAST_DATA , EXT_WIFI_MONITOR_UCAST_DATA , EXT_WIFI_MONITOR_MCAST_MANAGEMENT , EXT_WIFI_MONITOR_UCAST_MANAGEMENT , EXT_WIFI_MONITOR_BUTT }

enum	ext_wifi_mac_disconnect_reason { WLAN_JOIN_RSP_TIMEOUT = 5200 , WLAN_AUTH_RSP2_TIMEOUT = 5201 , WLAN_AUTH_RSP4_TIMEOUT = 5202 , WLAN_ASOC_RSP_TIMEOUT = 5203 , WLAN_AUTH_RSP_TIMEOUT = 5204 , WLAN_ACTIVE_DISCONNECT_OFFSET = 5205 , WLAN_DISASOC_MISC_LINKLOSS = 5206 , WLAN_MAC_EXT_AUTH_FAIL = 5210 }
	驱动上报的私有断连状态码, 与mac_common_frame_rom.h的值对应更多...

enum	ext_wifi_pkt_type { EXT_WIFI_PKT_TYPE_BEACON , EXT_WIFI_PKT_TYPE_PROBE_REQ , EXT_WIFI_PKT_TYPE_PROBE_RESP , EXT_WIFI_PKT_TYPE_ASSOC_REQ , EXT_WIFI_PKT_TYPE_ASSOC_RESP , EXT_WIFI_PKT_TYPE_BUTT }

enum	ext_wifi_iftype { EXT_WIFI_IFTYPE_UNSPECIFIED , EXT_WIFI_IFTYPE_ADHOC , EXT_WIFI_IFTYPE_STATION = 2 , EXT_WIFI_IFTYPE_AP = 3 , EXT_WIFI_IFTYPE_AP_VLAN , EXT_WIFI_IFTYPE_WDS , EXT_WIFI_IFTYPE_MONITOR , EXT_WIFI_IFTYPE_MESH_POINT = 7 , EXT_WIFI_IFTYPE_P2P_CLIENT , EXT_WIFI_IFTYPE_P2P_GO , EXT_WIFI_IFTYPE_P2P_DEVICE , EXT_WIFI_IFTYPES_BUTT }

enum	ext_wifi_bw { EXT_WIFI_BW_HIEX_5M , EXT_WIFI_BW_HIEX_10M , EXT_WIFI_BW_LEGACY_20M , EXT_WIFI_BW_BUTT }

enum	ext_phy_protocol_enum { WIFI_11B_PHY_PROTOCOL_MODE = 0 , WIFI_LEGACY_OFDM_PHY_PROTOCOL_MODE = 1 , WIFI_HT_PHY_PROTOCOL_MODE = 2 , WIFI_HE_SU_FORMAT = 3 }

enum	ext_wifi_auth_mode { EXT_WIFI_SEC_TYPE_INVALID = -1 , EXT_WIFI_SECURITY_OPEN , EXT_WIFI_SECURITY_WEP , EXT_WIFI_SECURITY_WPA2PSK , EXT_WIFI_SECURITY_WPAPSK_WPA2PSK_MIX , EXT_WIFI_SECURITY_WPAPSK , EXT_WIFI_SECURITY_WPA , EXT_WIFI_SECURITY_WPA2 , EXT_WIFI_SECURITY_SAE , EXT_WIFI_SECURITY_WPA3_WPA2_PSK_MIX , EXT_WIFI_SECURITY_WPA3 , EXT_WIFI_SECURITY_OWE , EXT_WIFI_SECURITY_WAPI_PSK , EXT_WIFI_SECURITY_WAPI_CERT , EXT_WIFI_SECURITY_WPA3_WPA2_MIX , EXT_WIFI_SECURITY_WEP_OPEN , EXT_WIFI_SECURITY_WPA3_192BIT , EXT_WIFI_SECURITY_UNKNOWN }

enum	ext_wifi_pairwise { EXT_WIFI_PARIWISE_UNKNOWN , EXT_WIFI_PAIRWISE_AES , EXT_WIFI_PAIRWISE_TKIP , EXT_WIFI_PAIRWISE_TKIP_AES_MIX , EXT_WIFI_PAIRWISE_CCMP256 , EXT_WIFI_PAIRWISE_CCMP256_CCMP , EXT_WIFI_PAIRWISE_CCMP256_TKIP , EXT_WIFI_PAIRWISE_BUTT }

enum	wifi_sae_pwe_option_enum { WIFI_SAE_PWE_UNSPECIFIED , WIFI_SAE_PWE_HUNT_AND_PECK , WIFI_SAE_PWE_HASH_TO_ELEMENT , WIFI_SAE_PWE_BOTH }

enum	ext_wifi_conn_status { EXT_WIFI_DISCONNECTED , EXT_WIFI_CONNECTED , EXT_WIFI_CONNECTING }

enum	ext_wifi_extend_ie_index { EXT_WIFI_EXTEND_IE1 , EXT_WIFI_EXTEND_IE2 , EXT_WIFI_EXTEND_IE3 , EXT_WIFI_EXTEND_IE4 , EXT_WIFI_EXTEND_IE_BUTT }

enum	ext_wifi_frame_type { EXT_WIFI_BEACON_IE = (1 << 0) , EXT_WIFI_PROBE_REQ_IE = (1 << 1) , EXT_WIFI_PROBE_RSP_IE = (1 << 2) }

enum	ext_wifi_event_type { EXT_WIFI_EVT_UNKNOWN , EXT_WIFI_EVT_SCAN_DONE , EXT_WIFI_EVT_CONNECTED , EXT_WIFI_EVT_DISCONNECTED , EXT_WIFI_EVT_WPS_TIMEOUT , EXT_WIFI_EVT_WPS_SUCCESS , EXT_WIFI_EVT_WPS_FAIL , EXT_WIFI_EVT_MESH_CONNECTED , EXT_WIFI_EVT_MESH_DISCONNECTED , EXT_WIFI_EVT_AP_START , EXT_WIFI_EVT_AP_DISABLE , EXT_WIFI_EVT_STA_CONNECTED , EXT_WIFI_EVT_STA_DISCONNECTED , EXT_WIFI_EVT_STA_NO_NETWORK , EXT_WIFI_EVT_MESH_CANNOT_FOUND , EXT_WIFI_EVT_MESH_SCAN_DONE , EXT_WIFI_EVT_MESH_STA_SCAN_DONE , EXT_WIFI_EVT_AP_SCAN_DONE , EXT_WIFI_EVT_P2P_FIND_STOP , EXT_WIFI_EVT_P2P_PROV_DISC_PBC_REQ , EXT_WIFI_EVT_P2P_PROV_DISC_PBC_RESP , EXT_WIFI_EVT_P2P_GO_NEG_REQUEST , EXT_WIFI_EVT_P2P_GO_NEG_SUCCESS , EXT_WIFI_EVT_P2P_GO_NEG_FAILURE , EXT_WIFI_EVT_P2P_GROUP_FORMATION_SUCCESS , EXT_WIFI_EVT_P2P_GROUP_FORMATION_FAILURE , EXT_WIFI_EVT_P2P_GROUP_STARTED , EXT_WIFI_EVT_P2P_INVITATION_RECIEVE , EXT_WIFI_EVT_P2P_INVITATION_RESULT , EXT_WIFI_EVT_P2P_INVITATION_ACCEPT , EXT_WIFI_EVT_BUTT }

enum	ext_wifi_scan_type { EXT_WIFI_BASIC_SCAN , EXT_WIFI_CHANNEL_SCAN , EXT_WIFI_SSID_SCAN , EXT_WIFI_SSID_PREFIX_SCAN , EXT_WIFI_BSSID_SCAN }

enum	ext_wifi_wpa_psk_usage_type { EXT_WIFI_WPA_PSK_NOT_USE , EXT_WIFI_WPA_PSK_USE_INNER , EXT_WIFI_WPA_PSK_USE_OUTER }

enum	ext_wifi_xldo_voltage { EXT_WIFI_XLDO_VOLTAGE_0 = 0x00 , EXT_WIFI_XLDO_VOLTAGE_1 = 0x11 , EXT_WIFI_XLDO_VOLTAGE_2 = 0x22 , EXT_WIFI_XLDO_VOLTAGE_3 = 0x33 }

enum	ext_wifi_eap_method { EXT_WIFI_EAP_METHOD_TLS , EXT_WIFI_EAP_METHOD_BUTT }

enum	ext_wifi_retry_frame_type { EXT_WIFI_RETRY_FRAME_DATA , EXT_WIFI_RETRY_FRAME_MGMT , EXT_WIFI_RETRY_FRAME_BUTT }

函数
unsigned int	uapi_wifi_force_scan_complete (void)

unsigned int	uapi_wifi_scan_results_clear (void)

int	uapi_wifi_get_scan_flag (void)

int	uapi_wifi_ap_scan (void)

int	uapi_wifi_sta_raw_scan (ext_wifi_scan_params *sp, ext_wifi_scan_no_save_cb cb)

int	uapi_wifi_csi_set_config (const char ifname, const ext_csi_config config)

void	uapi_csi_register_data_report_cb (wifi_csi_data_cb data_cb)

int	uapi_wifi_csi_start (void)

int	uapi_wifi_csi_stop (void)

td_s32	uapi_wifi_set_pkt_retry_policy (td_u8 frame_type, td_u8 retry_count)

int	uapi_wifi_mac_phy_reset (void)

td_u32	uapi_wifi_set_rts_threshold (td_u8 mode, td_u16 pkt_length)

uint32_t	uapi_wifi_set_phy_txrate (td_u8 auto_rate, ext_alg_param_stru *alg_param)

td_u32	uapi_wifi_enable_intrf_mode (const td_char *ifname, td_u8 enable, td_u16 flag)

td_s32	uapi_wifi_get_tx_params (const td_char mac_addr, td_u8 mac_len, td_u32 tx_best_rate)

td_s32	uapi_set_low_current_boot_mode (td_u16 flag)

int	uapi_wifi_set_wow_switch (uint8_t enable)
	Set wow switch.CNcomment:设置wow特性开关.CNend

int	uapi_wifi_set_wow_pattern (unsigned char type, unsigned char index, unsigned char *pattern)
	Set wow switch.CNcomment:配置wow特定唤醒报文格式.CNend

td_s32	uapi_wifi_init (const td_u8 vap_res_num, const td_u8 user_res_num)
	Wifi initialize.CNcomment:wifi初始化.CNend

int	uapi_wifi_deinit (void)
	Wifi de-initialize.CNcomment:wifi去初始化.CNend

unsigned char	uapi_wifi_get_init_status (void)
	Get wifi initialize status.CNcomment:获取wifi初始化状态.CNend

int	wifi_sta_set_sae_pwe (wifi_sae_pwe_option_enum pwe)
	Config sae pwe settings of sta.CNcomment:配置station的sae pwe.CNend

int	wifi_softap_set_sae_pwe (wifi_sae_pwe_option_enum pwe)
	Config sae pwe settings of softap.CNcomment:配置softap的sae pwe.CNend

int	uapi_wifi_sta_start (char ifname, int len)
	Start wifi station.CNcomment:开启STA.CNend

int	uapi_wifi_sta_stop (void)
	Close wifi station.CNcomment:关闭STA.CNend

int	uapi_wifi_sta_scan (void)
	Start sta basic scanning in all channels.CNcomment:station进行全信道基础扫描.CNend

int	uapi_wifi_sta_advance_scan (ext_wifi_scan_params *sp)
	Start station scanning with specified parameter.CNcomment:station执行带特定参数的扫描.CNend

int	uapi_wifi_sta_scan_results (ext_wifi_ap_info ap_list, unsigned int ap_num)
	sta start scan.CNcomment:station进行扫描.CNend

int	uapi_wifi_sta_scan_results_clear (void)
	Clear sta scan result.CNcomment:清除sta扫描链表.CNend

int	uapi_wifi_wnm_bss_query (int reason_code, int candidate_list)
	Clear sta scan result.CNcomment:发送bss query报文.CNend

int	uapi_wifi_wnm_notify (const char *param, unsigned int len)
	Clear sta scan result.CNcomment:发送wnm notify query报文.CNend

int	uapi_wifi_sta_connect (const ext_wifi_assoc_request *req)
	sta start connect.CNcomment:station进行连接网络.CNend

int	uapi_wifi_sta_fast_connect (const ext_wifi_fast_assoc_request *fast_request)
	Start fast connect.CNcomment:station进行快速连接网络.CNend

int	uapi_wifi_sta_disconnect (void)
	Disconnect from network.CNcomment:station断开相连的网络.CNend

int	uapi_wifi_sta_set_reconnect_policy (int enable, unsigned int seconds, unsigned int period, unsigned int max_try_count)
	Set reconnect policy.CNcomment:station设置重新连接网络机制.CNend

int	uapi_wifi_sta_reconnect_for_wfa_test (void)
	STA reconnect without deleting the network configuration, only used for WFA tests. CNcomment:station模式下重新发起关联但不删除network配置信息,仅WFA测试使用.CNend

int	uapi_wifi_sta_get_connect_info (ext_wifi_status *connect_status)
	Get status of sta.CNcomment:获取station连接的网络状态.CNend

int	uapi_wifi_sta_wps_pbc (const unsigned char *bssid, unsigned int bssid_len)
	Start pbc connect in WPS.CNcomment:设置WPS进行pbc连接.CNend

int	uapi_wifi_sta_wps_pin (const char pin, unsigned int pin_len, const unsigned char bssid, unsigned int bssid_len)
	Start pin connect in WPS.CNcomment:WPS通过pin码连接网络.CNend

int	uapi_wifi_sta_wps_pin_get (char *pin, unsigned int len)
	Get pin code.CNcomment:WPS获取pin码.CNend

int	uapi_wifi_sta_get_ap_rssi (void)
	Get rssi value.CNcomment:获取rssi值.CNend

int	uapi_wifi_sta_get_ap_snr (void)
	Get snr value.CNcomment:获取snr值.CNend

td_s32	uapi_wifi_ap_get_sta_info (td_char mac_addr, td_s8 rssi, td_u32 *best_rate)
	Get info of sta which ap connected to.CNcomment:获取ap连接的sta信息.CNend

td_s32	uapi_wifi_sta_set_pm_param (td_u8 pm_timeout, td_u8 pm_timer_cnt, td_u8 bcn_timeout, td_u8 mcast_timeout, td_u16 sleep_time)
	Set sta powersave configuration.CNcomment:设置STA的低功耗参数.CNend

int	uapi_wifi_psk_calc (ext_wifi_sta_psk_config psk_config, unsigned char *get_psk, unsigned int psk_len)
	WPA PSK Calculate.CNcomment:计算WPA PSK.CNend

int	uapi_wifi_psk_calc_and_store (ext_wifi_sta_psk_config psk_config)
	WPA PSK Calculate，then keep it inside .CNcomment:计算WPA PSK, 并做内部保存.CNend

int	uapi_wifi_config_callback (unsigned char mode, unsigned char task_prio, unsigned short stack_size)
	config calling mode of user's callback interface.CNcomment:配置用户回调接口的调用方式.CNend

int	uapi_wifi_register_event_callback (uapi_wifi_event_cb event_cb)
	register user callback interface.CNcomment:注册回调函数接口.CNend

int	uapi_wifi_softap_set_beacon_period (int beacon_period)
	Set softap's beacon interval.CNcomment:设置softap的beacon周期.CNend

int	uapi_wifi_softap_set_dtim_period (int dtim_period)
	Set softap's dtim count.CNcomment:设置softap的dtim周期.CNend

int	uapi_wifi_softap_set_group_rekey (int wifi_group_rekey)
	Set update time of softap's group key.CNcomment:配置softap组播秘钥更新时间.CNend

int	uapi_wifi_softap_set_shortgi (int flag)
	Set short-gi of softap.CNcomment:设置softap的SHORT-GI功能.CNend

int	uapi_wifi_softap_start (ext_wifi_softap_config conf, char ifname, int *len)
	Start softap interface.CNcomment:开启SoftAP.CNend

int	uapi_wifi_softap_stop (void)
	Close softap interface.CNcomment:关闭SoftAP.CNend

int	uapi_wifi_softap_get_connected_sta (ext_wifi_ap_sta_info sta_list, unsigned int sta_num)
	Get all user's information of softap.CNcomment:softap获取已连接的station的信息.CNend

int	uapi_wifi_softap_deauth_sta (const unsigned char *addr, unsigned char addr_len)
	Softap deauth user by mac address.CNcomment:softap指定断开连接的station网络.CNend

int	uapi_wifi_softap_set_pairwise (int pairwise)
	Set softap pairwise.CNcomment:设置pairwise.CNend

td_s32	uapi_wifi_set_country (const td_char *cc, td_u8 cc_len)
	Set country code.CNcomment:设置国家码.CNend

td_s32	uapi_wifi_get_country (td_char cc, td_u8 len)
	Get country code.CNcomment:获取国家码.CNend

td_s32	uapi_wifi_set_bandwidth (const td_char *ifname, td_u8 ifname_len, ext_wifi_bw bw)
	Set bandwidth.CNcomment:设置带宽.CNend

ext_wifi_bw	uapi_wifi_get_bandwidth (const td_char *ifname, td_u8 ifname_len)
	Get bandwidth.CNcomment:获取带宽.CNend

td_s32	uapi_wifi_set_channel (const td_char *ifname, td_u8 ifname_len, td_s32 channel)
	Set channel.CNcomment:设置信道.CNend

td_s32	uapi_wifi_get_channel (const td_char *ifname, td_u8 ifname_len)
	Get channel.CNcomment:获取信道.CNend

int	uapi_wifi_set_scan_param (const td_char ifname, ext_wifi_scan_param_stru scan_param)
	Set scan.param.CNcomment:设置扫描参数.CNend

osal_s32	uapi_wifi_promis_enable (const osal_char ifname, osal_s32 enable, const ext_wifi_ptype_filter_stru filter)
	Set monitor mode.CNcomment:设置混杂模式.CNend

int	uapi_wifi_sdp_enable (const osal_char *ifname, osal_s32 enable, osal_s32 ratio)
	Set wifi aware enable.CNcomment:设置wifi aware使能.CNend

int	uapi_wifi_sdp_subscribe (const osal_char ifname, osal_char sdp_subscribe, osal_s32 local_handle)
	Set wifi aware subscribe.CNcomment:设置wifi aware订阅.CNend

int	uapi_wifi_promis_set_rx_callback (wifi_promis_cb data_cb)
	Register receive callback in monitor mode.CNcomment:注册混杂模式的收包回调函数.CNend

td_s32	uapi_wifi_set_pm_switch (td_u8 enable, td_u32 sleep_time)
	Open/close system power save.CNcomment:开启/关闭WiFi低功耗模式并配置预期休眠时间.CNend

osal_s32	uapi_wifi_set_linkloss_paras (osal_u8 probe_request_ratio, osal_u16 linkloss_threshold)
	Set Linkloss paras.CNcomment:设置Linkloss的参数.CNend

unsigned char	uapi_wifi_arp_offload_setting (const char *ifname, unsigned char en, unsigned int ip)
	Set arp offload on/off.CNcomment:设置arp offload 打开/关闭.CNend

unsigned int	uapi_wifi_nd_offload_setting (const char ifname, unsigned char en, unsigned char ip6)
	Set nd offload on/off.CNcomment:设置nd offload 打开/关闭.CNend

td_s32	uapi_wifi_set_txpower_up_limit (const td_char *ifname, td_s32 power)
	Set tx power.CNcomment:设置发送功率上限.CNend

td_s32	uapi_wifi_get_txpower_up_limit (const td_char *ifname)
	Get tx power.CNcomment:获取发送功率上限.CNend

td_u32	uapi_wifi_set_retry_params (const td_char *ifname, td_u8 type, td_u8 limit)
	Set retry params.CNcomment:设置软件重传策略.CNend

td_u32	uapi_wifi_set_cca_threshold (td_u8 mode, td_s8 threshold)
	Set cca threshold.CNcomment:设置CCA门限.CNend

td_u32	uapi_wifi_set_tx_pwr_offset (const td_char *ifname, td_s16 offset)
	Set tx power offset.CNcomment:设置发送功率偏移.CNend

int	uapi_wifi_send_custom_pkt (const char ifname, const unsigned char data, unsigned int len)
	Send a custom frame.CNcomment:发送用户定制报文.CNend

int	uapi_wifi_add_usr_app_ie (ext_wifi_iftype iftype, ext_wifi_extend_ie_index ie_index, const unsigned char frame_type_bitmap, const unsigned char *ie, unsigned short ie_len)
	Add user IEs to management frame.CNcomment:在管理帧中添加用户IE字段。CNend

int	uapi_wifi_delete_usr_app_ie (ext_wifi_iftype iftype, ext_wifi_extend_ie_index ie_index, const unsigned char frame_type_bitmap)
	Delete user IEs from management frame.CNcomment:在管理帧中删除用户IE字段。CNend

td_u32	uapi_wifi_set_tpc (td_u32 tpc_value)
	Set tcp mode.CNcomment:设置tpc开关.CNend

short	uapi_wifi_get_mac_status_code (void)
	Get Status Codes for Authentication and Association Frames. CNcomment:查询Authentication与Association帧status code.CNend

td_u32	uapi_wifi_set_evm_para (td_u8 pa_bias, const ext_wifi_xldo_voltage *osc_drv_vals, td_u8 size)
	Set evm para.CNcomment:设置evm参数.CNend

int	uapi_wifi_sta_ent_set_eap_method (ext_wifi_eap_method method)
	Set wpa-enterprise eap method.CNcomment:设置企业级方法.CNend

int	uapi_wifi_sta_ent_set_identity (const char *identity, unsigned int len)
	Set wpa-enterprise identity.CNcomment:设置企业级身份信息.CNend

int	uapi_wifi_sta_ent_set_import_callback (ext_wifi_ent_import_callback *cb)
	Set wpa-enterprise read callback.CNcomment:设置企业级证书/密钥读取的回调接口.CNend

int	uapi_wifi_set_mgmt_report (wifi_rx_mgmt_cb data_cb, uint8_t mode)
	Register receive callback for management frame.CNcomment:注册管理帧收包回调函数.CNend

osal_u32	uapi_alg_ar_fix_cfg_etc (osal_u32 value)
	Set wpa-enterprise read callback.CNcomment:autorate配置速率模式函数接口.CNend

int	uapi_wifi_set_psd_enable (psd_option_param *psd_option)
	Set psd enable mode.CNcomment:配置PSD状态函数接口.CNend

int	uapi_wifi_set_psd_cb (wifi_psd_cb data_cb)
	Set psd callback.CNcomment:配置PSD回调.CNend

int	uapi_wifi_send_pkt (osal_void dev, const data_segment_t seg, uint8_t seg_len)
	获取数据发包.CNcomment:配置发包接口.CNend

int	uapi_wifi_set_brctl (const char oper, const char if_name)
	配置Repeater开关及接口.CNcomment:配置Repeater开关及接口.CNend

宏定义说明

◆ bit

#define bit ( x ) (1U << (x))

◆ mac2str

#define mac2str ( a ) (a)[0], (a)[1], (a)[2], (a)[3], (a)[4], (a)[5]

◆ MACSTR

#define MACSTR "%02x:%02x:%02x:%02x:%02x:%02x"

mac transform string.CNcomment:地址转为字符串.CNend

◆ WIFI_MAC_REPORT_DISCONNECT_OFFSET

#define WIFI_MAC_REPORT_DISCONNECT_OFFSET 5200

◆ WIFI_NETWORK_NOT_FOUND_ERROR

#define WIFI_NETWORK_NOT_FOUND_ERROR 5300

◆ WLAN_REASON_MIC_FAILURE

#define WLAN_REASON_MIC_FAILURE 14

类型定义说明

◆ data_segment_t

typedef struct data_segment data_segment_t

设置eth data相关参数。

枚举类型说明

◆ ext_phy_protocol_enum

enum ext_phy_protocol_enum

The protocol mode of station which softap connected to.CNcomment:与softap连接的sta的phy协议.CNend

枚举值
WIFI_11B_PHY_PROTOCOL_MODE	11b CCK. CNcomment:11b.CNend
WIFI_LEGACY_OFDM_PHY_PROTOCOL_MODE	11g/a OFDM. CNcomment:11g/a.CNend
WIFI_HT_PHY_PROTOCOL_MODE	11n HT. CNcomment:11n.CNend
WIFI_HE_SU_FORMAT	11ax HE SU Format type. CNcomment:11ax.CNend

◆ ext_wifi_frame_type

enum ext_wifi_frame_type

枚举值
EXT_WIFI_BEACON_IE
EXT_WIFI_PROBE_REQ_IE
EXT_WIFI_PROBE_RSP_IE

◆ ext_wifi_mac_disconnect_reason

enum ext_wifi_mac_disconnect_reason

驱动上报的私有断连状态码, 与mac_common_frame_rom.h的值对应

枚举值
WLAN_JOIN_RSP_TIMEOUT
WLAN_AUTH_RSP2_TIMEOUT
WLAN_AUTH_RSP4_TIMEOUT
WLAN_ASOC_RSP_TIMEOUT
WLAN_AUTH_RSP_TIMEOUT
WLAN_ACTIVE_DISCONNECT_OFFSET
WLAN_DISASOC_MISC_LINKLOSS
WLAN_MAC_EXT_AUTH_FAIL

函数说明

◆ uapi_wifi_set_linkloss_paras()

osal_s32 uapi_wifi_set_linkloss_paras	(	osal_u8	probe_request_ratio,
		osal_u16	linkloss_threshold
	)

Set Linkloss paras.CNcomment:设置Linkloss的参数.CNend

Description:: Set Linkloss paras.CNcomment:设置Linkloss的参数.CNend

注意: NULL

参数

probe_request_ratio	[IN] Type #unsigned char, 1~10 linkloss cnt reach N/10 to send probe requeset. CNcomment:开始发送probe request帧时的linkloss时间比例（N/10），如5，即在一半linkloss时间时开始发送单播probe request帧保活.CNend
linkloss_threshold	[IN] Type #unsigned int, 100~1000 linkloss time(uint: 100ms). CNcomment:linkloss老化基础时间(单位: 100毫秒，100), 参考有效范围100~1000, 对应实际基础老化时间为10s~100s，会根据当前运行状态（是否低功耗，是否DBAC等等）进行调整，所设置时间不一定是最终老化时间.CNend

返回值

EXT_ERR_SUCCESS	Excute successfully
#Other	Error code

Dependency:

hi_wifi_api.h: WiFi API

参见: NULL

自从

结构体

宏定义

类型定义

枚举

函数
