los_event.h 文件参考

#include "los_base.h"
#include "los_list.h"

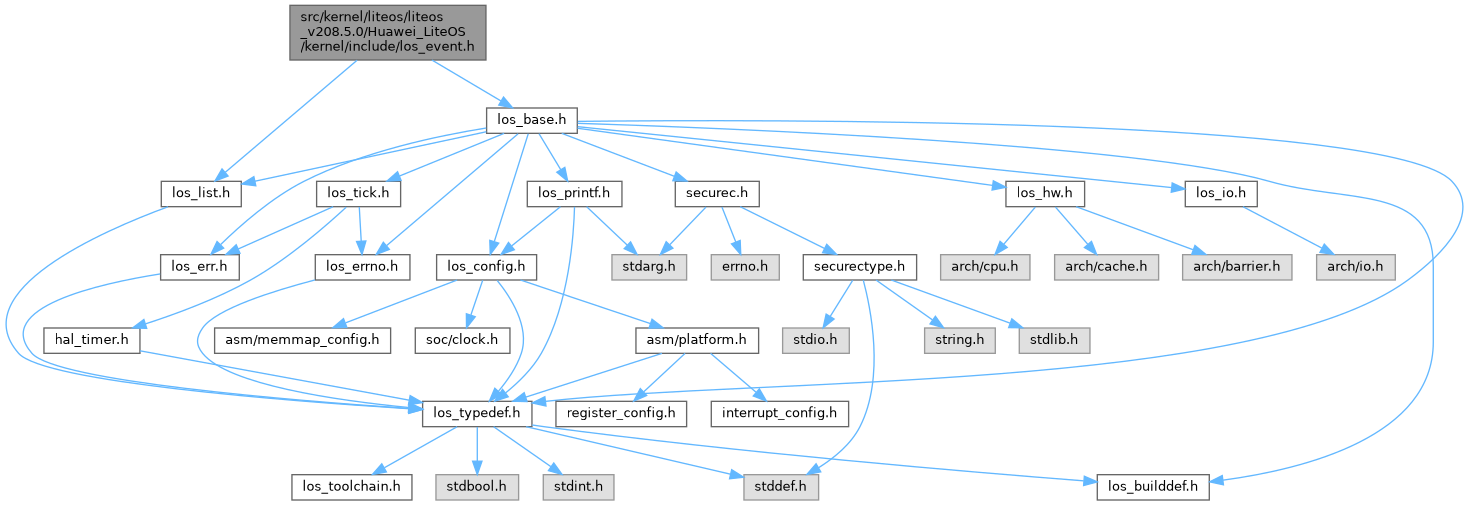

los_event.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	tagEvent

宏定义
#define	LOS_WAITMODE_AND   4U
#define	LOS_WAITMODE_OR   2U
#define	LOS_WAITMODE_CLR   1U
#define	LOS_ERRNO_EVENT_SETBIT_INVALID   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x00)
#define	LOS_ERRNO_EVENT_READ_TIMEOUT   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x01)
#define	LOS_ERRNO_EVENT_EVENTMASK_INVALID   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x02)
#define	LOS_ERRNO_EVENT_READ_IN_INTERRUPT   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x03)
#define	LOS_ERRNO_EVENT_FLAGS_INVALID   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x04)
#define	LOS_ERRNO_EVENT_READ_IN_LOCK   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x05)
#define	LOS_ERRNO_EVENT_PTR_NULL   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x06)
#define	LOS_ERRNO_EVENT_READ_IN_SYSTEM_TASK   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x07)
#define	LOS_ERRNO_EVENT_SHOULD_NOT_DESTORY   LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x08)
#define	LOS_EventCondRead(eventCB, eventCond, timeout)
	Read an event by condition.

类型定义
typedef struct tagEvent	EVENT_CB_S
typedef struct tagEvent *	PEVENT_CB_S

函数
UINT32	LOS_EventInit (PEVENT_CB_S eventCB)
	Initialize an event control block.
UINT32	LOS_EventPoll (UINT32 *eventId, UINT32 eventMask, UINT32 mode)
	Obtain an event specified by the event ID.
UINT32	LOS_EventRead (PEVENT_CB_S eventCB, UINT32 eventMask, UINT32 mode, UINT32 timeout)
	Read an event.
UINT32	LOS_EventWrite (PEVENT_CB_S eventCB, UINT32 events)
	Write an event.
UINT32	LOS_EventClear (PEVENT_CB_S eventCB, UINT32 events)
	Clear the event occurring in a specified task.
UINT32	LOS_EventDestroy (PEVENT_CB_S eventCB)
	Destroy an event.
UINT32	LOS_EventCondWrite (PEVENT_CB_S eventCB)
	Write an event by condition..
UINT32	EventCondRead (PEVENT_CB_S eventCB, UINT32 *timeout)

函数说明

EventCondRead()

UINT32 EventCondRead ( PEVENT_CB_S  eventCB, UINT32 *  timeout  )

extern
