rsa.h 文件参考

#include "crypto_pke_struct.h"

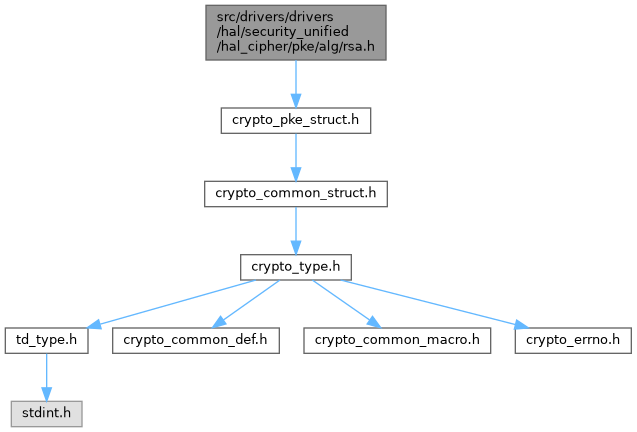

rsa.h 的引用(Include)关系图:

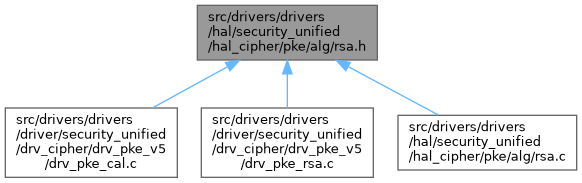

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

函数
td_s32	rsa_rrn (const td_u8 *n, const td_u32 key_size, const td_u32 aligned_len, td_u8 *rrn)
	rrn = 2^(2*n_bit_len) mod n.
td_s32	update_rsa_modulus (const td_u8 *n, const td_u32 n_len, const td_u32 aligned_len CIPHER_CHECK_WORD)
td_s32	rsa_regular_mul (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *c)
	regular multiplication. c = a * b.
td_s32	rsa_mod (const drv_pke_data *a, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = a mod p.
td_s32	rsa_add_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = (a + b) mod p
td_s32	rsa_sub_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = (a - b) mod p. a could be smaller than b.
td_s32	rsa_inv_mod (const drv_pke_data *a, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = ~a mod p. where a * c mod p = 1 mod p.
td_s32	rsa_mul_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = (a * b) mod p use montgomery modular multiplication. before call this API, you should have call rsa_rrn API to set rrn into rsa_addr_rr DRAM.
td_s32	rsa_exp_mod (const drv_pke_data *n, const drv_pke_data *k, const drv_pke_data *in, const drv_pke_data *out CIPHER_CHECK_WORD)
	out = in ^ k mod n.

函数说明

rsa_add_mod()

td_s32 rsa_add_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = (a + b) mod p

rsa_exp_mod()

td_s32 rsa_exp_mod	(	const drv_pke_data *	n,
		const drv_pke_data *	k,
		const drv_pke_data *	in,
		const drv_pke_data *out	CIPHER_CHECK_WORD
	)

out = in ^ k mod n.

参数

n	the input modulo.
k	the exponent.
in	the input data.
out	the output data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

rsa_inv_mod()

td_s32 rsa_inv_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = ~a mod p. where a * c mod p = 1 mod p.

rsa_mod()

td_s32 rsa_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = a mod p.

参数

a	the input data, which bit length shouldn't more than 2 * p->bit_length.
p	the modulus.
c	the output data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

rsa_mul_mod()

td_s32 rsa_mul_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = (a * b) mod p use montgomery modular multiplication. before call this API, you should have call rsa_rrn API to set rrn into rsa_addr_rr DRAM.

rsa_regular_mul()

td_s32 rsa_regular_mul	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	c
	)

regular multiplication. c = a * b.

参数

a	input data.
b	input data.
c	output data.

返回

td_s32 TD_SUCCESS or others.

rsa_rrn()

td_s32 rsa_rrn	(	const td_u8 *	n,
		const td_u32	key_size,
		const td_u32	aligned_len,
		td_u8 *	rrn
	)

rrn = 2^(2*n_bit_len) mod n.

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2022-2022. All rights reserved. Description: RSA algorithm header file.

Create: 2022-08-18

参数

n	for rsa n = p * q, for ecc it's prime the order of the base point G.
key_size	rsa key length in byte or ecc curve key length in byte.
rrn	the output rrn data. for RSA there is no need to get this data out to reset it into rsa_addr_rr, but for ecc, it's necessary, for there are two different address. which byte length is the same with n.
aligned_len	aligned length for calculate.

返回

td_s32 TD_SUCCESS or others.

rsa_sub_mod()

td_s32 rsa_sub_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = (a - b) mod p. a could be smaller than b.

update_rsa_modulus()

td_s32 update_rsa_modulus	(	const td_u8 *	n,
		const td_u32	n_len,
		const td_u32 aligned_len	CIPHER_CHECK_WORD
	)
