hal_pmp_riscv31_regs_def.h 文件参考

#include <stdint.h>
#include "hal_pmp.h"

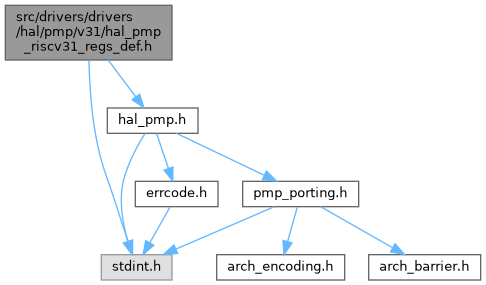

hal_pmp_riscv31_regs_def.h 的引用(Include)关系图:

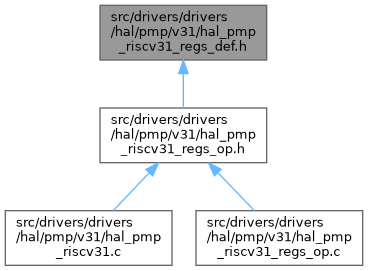

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
union	hal_pmpcfg
	This union represents the bit fields in the pmpaddr register. Read the register into the d32 member then set/clear the region config using the b elements. 更多...

宏定义
#define	PMPXCFG_NUM_PER_REG   4
#define	MEMXATTR_NUM_PER_REG   8
#define	PMP_REGION_NUM   16
#define	PMPCFG0   0
#define	PMPCFG1   1
#define	PMPCFG2   2
#define	PMPCFG3   3
#define	PMPADDR0   0
#define	PMPADDR1   1
#define	PMPADDR2   2
#define	PMPADDR3   3
#define	PMPADDR4   4
#define	PMPADDR5   5
#define	PMPADDR6   6
#define	PMPADDR7   7
#define	PMPADDR8   8
#define	PMPADDR9   9
#define	PMPADDR10   10
#define	PMPADDR11   11
#define	PMPADDR12   12
#define	PMPADDR13   13
#define	PMPADDR14   14
#define	PMPADDR15   15

类型定义
typedef union hal_pmpcfg	hal_pmp_riscv31_cfg_t
	This union represents the bit fields in the pmpaddr register. Read the register into the d32 member then set/clear the region config using the b elements.
