#include "td_type.h"

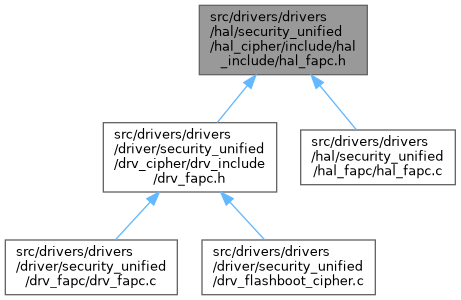

hal_fapc.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

枚举
enum	crypto_fapc_mid { CRYPTO_FAPC_MID_TEE_CPU = (1 << 0) , CRYPTO_FAPC_MID_CIPHER_TEE = (1 << 1) , CRYPTO_FAPC_MID_CIPHER_ACPU = (1 << 2) , CRYPTO_FAPC_MID_CIPHER_PCPU = (1 << 3) , CRYPTO_FAPC_MID_CIPHER_AIDSP = (1 << 4) , CRYPTO_FAPC_MID_HASH_TEE = (1 << 5) , CRYPTO_FAPC_MID_HASH_ACPU = (1 << 6) , CRYPTO_FAPC_MID_HASH_PCPU = (1 << 7) , CRYPTO_FAPC_MID_HASH_AIDSP = (1 << 8) , CRYPTO_FAPC_MID_AIDSP = (1 << 9) , CRYPTO_FAPC_MID_ACPU = (1 << 10) , CRYPTO_FAPC_MID_EMMC = (1 << 11) , CRYPTO_FAPC_MID_SDIO = (1 << 12) , CRYPTO_FAPC_MID_USB = (1 << 13) , CRYPTO_FAPC_MID_TDE = (1 << 14) , CRYPTO_FAPC_MID_PCPU = (1 << 15) , CRYPTO_FAPC_MID_LMI = (1 << 16) , CRYPTO_FAPC_MID_PSDIO = (1 << 17) , CRYPTO_FAPC_MID_SFC = (1 << 18) , CRYPTO_FAPC_MID_NAND = (1 << 19) , CRYPTO_FAPC_MID_VDP = (1 << 20) , CRYPTO_FAPC_MID_AUDIO_CGRA = (1 << 21) , CRYPTO_FAPC_MID_AUDIO_AIAO = (1 << 22) , CRYPTO_FAPC_MID_AUDIO_MAD = (1 << 23) , CRYPTO_FAPC_MID_LPMCU = (1 << 24) , CRYPTO_FAPC_MID_IOMCU = (1 << 25) }

enum	crypto_fapc_region_mode { CRYPTO_FAPC_REGION_MODE_NORMAL = 0 , CRYPTO_FAPC_REGION_MODE_DEC = 2 , CRYPTO_FAPC_REGION_MODE_DEC_AUTH = 3 , CRYPTO_FAPC_REGION_MODE_MAX , CRYPTO_FAPC_REGION_MODE_INVALID = 0xffffffff }

enum	crypto_fapc_iv_type { CRYPTO_FAPC_IV_TYPE_ACPU = 0x00 , CRYPTO_FAPC_IV_TYPE_PCPU , CRYPTO_FAPC_IV_TYPE_TEE , CRYPTO_FAPC_IV_TYPE_MAX , CRYPTO_FAPC_IV_TYPE_INVALID = 0xffffffff }

函数
td_s32	hal_fapc_set_region_addr (td_u32 region, td_u32 start_addr, td_u32 end_addr)

td_s32	hal_fapc_set_region_permission (td_u32 region, td_u32 read_mid, td_u32 write_mid)

td_s32	hal_fapc_set_region_mac_addr (td_u32 region, td_u32 mac_addr)

td_s32	hal_fapc_set_region_mode (td_u32 region, crypto_fapc_region_mode region_mode)

td_s32	hal_fapc_region_enable (td_u32 region, td_bool enable)

td_s32	hal_fapc_set_region_iv_start_addr (td_u32 region, td_u32 start_addr)

td_s32	hal_fapc_set_region_iv (crypto_fapc_iv_type iv_type, const td_u8 *iv, td_u32 iv_length)

td_s32	hal_fapc_region_lock (td_u32 region)

枚举类型说明

◆ crypto_fapc_iv_type

Description: hal fapc header.
History:
2023-03-22, Create file.

枚举值
CRYPTO_FAPC_REGION_MODE_NORMAL
CRYPTO_FAPC_REGION_MODE_DEC
CRYPTO_FAPC_REGION_MODE_DEC_AUTH
CRYPTO_FAPC_REGION_MODE_MAX
CRYPTO_FAPC_REGION_MODE_INVALID

td_s32 hal_fapc_region_lock ( td_u32 region )

td_s32 hal_fapc_set_region_iv_start_addr	(	td_u32	region,
		td_u32	start_addr
	)

td_s32 hal_fapc_set_region_mac_addr	(	td_u32	region,
		td_u32	mac_addr
	)

td_s32 hal_fapc_set_region_permission	(	td_u32	region,
		td_u32	read_mid,
		td_u32	write_mid
	)
