alg_main_rom.h 文件参考

#include "oam_ext_if.h"
#include "frw_ext_if_rom.h"
#include "frw_dmac_rom.h"
#include "frw_msg_rom.h"
#include "dmac_ext_if_rom.h"
#include "dmac_alg_if_part_rom.h"
#include "alg_common_rom.h"

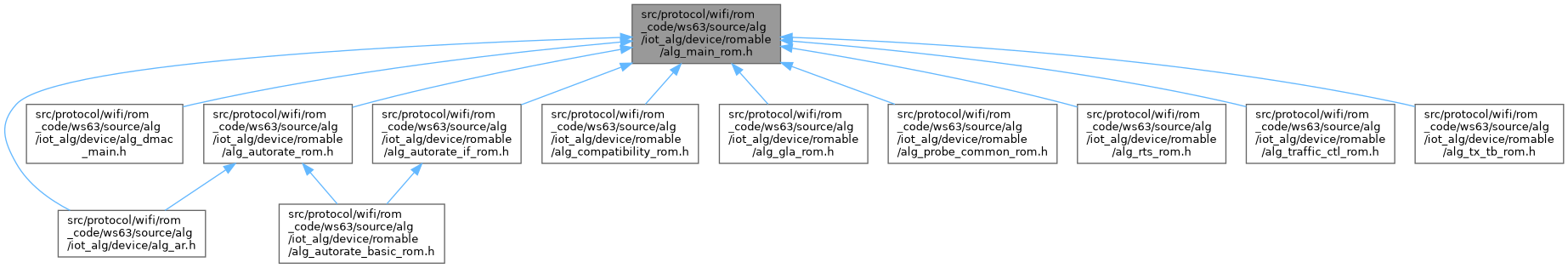

alg_main_rom.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	alg_dmac_internal_hook_stru

宏定义
#define	ALG_RSSI_MARGIN_DB   4 /* RSSI余量，使用rssi计算时使用 */
#define	alg_stru_elem_offset(_stru, _elem)   ((osal_u16)((osal_u8 *)(&(((_stru *)0)->_elem)) - (osal_u8 *)0))
#define	alg_device_foreach_vap(_pst_vap, _pst_device, _uc_vap_index)
#define	alg_vap_foreach_user(_pst_user, _pst_vap, _pst_list_pos)

类型定义
typedef osal_u32(*	alg_dmac_internal_hook_init_cb) (void)
typedef osal_u32(*	alg_dmac_internal_hook_exit_cb) (void)
typedef osal_u32(*	alg_dmac_config_param_cb) (dmac_vap_stru *dmac_vap, frw_msg *msg)
typedef osal_u32(*	p_alg_dmac_co_intf_notify_func) (hal_to_dmac_device_stru *hal_device, alg_intf_det_notify_info_stru *intf_det_notify)
typedef osal_u32(*	p_alg_dmac_distance_notify_func) (const dmac_user_stru *dmac_user, const dmac_alg_distance_notify_info_stru *distance_info)
typedef osal_u32(*	p_alg_dmac_intfdet_lossthr_notify_func) (hal_to_dmac_device_stru *hal_device)
typedef osal_u32(*	p_alg_dmac_param_sync_notify_func) (const alg_param_sync_stru *alg_sync)
typedef osal_u32(*	p_alg_dbac_config_func) (dmac_vap_stru *dmac_vap, frw_msg *msg)
typedef osal_void *(*	alg_dmac_mem_alloc_cb) (alg_mem_enum_uint8 alg_id, osal_u16 len)

函数
osal_void *	alg_dmac_mem_alloc (alg_mem_enum_uint8 alg_id, osal_u16 len)
osal_void	alg_register_distance_notify_func (alg_distance_notify_enum_uint8 notify_sub_type, p_alg_dmac_distance_notify_func func)
osal_u32	alg_unregister_distance_notify_func (alg_distance_notify_enum_uint8 notify_sub_type)
osal_u32	alg_distance_notify (dmac_user_stru *dmac_user, dmac_alg_distance_notify_info_stru *distance_info)
osal_s32	alg_dmac_config_param (dmac_vap_stru *dmac_vap, frw_msg *msg)
osal_s32	alg_dmac_config_multi_param (dmac_vap_stru *dmac_vap, frw_msg *msg)
osal_s32	alg_vap_up_process (dmac_vap_stru *dmac_vap, frw_msg *msg)
osal_u32	alg_dmac_register_co_intf_notify_func (alg_co_intf_notify_enum_uint8 notify_sub_type, p_alg_dmac_co_intf_notify_func func)
osal_u32	alg_unregister_co_intf_notify_func (alg_co_intf_notify_enum_uint8 notify_sub_type)
osal_u32	alg_dmac_co_intf_notify (hal_to_dmac_device_stru *hal_device, alg_intf_det_notify_info_stru *intf_det_notify)
osal_void	alg_get_vap_and_device_user_num (hal_to_dmac_device_stru *hal_device, const dmac_vap_stru *dmac_vap_cmp, osal_u8 *vap_user_num, osal_u8 *device_user_num)
osal_void	alg_get_device_user_num_index (hal_to_dmac_device_stru *hal_device, osal_u8 *device_user_num, osal_u8 *first_user_lut_idx)
osal_u32	alg_dmac_register_dbac_config_func (p_alg_dbac_config_func func)
osal_u32	alg_unregister_dbac_config_func (osal_void)

宏定义说明

alg_device_foreach_vap

#define alg_device_foreach_vap	(		_pst_vap,
			_pst_device,
			_uc_vap_index
	)

值:

    for ((_uc_vap_index) = 0, (_pst_vap) = ((_pst_device)->vap_num > 0) ?             \
        ((dmac_vap_stru *)mac_res_get_dmac_vap((_pst_device)->vap_id[0])) :             \
        OSAL_NULL;                                                                      \
        (_uc_vap_index) < (_pst_device)->vap_num;                                     \
        (_uc_vap_index)++, (_pst_vap) = ((_uc_vap_index) < (_pst_device)->vap_num) ?  \
        ((dmac_vap_stru *)mac_res_get_dmac_vap((_pst_device)->vap_id[_uc_vap_index])) : \
        OSAL_NULL)                                                                      \
        if ((_pst_vap) != OSAL_NULL)

ALG_RSSI_MARGIN_DB

#define ALG_RSSI_MARGIN_DB   4 /* RSSI余量，使用rssi计算时使用 */

alg_stru_elem_offset

#define alg_stru_elem_offset	(		_stru,
			_elem
	)		((osal_u16)((osal_u8 *)(&(((_stru *)0)->_elem)) - (osal_u8 *)0))

alg_vap_foreach_user

#define alg_vap_foreach_user	(		_pst_user,
			_pst_vap,
			_pst_list_pos
	)

值:

    for ((_pst_list_pos) = (_pst_vap)->mac_user_list_head.next,                                        \
        (_pst_user) = osal_list_entry((_pst_list_pos), dmac_user_stru, user_dlist);                     \
        ((_pst_list_pos) != &((_pst_vap)->mac_user_list_head)) && ((_pst_list_pos) != OSAL_NULL); \
        (_pst_list_pos) = (_pst_list_pos)->next,                                                  \
        (_pst_user) = osal_list_entry((_pst_list_pos), dmac_user_stru, user_dlist))                     \
        if ((_pst_user) != OSAL_NULL)

类型定义说明

alg_dmac_config_param_cb

typedef osal_u32(* alg_dmac_config_param_cb) (dmac_vap_stru *dmac_vap, frw_msg *msg)

alg_dmac_internal_hook_exit_cb

typedef osal_u32(* alg_dmac_internal_hook_exit_cb) (void)

alg_dmac_internal_hook_init_cb

typedef osal_u32(* alg_dmac_internal_hook_init_cb) (void)

alg_dmac_mem_alloc_cb

typedef osal_void *(* alg_dmac_mem_alloc_cb) (alg_mem_enum_uint8 alg_id, osal_u16 len)

p_alg_dbac_config_func

typedef osal_u32(* p_alg_dbac_config_func) (dmac_vap_stru *dmac_vap, frw_msg *msg)

p_alg_dmac_co_intf_notify_func

typedef osal_u32(* p_alg_dmac_co_intf_notify_func) (hal_to_dmac_device_stru *hal_device, alg_intf_det_notify_info_stru *intf_det_notify)

p_alg_dmac_distance_notify_func

typedef osal_u32(* p_alg_dmac_distance_notify_func) (const dmac_user_stru *dmac_user, const dmac_alg_distance_notify_info_stru *distance_info)

p_alg_dmac_intfdet_lossthr_notify_func

typedef osal_u32(* p_alg_dmac_intfdet_lossthr_notify_func) (hal_to_dmac_device_stru *hal_device)

p_alg_dmac_param_sync_notify_func

typedef osal_u32(* p_alg_dmac_param_sync_notify_func) (const alg_param_sync_stru *alg_sync)

函数说明

alg_distance_notify()

osal_u32 alg_distance_notify	(	dmac_user_stru *	dmac_user,
		dmac_alg_distance_notify_info_stru *	distance_info
	)

alg_dmac_co_intf_notify()

osal_u32 alg_dmac_co_intf_notify	(	hal_to_dmac_device_stru *	hal_device,
		alg_intf_det_notify_info_stru *	intf_det_notify
	)

alg_dmac_config_multi_param()

osal_s32 alg_dmac_config_multi_param	(	dmac_vap_stru *	dmac_vap,
		frw_msg *	msg
	)

alg_dmac_config_param()

osal_s32 alg_dmac_config_param	(	dmac_vap_stru *	dmac_vap,
		frw_msg *	msg
	)

alg_dmac_mem_alloc()

osal_void * alg_dmac_mem_alloc	(	alg_mem_enum_uint8	alg_id,
		osal_u16	len
	)

alg_dmac_register_co_intf_notify_func()

osal_u32 alg_dmac_register_co_intf_notify_func	(	alg_co_intf_notify_enum_uint8	notify_sub_type,
		p_alg_dmac_co_intf_notify_func	func
	)

alg_dmac_register_dbac_config_func()

osal_u32 alg_dmac_register_dbac_config_func

(

p_alg_dbac_config_func

func

)

alg_get_device_user_num_index()

osal_void alg_get_device_user_num_index	(	hal_to_dmac_device_stru *	hal_device,
		osal_u8 *	device_user_num,
		osal_u8 *	first_user_lut_idx
	)

alg_get_vap_and_device_user_num()

osal_void alg_get_vap_and_device_user_num	(	hal_to_dmac_device_stru *	hal_device,
		const dmac_vap_stru *	dmac_vap_cmp,
		osal_u8 *	vap_user_num,
		osal_u8 *	device_user_num
	)

alg_register_distance_notify_func()

osal_void alg_register_distance_notify_func	(	alg_distance_notify_enum_uint8	notify_sub_type,
		p_alg_dmac_distance_notify_func	func
	)

alg_unregister_co_intf_notify_func()

osal_u32 alg_unregister_co_intf_notify_func

(

alg_co_intf_notify_enum_uint8

notify_sub_type

)

alg_unregister_dbac_config_func()

osal_u32 alg_unregister_dbac_config_func

(

osal_void

)

alg_unregister_distance_notify_func()

osal_u32 alg_unregister_distance_notify_func

(

alg_distance_notify_enum_uint8

notify_sub_type

)

alg_vap_up_process()

osal_s32 alg_vap_up_process	(	dmac_vap_stru *	dmac_vap,
		frw_msg *	msg
	)
