log_oam_logger.h 文件参考

#include "log_types.h"
#include "log_trigger.h"
#include "log_module_id.h"
#include "log_printf.h"

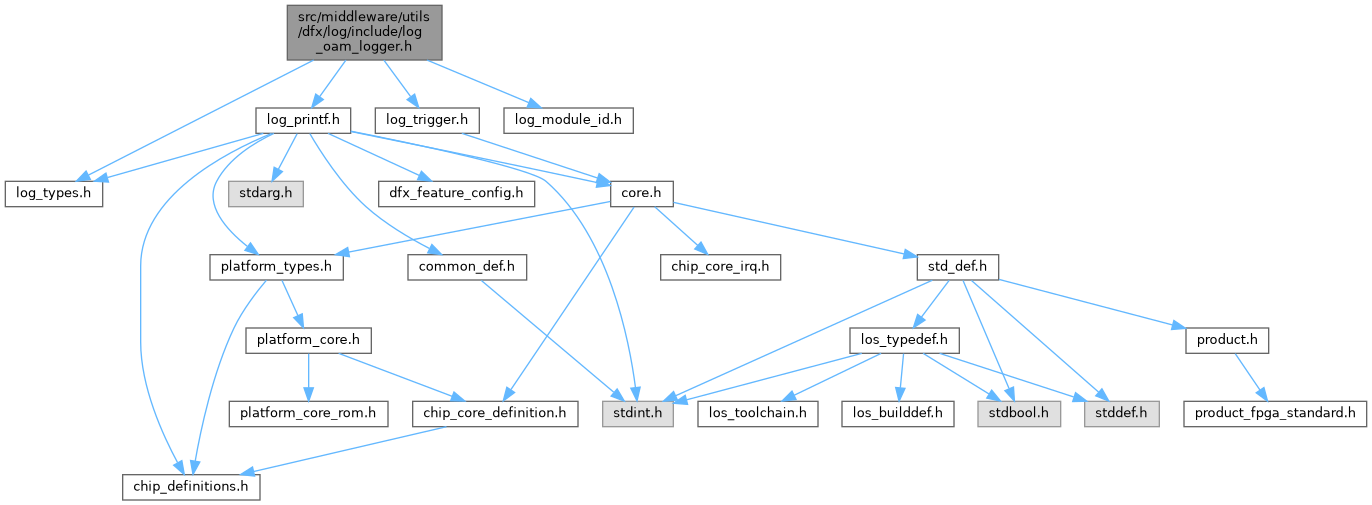

log_oam_logger.h 的引用(Include)关系图:

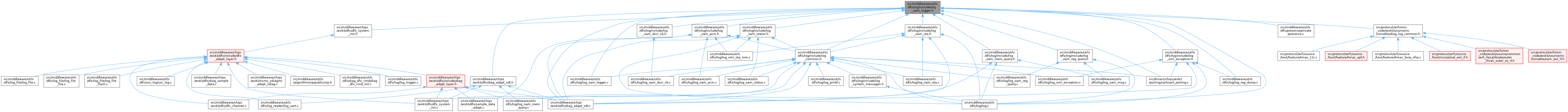

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	om_log_module_lev_t
struct	__attribute__
	Log message information header. 更多...
struct	om_msg_dump_header_stru_t
struct	om_log_header_t

宏定义
#define	OM_FRAME_DELIMITER   (0x7E)
#define	OM_FRAME_DELIMITER_LEN   (1)
#define	OM_FRAME_HEADER_LEN   (8)
#define	OM_LOG_SEND_MSG_LENGTH   (29)
#define	OM_LOG_HEAD_PRESS_MASK   (0xFF)
#define	OM_MSG_TYPE_LOG_OFFSET   (8)
#define	OM_LOG_RPT_IND_MODULE_ID_OFFSET   (16)
#define	OM_LOG_SN_OFFSET   (16)
#define	OM_FRAME_DUMP_DELIMITER   (0x1)
#define	OML_LOG_FILEID_HIGH_BIT_OFFSET   (2)
#define	OML_LOG_FILEID_LOW_BIT_MASK   (0x3)
#define	OML_LOG_LINENO_HIGH_BIT_OFFSET   (8)
#define	OML_LOG_LINENO_LOW_BIT_MASK   (0xFF)
#define	OML_LOG_MODULE_MASK   (0x3F)
#define	OML_LOG_LEVEL_MASK   (0x3)
#define	OML_LOG_PARA_MAX_NUM   (4)
#define	OML_LOG_ALTER_PARA_MAX_NUM   (12)
#define	OML_LOG_HEADER_ARRAY_LENTH   (3)
#define	OML_LOG_LEVEL_OFFSET   (6)
#define	OML_LOG_TAIL_LENTH   (1)
#define	OML_LOG_ZERO_ARG_SEND   (0)
#define	OML_LOG_ONE_ARG_SEND   (1)
#define	OML_LOG_TWO_ARG_SEND   (2)
#define	OML_LOG_THREE_ARG_SEND   (3)
#define	OML_LOG_FOUR_ARG_SEND   (4)
#define	OML_LOG_INT_2_DOUBLE   (2)
#define	OML_LOG_INT_BIT   (32)
#define	OML_DATA_MSG_TYPE   (0x0E)
#define	OML_MSG_HEADER_LENGTH   (4)
#define	OML_MSG_TAIL_LENGTH   (1)
#define	FEATURE_PF_PM   (0x00000001)
#define	FEATURE_PF_PMU_ERR_CHECK   (0x00000002)
#define	FEATURE_PF_STATUS   (0x00000004)
#define	FEATURE_PF_LOG_TEST_LOW_POW   (0x00000008)
#define	FEATURE_PF_BFGNUART_USE_DMA   (0x00000010)
#define	FEATURE_PF_RESTRACE   (0x00000020)
#define	FEATURE_PF_HEARTBEAT   (0x00000040)
#define	getlog_level(ulPressPara)   (((ulPressPara) >> OML_LOG_LEVEL_OFFSET) & OML_LOG_LEVEL_MASK)
#define	get_module_id(ulPressPara)   ((ulPressPara) & OML_LOG_MODULE_MASK)
#define	log_head_press(log_mid)
#define	para_press(mid, lev, fileid, lineno)
	Fill this 32 bit value as little ending format Last by will be send as the first byte by log system. |----------------------------------------------------------------------------------------------------—| |-H------------------------------------------— 32 bit -------------------------------------------—L-| | 8 bit | 8 bit | 8 bit | 8 bit | | lineno low 8 bit | lineno high 6 bit + file_id low 2 bit | file_id high 8 bit | lev 2 bit + mid 6 bit | |----------------------------------------------------------------------------------------------------—|
#define	oal_log_lenth(arg_num)   (sizeof(om_log_header_t) + sizeof(uint32_t) * (arg_num) + sizeof(uint8_t))
#define	log_lenth_and_sn_press(arg_num, SN)   (oal_log_lenth(arg_num) | ((uint32_t)(SN) << OM_LOG_SN_OFFSET))
#define	oml_wifi_log_print0(mid, lvl, fmt)    log_event_wifi_print0(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__))
#define	oml_wifi_log_print1(mid, lvl, fmt, p1)    log_event_wifi_print1(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))
#define	oml_wifi_log_print2(mid, lvl, fmt, p1, p2)
#define	oml_wifi_log_print3(mid, lvl, fmt, p1, p2, p3)
#define	oml_wifi_log_print4(mid, lvl, fmt, p1, p2, p3, p4)
#define	oml_wifi_log_alter(mid, lognum, lvl, fmt, num, arg...)
#define	oml_bt_log_print0(mid, lvl, fmt)    log_event_print0(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__))
#define	oml_bt_log_print1(mid, lvl, fmt, p1)    log_event_print1(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))
#define	oml_bt_log_print2(mid, lvl, fmt, p1, p2)
#define	oml_bt_log_print3(mid, lvl, fmt, p1, p2, p3)
#define	oml_bt_log_print4(mid, lvl, fmt, p1, p2, p3, p4)
#define	oml_bt_log_alter(mid, lognum, lvl, fmt, num, arg...)
#define	oml_bth_log_print0(mid, lvl, fmt)    log_event_print0(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__))
#define	oml_bth_log_print1(mid, lvl, fmt, p1)    log_event_print1(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))
#define	oml_bth_log_print2(mid, lvl, fmt, p1, p2)
#define	oml_bth_log_print3(mid, lvl, fmt, p1, p2, p3)
#define	oml_bth_log_print4(mid, lvl, fmt, p1, p2, p3, p4)
#define	oml_bth_log_print5(mid, lvl, fmt, num, arg...)
#define	oml_bth_log_print6(mid, lvl, fmt, num, arg...)
#define	oml_bth_log_alter(mid, lognum, lvl, fmt, num, arg...)
#define	oml_pf_log_print0(mid, lognum, lvl, fmt)
#define	oml_pf_log_print1(mid, lognum, lvl, fmt, p1)
#define	oml_pf_log_print2(mid, lognum, lvl, fmt, p1, p2)
#define	oml_pf_log_print3(mid, lognum, lvl, fmt, p1, p2, p3)
#define	oml_pf_log_print4(mid, lognum, lvl, fmt, p1, p2, p3, p4)
#define	oml_app_log_print0(mid, lvl, fmt)
#define	oml_app_log_print1(mid, lvl, fmt, p1)
#define	oml_app_log_print2(mid, lvl, fmt, p1, p2)
#define	oml_app_log_print3(mid, lvl, fmt, p1, p2, p3)
#define	oml_app_log_print4(mid, lvl, fmt, p1, p2, p3, p4)
#define	oml_pf_log_print_alter(mid, lognum, lvl, fmt, num, arg...)
#define	pf_log_alter(mid, lognum, lvl, fmt, num, arg...)    oml_pf_log_print_alter(LOG_PFMODULE, lognum, lvl, fmt, num, ##arg)
#define	oml_app_log_print_alter(mid, lvl, fmt, num, arg...)
#define	app_log_alter(mid, lvl, fmt, num, arg...)   oml_app_log_print_alter(LOG_PFMODULE, lvl, fmt, num, ##arg)
#define	oml_nfc_log_print0(lvl, fmt)    log_event_print0(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__))
#define	oml_nfc_log_print1(lvl, fmt, p1)    log_event_print1(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))
#define	oml_nfc_log_print2(lvl, fmt, p1, p2)
#define	oml_nfc_log_print3(lvl, fmt, p1, p2, p3)
#define	oml_nfc_log_print4(lvl, fmt, p1, p2, p3, p4)
#define	oml_nfc_log_print_alter(lvl, fmt, num, arg...)
#define	nfc_log_alter(lvl, fmt, num, arg...)   oml_app_log_print_alter(LOG_NFCMODULE, lvl, fmt, num, ##arg)
#define	oml_glp_log_print0(lvl, fmt)    log_event_print0(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__))
#define	oml_glp_log_print1(lvl, fmt, p1)    log_event_print1(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))
#define	oml_glp_log_print2(lvl, fmt, p1, p2)
#define	oml_glp_log_print3(lvl, fmt, p1, p2, p3)
#define	oml_glp_log_print4(lvl, fmt, p1, p2, p3, p4)
#define	oml_glp_log_print_alter(lvl, fmt, num, arg...)
#define	glp_log_alter(lvl, fmt, num, arg...)   oml_app_log_print_alter(LOG_SLPMODULE, lvl, fmt, num, ##arg)
#define	pf_write_fifo_log_alter(mid, lognum, lvl, fmt, num, arg...)
#define	oml_bt_log_print_alter(mid, lvl, fmt, num, arg...)
#define	oml_gnss_log_print0(mid, lvl, fmt)    log_event_print0(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__))
#define	oml_gnss_log_print1(mid, lvl, fmt, p1)    log_event_print1(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))
#define	oml_gnss_log_print2(mid, lvl, fmt, p1, p2)
#define	oml_gnss_log_print3(mid, lvl, fmt, p1, p2, p3)
#define	oml_gnss_log_print4(mid, lvl, fmt, p1, p2, p3, p4)
#define	oml_gnss_log_print_alter(mid, lvl, fmt, num, arg...)
#define	FEATURE_ON   1
#define	FEATURE_OFF   0

类型定义
typedef int(*	log_other_print_t) (uint32_t log_module_type, uint32_t level, const char *fmt, uint32_t paranum,...)

枚举
enum	OM_MSG_TYPE_ENUM {   OM_MSG_TYPE_LOG = 1 , OM_MSG_TYPE_OTA = 2 , OM_MSG_TYPE_TRACE = 3 , OM_MSG_TYPE_EVENT = 4 ,   OM_MSG_TYPE_ALARM = 5 , OM_MSG_TYPE_CATCH = 6 , OM_MSG_TYPE_COLLECT = 7 , OM_MSG_TYPE_DUMP = 8 ,   OM_MSG_MEM_COMMAND = 9 , OM_MSG_SSI_REG_COMMAND = 10 , OM_MSG_ICONFIG_COMMAND = 11 , OM_MSG_TYPE_BTC_OAM = 12 ,   OM_MSG_TYPE_WARNING = 13 , OM_MSG_TYPE_STATISTIC = 15 , OM_MSG_TYPE_LAST = 16 , OM_MSG_NFC_COMMAND = 17 ,   OM_MSG_TYPE_EDITION = 18 , OM_MSG_TYPE_COVERAGE = 19 , OM_MSG_GNSS_HOST_CMD_TYPE = 20 , OM_MSG_REG_COMMAND = 21 ,   OM_MSG_CS_STAT_CMD = 22 , OM_MSG_GNSS_SDT_CMD = 23 , OM_MSG_TRSSI_FSM = 25 , OM_MSG_TRSSI_VAL_CFG = 26 ,   OM_MSG_TYPE_CALIRESULT = 27 , OM_MSG_SSIBLOCK_COMMAND = 28 , OM_MSG_DBGUART_SWITCH_TO_BT = 29 , OM_MSG_DBGUART_SWITCH_TO_WIFI = 30 ,   OM_MSG_TYPE_STATUS = 31 , OM_PCM_REPORT_BT = 32 , OM_MSG_TYPE_DSCR = 33 , OM_BT_SAMPLE_DATA = 41 ,   OM_MSG_REG32_COMMAND = 65 , OM_MSG_TYPE_BTH = 70 , OM_MSG_TYPE_APP = 71 , OM_MSG_TYPE_HIFI = 72 ,   OM_MSG_TYPE_LOG_CUSTOM = 73 , OM_MSG_TYPE_BTC_WVT = 100 , OM_MSG_TYPE_BUTT }
enum	OM_LOG_ERROR_TYPE { OM_LOG_RET_OK , OM_LOG_RET_PARA_INVALID , OM_LOG_RET_POINTER_NULL }
enum	OM_LOG_MSG_ENUM {   OM_LOG_CONFIG_REQ = 1 , OM_LOG_CONFIG_ACK = 2 , OM_LOG_RPT_IND = 3 , OM_LOG_SAVE_STACK = 8 ,   OM_LOG_CONFIG_BUTT }
enum	LOG_OAM_ENTRY_INDEX {   LOG_OAM_INDEX_0 , LOG_OAM_INDEX_1 , LOG_OAM_INDEX_2 , LOG_OAM_INDEX_3 ,   LOG_OAM_INDEX_4 , LOG_OAM_INDEX_5 , LOG_OAM_INDEX_6 , LOG_OAM_INDEX_7 }

函数
void	log_other_print_register (log_other_print_t users_print_func)
void	log_other_print0 (uint32_t log_header, uint32_t log_level, const char *fmt)
void	log_other_print1 (uint32_t log_header, uint32_t log_level, const char *fmt, uint32_t p0)
void	log_other_print2 (uint32_t log_header, uint32_t log_level, const char *fmt, uint32_t p0, uint32_t p1)
void	log_other_print3 (uint32_t log_header, uint32_t log_level, const char *fmt, uint32_t p0, uint32_t p1, uint32_t p2)
void	log_other_print4 (uint32_t log_header, uint32_t log_level, const char *fmt, uint32_t p0, uint32_t p1, uint32_t p2, uint32_t p3)
void	log_event_print0 (uint32_t log_header, uint32_t presspara)
void	log_event_print1 (uint32_t log_header, uint32_t presspara, uint32_t para1)
void	log_event_print2 (uint32_t log_header, uint32_t presspara, uint32_t para1, uint32_t para2)
void	log_event_print3 (uint32_t log_header, uint32_t presspara, uint32_t para1, uint32_t para2, uint32_t para3)
void	log_event_print4 (uint32_t log_header, uint32_t presspara, uint32_t para1, uint32_t para2, uint32_t para3, uint32_t para4)
void	log_event_print_alterable_para_press (uint32_t log_header, uint32_t presspara, uint32_t paranum,...)
void	log_event_wifi_print0 (uint32_t presspara)
void	log_event_wifi_print1 (uint32_t presspara, uint32_t para1)
void	log_event_wifi_print2 (uint32_t presspara, uint32_t para1, uint32_t para2)
void	log_event_wifi_print3 (uint32_t presspara, uint32_t para1, uint32_t para2, uint32_t para3)
void	log_event_wifi_print4 (uint32_t presspara, uint32_t para1, uint32_t para2, uint32_t para3, uint32_t para4)
void	log_event_print_alterable_para_press_by_write_uart_fifo (uint32_t log_header, uint32_t presspara, uint32_t paranum,...)

宏定义说明

app_log_alter

#define app_log_alter	(		mid,
			lvl,
			fmt,
			num,
			arg...
	)		oml_app_log_print_alter(LOG_PFMODULE, lvl, fmt, num, ##arg)

FEATURE_OFF

#define FEATURE_OFF   0

FEATURE_ON

#define FEATURE_ON   1

FEATURE_PF_BFGNUART_USE_DMA

#define FEATURE_PF_BFGNUART_USE_DMA   (0x00000010)

FEATURE_PF_HEARTBEAT

#define FEATURE_PF_HEARTBEAT   (0x00000040)

FEATURE_PF_LOG_TEST_LOW_POW

#define FEATURE_PF_LOG_TEST_LOW_POW   (0x00000008)

FEATURE_PF_PM

#define FEATURE_PF_PM   (0x00000001)

FEATURE_PF_PMU_ERR_CHECK

#define FEATURE_PF_PMU_ERR_CHECK   (0x00000002)

FEATURE_PF_RESTRACE

#define FEATURE_PF_RESTRACE   (0x00000020)

FEATURE_PF_STATUS

#define FEATURE_PF_STATUS   (0x00000004)

get_module_id

#define get_module_id

(

ulPressPara

)

((ulPressPara) & OML_LOG_MODULE_MASK)

getlog_level

#define getlog_level

(

ulPressPara

)

(((ulPressPara) >> OML_LOG_LEVEL_OFFSET) & OML_LOG_LEVEL_MASK)

glp_log_alter

#define glp_log_alter	(		lvl,
			fmt,
			num,
			arg...
	)		oml_app_log_print_alter(LOG_SLPMODULE, lvl, fmt, num, ##arg)

log_head_press

#define log_head_press

(

log_mid

)

值:

                                 ((OM_FRAME_DELIMITER & OM_LOG_HEAD_PRESS_MASK) |  \
                                 ((OM_MSG_TYPE_LOG & OM_LOG_HEAD_PRESS_MASK) << OM_MSG_TYPE_LOG_OFFSET) |  \
                                 ((OM_LOG_RPT_IND & OM_LOG_HEAD_PRESS_MASK) << OM_LOG_RPT_IND_MODULE_ID_OFFSET) |  \
                                 (((log_mid) & OM_LOG_HEAD_PRESS_MASK) << OM_LOG_RPT_IND_MODULE_ID_OFFSET))

log_lenth_and_sn_press

#define log_lenth_and_sn_press	(		arg_num,
			SN
	)		(oal_log_lenth(arg_num) | ((uint32_t)(SN) << OM_LOG_SN_OFFSET))

nfc_log_alter

#define nfc_log_alter	(		lvl,
			fmt,
			num,
			arg...
	)		oml_app_log_print_alter(LOG_NFCMODULE, lvl, fmt, num, ##arg)

oal_log_lenth

#define oal_log_lenth

(

arg_num

)

(sizeof(om_log_header_t) + sizeof(uint32_t) * (arg_num) + sizeof(uint8_t))

OM_FRAME_DELIMITER

#define OM_FRAME_DELIMITER   (0x7E)

OM_FRAME_DELIMITER_LEN

#define OM_FRAME_DELIMITER_LEN   (1)

OM_FRAME_DUMP_DELIMITER

#define OM_FRAME_DUMP_DELIMITER   (0x1)

OM_FRAME_HEADER_LEN

#define OM_FRAME_HEADER_LEN   (8)

OM_LOG_HEAD_PRESS_MASK

#define OM_LOG_HEAD_PRESS_MASK   (0xFF)

OM_LOG_RPT_IND_MODULE_ID_OFFSET

#define OM_LOG_RPT_IND_MODULE_ID_OFFSET   (16)

OM_LOG_SEND_MSG_LENGTH

#define OM_LOG_SEND_MSG_LENGTH   (29)

OM_LOG_SN_OFFSET

#define OM_LOG_SN_OFFSET   (16)

OM_MSG_TYPE_LOG_OFFSET

#define OM_MSG_TYPE_LOG_OFFSET   (8)

oml_app_log_print0

#define oml_app_log_print0	(		mid,
			lvl,
			fmt
	)

值:

    do {    \
    log_event_print0(log_head_press(OM_IR), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__));    \
    log_other_print0(mid, lvl, fmt);    \
} while (0)

oml_app_log_print1

#define oml_app_log_print1	(		mid,
			lvl,
			fmt,
			p1
	)

值:

    do {    \
    log_event_print1(log_head_press(OM_IR), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1));    \
    log_other_print1(mid, lvl, fmt, (uint32_t)(p1));    \
} while (0)

oml_app_log_print2

#define oml_app_log_print2	(		mid,
			lvl,
			fmt,
			p1,
			p2
	)

值:

    do {    \
    log_event_print2(log_head_press(OM_IR), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__),    \
                     (uint32_t)(p1), (uint32_t)(p2));    \
    log_other_print2(mid, lvl, fmt, (uint32_t)(p1), (uint32_t)(p2));   \
} while (0)

oml_app_log_print3

#define oml_app_log_print3	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    do {    \
    log_event_print3(log_head_press(OM_IR), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__),    \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3));    \
    log_other_print3(mid, lvl, fmt, (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3));    \
} while (0)

oml_app_log_print4

#define oml_app_log_print4	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    do {    \
    log_event_print4(log_head_press(OM_IR), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__),    \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4));    \
    log_other_print4(mid, lvl, fmt, (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4));    \
} while (0)

oml_app_log_print_alter

#define oml_app_log_print_alter	(		mid,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_IR), \
                                         para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_bt_log_alter

#define oml_bt_log_alter	(		mid,
			lognum,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_BT), \
                                         para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_bt_log_print0

#define oml_bt_log_print0	(		mid,
			lvl,
			fmt
	)		log_event_print0(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__))

oml_bt_log_print1

#define oml_bt_log_print1	(		mid,
			lvl,
			fmt,
			p1
	)		log_event_print1(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))

oml_bt_log_print2

#define oml_bt_log_print2	(		mid,
			lvl,
			fmt,
			p1,
			p2
	)

值:

    log_event_print2(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2))

oml_bt_log_print3

#define oml_bt_log_print3	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    log_event_print3(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3))

oml_bt_log_print4

#define oml_bt_log_print4	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    log_event_print4(log_head_press(OM_BT), para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), \
                    (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4))

oml_bt_log_print_alter

#define oml_bt_log_print_alter	(		mid,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_BT), \
                                         para_press(LOG_BTMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_bth_log_alter

#define oml_bth_log_alter	(		mid,
			lognum,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_BTH), \
                                         para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_bth_log_print0

#define oml_bth_log_print0	(		mid,
			lvl,
			fmt
	)		log_event_print0(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__))

oml_bth_log_print1

#define oml_bth_log_print1	(		mid,
			lvl,
			fmt,
			p1
	)		log_event_print1(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))

oml_bth_log_print2

#define oml_bth_log_print2	(		mid,
			lvl,
			fmt,
			p1,
			p2
	)

值:

    log_event_print2(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2))

oml_bth_log_print3

#define oml_bth_log_print3	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    log_event_print3(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3))

oml_bth_log_print4

#define oml_bth_log_print4	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    log_event_print4(log_head_press(OM_BTH), para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), \
                    (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4))

oml_bth_log_print5

#define oml_bth_log_print5	(		mid,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_BTH), \
                                         para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_bth_log_print6

#define oml_bth_log_print6	(		mid,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_BTH), \
                                         para_press(LOG_BTHMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

OML_DATA_MSG_TYPE

#define OML_DATA_MSG_TYPE   (0x0E)

oml_glp_log_print0

#define oml_glp_log_print0	(		lvl,
			fmt
	)		log_event_print0(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__))

oml_glp_log_print1

#define oml_glp_log_print1	(		lvl,
			fmt,
			p1
	)		log_event_print1(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))

oml_glp_log_print2

#define oml_glp_log_print2	(		lvl,
			fmt,
			p1,
			p2
	)

值:

    log_event_print2(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1), \
                     (uint32_t)(p2))

oml_glp_log_print3

#define oml_glp_log_print3	(		lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    log_event_print3(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1), \
                     (uint32_t)(p2), (uint32_t)(p3))

oml_glp_log_print4

#define oml_glp_log_print4	(		lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    log_event_print4(log_head_press(OM_SLP), para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1), \
                     (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4))

oml_glp_log_print_alter

#define oml_glp_log_print_alter	(		lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_SLP), \
                                         para_press(LOG_SLPMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_gnss_log_print0

#define oml_gnss_log_print0	(		mid,
			lvl,
			fmt
	)		log_event_print0(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__))

oml_gnss_log_print1

#define oml_gnss_log_print1	(		mid,
			lvl,
			fmt,
			p1
	)		log_event_print1(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))

oml_gnss_log_print2

#define oml_gnss_log_print2	(		mid,
			lvl,
			fmt,
			p1,
			p2
	)

值:

    log_event_print2(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2))

oml_gnss_log_print3

#define oml_gnss_log_print3	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    log_event_print3(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3))

oml_gnss_log_print4

#define oml_gnss_log_print4	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    log_event_print4(log_head_press(OM_GNSS), para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__), \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4))

oml_gnss_log_print_alter

#define oml_gnss_log_print_alter	(		mid,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_GNSS), \
                                         para_press(LOG_GNSSMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

OML_LOG_ALTER_PARA_MAX_NUM

#define OML_LOG_ALTER_PARA_MAX_NUM   (12)

OML_LOG_FILEID_HIGH_BIT_OFFSET

#define OML_LOG_FILEID_HIGH_BIT_OFFSET   (2)

OML_LOG_FILEID_LOW_BIT_MASK

#define OML_LOG_FILEID_LOW_BIT_MASK   (0x3)

OML_LOG_FOUR_ARG_SEND

#define OML_LOG_FOUR_ARG_SEND   (4)

OML_LOG_HEADER_ARRAY_LENTH

#define OML_LOG_HEADER_ARRAY_LENTH   (3)

OML_LOG_INT_2_DOUBLE

#define OML_LOG_INT_2_DOUBLE   (2)

OML_LOG_INT_BIT

#define OML_LOG_INT_BIT   (32)

OML_LOG_LEVEL_MASK

#define OML_LOG_LEVEL_MASK   (0x3)

OML_LOG_LEVEL_OFFSET

#define OML_LOG_LEVEL_OFFSET   (6)

OML_LOG_LINENO_HIGH_BIT_OFFSET

#define OML_LOG_LINENO_HIGH_BIT_OFFSET   (8)

OML_LOG_LINENO_LOW_BIT_MASK

#define OML_LOG_LINENO_LOW_BIT_MASK   (0xFF)

OML_LOG_MODULE_MASK

#define OML_LOG_MODULE_MASK   (0x3F)

OML_LOG_ONE_ARG_SEND

#define OML_LOG_ONE_ARG_SEND   (1)

OML_LOG_PARA_MAX_NUM

#define OML_LOG_PARA_MAX_NUM   (4)

OML_LOG_TAIL_LENTH

#define OML_LOG_TAIL_LENTH   (1)

OML_LOG_THREE_ARG_SEND

#define OML_LOG_THREE_ARG_SEND   (3)

OML_LOG_TWO_ARG_SEND

#define OML_LOG_TWO_ARG_SEND   (2)

OML_LOG_ZERO_ARG_SEND

#define OML_LOG_ZERO_ARG_SEND   (0)

OML_MSG_HEADER_LENGTH

#define OML_MSG_HEADER_LENGTH   (4)

OML_MSG_TAIL_LENGTH

#define OML_MSG_TAIL_LENGTH   (1)

oml_nfc_log_print0

#define oml_nfc_log_print0	(		lvl,
			fmt
	)		log_event_print0(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__))

oml_nfc_log_print1

#define oml_nfc_log_print1	(		lvl,
			fmt,
			p1
	)		log_event_print1(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))

oml_nfc_log_print2

#define oml_nfc_log_print2	(		lvl,
			fmt,
			p1,
			p2
	)

值:

    log_event_print2(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1), \
                     (uint32_t)(p2))

oml_nfc_log_print3

#define oml_nfc_log_print3	(		lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    log_event_print3(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1), \
                     (uint32_t)(p2), (uint32_t)(p3))

oml_nfc_log_print4

#define oml_nfc_log_print4	(		lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    log_event_print4(log_head_press(OM_NFC), para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1), \
                     (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4))

oml_nfc_log_print_alter

#define oml_nfc_log_print_alter	(		lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_NFC), \
                                         para_press(LOG_NFCMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_pf_log_print0

#define oml_pf_log_print0	(		mid,
			lognum,
			lvl,
			fmt
	)

值:

    do {    \
    log_event_print0(log_head_press(OM_PF), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__));    \
    log_other_print0(mid, lvl, fmt);    \
} while (0)

oml_pf_log_print1

#define oml_pf_log_print1	(		mid,
			lognum,
			lvl,
			fmt,
			p1
	)

值:

    do {    \
    log_event_print1(log_head_press(OM_PF), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1));    \
    log_other_print1(mid, lvl, fmt, (uint32_t)(p1));    \
} while (0)

oml_pf_log_print2

#define oml_pf_log_print2	(		mid,
			lognum,
			lvl,
			fmt,
			p1,
			p2
	)

值:

    do {    \
    log_event_print2(log_head_press(OM_PF), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__),    \
                     (uint32_t)(p1), (uint32_t)(p2));    \
    log_other_print2(mid, lvl, fmt, (uint32_t)(p1), (uint32_t)(p2));    \
} while (0)

oml_pf_log_print3

#define oml_pf_log_print3	(		mid,
			lognum,
			lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    do {    \
    log_event_print3(log_head_press(OM_PF), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__),    \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3));    \
    log_other_print3(mid, lvl, fmt, (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3));    \
} while (0)

oml_pf_log_print4

#define oml_pf_log_print4	(		mid,
			lognum,
			lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    do {    \
    log_event_print4(log_head_press(OM_PF), para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__),    \
                     (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4));    \
    log_other_print4(mid, lvl, fmt, (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4));    \
} while (0)

oml_pf_log_print_alter

#define oml_pf_log_print_alter	(		mid,
			lognum,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_PF), \
                                         para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_wifi_log_alter

#define oml_wifi_log_alter	(		mid,
			lognum,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press(log_head_press(OM_WIFI), \
                                         para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__), num, ##arg)

oml_wifi_log_print0

#define oml_wifi_log_print0	(		mid,
			lvl,
			fmt
	)		log_event_wifi_print0(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__))

oml_wifi_log_print1

#define oml_wifi_log_print1	(		mid,
			lvl,
			fmt,
			p1
	)		log_event_wifi_print1(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__), (uint32_t)(p1))

oml_wifi_log_print2

#define oml_wifi_log_print2	(		mid,
			lvl,
			fmt,
			p1,
			p2
	)

值:

    log_event_wifi_print2(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__), \
                          (uint32_t)(p1), (uint32_t)(p2))

oml_wifi_log_print3

#define oml_wifi_log_print3	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3
	)

值:

    log_event_wifi_print3(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__), \
                          (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3))

oml_wifi_log_print4

#define oml_wifi_log_print4	(		mid,
			lvl,
			fmt,
			p1,
			p2,
			p3,
			p4
	)

值:

    log_event_wifi_print4(para_press(LOG_WIFIMODULE, lvl, THIS_FILE_ID, __LINE__), \
                          (uint32_t)(p1), (uint32_t)(p2), (uint32_t)(p3), (uint32_t)(p4))

para_press

#define para_press	(		mid,
			lev,
			fileid,
			lineno
	)

值:

                                              (((uint32_t)(((uint32_t)(lineno) & 0xFF) << 0x18)) |  \
                                              ((uint32_t)((((uint32_t)(fileid) & 0x3) << 0x10) |   \
                                              ((uint32_t)(lineno) & 0x3F00) << 0xA))  |          \
                                              ((uint32_t)(((uint32_t)(fileid) & 0x3FC) << 0x6)) |  \
                                              ((uint32_t)(((mid) & 0x3F) | (((lev) & 0x3) << 0x6))))

Fill this 32 bit value as little ending format Last by will be send as the first byte by log system. |----------------------------------------------------------------------------------------------------—| |-H------------------------------------------— 32 bit -------------------------------------------—L-| | 8 bit | 8 bit | 8 bit | 8 bit | | lineno low 8 bit | lineno high 6 bit + file_id low 2 bit | file_id high 8 bit | lev 2 bit + mid 6 bit | |----------------------------------------------------------------------------------------------------—|

pf_log_alter

#define pf_log_alter	(		mid,
			lognum,
			lvl,
			fmt,
			num,
			arg...
	)		oml_pf_log_print_alter(LOG_PFMODULE, lognum, lvl, fmt, num, ##arg)

pf_write_fifo_log_alter

#define pf_write_fifo_log_alter	(		mid,
			lognum,
			lvl,
			fmt,
			num,
			arg...
	)

值:

    log_event_print_alterable_para_press_by_write_uart_fifo(log_head_press(OM_PF), \
                                                            para_press(LOG_PFMODULE, lvl, THIS_FILE_ID, __LINE__), \
                                                            num, ##arg)

类型定义说明

log_other_print_t

typedef int(* log_other_print_t) (uint32_t log_module_type, uint32_t level, const char *fmt, uint32_t paranum,...)

枚举类型说明

LOG_OAM_ENTRY_INDEX

enum LOG_OAM_ENTRY_INDEX

枚举值
LOG_OAM_INDEX_0
LOG_OAM_INDEX_1
LOG_OAM_INDEX_2
LOG_OAM_INDEX_3
LOG_OAM_INDEX_4
LOG_OAM_INDEX_5
LOG_OAM_INDEX_6
LOG_OAM_INDEX_7

OM_LOG_ERROR_TYPE

enum OM_LOG_ERROR_TYPE

枚举值
OM_LOG_RET_OK
OM_LOG_RET_PARA_INVALID
OM_LOG_RET_POINTER_NULL

OM_LOG_MSG_ENUM

enum OM_LOG_MSG_ENUM

枚举值
OM_LOG_CONFIG_REQ
OM_LOG_CONFIG_ACK
OM_LOG_RPT_IND
OM_LOG_SAVE_STACK
OM_LOG_CONFIG_BUTT

OM_MSG_TYPE_ENUM

enum OM_MSG_TYPE_ENUM

枚举值
OM_MSG_TYPE_LOG
OM_MSG_TYPE_OTA
OM_MSG_TYPE_TRACE
OM_MSG_TYPE_EVENT
OM_MSG_TYPE_ALARM
OM_MSG_TYPE_CATCH
OM_MSG_TYPE_COLLECT
OM_MSG_TYPE_DUMP
OM_MSG_MEM_COMMAND
OM_MSG_SSI_REG_COMMAND
OM_MSG_ICONFIG_COMMAND
OM_MSG_TYPE_BTC_OAM
OM_MSG_TYPE_WARNING
OM_MSG_TYPE_STATISTIC
OM_MSG_TYPE_LAST
OM_MSG_NFC_COMMAND
OM_MSG_TYPE_EDITION
OM_MSG_TYPE_COVERAGE
OM_MSG_GNSS_HOST_CMD_TYPE
OM_MSG_REG_COMMAND
OM_MSG_CS_STAT_CMD
OM_MSG_GNSS_SDT_CMD
OM_MSG_TRSSI_FSM
OM_MSG_TRSSI_VAL_CFG
OM_MSG_TYPE_CALIRESULT
OM_MSG_SSIBLOCK_COMMAND
OM_MSG_DBGUART_SWITCH_TO_BT
OM_MSG_DBGUART_SWITCH_TO_WIFI
OM_MSG_TYPE_STATUS
OM_PCM_REPORT_BT
OM_MSG_TYPE_DSCR
OM_BT_SAMPLE_DATA
OM_MSG_REG32_COMMAND
OM_MSG_TYPE_BTH
OM_MSG_TYPE_APP
OM_MSG_TYPE_HIFI
OM_MSG_TYPE_LOG_CUSTOM
OM_MSG_TYPE_BTC_WVT
OM_MSG_TYPE_BUTT

函数说明

log_event_print0()

void log_event_print0	(	uint32_t	log_header,
		uint32_t	presspara
	)

log_event_print1()

void log_event_print1	(	uint32_t	log_header,
		uint32_t	presspara,
		uint32_t	para1
	)

log_event_print2()

void log_event_print2	(	uint32_t	log_header,
		uint32_t	presspara,
		uint32_t	para1,
		uint32_t	para2
	)

log_event_print3()

void log_event_print3	(	uint32_t	log_header,
		uint32_t	presspara,
		uint32_t	para1,
		uint32_t	para2,
		uint32_t	para3
	)

log_event_print4()

void log_event_print4	(	uint32_t	log_header,
		uint32_t	presspara,
		uint32_t	para1,
		uint32_t	para2,
		uint32_t	para3,
		uint32_t	para4
	)

log_event_print_alterable_para_press()

void log_event_print_alterable_para_press	(	uint32_t	log_header,
		uint32_t	presspara,
		uint32_t	paranum,
			...
	)

log_event_print_alterable_para_press_by_write_uart_fifo()

void log_event_print_alterable_para_press_by_write_uart_fifo	(	uint32_t	log_header,
		uint32_t	presspara,
		uint32_t	paranum,
			...
	)

log_event_wifi_print0()

void log_event_wifi_print0

(

uint32_t

presspara

)

log_event_wifi_print1()

void log_event_wifi_print1	(	uint32_t	presspara,
		uint32_t	para1
	)

log_event_wifi_print2()

void log_event_wifi_print2	(	uint32_t	presspara,
		uint32_t	para1,
		uint32_t	para2
	)

log_event_wifi_print3()

void log_event_wifi_print3	(	uint32_t	presspara,
		uint32_t	para1,
		uint32_t	para2,
		uint32_t	para3
	)

log_event_wifi_print4()

void log_event_wifi_print4	(	uint32_t	presspara,
		uint32_t	para1,
		uint32_t	para2,
		uint32_t	para3,
		uint32_t	para4
	)

log_other_print0()

void log_other_print0	(	uint32_t	log_header,
		uint32_t	log_level,
		const char *	fmt
	)

log_other_print1()

void log_other_print1	(	uint32_t	log_header,
		uint32_t	log_level,
		const char *	fmt,
		uint32_t	p0
	)

log_other_print2()

void log_other_print2	(	uint32_t	log_header,
		uint32_t	log_level,
		const char *	fmt,
		uint32_t	p0,
		uint32_t	p1
	)

log_other_print3()

void log_other_print3	(	uint32_t	log_header,
		uint32_t	log_level,
		const char *	fmt,
		uint32_t	p0,
		uint32_t	p1,
		uint32_t	p2
	)

log_other_print4()

void log_other_print4	(	uint32_t	log_header,
		uint32_t	log_level,
		const char *	fmt,
		uint32_t	p0,
		uint32_t	p1,
		uint32_t	p2,
		uint32_t	p3
	)

log_other_print_register()

void log_other_print_register

(

log_other_print_t

users_print_func

)
