#include "los_typedef.h"
#include "asm/memmap_config.h"
#include "soc/clock.h"
#include "asm/platform.h"

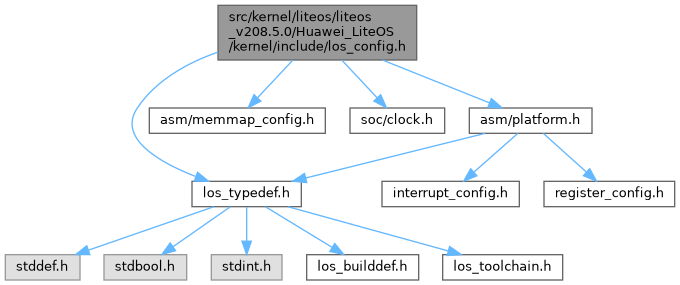

los_config.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	LOS_GET_NX_CFG() false

#define	LOS_SET_NX_CFG(value)

#define	LOS_GET_DL_NX_HEAP_BASE() NULL

#define	LOS_SET_DL_NX_HEAP_BASE(addr)

#define	LOS_GET_DL_NX_HEAP_SIZE() 0

#define	LOS_SET_DL_NX_HEAP_SIZE(size)

#define	KERNEL_TICK_PER_SECOND LOSCFG_BASE_CORE_TICK_PER_SECOND

#define	KERNEL_TSK_LIMIT LOSCFG_BASE_CORE_TSK_LIMIT

#define	KERNEL_TSK_MIN_STACK_SIZE LOSCFG_BASE_CORE_TSK_MIN_STACK_SIZE

#define	KERNEL_TSK_DEFAULT_STACK_SIZE LOSCFG_BASE_CORE_TSK_DEFAULT_STACK_SIZE

#define	KERNEL_TSK_IDLE_STACK_SIZE LOSCFG_BASE_CORE_TSK_IDLE_STACK_SIZE

#define	KERNEL_TSK_SWTMR_STACK_SIZE LOSCFG_BASE_CORE_TSK_SWTMR_STACK_SIZE

#define	KERNEL_SWTMR_LIMIT LOSCFG_BASE_CORE_SWTMR_LIMIT

#define	KERNEL_SEM_LIMIT LOSCFG_BASE_IPC_SEM_LIMIT

#define	KERNEL_RWSEM_LIMIT LOSCFG_BASE_IPC_RWSEM_LIMIT

#define	KERNEL_MUX_LIMIT LOSCFG_BASE_IPC_MUX_LIMIT

#define	KERNEL_QUEUE_LIMIT LOSCFG_BASE_IPC_QUEUE_LIMIT

#define	KERNEL_TIMESLICE_TIMEOUT LOSCFG_BASE_CORE_TIMESLICE_TIMEOUT

#define	OS_SYS_CLOCK (get_bus_clk())

#define	OS_TIME_TIMER_CLOCK OS_SYS_CLOCK

#define	OS_SYS_FUNC_ADDR_START ((UINTPTR)&__int_stack_start)

#define	OS_SYS_FUNC_ADDR_END g_sys_mem_addr_end

#define	LOSCFG_BASE_CORE_ADJ_PER_SECOND 500

#define	SCHED_CLOCK_INTETRVAL_TICKS 100

#define	OS_SWTMR_MAX_TIMERID ((0xFFFF / KERNEL_SWTMR_LIMIT) * KERNEL_SWTMR_LIMIT)

#define	OS_SWTMR_HANDLE_QUEUE_SIZE KERNEL_SWTMR_LIMIT

#define	OS_SYS_MEM_ADDR (&__heap_start)

#define	LOS_DL_HEAP_SIZE 0

#define	LOS_DL_HEAP_BASE 0

#define	OS_SYS_MEM_SIZE

#define	LOSCFG_KERNEL_CORE_NUM 1

#define	LOSCFG_KERNEL_CPU_MASK ((1 << LOSCFG_KERNEL_CORE_NUM) - 1)

#define	_T(x) x

#define	HW_LITEOS_SYSNAME "Huawei LiteOS"

#define	HW_LITEOS_SEP " "

#define	_V(v) _T(HW_LITEOS_SYSNAME)_T(HW_LITEOS_SEP)_T(v)

#define	HW_LITEOS_VERSION "208.5.0.B010"

#define	HW_LITEOS_VER _V(HW_LITEOS_VERSION"-SMP")

#define	MAJ_V 5

#define	MIN_V 5

#define	REL_V 0

#define	EXTRA_V 0

#define	VERSION_NUM(a, b, c) (((a) << 16) \| ((b) << 8) \| (c))

#define	HW_LITEOS_OPEN_VERSION_NUM VERSION_NUM(MAJ_V, MIN_V, REL_V)

#define	STRINGIFY_1(x) #x

#define	STRINGIFY(x) STRINGIFY_1(x)

#define	HW_LITEOS_OPEN_VERSION_STRING STRINGIFY(MAJ_V) "." STRINGIFY(MIN_V) "." STRINGIFY(REL_V)

#define	HW_LITEOS_KERNEL_VERSION_STRING HW_LITEOS_OPEN_VERSION_STRING

类型定义
typedef CHAR	LD_SYMBOL_TYPE

宏定义说明

◆ _V

#define _V ( v ) _T(HW_LITEOS_SYSNAME)_T(HW_LITEOS_SEP)_T(v)

◆ EXTRA_V

#define EXTRA_V 0

The release candidate version number

◆ HW_LITEOS_KERNEL_VERSION_STRING

#define HW_LITEOS_KERNEL_VERSION_STRING HW_LITEOS_OPEN_VERSION_STRING

◆ HW_LITEOS_OPEN_VERSION_NUM

#define HW_LITEOS_OPEN_VERSION_NUM VERSION_NUM(MAJ_V, MIN_V, REL_V)

◆ HW_LITEOS_OPEN_VERSION_STRING

#define HW_LITEOS_OPEN_VERSION_STRING STRINGIFY(MAJ_V) "." STRINGIFY(MIN_V) "." STRINGIFY(REL_V)

◆ HW_LITEOS_SEP

#define HW_LITEOS_SEP " "

◆ HW_LITEOS_SYSNAME

#define HW_LITEOS_SYSNAME "Huawei LiteOS"

◆ HW_LITEOS_VER

#define HW_LITEOS_VER _V(HW_LITEOS_VERSION"-SMP")

◆ HW_LITEOS_VERSION

#define HW_LITEOS_VERSION "208.5.0.B010"

◆ KERNEL_MUX_LIMIT

#define KERNEL_MUX_LIMIT LOSCFG_BASE_IPC_MUX_LIMIT

◆ KERNEL_QUEUE_LIMIT

#define KERNEL_QUEUE_LIMIT LOSCFG_BASE_IPC_QUEUE_LIMIT

◆ KERNEL_RWSEM_LIMIT

#define KERNEL_RWSEM_LIMIT LOSCFG_BASE_IPC_RWSEM_LIMIT

◆ KERNEL_SEM_LIMIT

#define KERNEL_SEM_LIMIT LOSCFG_BASE_IPC_SEM_LIMIT

◆ KERNEL_SWTMR_LIMIT

#define KERNEL_SWTMR_LIMIT LOSCFG_BASE_CORE_SWTMR_LIMIT

◆ KERNEL_TICK_PER_SECOND

#define KERNEL_TICK_PER_SECOND LOSCFG_BASE_CORE_TICK_PER_SECOND

◆ KERNEL_TIMESLICE_TIMEOUT

#define KERNEL_TIMESLICE_TIMEOUT LOSCFG_BASE_CORE_TIMESLICE_TIMEOUT

◆ KERNEL_TSK_DEFAULT_STACK_SIZE

#define KERNEL_TSK_DEFAULT_STACK_SIZE LOSCFG_BASE_CORE_TSK_DEFAULT_STACK_SIZE

◆ KERNEL_TSK_IDLE_STACK_SIZE

#define KERNEL_TSK_IDLE_STACK_SIZE LOSCFG_BASE_CORE_TSK_IDLE_STACK_SIZE

◆ KERNEL_TSK_LIMIT

#define KERNEL_TSK_LIMIT LOSCFG_BASE_CORE_TSK_LIMIT

◆ KERNEL_TSK_MIN_STACK_SIZE

#define KERNEL_TSK_MIN_STACK_SIZE LOSCFG_BASE_CORE_TSK_MIN_STACK_SIZE

◆ KERNEL_TSK_SWTMR_STACK_SIZE

#define KERNEL_TSK_SWTMR_STACK_SIZE LOSCFG_BASE_CORE_TSK_SWTMR_STACK_SIZE

◆ LOS_DL_HEAP_BASE

#define LOS_DL_HEAP_BASE 0

◆ LOS_GET_DL_NX_HEAP_BASE

#define LOS_GET_DL_NX_HEAP_BASE ( ) NULL

◆ LOS_GET_DL_NX_HEAP_SIZE

#define LOS_GET_DL_NX_HEAP_SIZE ( ) 0

◆ LOS_GET_NX_CFG

#define LOS_GET_NX_CFG ( ) false

◆ LOS_SET_DL_NX_HEAP_BASE

#define LOS_SET_DL_NX_HEAP_BASE ( addr )

◆ LOS_SET_DL_NX_HEAP_SIZE

#define LOS_SET_DL_NX_HEAP_SIZE ( size )

◆ LOS_SET_NX_CFG

#define LOS_SET_NX_CFG ( value )

◆ LOSCFG_KERNEL_CPU_MASK

#define LOSCFG_KERNEL_CPU_MASK ((1 << LOSCFG_KERNEL_CORE_NUM) - 1)

◆ MAJ_V

#define MAJ_V 5

The Version number of Public

◆ MIN_V

#define MIN_V 5

◆ OS_SYS_FUNC_ADDR_END

#define OS_SYS_FUNC_ADDR_END g_sys_mem_addr_end

◆ OS_SYS_FUNC_ADDR_START

#define OS_SYS_FUNC_ADDR_START ((UINTPTR)&__int_stack_start)

limit addr range when search for 'func local(frame pointer)' or 'func name'

◆ REL_V

#define REL_V 0

◆ STRINGIFY

#define STRINGIFY ( x ) STRINGIFY_1(x)

◆ STRINGIFY_1

#define STRINGIFY_1 ( x ) #x

◆ VERSION_NUM

#define VERSION_NUM	(	a,
		b,
		c
	)	(((a) << 16) \| ((b) << 8) \| (c))

类型定义说明

◆ LD_SYMBOL_TYPE

typedef CHAR LD_SYMBOL_TYPE

system sections start and end address

变量说明

◆ __bss_end

LD_SYMBOL_TYPE __bss_end

extern

◆ __bss_start

LD_SYMBOL_TYPE __bss_start

extern

◆ __exc_heap_end

LD_SYMBOL_TYPE __exc_heap_end

extern

◆ __exc_heap_start

LD_SYMBOL_TYPE __exc_heap_start

extern

◆ __heap_start

LD_SYMBOL_TYPE __heap_start

extern

◆ __init_array_end

LD_SYMBOL_TYPE __init_array_end

extern

◆ __init_array_start

LD_SYMBOL_TYPE __init_array_start

extern

◆ __int_stack_end

LD_SYMBOL_TYPE __int_stack_end

extern

◆ __int_stack_start

LD_SYMBOL_TYPE __int_stack_start

extern

◆ __ram_data_end

LD_SYMBOL_TYPE __ram_data_end

extern

◆ __ram_data_start

LD_SYMBOL_TYPE __ram_data_start

extern

◆ __rodata_end

LD_SYMBOL_TYPE __rodata_end

extern

◆ __rodata_start

LD_SYMBOL_TYPE __rodata_start

extern

◆ __text_end

LD_SYMBOL_TYPE __text_end

extern

◆ __text_start

LD_SYMBOL_TYPE __text_start

extern

◆ __trace_buf_end

LD_SYMBOL_TYPE __trace_buf_end

extern

◆ __trace_buf_start

LD_SYMBOL_TYPE __trace_buf_start

extern

变量
LD_SYMBOL_TYPE	__int_stack_start

LD_SYMBOL_TYPE	__int_stack_end

LD_SYMBOL_TYPE	__rodata_start

LD_SYMBOL_TYPE	__rodata_end

LD_SYMBOL_TYPE	__bss_start

LD_SYMBOL_TYPE	__bss_end

LD_SYMBOL_TYPE	__text_start

LD_SYMBOL_TYPE	__text_end

LD_SYMBOL_TYPE	__ram_data_start

LD_SYMBOL_TYPE	__ram_data_end

LD_SYMBOL_TYPE	__exc_heap_start

LD_SYMBOL_TYPE	__exc_heap_end

LD_SYMBOL_TYPE	__heap_start

LD_SYMBOL_TYPE	__init_array_start

LD_SYMBOL_TYPE	__init_array_end

LD_SYMBOL_TYPE	__trace_buf_start

LD_SYMBOL_TYPE	__trace_buf_end

UINTPTR	g_sys_mem_addr_end
