#include <fe_rf_dev.h>

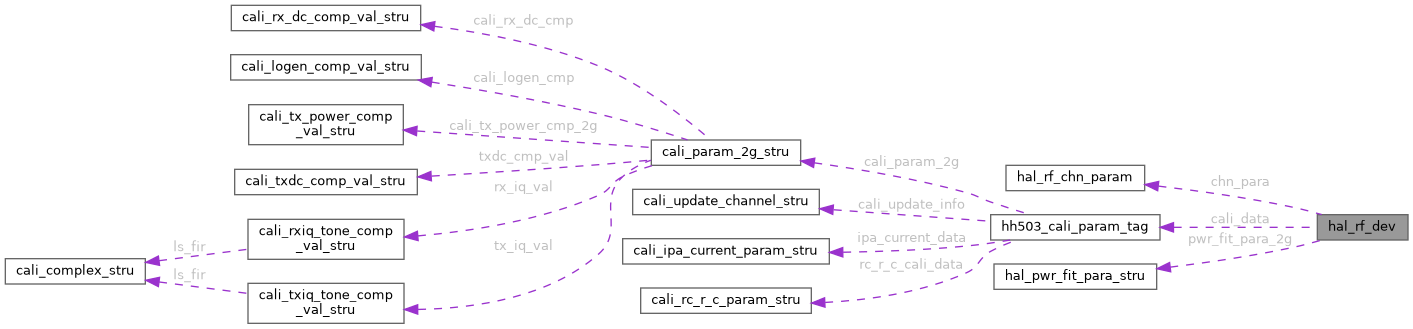

hal_rf_dev 的协作图:

[图例]

成员变量
osal_u8	rf_id

osal_u8	pll_id

osal_s16	tx_power_dc

hal_rf_chn_param	chn_para

osal_u32	rf_reg_base

osal_u32	rf_pll_reg_base

osal_u32	rf_ctl_reg_offset

osal_u16	aus_base_txpwr_delt_value [WLAN_BAND_BUTT]

osal_void *	owner

cali_param_stru *	cali_data

oal_bool_enum_uint8	is_calibrated

hal_rf_power_work_mode_uint8	rf_work_mode

osal_u8	rf_power_state

osal_u8	cur_cali_upc

osal_u8	base_power [WLAN_BAND_BUTT]

osal_u8	upc_idx2code [HAL_POW_UPC_LUT_NUM]

osal_s16	curr_temperature

osal_s16	upc_amend

oal_bool_enum_uint8	upc_code_tobe_updated

osal_char	dp_2g11b

osal_char	dp_2gofdm20

osal_char	dp_2gofdm40

hal_pwr_fit_para_stru *	pwr_fit_para_2g

osal_u8	cur_rf_fsm_state

hal_dyn_cali_adj_type_enum_uint8	cali_pdet_adjust_flag

osal_s16	delt_dbb_scale_dyn_val

uintptr_t *	_rom

结构体成员变量说明

◆ _rom

uintptr_t* hal_rf_dev::_rom

◆ aus_base_txpwr_delt_value

osal_u16 hal_rf_dev::aus_base_txpwr_delt_value[WLAN_BAND_BUTT]

◆ base_power

osal_u8 hal_rf_dev::base_power[WLAN_BAND_BUTT]

◆ cali_data

cali_param_stru* hal_rf_dev::cali_data

◆ cali_pdet_adjust_flag

hal_dyn_cali_adj_type_enum_uint8 hal_rf_dev::cali_pdet_adjust_flag

◆ chn_para

hal_rf_chn_param hal_rf_dev::chn_para

◆ cur_cali_upc

osal_u8 hal_rf_dev::cur_cali_upc

◆ cur_rf_fsm_state

osal_u8 hal_rf_dev::cur_rf_fsm_state

◆ curr_temperature

osal_s16 hal_rf_dev::curr_temperature

◆ delt_dbb_scale_dyn_val

osal_s16 hal_rf_dev::delt_dbb_scale_dyn_val

◆ dp_2g11b

osal_char hal_rf_dev::dp_2g11b

◆ dp_2gofdm20

osal_char hal_rf_dev::dp_2gofdm20

◆ dp_2gofdm40

osal_char hal_rf_dev::dp_2gofdm40

◆ is_calibrated

oal_bool_enum_uint8 hal_rf_dev::is_calibrated

◆ owner

osal_void* hal_rf_dev::owner

◆ pll_id

osal_u8 hal_rf_dev::pll_id

◆ pwr_fit_para_2g

hal_pwr_fit_para_stru* hal_rf_dev::pwr_fit_para_2g

◆ rf_ctl_reg_offset

osal_u32 hal_rf_dev::rf_ctl_reg_offset

◆ rf_id

osal_u8 hal_rf_dev::rf_id

◆ rf_pll_reg_base

osal_u32 hal_rf_dev::rf_pll_reg_base

◆ rf_power_state

osal_u8 hal_rf_dev::rf_power_state

◆ rf_reg_base

osal_u32 hal_rf_dev::rf_reg_base

◆ rf_work_mode

hal_rf_power_work_mode_uint8 hal_rf_dev::rf_work_mode

◆ tx_power_dc

osal_s16 hal_rf_dev::tx_power_dc

◆ upc_amend

osal_s16 hal_rf_dev::upc_amend

◆ upc_code_tobe_updated

oal_bool_enum_uint8 hal_rf_dev::upc_code_tobe_updated

◆ upc_idx2code

osal_u8 hal_rf_dev::upc_idx2code[HAL_POW_UPC_LUT_NUM]

该结构体的文档由以下文件生成:

src/protocol/wifi/rom_code/ws63/source/common/wifi_fe/rf_res_manage/fe_rf_dev.h
