#include "oal_ext_if.h"
#include "wal_main.h"
#include "hmac_ext_if.h"
#include "wal_ioctl.h"
#include "wal_ccpriv.h"
#include "wal_scan.h"
#include "oal_net.h"
#include "soc_wifi_driver_wpa_if.h"

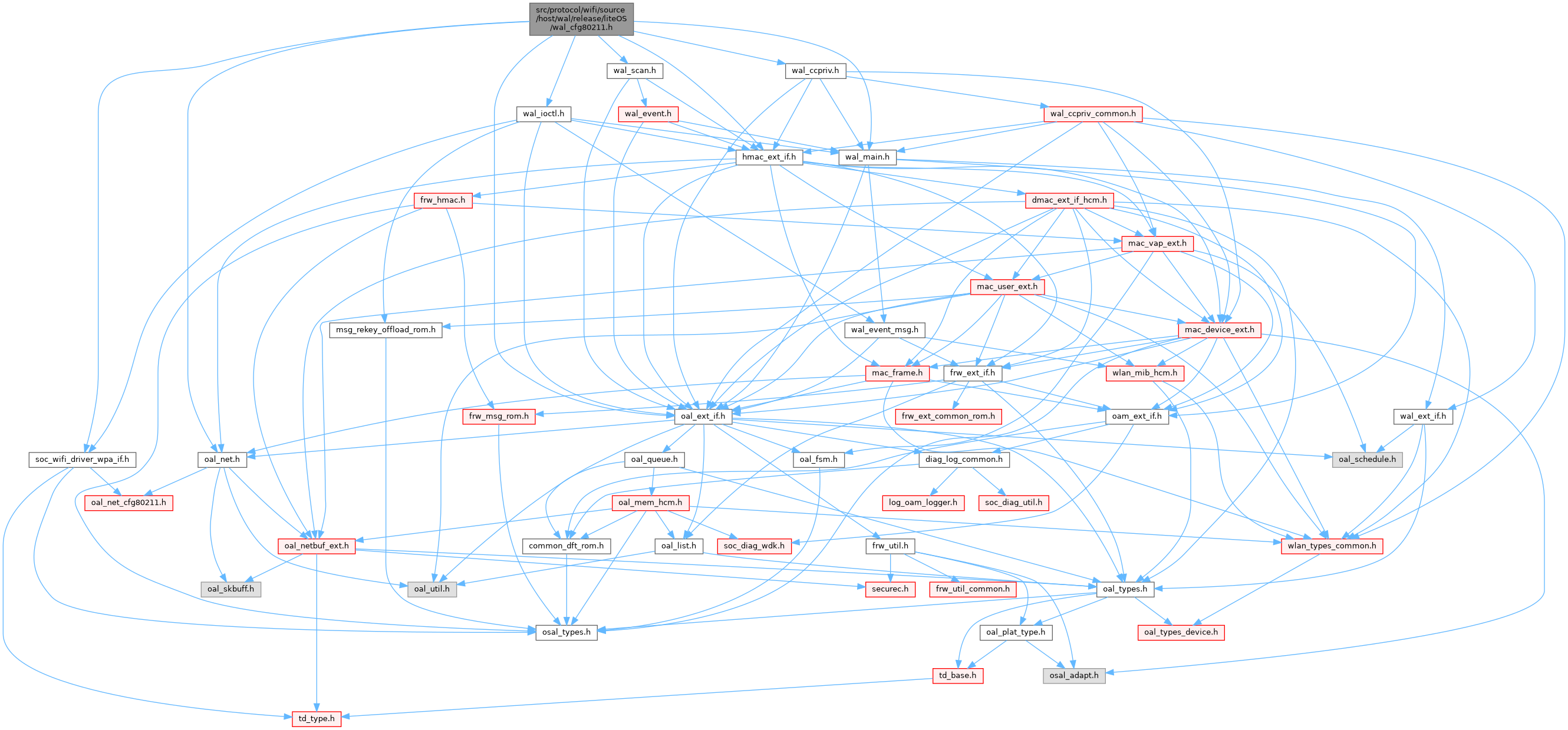

wal_cfg80211.h 的引用(Include)关系图:

结构体
struct	cookie_arry

宏定义
#define	WAL_MAX_SCAN_TIME_PER_CHANNEL 400

#define	WAL_MAX_SCAN_TIME_PER_SCAN_REQ (5 * 1000) /* wpa_s下发扫描请求，超时时间为5s，单位为ms */

#define	WAL_MIN_CHANNEL_2G 1

#define	WAL_MAX_CHANNEL_2G 14

#define	WAL_MIN_FREQ_2G (2412 + 5*(WAL_MIN_CHANNEL_2G - 1))

#define	WAL_MAX_FREQ_2G 2484

#define	WAL_MAX_SCAN_IE_LEN 1000

#define	IEEE80211_HT_CAP_LDPC_CODING 0x0001

#define	IEEE80211_HT_CAP_SUP_WIDTH_20_40 0x0002

#define	IEEE80211_HT_CAP_SM_PS 0x000C

#define	IEEE80211_HT_CAP_SM_PS_SHIFT 2

#define	IEEE80211_HT_CAP_GRN_FLD 0x0010

#define	IEEE80211_HT_CAP_SGI_20 0x0020

#define	IEEE80211_HT_CAP_SGI_40 0x0040

#define	IEEE80211_HT_CAP_TX_STBC 0x0080

#define	IEEE80211_HT_CAP_RX_STBC 0x0300

#define	IEEE80211_HT_CAP_DELAY_BA 0x0400

#define	IEEE80211_HT_CAP_MAX_AMSDU 0x0800

#define	IEEE80211_HT_CAP_DSSSCCK40 0x1000

#define	IEEE80211_HT_CAP_RESERVED 0x2000

#define	IEEE80211_HT_CAP_40MHZ_INTOLERANT 0x4000

#define	IEEE80211_HT_CAP_LSIG_TXOP_PROT 0x8000

#define	IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_3895 0x00000000

#define	IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_7991 0x00000001

#define	IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_11454 0x00000002

#define	IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_160MHZ 0x00000004

#define	IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_160_80PLUS80MHZ 0x00000008

#define	IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_MASK 0x0000000C

#define	IEEE80211_VHT_CAP_RXLDPC 0x00000010

#define	IEEE80211_VHT_CAP_SHORT_GI_80 0x00000020

#define	IEEE80211_VHT_CAP_SHORT_GI_160 0x00000040

#define	IEEE80211_VHT_CAP_TXSTBC 0x00000080

#define	IEEE80211_VHT_CAP_RXSTBC_1 0x00000100

#define	IEEE80211_VHT_CAP_RXSTBC_2 0x00000200

#define	IEEE80211_VHT_CAP_RXSTBC_3 0x00000300

#define	IEEE80211_VHT_CAP_RXSTBC_4 0x00000400

#define	IEEE80211_VHT_CAP_RXSTBC_MASK 0x00000700

#define	IEEE80211_VHT_CAP_SU_BEAMFORMER_CAPABLE 0x00000800

#define	IEEE80211_VHT_CAP_SU_BEAMFORMEE_CAPABLE 0x00001000

#define	IEEE80211_VHT_CAP_BEAMFORMER_ANTENNAS_MAX 0x00006000

#define	IEEE80211_VHT_CAP_SOUNDING_DIMENSIONS_MAX 0x00030000

#define	IEEE80211_VHT_CAP_MU_BEAMFORMER_CAPABLE 0x00080000

#define	IEEE80211_VHT_CAP_MU_BEAMFORMEE_CAPABLE 0x00100000

#define	IEEE80211_VHT_CAP_VHT_TXOP_PS 0x00200000

#define	IEEE80211_VHT_CAP_HTC_VHT 0x00400000

#define	IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_SHIFT 23

#define	IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_MASK (7 << IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_SHIFT)

#define	IEEE80211_VHT_CAP_VHT_LINK_ADAPTATION_VHT_UNSOL_MFB 0x08000000

#define	IEEE80211_VHT_CAP_VHT_LINK_ADAPTATION_VHT_MRQ_MFB 0x0c000000

#define	IEEE80211_VHT_CAP_RX_ANTENNA_PATTERN 0x10000000

#define	IEEE80211_VHT_CAP_TX_ANTENNA_PATTERN 0x20000000

#define	IEEE80211_STYPE_ASSOC_REQ 0x0000

#define	IEEE80211_STYPE_ASSOC_RESP 0x0010

#define	IEEE80211_STYPE_REASSOC_REQ 0x0020

#define	IEEE80211_STYPE_REASSOC_RESP 0x0030

#define	IEEE80211_STYPE_PROBE_REQ 0x0040

#define	IEEE80211_STYPE_PROBE_RESP 0x0050

#define	IEEE80211_STYPE_BEACON 0x0080

#define	IEEE80211_STYPE_ATIM 0x0090

#define	IEEE80211_STYPE_DISASSOC 0x00A0

#define	IEEE80211_STYPE_AUTH 0x00B0

#define	IEEE80211_STYPE_DEAUTH 0x00C0

#define	IEEE80211_STYPE_ACTION 0x00D0

#define	WAL_COOKIE_ARRAY_SIZE 8 /* 采用8bit 的map 作为保存cookie 的索引状态 */

#define	WAL_MGMT_TX_TIMEOUT_MSEC 500 /* WAL 发送管理帧超时时间 */

#define	WAL_MGMT_TX_RETRY_CNT 8 /* WAL 发送管理帧最大重传次数 */

#define	IEEE80211_FCTL_FTYPE 0x000c

#define	IEEE80211_FCTL_STYPE 0x00f0

#define	IEEE80211_FTYPE_MGMT 0x0000

#define	WAL_GET_STATION_THRESHOLD 1000 /* 固定时间内允许一次抛事件读DMAC RSSI */

#define	ratetab_ent(_rate, _rateid, _flags)

#define	chan2g(_channel, _freq, _flags)

#define	WAL_MIN_RTS_THRESHOLD 256

#define	WAL_MAX_RTS_THRESHOLD 0xFFFF

#define	WAL_MAX_FRAG_THRESHOLD 7536

#define	WAL_MIN_FRAG_THRESHOLD 256

#define	WAL_MAX_WAIT_TIME 3000

类型定义
typedef struct cookie_arry	cookie_arry_stru

函数
osal_s32	wal_cfg80211_mgmt_tx_status (hmac_vap_stru hmac_vap, frw_msg msg)

td_void	wal_cfg80211_reset_bands (td_void)

td_u32	wal_cfg80211_add_vap (const hmac_cfg_add_vap_param_stru *add_vap_param)

td_u32	wal_cfg80211_set_default_key (oal_net_device_stru *netdev, td_u8 key_index, td_bool unicast, td_bool multicast)

td_u32	wal_cfg80211_add_key (oal_net_device_stru netdev, const cfg80211_add_key_info_stru cfg80211_add_key_info, const td_u8 mac_addr, oal_key_params_stru params)

td_u32	wal_cfg80211_remove_key (oal_net_device_stru netdev, td_u8 key_index, td_bool pairwise, const td_u8 mac_addr)

td_u32	wal_cfg80211_p2p_mgmt_tx (oal_wireless_dev wdev, oal_ieee80211_channel chan, ext_mlme_data_stru data, osal_u64 pull_cookie)

td_u32	wal_cfg80211_mgmt_tx (oal_net_device_stru netdev, oal_ieee80211_channel chan, ext_mlme_data_stru *mlme_data)

td_u32	wal_cfg80211_intf_mode_check (oal_net_device_stru *netdev, nl80211_iftype_uint8 type)

td_u32	wal_cfg80211_scan (oal_cfg80211_scan_request_stru request, hmac_scan_stru scan_mgmt)

td_s32	uapi_wifi_app_service (const td_char ifname, td_void buf)

td_u32	wal_cfg80211_del_station (oal_net_device_stru netdev, const td_u8 mac_addr)

td_u32	wal_cfg80211_start_ap (oal_net_device_stru netdev, oal_ap_settings_stru ap_settings)

td_u32	wal_cfg80211_change_beacon (oal_net_device_stru netdev, oal_beacon_data_stru beacon_info)

td_u32	wal_cfg80211_disconnect (oal_net_device_stru *netdev, td_u16 reason_code)

td_u32	wal_cfg80211_connect (oal_net_device_stru netdev, oal_cfg80211_connect_params_stru sme)

td_u32	wal_cfg80211_set_pmksa (oal_net_device_stru netdev, const ext_pmkid_params pmkid_params)

osal_s32	wal_report_csa_done (hmac_vap_stru hmac_vap, frw_msg msg)

td_u32	wal_cfg80211_remove_pmksa (oal_net_device_stru netdev, const ext_pmkid_params pmkid_params)

td_u32	wal_cfg80211_flush_pmksa (oal_net_device_stru *netdev)

oal_ieee80211_channel *	wal_get_g_wifi_2ghz_channels (td_void)

oal_ieee80211_supported_band *	wal_get_wifi_2ghz_band (td_void)

oal_ieee80211_channel *	wal_cfg80211_get_channel (td_s32 freq)

td_u32	wal_cfg80211_del_beacon (oal_net_device_stru *netdev)

宏定义说明

◆ chan2g

#define chan2g	(	_channel,
		_freq,
		_flags
	)

值:

{                       \
    .band                   = OAL_IEEE80211_BAND_2GHZ,          \
    .center_freq            = (_freq),                      \
    .hw_value               = (_channel),                   \
    .flags                  = (_flags),                     \
    .max_antenna_gain       = 0,                            \
    .max_power              = 30,                           \
}

◆ IEEE80211_FCTL_FTYPE

#define IEEE80211_FCTL_FTYPE 0x000c

◆ IEEE80211_FCTL_STYPE

#define IEEE80211_FCTL_STYPE 0x00f0

◆ IEEE80211_FTYPE_MGMT

#define IEEE80211_FTYPE_MGMT 0x0000

◆ IEEE80211_HT_CAP_40MHZ_INTOLERANT

#define IEEE80211_HT_CAP_40MHZ_INTOLERANT 0x4000

◆ IEEE80211_HT_CAP_DELAY_BA

#define IEEE80211_HT_CAP_DELAY_BA 0x0400

◆ IEEE80211_HT_CAP_DSSSCCK40

#define IEEE80211_HT_CAP_DSSSCCK40 0x1000

◆ IEEE80211_HT_CAP_GRN_FLD

#define IEEE80211_HT_CAP_GRN_FLD 0x0010

◆ IEEE80211_HT_CAP_LDPC_CODING

#define IEEE80211_HT_CAP_LDPC_CODING 0x0001

◆ IEEE80211_HT_CAP_LSIG_TXOP_PROT

#define IEEE80211_HT_CAP_LSIG_TXOP_PROT 0x8000

◆ IEEE80211_HT_CAP_MAX_AMSDU

#define IEEE80211_HT_CAP_MAX_AMSDU 0x0800

◆ IEEE80211_HT_CAP_RESERVED

#define IEEE80211_HT_CAP_RESERVED 0x2000

◆ IEEE80211_HT_CAP_RX_STBC

#define IEEE80211_HT_CAP_RX_STBC 0x0300

◆ IEEE80211_HT_CAP_SGI_20

#define IEEE80211_HT_CAP_SGI_20 0x0020

◆ IEEE80211_HT_CAP_SGI_40

#define IEEE80211_HT_CAP_SGI_40 0x0040

◆ IEEE80211_HT_CAP_SM_PS

#define IEEE80211_HT_CAP_SM_PS 0x000C

◆ IEEE80211_HT_CAP_SM_PS_SHIFT

#define IEEE80211_HT_CAP_SM_PS_SHIFT 2

◆ IEEE80211_HT_CAP_SUP_WIDTH_20_40

#define IEEE80211_HT_CAP_SUP_WIDTH_20_40 0x0002

◆ IEEE80211_HT_CAP_TX_STBC

#define IEEE80211_HT_CAP_TX_STBC 0x0080

◆ IEEE80211_STYPE_ACTION

#define IEEE80211_STYPE_ACTION 0x00D0

◆ IEEE80211_STYPE_ASSOC_REQ

#define IEEE80211_STYPE_ASSOC_REQ 0x0000

◆ IEEE80211_STYPE_ASSOC_RESP

#define IEEE80211_STYPE_ASSOC_RESP 0x0010

◆ IEEE80211_STYPE_ATIM

#define IEEE80211_STYPE_ATIM 0x0090

◆ IEEE80211_STYPE_AUTH

#define IEEE80211_STYPE_AUTH 0x00B0

◆ IEEE80211_STYPE_BEACON

#define IEEE80211_STYPE_BEACON 0x0080

◆ IEEE80211_STYPE_DEAUTH

#define IEEE80211_STYPE_DEAUTH 0x00C0

◆ IEEE80211_STYPE_DISASSOC

#define IEEE80211_STYPE_DISASSOC 0x00A0

◆ IEEE80211_STYPE_PROBE_REQ

#define IEEE80211_STYPE_PROBE_REQ 0x0040

◆ IEEE80211_STYPE_PROBE_RESP

#define IEEE80211_STYPE_PROBE_RESP 0x0050

◆ IEEE80211_STYPE_REASSOC_REQ

#define IEEE80211_STYPE_REASSOC_REQ 0x0020

◆ IEEE80211_STYPE_REASSOC_RESP

#define IEEE80211_STYPE_REASSOC_RESP 0x0030

◆ IEEE80211_VHT_CAP_BEAMFORMER_ANTENNAS_MAX

#define IEEE80211_VHT_CAP_BEAMFORMER_ANTENNAS_MAX 0x00006000

◆ IEEE80211_VHT_CAP_HTC_VHT

#define IEEE80211_VHT_CAP_HTC_VHT 0x00400000

◆ IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_MASK

#define IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_MASK (7 << IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_SHIFT)

◆ IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_SHIFT

#define IEEE80211_VHT_CAP_MAX_A_MPDU_LENGTH_EXPONENT_SHIFT 23

◆ IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_11454

#define IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_11454 0x00000002

◆ IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_3895

#define IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_3895 0x00000000

◆ IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_7991

#define IEEE80211_VHT_CAP_MAX_MPDU_LENGTH_7991 0x00000001

◆ IEEE80211_VHT_CAP_MU_BEAMFORMEE_CAPABLE

#define IEEE80211_VHT_CAP_MU_BEAMFORMEE_CAPABLE 0x00100000

◆ IEEE80211_VHT_CAP_MU_BEAMFORMER_CAPABLE

#define IEEE80211_VHT_CAP_MU_BEAMFORMER_CAPABLE 0x00080000

◆ IEEE80211_VHT_CAP_RX_ANTENNA_PATTERN

#define IEEE80211_VHT_CAP_RX_ANTENNA_PATTERN 0x10000000

◆ IEEE80211_VHT_CAP_RXLDPC

#define IEEE80211_VHT_CAP_RXLDPC 0x00000010

◆ IEEE80211_VHT_CAP_RXSTBC_1

#define IEEE80211_VHT_CAP_RXSTBC_1 0x00000100

◆ IEEE80211_VHT_CAP_RXSTBC_2

#define IEEE80211_VHT_CAP_RXSTBC_2 0x00000200

◆ IEEE80211_VHT_CAP_RXSTBC_3

#define IEEE80211_VHT_CAP_RXSTBC_3 0x00000300

◆ IEEE80211_VHT_CAP_RXSTBC_4

#define IEEE80211_VHT_CAP_RXSTBC_4 0x00000400

◆ IEEE80211_VHT_CAP_RXSTBC_MASK

#define IEEE80211_VHT_CAP_RXSTBC_MASK 0x00000700

◆ IEEE80211_VHT_CAP_SHORT_GI_160

#define IEEE80211_VHT_CAP_SHORT_GI_160 0x00000040

◆ IEEE80211_VHT_CAP_SHORT_GI_80

#define IEEE80211_VHT_CAP_SHORT_GI_80 0x00000020

◆ IEEE80211_VHT_CAP_SOUNDING_DIMENSIONS_MAX

#define IEEE80211_VHT_CAP_SOUNDING_DIMENSIONS_MAX 0x00030000

◆ IEEE80211_VHT_CAP_SU_BEAMFORMEE_CAPABLE

#define IEEE80211_VHT_CAP_SU_BEAMFORMEE_CAPABLE 0x00001000

◆ IEEE80211_VHT_CAP_SU_BEAMFORMER_CAPABLE

#define IEEE80211_VHT_CAP_SU_BEAMFORMER_CAPABLE 0x00000800

◆ IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_160_80PLUS80MHZ

#define IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_160_80PLUS80MHZ 0x00000008

◆ IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_160MHZ

#define IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_160MHZ 0x00000004

◆ IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_MASK

#define IEEE80211_VHT_CAP_SUPP_CHAN_WIDTH_MASK 0x0000000C

◆ IEEE80211_VHT_CAP_TX_ANTENNA_PATTERN

#define IEEE80211_VHT_CAP_TX_ANTENNA_PATTERN 0x20000000

◆ IEEE80211_VHT_CAP_TXSTBC

#define IEEE80211_VHT_CAP_TXSTBC 0x00000080

◆ IEEE80211_VHT_CAP_VHT_LINK_ADAPTATION_VHT_MRQ_MFB

#define IEEE80211_VHT_CAP_VHT_LINK_ADAPTATION_VHT_MRQ_MFB 0x0c000000

◆ IEEE80211_VHT_CAP_VHT_LINK_ADAPTATION_VHT_UNSOL_MFB

#define IEEE80211_VHT_CAP_VHT_LINK_ADAPTATION_VHT_UNSOL_MFB 0x08000000

◆ IEEE80211_VHT_CAP_VHT_TXOP_PS

#define IEEE80211_VHT_CAP_VHT_TXOP_PS 0x00200000

◆ ratetab_ent

#define ratetab_ent	(	_rate,
		_rateid,
		_flags
	)

值:

{                                                               \
    .bitrate        = (_rate),                                  \
    .hw_value       = (_rateid),                                \
    .flags          = (_flags),                                 \
}

◆ WAL_COOKIE_ARRAY_SIZE

#define WAL_COOKIE_ARRAY_SIZE 8 /* 采用8bit 的map 作为保存cookie 的索引状态 */

◆ WAL_GET_STATION_THRESHOLD

#define WAL_GET_STATION_THRESHOLD 1000 /* 固定时间内允许一次抛事件读DMAC RSSI */

◆ WAL_MAX_CHANNEL_2G

#define WAL_MAX_CHANNEL_2G 14

◆ WAL_MAX_FRAG_THRESHOLD

#define WAL_MAX_FRAG_THRESHOLD 7536

◆ WAL_MAX_FREQ_2G

#define WAL_MAX_FREQ_2G 2484

◆ WAL_MAX_RTS_THRESHOLD

#define WAL_MAX_RTS_THRESHOLD 0xFFFF

◆ WAL_MAX_SCAN_IE_LEN

#define WAL_MAX_SCAN_IE_LEN 1000

◆ WAL_MAX_SCAN_TIME_PER_CHANNEL

#define WAL_MAX_SCAN_TIME_PER_CHANNEL 400

◆ WAL_MAX_SCAN_TIME_PER_SCAN_REQ

#define WAL_MAX_SCAN_TIME_PER_SCAN_REQ (5 * 1000) /* wpa_s下发扫描请求，超时时间为5s，单位为ms */

◆ WAL_MAX_WAIT_TIME

#define WAL_MAX_WAIT_TIME 3000

◆ WAL_MGMT_TX_RETRY_CNT

#define WAL_MGMT_TX_RETRY_CNT 8 /* WAL 发送管理帧最大重传次数 */

◆ WAL_MGMT_TX_TIMEOUT_MSEC

#define WAL_MGMT_TX_TIMEOUT_MSEC 500 /* WAL 发送管理帧超时时间 */

◆ WAL_MIN_CHANNEL_2G

#define WAL_MIN_CHANNEL_2G 1

◆ WAL_MIN_FRAG_THRESHOLD

#define WAL_MIN_FRAG_THRESHOLD 256

◆ WAL_MIN_FREQ_2G

#define WAL_MIN_FREQ_2G (2412 + 5*(WAL_MIN_CHANNEL_2G - 1))

◆ WAL_MIN_RTS_THRESHOLD

#define WAL_MIN_RTS_THRESHOLD 256

类型定义说明

◆ cookie_arry_stru

typedef struct cookie_arry cookie_arry_stru

函数说明

◆ uapi_wifi_app_service()

td_s32 uapi_wifi_app_service	(	const td_char *	ifname,
		td_void *	buf
	)

◆ wal_cfg80211_add_key()

td_u32 wal_cfg80211_add_key	(	oal_net_device_stru *	netdev,
		const cfg80211_add_key_info_stru *	cfg80211_add_key_info,
		const td_u8 *	mac_addr,
		oal_key_params_stru *	params
	)

◆ wal_cfg80211_add_vap()

td_u32 wal_cfg80211_add_vap ( const hmac_cfg_add_vap_param_stru * add_vap_param )

◆ wal_cfg80211_change_beacon()

td_u32 wal_cfg80211_change_beacon	(	oal_net_device_stru *	netdev,
		oal_beacon_data_stru *	beacon_info
	)

◆ wal_cfg80211_connect()

td_u32 wal_cfg80211_connect	(	oal_net_device_stru *	netdev,
		oal_cfg80211_connect_params_stru *	sme
	)

◆ wal_cfg80211_del_beacon()

td_u32 wal_cfg80211_del_beacon ( oal_net_device_stru * netdev )

◆ wal_cfg80211_del_station()

td_u32 wal_cfg80211_del_station	(	oal_net_device_stru *	netdev,
		const td_u8 *	mac_addr
	)

◆ wal_cfg80211_disconnect()

td_u32 wal_cfg80211_disconnect	(	oal_net_device_stru *	netdev,
		td_u16	reason_code
	)

◆ wal_cfg80211_flush_pmksa()

td_u32 wal_cfg80211_flush_pmksa ( oal_net_device_stru * netdev )

◆ wal_cfg80211_get_channel()

oal_ieee80211_channel * wal_cfg80211_get_channel ( td_s32 freq )

◆ wal_cfg80211_intf_mode_check()

td_u32 wal_cfg80211_intf_mode_check	(	oal_net_device_stru *	netdev,
		nl80211_iftype_uint8	type
	)

◆ wal_cfg80211_mgmt_tx()

td_u32 wal_cfg80211_mgmt_tx	(	oal_net_device_stru *	netdev,
		oal_ieee80211_channel *	chan,
		ext_mlme_data_stru *	mlme_data
	)

◆ wal_cfg80211_mgmt_tx_status()

osal_s32 wal_cfg80211_mgmt_tx_status	(	hmac_vap_stru *	hmac_vap,
		frw_msg *	msg
	)

◆ wal_cfg80211_p2p_mgmt_tx()

td_u32 wal_cfg80211_p2p_mgmt_tx	(	oal_wireless_dev *	wdev,
		oal_ieee80211_channel *	chan,
		ext_mlme_data_stru *	data,
		osal_u64 *	pull_cookie
	)

◆ wal_cfg80211_remove_key()

td_u32 wal_cfg80211_remove_key	(	oal_net_device_stru *	netdev,
		td_u8	key_index,
		td_bool	pairwise,
		const td_u8 *	mac_addr
	)

◆ wal_cfg80211_remove_pmksa()

td_u32 wal_cfg80211_remove_pmksa	(	oal_net_device_stru *	netdev,
		const ext_pmkid_params *	pmkid_params
	)

◆ wal_cfg80211_reset_bands()

td_void wal_cfg80211_reset_bands ( td_void )

◆ wal_cfg80211_scan()

td_u32 wal_cfg80211_scan	(	oal_cfg80211_scan_request_stru *	request,
		hmac_scan_stru *	scan_mgmt
	)

◆ wal_cfg80211_set_default_key()

td_u32 wal_cfg80211_set_default_key	(	oal_net_device_stru *	netdev,
		td_u8	key_index,
		td_bool	unicast,
		td_bool	multicast
	)

◆ wal_cfg80211_set_pmksa()

td_u32 wal_cfg80211_set_pmksa	(	oal_net_device_stru *	netdev,
		const ext_pmkid_params *	pmkid_params
	)

◆ wal_cfg80211_start_ap()

td_u32 wal_cfg80211_start_ap	(	oal_net_device_stru *	netdev,
		oal_ap_settings_stru *	ap_settings
	)

◆ wal_get_g_wifi_2ghz_channels()

oal_ieee80211_channel * wal_get_g_wifi_2ghz_channels ( td_void )

◆ wal_get_wifi_2ghz_band()

oal_ieee80211_supported_band * wal_get_wifi_2ghz_band ( td_void )

◆ wal_report_csa_done()

osal_s32 wal_report_csa_done	(	hmac_vap_stru *	hmac_vap,
		frw_msg *	msg
	)

结构体

宏定义

类型定义

函数
