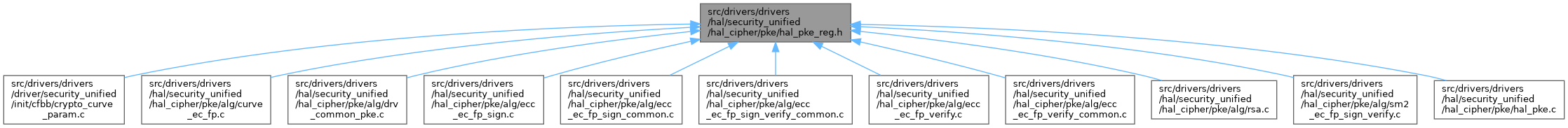

此图展示该文件直接或间接的被哪些文件引用了:

结构体
union	pke_lock_ctrl

union	pke_lock_status

union	pke_noise_en

union	pke_int_no_mask_status

union	pke_alarm_status

union	pke_failure_flag

union	pke_int_enable

union	pke_start

union	pke_busy

union	pke_dram_clr

union	pke_mask_rng_cfg

union	pke_instr_rdy

宏定义
#define	PKE_NON_SPECIAL_VAL 0xA5C36987

#define	PKE_START0_CODE 0xAA5

#define	PKE_START1_CODE 0xA5A

#define	PKE_BATCH_START_CODE 0x5AA

#define	PKE_INT_NOMASK_FINISH_EFFECTIVE_CODE 0x5

#define	PKE_INT_NOMASK_FINISH_INVALID_CODE 0xA

#define	PKE_ALARM_STATUS_EFFECTIVE_CODE 0x5

#define	PKE_ALARM_STATUS_INVALID_CODE 0xA

#define	PKE_ALARM_STATUS_CLEAN_CODE 0x6B4A89C6

#define	DEFAULT_MASK_CODE 0xE69BC3A7

#define	PKE_DRAM_BLOCK_LENGTH 32

#define	ALIGNED_TO_WORK_LEN_IN_BYTE 8

#define	PKE_MONT_PARAM_LEN 2

#define	PKE_FAIL_FLAG_CNT 0xB

#define	PKE_MONT_BIT_LEN 64

#define	PKE_WORK_LEN (0x00)

#define	PKE_INSTR0 (0x04)

#define	PKE_INSTR1 (0x08)

#define	PKE_INSTR_ADDR_LOW (0x0c)

#define	PKE_INSTR_ADDR_HIG (0x10)

#define	PKE_INSTR_LEN (0x14)

#define	PKE_MASK_RNG_CFG (0x18)

#define	PKE_MONT_PARA0 (0x20)

#define	PKE_MONT_PARA1 (0x24)

#define	PKE_INSTR_RDY (0x44)

#define	PKE_BUSY (0x48)

#define	PKE_NOISE_EN (0x4c)

#define	PKE_START (0x40)

#define	PKE_INT_ENABLE (0x80)

#define	PKE_INT_NOMASK_STATUS (0x84)

#define	PKE_ALARM_STATUS (0x8c)

#define	PKE_FAILURE_FLAG (0x90)

#define	PKE_DRAM_CLR (0xc0)

#define	PKE_DRAM_MASK (0xf0)

#define	PKE_LOCK_CTRL (0x810)

#define	PKE_LOCK_STATUS (0x814)

#define	PKE_DRAM_BASE (0x1000)

#define	CMD_MUL_MOD 0

#define	CMD_ADD_MOD 1

#define	CMD_SUB_MOD 2

#define	MAX_RAM_SECTION 127

#define	OPCODE_OFFSET 0

#define	APOS_OFFSET 4

#define	BPOS_OFFSET 11

#define	TPOS_OFFSET 18

#define	RPOS_OFFSET 25

宏定义说明

◆ ALIGNED_TO_WORK_LEN_IN_BYTE

#define ALIGNED_TO_WORK_LEN_IN_BYTE 8

◆ APOS_OFFSET

#define APOS_OFFSET 4

◆ BPOS_OFFSET

#define BPOS_OFFSET 11

◆ CMD_ADD_MOD

#define CMD_ADD_MOD 1

◆ CMD_MUL_MOD

#define CMD_MUL_MOD 0

◆ CMD_SUB_MOD

#define CMD_SUB_MOD 2

◆ DEFAULT_MASK_CODE

#define DEFAULT_MASK_CODE 0xE69BC3A7

◆ MAX_RAM_SECTION

#define MAX_RAM_SECTION 127

◆ OPCODE_OFFSET

#define OPCODE_OFFSET 0

◆ PKE_ALARM_STATUS

#define PKE_ALARM_STATUS (0x8c)

◆ PKE_ALARM_STATUS_CLEAN_CODE

#define PKE_ALARM_STATUS_CLEAN_CODE 0x6B4A89C6

◆ PKE_ALARM_STATUS_EFFECTIVE_CODE

#define PKE_ALARM_STATUS_EFFECTIVE_CODE 0x5

◆ PKE_ALARM_STATUS_INVALID_CODE

#define PKE_ALARM_STATUS_INVALID_CODE 0xA

◆ PKE_BATCH_START_CODE

#define PKE_BATCH_START_CODE 0x5AA

◆ PKE_BUSY

#define PKE_BUSY (0x48)

◆ PKE_DRAM_BASE

#define PKE_DRAM_BASE (0x1000)

◆ PKE_DRAM_BLOCK_LENGTH

#define PKE_DRAM_BLOCK_LENGTH 32

◆ PKE_DRAM_CLR

#define PKE_DRAM_CLR (0xc0)

◆ PKE_DRAM_MASK

#define PKE_DRAM_MASK (0xf0)

◆ PKE_FAIL_FLAG_CNT

#define PKE_FAIL_FLAG_CNT 0xB

◆ PKE_FAILURE_FLAG

#define PKE_FAILURE_FLAG (0x90)

◆ PKE_INSTR0

#define PKE_INSTR0 (0x04)

◆ PKE_INSTR1

#define PKE_INSTR1 (0x08)

◆ PKE_INSTR_ADDR_HIG

#define PKE_INSTR_ADDR_HIG (0x10)

◆ PKE_INSTR_ADDR_LOW

#define PKE_INSTR_ADDR_LOW (0x0c)

◆ PKE_INSTR_LEN

#define PKE_INSTR_LEN (0x14)

◆ PKE_INSTR_RDY

#define PKE_INSTR_RDY (0x44)

◆ PKE_INT_ENABLE

#define PKE_INT_ENABLE (0x80)

◆ PKE_INT_NOMASK_FINISH_EFFECTIVE_CODE

#define PKE_INT_NOMASK_FINISH_EFFECTIVE_CODE 0x5

◆ PKE_INT_NOMASK_FINISH_INVALID_CODE

#define PKE_INT_NOMASK_FINISH_INVALID_CODE 0xA

◆ PKE_INT_NOMASK_STATUS

#define PKE_INT_NOMASK_STATUS (0x84)

◆ PKE_LOCK_CTRL

#define PKE_LOCK_CTRL (0x810)

◆ PKE_LOCK_STATUS

#define PKE_LOCK_STATUS (0x814)

◆ PKE_MASK_RNG_CFG

#define PKE_MASK_RNG_CFG (0x18)

◆ PKE_MONT_BIT_LEN

#define PKE_MONT_BIT_LEN 64

◆ PKE_MONT_PARA0

#define PKE_MONT_PARA0 (0x20)

◆ PKE_MONT_PARA1

#define PKE_MONT_PARA1 (0x24)

◆ PKE_MONT_PARAM_LEN

#define PKE_MONT_PARAM_LEN 2

◆ PKE_NOISE_EN

#define PKE_NOISE_EN (0x4c)

◆ PKE_NON_SPECIAL_VAL

#define PKE_NON_SPECIAL_VAL 0xA5C36987

Create: 2022-12-12

◆ PKE_START

#define PKE_START (0x40)

◆ PKE_START0_CODE

#define PKE_START0_CODE 0xAA5

◆ PKE_START1_CODE

#define PKE_START1_CODE 0xA5A

◆ PKE_WORK_LEN

#define PKE_WORK_LEN (0x00)

◆ RPOS_OFFSET

#define RPOS_OFFSET 25

◆ TPOS_OFFSET

#define TPOS_OFFSET 18
