#include "disk.h"
#include "los_mux.h"

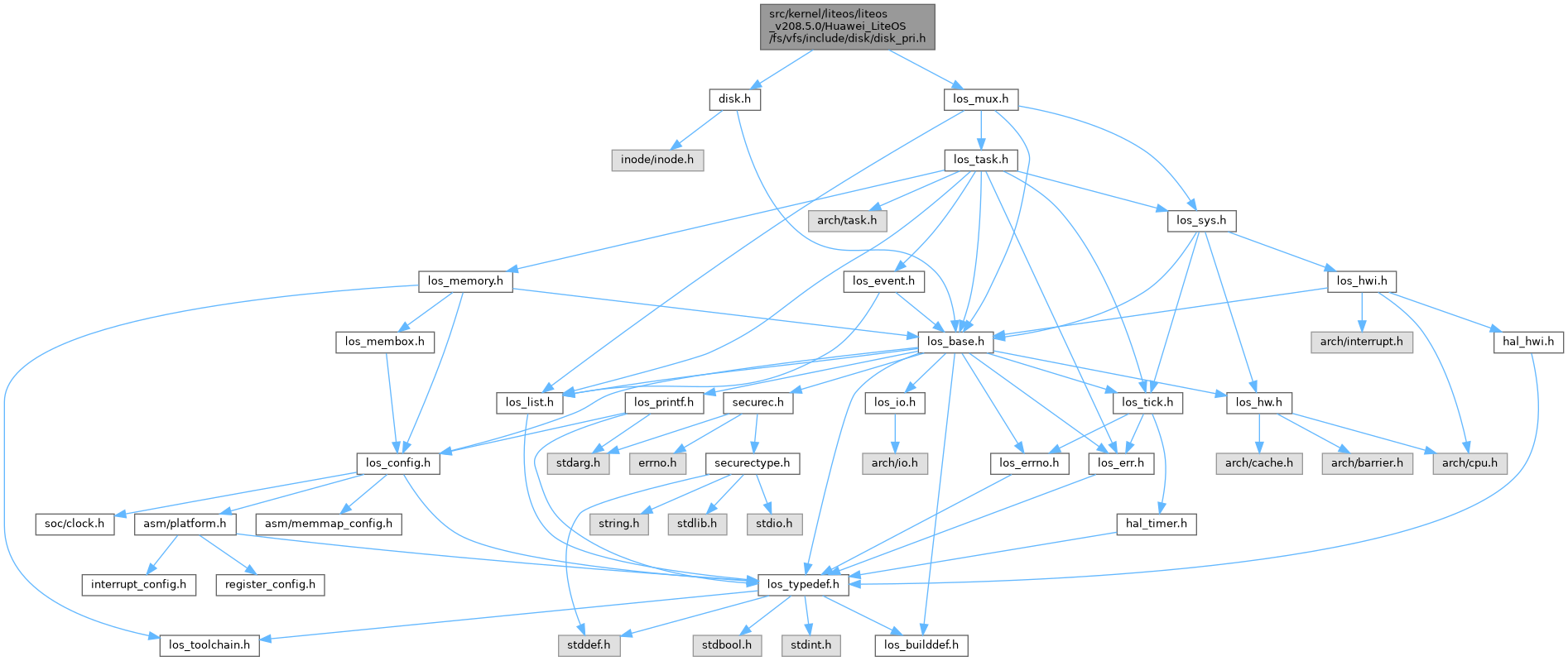

disk_pri.h 的引用(Include)关系图:

宏定义
#define	DISK_MAX_SECTOR_SIZE 512

#define	PAR_OFFSET 446 /* MBR: Partition table offset (2) */

#define	BS_SIG55AA 510 /* Signature word (2) */

#define	BS_FILSYSTEMTYPE32 82 /* File system type (1) */

#define	BS_JMPBOOT 0 /* x86 jump instruction (3-byte) */

#define	BS_FILSYSTYPE 0x36 /* File system type (2) */

#define	BS_SIG55AA_VALUE 0xAA55

#define	PAR_TYPE_OFFSET 4

#define	PAR_START_OFFSET 8

#define	PAR_COUNT_OFFSET 12

#define	PAR_TABLE_SIZE 16

#define	EXTENDED_PAR 0x0F

#define	EXTENDED_8G 0x05

#define	BS_FS_TYPE_MASK 0xFFFFFF

#define	BS_FS_TYPE_VALUE 0x544146

#define	BS_FS_TYPE_FAT 0x0B

#define	BS_FS_TYPE_NTFS 0x07

#define	FIRST_BYTE 1

#define	SECOND_BYTE 2

#define	THIRD_BYTE 3

#define	FOURTH_BYTE 4

#define	BIT_FOR_BYTE 8

#define	LD_WORD_DISK(ptr)

#define	LD_DWORD_DISK(ptr)

#define	LD_QWORD_DISK(ptr)

#define	VERIFY_FS(ptr)

#define	PARTION_MODE_BTYE (PAR_OFFSET + PAR_TYPE_OFFSET) /* 0xEE: GPT(GUID), else: MBR */

#define	PARTION_MODE_GPT 0xEE /* 0xEE: GPT(GUID), else: MBR */

#define	SIGNATURE_OFFSET 0 /* The offset of GPT partition header signature */

#define	SIGNATURE_LEN 8 /* The length of GPT signature */

#define	HEADER_SIZE_OFFSET 12 /* The offset of GPT header size */

#define	TABLE_SIZE_OFFSET 84 /* The offset of GPT table size */

#define	TABLE_NUM_OFFSET 80 /* The number of GPT table */

#define	TABLE_START_SECTOR 2

#define	TABLE_MAX_NUM 128

#define	TABLE_SIZE 128

#define	GPT_PAR_START_OFFSET 32

#define	GPT_PAR_END_OFFSET 40

#define	PAR_ENTRY_NUM_PER_SECTOR 4

#define	HEADER_SIZE_MASK 0xFFFFFFFF

#define	HEADER_SIZE 0x5C

#define	HARD_DISK_GUID_OFFSET 56

#define	HARD_DISK_GUID_FOR_ESP 0x0020004900460045

#define	HARD_DISK_GUID_FOR_MSP 0x007200630069004D

#define	PAR_VALID_OFFSET0 0

#define	PAR_VALID_OFFSET1 4

#define	PAR_VALID_OFFSET2 8

#define	PAR_VALID_OFFSET3 12

#define	VERIFY_GPT(ptr)

#define	VERITY_PAR_VALID(ptr)

#define	VERITY_AVAILABLE_PAR(ptr)

#define	DISK_LOCK(disk)

#define	DISK_UNLOCK(disk)

类型定义
typedef enum _disk_status_	disk_status_e

枚举
enum	_disk_status_ { STAT_UNUSED , STAT_INUSED , STAT_UNREADY , STAT_ONGOING }

函数
INT32	SetDiskPartName (los_part part, const CHAR src)

INT32	EraseDiskByID (UINT32 diskId, size_t startSector, UINT32 sectors)

BOOL	IsBlockStatusReady (const struct inode *blkDriver)

VOID	OsDiskInit (VOID)

宏定义说明

◆ BIT_FOR_BYTE

#define BIT_FOR_BYTE 8

◆ BS_FILSYSTEMTYPE32

#define BS_FILSYSTEMTYPE32 82 /* File system type (1) */

◆ BS_FILSYSTYPE

#define BS_FILSYSTYPE 0x36 /* File system type (2) */

◆ BS_FS_TYPE_FAT

#define BS_FS_TYPE_FAT 0x0B

◆ BS_FS_TYPE_MASK

#define BS_FS_TYPE_MASK 0xFFFFFF

◆ BS_FS_TYPE_NTFS

#define BS_FS_TYPE_NTFS 0x07

◆ BS_FS_TYPE_VALUE

#define BS_FS_TYPE_VALUE 0x544146

◆ BS_JMPBOOT

#define BS_JMPBOOT 0 /* x86 jump instruction (3-byte) */

◆ BS_SIG55AA

#define BS_SIG55AA 510 /* Signature word (2) */

◆ BS_SIG55AA_VALUE

#define BS_SIG55AA_VALUE 0xAA55

◆ DISK_LOCK

#define DISK_LOCK ( disk )

值:

    do {                                               \
    UINT32 ret_ = LOS_MuxPend((disk)->disk_mutex, LOS_WAIT_FOREVER);       \
    if (ret_ != LOS_OK) {                                                  \
        PRINT_ERR("%s %d, mutex lock failed, ret = 0x%x\n",                \
                  __FUNCTION__, __LINE__, ret_);                           \
    }                                                                      \
} while (0)

◆ DISK_MAX_SECTOR_SIZE

#define DISK_MAX_SECTOR_SIZE 512

◆ DISK_UNLOCK

#define DISK_UNLOCK ( disk )

值:

    do {                                             \
    UINT32 ret_ = LOS_MuxPost((disk)->disk_mutex);                         \
    if (ret_ != LOS_OK) {                                                  \
        PRINT_ERR("%s %d, mutex unlock failed, ret: 0x%x\n",               \
                  __FUNCTION__, __LINE__, ret_);                           \
    }                                                                      \
} while (0)

◆ EXTENDED_8G

#define EXTENDED_8G 0x05

◆ EXTENDED_PAR

#define EXTENDED_PAR 0x0F

◆ FIRST_BYTE

#define FIRST_BYTE 1

◆ FOURTH_BYTE

#define FOURTH_BYTE 4

◆ GPT_PAR_END_OFFSET

#define GPT_PAR_END_OFFSET 40

◆ GPT_PAR_START_OFFSET

#define GPT_PAR_START_OFFSET 32

◆ HARD_DISK_GUID_FOR_ESP

#define HARD_DISK_GUID_FOR_ESP 0x0020004900460045

◆ HARD_DISK_GUID_FOR_MSP

#define HARD_DISK_GUID_FOR_MSP 0x007200630069004D

◆ HARD_DISK_GUID_OFFSET

#define HARD_DISK_GUID_OFFSET 56

◆ HEADER_SIZE

#define HEADER_SIZE 0x5C

◆ HEADER_SIZE_MASK

#define HEADER_SIZE_MASK 0xFFFFFFFF

◆ HEADER_SIZE_OFFSET

#define HEADER_SIZE_OFFSET 12 /* The offset of GPT header size */

◆ LD_DWORD_DISK

#define LD_DWORD_DISK ( ptr )

值:

                                      (UINT32)(((UINT32)*((UINT8 *)(ptr) + THIRD_BYTE) << (BIT_FOR_BYTE * THIRD_BYTE)) |   \
                                      ((UINT32)*((UINT8 *)(ptr) + SECOND_BYTE) << (BIT_FOR_BYTE * SECOND_BYTE)) | \
                                      ((UINT16)*((UINT8 *)(ptr) + FIRST_BYTE) << (BIT_FOR_BYTE * FIRST_BYTE)) |   \
                                      (*(UINT8 *)(ptr)))

◆ LD_QWORD_DISK

#define LD_QWORD_DISK ( ptr )

值:

((UINT64)(((UINT64)LD_DWORD_DISK(&(ptr)[FOURTH_BYTE]) << (BIT_FOR_BYTE * FOURTH_BYTE)) | \

LD_DWORD_DISK(ptr)))

LD_DWORD_DISK

#define LD_DWORD_DISK(ptr)

Definition disk_pri.h:74

FOURTH_BYTE

#define FOURTH_BYTE

Definition disk_pri.h:68

UINT64

unsigned long long UINT64

Definition los_typedef.h:72

◆ LD_WORD_DISK

#define LD_WORD_DISK ( ptr )

值:

(UINT16)(((UINT16)*((UINT8 *)(ptr) + FIRST_BYTE) << (BIT_FOR_BYTE * FIRST_BYTE)) | \

(UINT16)*(UINT8 *)(ptr))

◆ PAR_COUNT_OFFSET

#define PAR_COUNT_OFFSET 12

◆ PAR_ENTRY_NUM_PER_SECTOR

#define PAR_ENTRY_NUM_PER_SECTOR 4

◆ PAR_OFFSET

#define PAR_OFFSET 446 /* MBR: Partition table offset (2) */

◆ PAR_START_OFFSET

#define PAR_START_OFFSET 8

◆ PAR_TABLE_SIZE

#define PAR_TABLE_SIZE 16

◆ PAR_TYPE_OFFSET

#define PAR_TYPE_OFFSET 4

◆ PAR_VALID_OFFSET0

#define PAR_VALID_OFFSET0 0

◆ PAR_VALID_OFFSET1

#define PAR_VALID_OFFSET1 4

◆ PAR_VALID_OFFSET2

#define PAR_VALID_OFFSET2 8

◆ PAR_VALID_OFFSET3

#define PAR_VALID_OFFSET3 12

◆ PARTION_MODE_BTYE

#define PARTION_MODE_BTYE (PAR_OFFSET + PAR_TYPE_OFFSET) /* 0xEE: GPT(GUID), else: MBR */

◆ PARTION_MODE_GPT

#define PARTION_MODE_GPT 0xEE /* 0xEE: GPT(GUID), else: MBR */

◆ SECOND_BYTE

#define SECOND_BYTE 2

◆ SIGNATURE_LEN

#define SIGNATURE_LEN 8 /* The length of GPT signature */

◆ SIGNATURE_OFFSET

#define SIGNATURE_OFFSET 0 /* The offset of GPT partition header signature */

◆ TABLE_MAX_NUM

#define TABLE_MAX_NUM 128

◆ TABLE_NUM_OFFSET

#define TABLE_NUM_OFFSET 80 /* The number of GPT table */

◆ TABLE_SIZE

#define TABLE_SIZE 128

◆ TABLE_SIZE_OFFSET

#define TABLE_SIZE_OFFSET 84 /* The offset of GPT table size */

◆ TABLE_START_SECTOR

#define TABLE_START_SECTOR 2

◆ THIRD_BYTE

#define THIRD_BYTE 3

◆ VERIFY_FS

#define VERIFY_FS ( ptr )

值:

                              (((LD_DWORD_DISK(&(ptr)[BS_FILSYSTEMTYPE32]) & BS_FS_TYPE_MASK) == BS_FS_TYPE_VALUE) || \
                              !strncmp(&(ptr)[BS_FILSYSTYPE], "FAT", strlen("FAT")) || \
                              !strncmp(&(ptr)[BS_JMPBOOT], "\xEB\x52\x90" "NTFS    ",  \
                                       strlen("\xEB\x52\x90" "NTFS    ")))

◆ VERIFY_GPT

#define VERIFY_GPT ( ptr )

值:

((!strncmp(&(ptr)[SIGNATURE_OFFSET], "EFI PART", SIGNATURE_LEN)) && \

((LD_DWORD_DISK(&(ptr)[HEADER_SIZE_OFFSET]) & HEADER_SIZE_MASK) == HEADER_SIZE))

SIGNATURE_OFFSET

#define SIGNATURE_OFFSET

Definition disk_pri.h:90

HEADER_SIZE_MASK

#define HEADER_SIZE_MASK

Definition disk_pri.h:101

HEADER_SIZE_OFFSET

#define HEADER_SIZE_OFFSET

Definition disk_pri.h:92

HEADER_SIZE

#define HEADER_SIZE

Definition disk_pri.h:102

SIGNATURE_LEN

#define SIGNATURE_LEN

Definition disk_pri.h:91

◆ VERITY_AVAILABLE_PAR

#define VERITY_AVAILABLE_PAR ( ptr )

值:

((LD_QWORD_DISK(&(ptr)[HARD_DISK_GUID_OFFSET]) != HARD_DISK_GUID_FOR_ESP) && \

(LD_QWORD_DISK(&(ptr)[HARD_DISK_GUID_OFFSET]) != HARD_DISK_GUID_FOR_MSP))

HARD_DISK_GUID_OFFSET

#define HARD_DISK_GUID_OFFSET

Definition disk_pri.h:103

LD_QWORD_DISK

#define LD_QWORD_DISK(ptr)

Definition disk_pri.h:79

HARD_DISK_GUID_FOR_MSP

#define HARD_DISK_GUID_FOR_MSP

Definition disk_pri.h:105

HARD_DISK_GUID_FOR_ESP

#define HARD_DISK_GUID_FOR_ESP

Definition disk_pri.h:104

◆ VERITY_PAR_VALID

#define VERITY_PAR_VALID ( ptr )

值:

                                ((LD_DWORD_DISK(&(ptr)[PAR_VALID_OFFSET0]) + \
                                LD_DWORD_DISK(&(ptr)[PAR_VALID_OFFSET1]) + \
                                LD_DWORD_DISK(&(ptr)[PAR_VALID_OFFSET2]) + \
                                LD_DWORD_DISK(&(ptr)[PAR_VALID_OFFSET3])) != 0)

类型定义说明

◆ disk_status_e

typedef enum _disk_status_ disk_status_e

枚举类型说明

◆ _disk_status_

enum _disk_status_

枚举值
STAT_UNUSED
STAT_INUSED
STAT_UNREADY
STAT_ONGOING

函数说明

◆ EraseDiskByID()

INT32 EraseDiskByID	(	UINT32	diskId,
		size_t	startSector,
		UINT32	sectors
	)

extern

◆ IsBlockStatusReady()

BOOL IsBlockStatusReady ( const struct inode * blkDriver )

extern

◆ OsDiskInit()

VOID OsDiskInit ( VOID )

extern

◆ SetDiskPartName()

INT32 SetDiskPartName	(	los_part *	part,
		const CHAR *	src
	)

extern
