diag_channel.h 文件参考

#include <stdint.h>
#include <stdbool.h>
#include "errcode.h"
#include "diag_config.h"
#include "diag_common.h"
#include "dfx_write_interface.h"

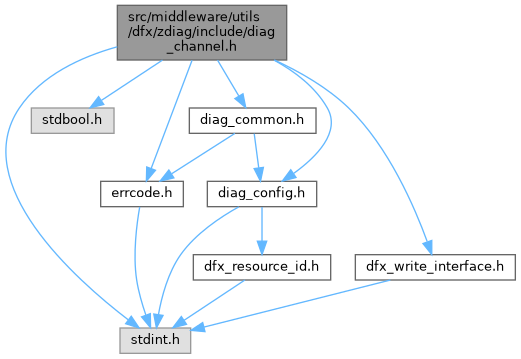

diag_channel.h 的引用(Include)关系图:

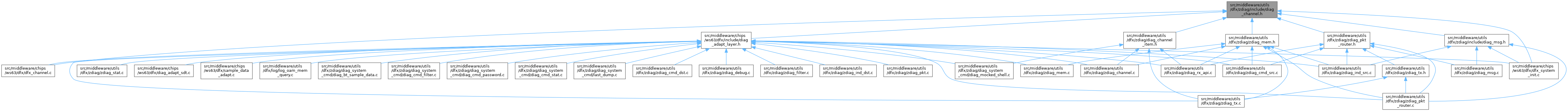

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

类型定义
typedef int32_t(*	diag_channel_tx_hook) (void *fd, dfx_data_type_t data_type, uint8_t *data[], uint16_t len[], uint8_t cnt)
typedef errcode_t(*	diag_channel_notify_hook) (uint32_t id, uint32_t data)

枚举
enum	soc_diag_channel_attribute_t { SOC_DIAG_CHANNEL_ATTR_NEED_RX_BUF = 0x1 }

函数
errcode_t	soc_diag_channel_init (diag_channel_id_t id, uint32_t attribute)
errcode_t	soc_diag_channel_set_tx_hook (diag_channel_id_t id, diag_channel_tx_hook hook)
errcode_t	soc_diag_channel_set_notify_hook (diag_channel_id_t id, diag_channel_notify_hook hook)
errcode_t	soc_diag_channel_rx_mux_data (diag_channel_id_t id, uint8_t *data, uint16_t size)
int32_t	soc_diag_channel_rx_mux_char_data (diag_channel_id_t id, uint8_t *data, uint16_t size)
errcode_t	soc_diag_channel_set_connect_hso_addr (diag_channel_id_t id, uint8_t hso_addr)

类型定义说明

diag_channel_notify_hook

typedef errcode_t(* diag_channel_notify_hook) (uint32_t id, uint32_t data)

diag_channel_tx_hook

typedef int32_t(* diag_channel_tx_hook) (void *fd, dfx_data_type_t data_type, uint8_t *data[], uint16_t len[], uint8_t cnt)

枚举类型说明

soc_diag_channel_attribute_t

enum soc_diag_channel_attribute_t

枚举值
SOC_DIAG_CHANNEL_ATTR_NEED_RX_BUF

函数说明

soc_diag_channel_init()

errcode_t soc_diag_channel_init	(	diag_channel_id_t	id,
		uint32_t	attribute
	)

soc_diag_channel_rx_mux_char_data()

int32_t soc_diag_channel_rx_mux_char_data	(	diag_channel_id_t	id,
		uint8_t *	data,
		uint16_t	size
	)

soc_diag_channel_rx_mux_data()

errcode_t soc_diag_channel_rx_mux_data	(	diag_channel_id_t	id,
		uint8_t *	data,
		uint16_t	size
	)

soc_diag_channel_set_connect_hso_addr()

errcode_t soc_diag_channel_set_connect_hso_addr	(	diag_channel_id_t	id,
		uint8_t	hso_addr
	)

soc_diag_channel_set_notify_hook()

errcode_t soc_diag_channel_set_notify_hook	(	diag_channel_id_t	id,
		diag_channel_notify_hook	hook
	)

soc_diag_channel_set_tx_hook()

errcode_t soc_diag_channel_set_tx_hook	(	diag_channel_id_t	id,
		diag_channel_tx_hook	hook
	)
