#include <stdint.h>

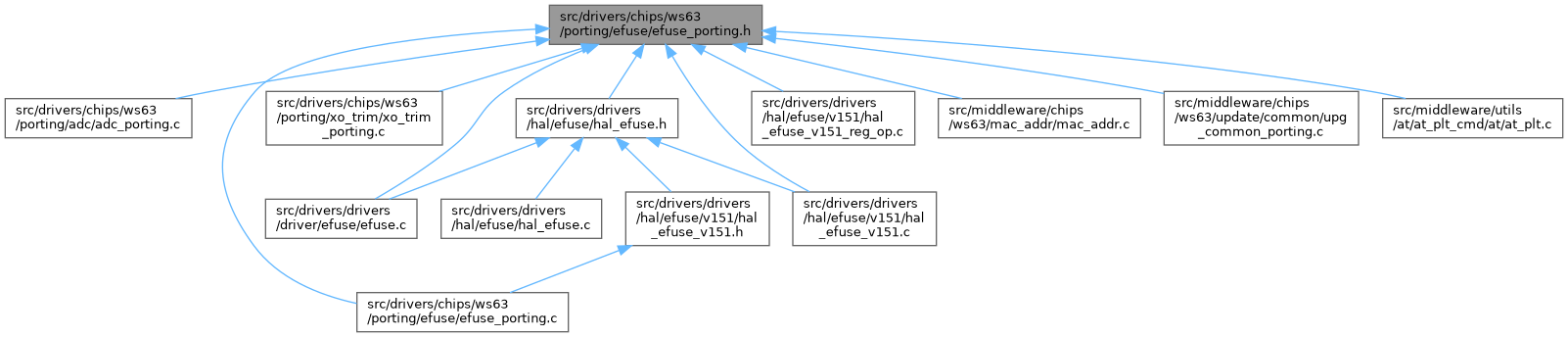

efuse_porting.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	EFUSE_REGION_NUM 1

#define	EFUSE_REGION_MAX_BITS 2048

#define	EFUSE_REGION_MAX_BYTES (EFUSE_REGION_MAX_BITS >> 3)

#define	EFUSE_MAX_BITS (EFUSE_REGION_MAX_BITS * EFUSE_REGION_NUM)

#define	EFUSE_MAX_BYTES (EFUSE_MAX_BITS >> 3)

#define	EFUSE_MAX_BIT_POS 8U

#define	EFUSE_PMU_CLKLDO_VSET_MASK 0x78

#define	EFUSE_PMU_CLKLDO_OFFSET 3

#define	EFUSE_TRIM_VERSION_DEFAULT_VALUE 1

#define	EFUSE_CHAR_BIT_WIDE 8

#define	EFUSE_CALC_CRC_MAX_LEN 32

#define	EFUSE_DIE_ID_BASE_BYTE_ADDR 0

#define	EFUSE_TRIM_FLAG 50

#define	EFUSE_IS_CHIP_TRIMED 0

#define	EFUSE_TRIM_VERSION 51

#define	EFUSE_PMU_TRIM_VSET 25

#define	EFUSE_IDX_NRW 0x0

#define	EFUSE_IDX_RO 0x1

#define	EFUSE_IDX_WO 0x2

#define	EFUSE_IDX_RW 0x3

#define	EFUSE_FLASHBOOT_ROLLBACK_VERSION 656

#define	EFUSE_APP_ROLLBACK_VERSION 624

#define	MAC_ADDR_0_EFUSE_START_BIT 1584

#define	MAC_ADDR_1_EFUSE_START_BIT 1632

#define	MAC_ADDR_2_EFUSE_START_BIT 1680

#define	MAC_ADDR_LAST_EFUSE_START_BIT 1728

#define	EFUSE_MAC_NUM 4

#define	EFUSE_SIZE_1_BYTS 1

#define	HASH_ROOT_PUBLIC_KEY_LEN 32

#define	EFUSE_SSI_MASK_START_BIT 193

#define	EFUSE_FUNC_JTAG_MASK_START_BIT 194

#define	EFUSE_DFT_JTAG_MASK_START_BIT 195

#define	EFUSE_HASH_ROOT_PUBLIC_KEY_START_BIT 672

#define	EFUSE_SEC_VERIFY_ENABLE_START_BIT 960

#define	CUSTOM_RESVED_EFUSE_BYTE_LEN 16

#define	CUSTOM_RESVED_EFUSE_LEN_START_BYTE_ADDR 222

#define	CUSTOM_RESVED2_EFUSE_BYTE_LEN 16

#define	CUSTOM_RESVED2_EFUSE_LEN_START_BYTE_ADDR 84

#define	CUSTOM_RESVED3_EFUSE_LEN_START_BYTE_ADDR 100

#define	BURN_EFUSE_IDX_MAX 115

#define	EFUSE_BIT_NUM 2048

#define	EFUSE_READ_MAX_BYTE 32

#define	BURN_EFUSE_BIN_ADDR 0xA30000

#define	EFUSE_CFG_MAX_LEN 1320

#define	EFUSE_CFG_MIN_LEN 48

#define	CUSTOMER_RSVD_EFUSE_START_BIT 1776

#define	CUSTOMER_RSVD_EFUSE_BIT_LEN 128

枚举
enum	hal_efuse_region_t { HAL_EFUSE_REGION_0 , HAL_EFUSE_REGION_MAX }

enum	efuse_idx { EFUSE_CHIP_ID = 0 , EFUSE_DIE_ID = 1 , EFUSE_MCU_VER_ID = 2 , EFUSE_FLASHBOOT_VER_ID = 3 , EFUSE_PARAMS_VER_ID = 4 , EFUSE_HASH_ROOT_PUBLIC_KEY_ID = 5 , EFUSE_MSID_ID = 6 , EFUSE_SEC_VERIFY_ENABLE = 7 , EFUSE_TYPE_ID = 8 , EFUSE_MAC_ADDR_01_ID = 9 , EFUSE_MAC_ADDR_02_ID = 10 , EFUSE_MAC_ADDR_03_ID = 11 , EFUSE_MAC_ADDR_LAST_ID = 12 , EFUSE_CUSTOM_RESVED_ID = 13 , EFUSE_CUSTOM_RESVED2_ID = 14 , EFUSE_GET_S_ID = 15 , EFUSE_GET_B_ID = 16 , EFUSE_GET_K_ID = 17 , EFUSE_MAC_SLE_ADDR_ID = 18 , EFUSE_IDX_MAX }

函数
void	efuse_port_register_hal_funcs (void)
	将hal funcs对象注册到hal_efuse模块中

void	efuse_port_unregister_hal_funcs (void)
	从hal_efuse模块注销hal funcs对象

hal_efuse_region_t	hal_efuse_get_region (uint32_t byte_addr)
	Get the region of a otp byte address

uint16_t	hal_efuse_get_byte_offset (uint32_t byte_addr)
	Get the offset addr of a otp byte address

uint32_t	efuse_read_item (efuse_idx efuse_id, uint8_t *data, uint16_t data_len)
	Get the value from efuse

void	set_efuse_period (void)

uint32_t	efuse_write_mac (uint8_t *data, uint16_t data_len)

uint32_t	efuse_read_mac (uint8_t data, uint16_t data_len, uint8_t left_time)

uint32_t	efuse_write_sle_mac (uint8_t *data, uint16_t data_len)

uint32_t	efuse_read_sle_mac (uint8_t *data, uint16_t data_len)

uint32_t	efuse_write_customer_rsvd_efuse (uint8_t *data, uint16_t data_len)

uint32_t	efuse_write_customer_rsvd2_efuse (uint8_t *data, uint16_t data_len)

uint32_t	efuse_read_customer_rsvd2_efuse (uint8_t *data, uint16_t data_len)

变量
uint32_t	g_efuse_boot_done_addr
	EFUSE的上电完成地址

uint32_t	g_efuse_base_addr [1]
	IP的基地址

uint32_t	g_efuse_region_read_address [1]
	IP的读基地址

uint32_t	g_efuse_region_write_address [1]
	IP的写基地址
