#include "wlan_types_common.h"
#include "oal_ext_if.h"
#include "oam_ext_if.h"
#include "oal_netbuf.h"
#include "oal_net.h"
#include "mac_frame_common.h"
#include "wlan_resource_common.h"

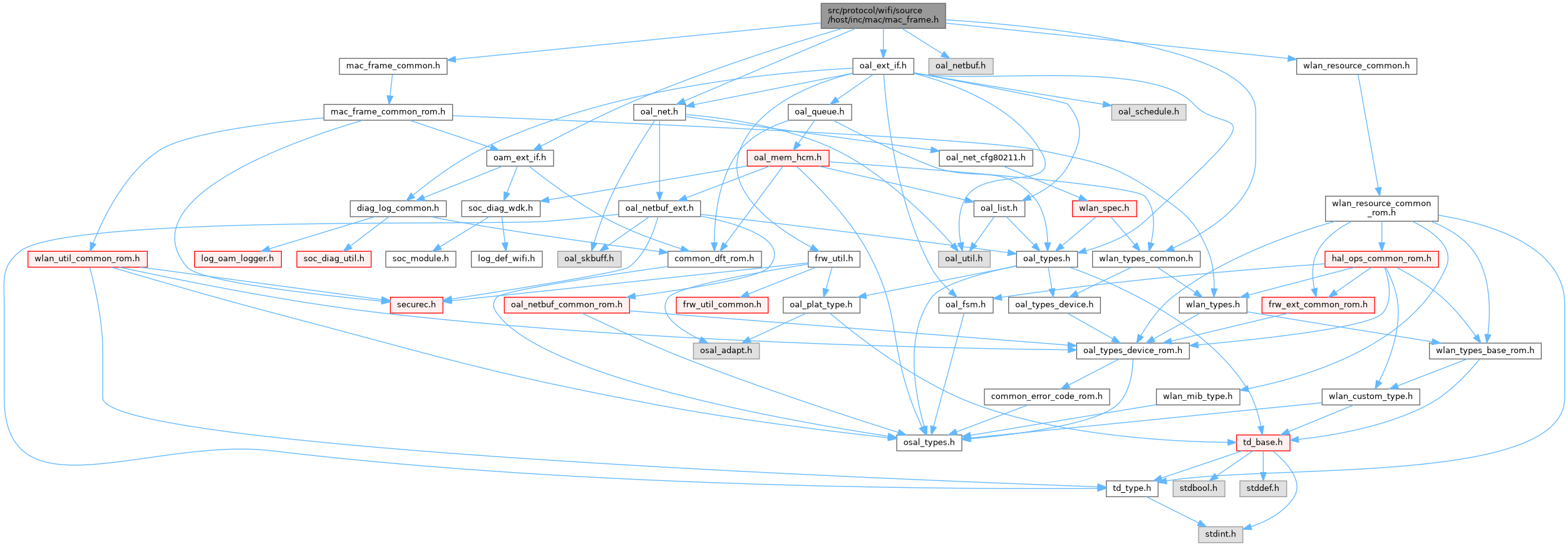

mac_frame.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	mac_ieee80211_frame_addr4

struct	mac_ieee80211_qos_frame_addr4

struct	mac_ieee80211_qos_htc_frame_addr4

struct	mac_cap_info

struct	mac_frame_ht_cap

struct	mac_vht_cap_info

struct	hmac_color_event_rpt_elements

struct	mac_frame_he_sr_control

struct	mac_frame_he_spatial_reuse_parameter_set_ie

struct	mac_frame_bss_color_change_annoncement_ie

struct	mac_11ntxbf_info

struct	mac_11ntxbf_vendor_ie

struct	mac_ieee80211_vendor_ie

struct	mac_hiex_cap

struct	mac_priv_cap

struct	mac_hiex_vendor_ie

struct	mac_priv_vendor_ie

struct	mac_ba_parameterset

struct	mac_ba_seqctrl

struct	mac_quiet_ie

struct	mac_erp_params

struct	mac_rsn_cap

struct	mac_obss_scan_params

struct	mac_qos_info

struct	mac_wmm_ac_params_stru

struct	mac_bss_load

struct	mac_country_reg_field

struct	mac_ampdu_params

struct	mac_sup_mcs_set

struct	mac_vht_sup_mcs_set_stru

struct	mac_ext_cap

struct	mac_txbf_cap_stru

struct	mac_asel_cap

struct	mac_ht_opern

struct	mac_opmode_notify

struct	mac_vht_opern

struct	mac_action_mgmt_args_stru

struct	mac_ts_info

struct	mac_smps_action_mgt_stru

struct	mac_opmode_notify_action_mgt_stru

struct	mac_assoc_retry_delay_attr_mbo_ie

struct	mac_reported_frame_body_fragment_id

struct	mac_last_beacon_report_indication

struct	mac_frame_cb

struct	mac_quiet_info

宏定义
#define	HTC_INVALID_VALUE 0x3

#define	MAC_HE_SRG_PD_MIN (-82)

#define	MAC_HE_SRG_PD_MAX (-62)

#define	MAC_HE_SRG_BSS_COLOR_BITMAP_LEN 8

#define	MAC_HE_SRG_PARTIAL_BSSID_BITMAP_LEN 8

#define	MAC_IEEE80211_FCTL_FTYPE 0x000c /* 帧类型掩码 */

#define	MAC_IEEE80211_FCTL_STYPE 0x00f0 /* 帧子类型掩码 */

#define	MAC_IEEE80211_FC0_SUBTYPE_SHIFT 4

#define	MAC_IEEE80211_FTYPE_MGMT 0x0000 /* 管理帧 */

#define	MAC_IEEE80211_FTYPE_CTL 0x0004 /* 控制帧 */

#define	MAC_IEEE80211_FTYPE_DATA 0x0008 /* 数据帧 */

#define	MAC_SUBMSDU_LENGTH_OFFSET 12 /* submsdu的长度字段的偏移值 */

#define	MAC_SUBMSDU_DA_OFFSET 0 /* submsdu的目的地址的偏移值 */

#define	MAC_SUBMSDU_SA_OFFSET 6 /* submsdu的源地址的偏移值 */

#define	MAC_80211_CTL_HEADER_LEN 16 /* 控制帧帧头长度 */

#define	MAC_80211_4ADDR_FRAME_LEN 30

#define	MAC_80211_QOS_FRAME_LEN 26

#define	MAC_80211_QOS_HTC_FRAME_LEN 30

#define	MAC_80211_QOS_4ADDR_FRAME_LEN 32

#define	MAC_80211_QOS_HTC_4ADDR_FRAME_LEN 36

#define	MAC_IE_EXT_HDR_LEN 3 /* 信息元素头部 1字节EID + 1字节长度 + 1字节EXT_EID */

#define	MAC_NEIGHBOR_REPORT_IE_LEN 13 /* NEIGHBOR_REPORT长度 */

#define	MAC_SSID_OFFSET 12

#define	MAC_LISTEN_INT_LEN 2

#define	MAC_MIN_XRATE_LEN 1

#define	MAC_MIN_RATES_LEN 1

#define	MAC_MAX_SUPRATES 8 /* WLAN_EID_RATES最大支持8个速率 */

#define	MAC_DSPARMS_LEN 1 /* ds parameter set 长度 */

#define	MAC_DEFAULT_TIM_LEN 4

#define	MAC_MIN_RSN_LEN 12

#define	MAC_MAX_RSN_LEN 64

#define	MAC_MIN_WPA_LEN 12

#define	MAC_TIM_LEN_EXCEPT_PVB 3 /* DTIM Period、DTIM Count与BitMap Control三个字段的长度 */

#define	MAC_CONTRY_CODE_LEN 3 /* 国家码长度为3 */

#define	MAC_MIN_COUNTRY_LEN 6

#define	MAC_MAX_COUNTRY_LEN 254

#define	MAC_PWR_CONSTRAINT_LEN 1 /* 功率限制ie长度为1 */

#define	MAC_QUIET_IE_LEN 6 /* quiet信息元素长度 */

#define	MAC_TPCREP_IE_LEN 2

#define	MAC_ERP_IE_LEN 1

#define	MAC_OBSS_SCAN_IE_LEN 14

#define	MAC_MIN_XCAPS_LEN 1

#define	MAC_XCAPS_EX_FTM_LEN 9 /* 初始值为5，由于11ac Operating Mode Notification特性标志为bit62长度修改为8,ftm特性需要长度为9 */

#define	MAC_XCAPS_EX_LEN 8 /* 初始值为5，由于11ac Operating Mode Notification特性标志为bit62长度修改为8,ftm特性需要长度为9 */

#define	MAC_WMM_PARAM_LEN 24 /* WMM parameters ie */

#define	MAC_WMM_INFO_LEN 7 /* WMM info ie */

#define	MAC_QOS_INFO_LEN 1

#define	MAC_BSS_LOAD_IE_LEN 5

#define	MAC_COUNTRY_REG_FIELD_LEN 3

#define	MAC_LIS_INTERVAL_IE_LEN 2 /* listen interval信息元素长度 */

#define	MAC_AID_LEN 2

#define	MAC_PWR_CAP_LEN 2

#define	MAC_AUTH_ALG_LEN 2

#define	MAC_AUTH_TRANS_SEQ_NUM_LEN 2 /* transaction seq num信息元素长度 */

#define	MAC_STATUS_CODE_LEN 2

#define	MAC_VHT_CAP_IE_LEN 12

#define	MAC_VHT_INFO_IE_LEN 5

#define	MAC_VHT_CAP_INFO_FIELD_LEN 4

#define	MAC_TIMEOUT_INTERVAL_INFO_LEN 5

#define	MAC_VHT_CAP_RX_MCS_MAP_FIELD_LEN 2 /* vht cap ie rx_mcs_map field length */

#define	MAC_VHT_CAP_RX_HIGHEST_DATA_FIELD_LEN 2 /* vht cap ie rx_highest_data field length */

#define	MAC_VHT_CAP_TX_MCS_MAP_FIELD_LEN 2 /* vht cap ie tx_mcs_map field length */

#define	MAC_VHT_OPERN_LEN 5 /* vht opern ie length */

#define	MAC_VHT_OPERN_INFO_FIELD_LEN 3 /* vht opern ie infomation field length */

#define	MAC_2040_COEX_LEN 1 /* 20/40 BSS Coexistence element */

#define	MAC_2040_INTOLCHREPORT_LEN_MIN 1 /* 20/40 BSS Intolerant Channel Report element */

#define	MAC_CHANSWITCHANN_LEN 3 /* Channel Switch Announcement element */

#define	MAC_SA_QUERY_LEN 4 /* SA Query element len */

#define	MAC_RSN_VERSION_LEN 2 /* wpa/RSN version len */

#define	MAC_RSN_CIPHER_COUNT_LEN 2 /* RSN IE Cipher count len */

#define	MAC_11N_TXBF_CAP_OFFSET 23

#define	MAC_HT_NOTIFY_CHANNEL_WIDTH_LEN 3

#define	MAC_RRM_ENABLE_CAP_IE_LEN 5

#define	MAC_WFA_TPC_RPT_LEN 7

#define	MAC_CHANSWITCHANN_IE_LEN 3

#define	MAC_EXT_CHANSWITCHANN_IE_LEN 4

#define	MAC_SEC_CH_OFFSET_IE_LEN 1

#define	MAC_WIDE_BW_CH_SWITCH_IE_LEN 3

#define	MAC_FTMP_LEN 9

#define	MAC_MEASUREMENT_REQUEST_IE_OFFSET 5

#define	MAC_RM_MEASUREMENT_REQUEST_IE_OFFSET 5

#define	MAC_ACTION_CATEGORY_AND_CODE_LEN 2

#define	MAC_MOBILITY_DOMAIN_LEN 5

#define	MAC_P2P_ATTRIBUTE_HDR_LEN 3 /* P2P_ATTRIBUTE信息元素头部 1字节ATTRIBUTE + 2字节长度 */

#define	MAC_P2P_LISTEN_CHN_ATTR_LEN 5 /* LISTEN CHANNEL ATTRIBUTE长度 */

#define	MAC_P2P_MIN_IE_LEN 4 /* P2P IE的最小长度 */

#define	MAC_MIN_WPS_IE_LEN 5

#define	MAC_WPS_ATTRIBUTE_HDR_LEN 4 /* WPS_ATTRIBUTE信息元素头部 2字节ATTRIBUTE TYPE + 2字节长度 */

#define	MAC_WPS_ATTRIBUTE_REQUEST_TYPE 0x103a /* ATTRIBUTE_REQUEST_TYPE 0x103a */

#define	WPS_IE_HDR_LEN 6

#define	MAC_WPS_REQUEST_TYPE_ATTR_LEN 1 /* ATTRIBUTE_REQUEST_TYPE长度 */

#define	MAC_QUIET_PERIOD 0

#define	MAC_QUIET_COUNT MAC_QUIET_PERIOD

#define	MAC_QUIET_DURATION 0x0000

#define	MAC_QUIET_OFFSET 0x0000

#define	MAC_RSN_IE_VERSION 1

#define	MAC_RSN_CAP_LEN 2

#define	MAC_PMKID_LEN 16

#define	MAC_WPA_IE_VERSION 1

#define	WLAN_AKM_SUITE_WAPI_CERT 0x000FAC12

#define	MAC_OUI_LEN 3

#define	MAC_OUITYPE_LEN 1

#define	MAC_OUITYPE_WPA 1

#define	MAC_OUITYPE_WMM 2

#define	MAC_OUITYPE_WPS 4

#define	MAC_OUITYPE_WFA 8

#define	MAC_OUITYPE_P2P 9

#define	MAC_WMM_OUI_BYTE_ONE 0x00

#define	MAC_WMM_OUI_BYTE_TWO 0x50

#define	MAC_WMM_OUI_BYTE_THREE 0xF2

#define	MAC_WMM_UAPSD_ALL (BIT0 \| BIT1 \| BIT2 \| BIT3)

#define	MAC_OUISUBTYPE_WFA 0x00

#define	MAC_OUISUBTYPE_WMM_INFO 0

#define	MAC_OUISUBTYPE_WMM_PARAM 1

#define	MAC_OUISUBTYPE_WMM_PARAM_OFFSET 6 /* wmm 字段中EDCA_INFO位置,表示是否携带EDCA参数偏移6 */

#define	MAC_WMM_QOS_INFO_POS 8 /* wmm 字段中qos info位置，偏移8 */

#define	MAC_OUI_WMM_VERSION 1

#define	MAC_HT_CAP_LEN 26 /* HT能力信息长度为26 */

#define	MAC_HT_CAPINFO_LEN 2 /* HT Capabilities Info域长度为2 */

#define	MAC_HT_AMPDU_PARAMS_LEN 1 /* A-MPDU parameters域长度为1 */

#define	MAC_HT_SUP_MCS_SET_LEN 16 /* Supported MCS Set域长度为16 */

#define	MAC_HT_EXT_CAP_LEN 2 /* Extended cap.域长度为2 */

#define	MAC_HT_EXT_CAP_OPMODE_LEN 8 /* 宣称支持OPMODE的字段是extended cap的第8个字节 */

#define	MAC_HT_TXBF_CAP_LEN 4 /* Transmit Beamforming Cap.域长度为4 */

#define	MAC_HT_ASEL_LEN 1 /* ASEL Cap.域长度为1 */

#define	MAC_HT_OPERN_LEN 22 /* HT Operation信息长度为22 */

#define	MAC_HT_BASIC_MCS_SET_LEN 16 /* HT info中的basic mcs set信息的长度 */

#define	MAC_HT_CTL_LEN 4 /* HT CONTROL字段的长度 */

#define	MAC_QOS_CTL_LEN 2 /* QOS CONTROL字段的长度 */

#define	MAC_HE_MAC_CAP_LEN 6

#define	MAC_HE_PHY_CAP_LEN 11

#define	MAC_HE_OPE_PARAM_LEN 3

#define	MAC_HE_OPE_BASIC_MCS_NSS_LEN 2

#define	MAC_HE_VHT_OPERATION_INFO_LEN 3

#define	MAC_HE_MU_EDCA_PARAMETER_SET_LEN 14

#define	MAC_HE_MCS_NSS_MIN_LEN 2

#define	MAC_HE_CAP_MIN_LEN 20

#define	MAC_HE_OPERAION_MIN_LEN 7

#define	MAC_HE_OPERAION_WITH_VHT_LEN 10

#define	MAC_HE_NFR_PARAM_PAYLOAD_LEN 2

#define	MAC_HE_NFR_PARAM_HEADER_LEN 3

#define	MAC_HE_NFR_PARAM_DEFAULT_VAL 8

#define	MAC_HE_BSS_COLOR_CHANGE_ANNOUNCEMENT_LEN 3

#define	MAC_TAG_PARAM_OFFSET (MAC_80211_FRAME_LEN + MAC_TIME_STAMP_LEN + MAC_BEACON_INTERVAL_LEN + MAC_CAP_INFO_LEN)

#define	MAC_DEVICE_BEACON_OFFSET (MAC_TIME_STAMP_LEN + MAC_BEACON_INTERVAL_LEN + MAC_CAP_INFO_LEN)

#define	MAC_MAX_BSS_INFO_TRANS 5

#define	MAC_WMM_QOS_PARAM_AIFSN_MASK 0x0F

#define	MAC_WMM_QOS_PARAM_ACI_BIT_OFFSET 5

#define	MAC_WMM_QOS_PARAM_ACI_MASK 0x03

#define	MAC_WMM_QOS_PARAM_ECWMIN_MASK 0x0F

#define	MAC_WMM_QOS_PARAM_ECWMAX_MASK 0xF0

#define	MAC_WMM_QOS_PARAM_ECWMAX_BIT_OFFSET 4

#define	MAC_WMM_QOS_PARAM_TXOPLIMIT_MASK 0x00FF

#define	MAC_WMM_QOS_PARAM_BIT_NUMS_OF_ONE_BYTE 8

#define	MAC_WMM_QOS_PARAM_TXOPLIMIT_SAVE_TO_TRANS_TIMES 5

#define	MAC_WMM_SWITCH_TID 6

#define	MAC_CHARIOT_NETIF_PORT 10115

#define	MAC_WFD_RTSP_PORT 7236

#define	mac_is_wavetest_sta(bssid) ((0x0 == ((bssid)[0])) && ((0x1 == ((bssid)[1])) \|\| (0x2 == ((bssid)[1]))) && (0x1 == ((bssid)[2])))

#define	MAC_WLAN_OUI_PUBLIC 0x00E0fC

#define	MAC_WLAN_OUI_TYPE_CASCADE 0xA0

#define	MAC_WLAN_OUI_TYPE_4ADDR 0x40 /* 4地址IE的OUI TYPE字段 */

#define	MAC_EXT_VENDER_IE 0xAC853D /* 打桩HW IE */

#define	MAC_MBO_VENDOR_IE 0x506F9A /* WFA specific OUI */

#define	MAC_MBO_IE_OUI_TYPE 0x16 /* Identifying the type and version of the MBO-OCE IE */

#define	MAC_MBO_ATTRIBUTE_HDR_LEN 2 /* Attribute ID + Attribute Length */

#define	MBO_IE_HEADER 6 /* type + length + oui + oui type */

#define	MAC_MBO_OUI_LENGTH 3

#define	MAC_MBO_ASSOC_DIS_ATTR_LEN 3

#define	MAC_OSAL_1024QAM_IE 0xbd /* 1024QAM IE */

#define	MAC_IPV6_UDP_SRC_PORT 546

#define	MAC_IPV6_UDP_DES_PORT 547

#define	MAC_REPORT_RSSIINFO_LEN 8

#define	MAC_REPORT_SNR_LEN 2

#define	MAC_REPORT_RSSIINFO_SNR_LEN 10

#define	MAC_CSI_LOCATION_INFO_LEN 57

#define	MAC_FTM_LOCATION_INFO_LEN 52

#define	MAC_CSI_REPORT_HEADER_LEN 53

#define	MAC_FTM_REPORT_HEADER_LEN 51

#define	MAC_CSI_MAX_REPORT_LEN 1400

#define	MAC_ARP_REQUEST 0x0001

#define	MAC_ARP_RESPONSE 0x0002

#define	MAC_RARP_REQUEST 0x0003

#define	MAC_RARP_RESPONSE 0x0004

#define	MAC_ND_RSOL 133 /* Router Solicitation */

#define	MAC_ND_RADVT 134 /* Router Advertisement */

#define	MAC_ND_NSOL 135 /* Neighbor Solicitation */

#define	MAC_ND_NADVT 136 /* Neighbor Advertisement */

#define	MAC_ND_RMES 137 /* Redirect Message */

#define	MAC_DHCPV6_SOLICIT 1

#define	MAC_DHCPV6_ADVERTISE 2

#define	MAC_DHCPV6_REQUEST 3

#define	MAC_DHCPV6_CONFIRM 4

#define	MAC_DHCPV6_RENEW 5

#define	MAC_DHCPV6_REBIND 6

#define	MAC_DHCPV6_REPLY 7

#define	MAC_DHCPV6_RELEASE 8

#define	MAC_DHCPV6_DECLINE 9

#define	MAC_DHCPV6_RECONFIGURE 10

#define	MAC_DHCPV6_INFORM_REQ 11

#define	MAC_DHCPV6_RELAY_FORW 12

#define	MAC_DHCPV6_RELAY_REPLY 13

#define	MAC_DHCPV6_LEASEQUERY 14

#define	MAC_DHCPV6_LQ_REPLY 15

#define	mac_is_golden_ap(bssid) ((0x0 == (bssid)[0]) && (0x13 == (bssid)[1]) && (0xE9 == (bssid)[2]))

#define	mac_is_belkin_ap(bssid) ((0x14 == (bssid)[0]) && (0x91 == (bssid)[1]) && (0x82 == (bssid)[2]))

#define	mac_is_netgear_wndr_ap(bssid) ((0x08 == (bssid)[0]) && (0xbd == (bssid)[1]) && (0x43 == (bssid)[2]))

#define	mac_is_trendnet_ap(bssid) ((0xd8 == (bssid)[0]) && (0xeb == (bssid)[1]) && (0x97 == (bssid)[2]))

#define	mac_is_dlink_ap(bssid) ((0xcc == (bssid)[0]) && (0xb2 == (bssid)[1]) && (0x55 == (bssid)[2]))

#define	mac_is_haier_ap(bssid) ((0x08 == (bssid)[0]) && (0x10 == (bssid)[1]) && (0x79 == (bssid)[2]))

#define	MAC_WLAN_CHIP_OUI_ATHEROSC 0x00037f

#define	MAC_WLAN_CHIP_OUI_TYPE_ATHEROSC 0x1

#define	MAC_WLAN_CHIP_OUI_RALINK 0x000c43

#define	MAC_WLAN_CHIP_OUI_TYPE_RALINK 0x3

#define	MAC_WLAN_CHIP_OUI_TYPE_RALINK1 0x7

#define	P2P_PAF_GON_REQ 0

#define	P2P_PAF_GON_RSP 1

#define	P2P_PAF_GON_CONF 2

#define	P2P_PAF_PD_REQ 7

#define	P2P_OUI_LEN 4

#define	P2P_IE_HDR_LEN 6

#define	P2P_ELEMENT_ID_SIZE 1

#define	P2P_ATTR_ID_SIZE 1

#define	P2P_ATTR_HDR_LEN 3

#define	WFA_OUI_BYTE1 0x50

#define	WFA_OUI_BYTE2 0x6F

#define	WFA_OUI_BYTE3 0x9A

#define	WFA_P2P_V1_0 0x09

#define	MAC_VHT_CHANGE (BIT1)

#define	MAC_HT_CHANGE (BIT2)

#define	MAC_BW_CHANGE (BIT3)

#define	MAC_HE_CHANGE (BIT4)

#define	MAC_HE_BSS_COLOR_CHANGE (BIT7)

#define	MAC_HE_PARTIAL_BSS_COLOR_CHANGE (BIT8)

#define	MAC_HE_BSS_COLOR_DISALLOW (BIT9)

#define	MAC_BW_DIFF_AP_USER (BIT5)

#define	MAC_BW_OPMODE_CHANGE (BIT6)

#define	MAC_RTS_TXOP_THRED_CHANGE (BIT10)

#define	MAC_NO_CHANGE (0)

#define	MAC_FRAME_REQ_TYPE 1

#define	MAC_TSC_REQ_BIN0_RANGE 10

#define	MAC_TSC_TID_MASK(_tid) (((_tid)<<4)&0xF)

#define	MAC_RADIO_MEAS_START_TIME_LEN 8

#define	MAC_PRIV_HIEX_IE 0x81

#define	MAC_PRIV_CAP_IE 0x20

#define	MAC_WLAN_OUI_WFA 0x506f9a

#define	MAC_WLAN_OUI_TYPE_WFA_P2P 9

#define	MAC_WLAN_OUI_MICROSOFT 0x0050f2

#define	MAC_WLAN_OUI_TYPE_MICROSOFT_WPA 1

#define	MAC_WLAN_OUI_TYPE_MICROSOFT_WMM 2

#define	MAC_WLAN_OUI_TYPE_MICROSOFT_WPS 4

#define	MAC_WLAN_OUI_VENDOR_VHT_HEADER 5

#define	MAC_WLAN_OUI_BROADCOM_EPIGRAM 0x00904c /* Broadcom (Epigram) */

#define	MAC_WLAN_OUI_VENDOR_VHT_TYPE 0x04

#define	MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE 0x08

#define	MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE2 0x00

#define	MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE3 0x07

#define	MAC_WLAN_OUI_VENDOR_HT_CAPAB_OUI_TYPE 0x33 /* 00-90-4c:0x33 */

#define	MAC_IP_HDR_LEN_MASK 0xF0

类型定义
typedef osal_u8	mac_msdu_proc_status_enum_uint8

typedef osal_u8	mac_ht_action_type_enum_uint8

typedef osal_u8	mac_timeout_interval_type_enum_uint8

typedef osal_u8	mac_sa_query_action_type_enum_uint8

typedef osal_u8	mac_ft_action_type_enum_uint8

typedef osal_u8	mac_protected_he_action_type_enum_uint8

typedef osal_u8	mac_wnm_action_type_enum_uint8

typedef osal_u8	mac_txbf_clb_enum_uint8

typedef osal_u8	mac_specmgmt_action_type_enum_uint8

typedef osal_u16	mac_capability_enum_uint16

typedef osal_u8	mac_eid_extension_enum_uint8

typedef osal_u8	mac_p2p_attribute_enum_uint8

typedef osal_u8	mac_mimo_power_save_mode_enum_uint8

typedef osal_u8	mac_sec_ch_off_enum_uint8

typedef osal_u8	mac_rm_action_type_enum_uint8

typedef osal_u8	mac_mbo_attr_id_enum_uint8

typedef struct mac_ieee80211_frame_addr4	mac_ieee80211_frame_addr4_stru

typedef struct mac_ieee80211_qos_frame_addr4	mac_ieee80211_qos_frame_addr4_stru

typedef struct mac_ieee80211_qos_htc_frame_addr4	mac_ieee80211_qos_htc_frame_addr4_stru

typedef struct mac_cap_info	mac_cap_info_stru

typedef struct mac_frame_ht_cap	mac_frame_ht_cap_stru

typedef struct mac_vht_cap_info	mac_vht_cap_info_stru

typedef struct hmac_color_event_rpt_elements	hmac_color_event_rpt_elements_stru

typedef struct mac_frame_he_sr_control	mac_frame_he_sr_control_stru

typedef struct mac_frame_he_spatial_reuse_parameter_set_ie	mac_frame_he_spatial_reuse_parameter_set_ie_stru

typedef struct mac_frame_bss_color_change_annoncement_ie	mac_frame_bss_color_change_annoncement_ie_stru

typedef struct mac_11ntxbf_info	mac_11ntxbf_info_stru

typedef struct mac_11ntxbf_vendor_ie	mac_11ntxbf_vendor_ie_stru

typedef struct mac_ieee80211_vendor_ie	mac_ieee80211_vendor_ie_stru

typedef struct mac_hiex_cap	mac_hiex_cap_stru

typedef struct mac_priv_cap	mac_priv_cap_stru

typedef struct mac_hiex_vendor_ie	mac_hiex_vendor_ie_stru

typedef struct mac_priv_vendor_ie	mac_priv_vendor_ie_stru

typedef struct mac_ba_parameterset	mac_ba_parameterset_stru

typedef struct mac_ba_seqctrl	mac_ba_seqctrl_stru

typedef struct mac_quiet_ie	mac_quiet_ie_stru

typedef struct mac_erp_params	mac_erp_params_stru

typedef struct mac_rsn_cap	mac_rsn_cap_stru

typedef struct mac_obss_scan_params	mac_obss_scan_params_stru

typedef struct mac_qos_info	mac_qos_info_stru

typedef struct mac_bss_load	mac_bss_load_stru

typedef struct mac_country_reg_field	mac_country_reg_field_stru

typedef struct mac_ampdu_params	mac_ampdu_params_stru

typedef struct mac_sup_mcs_set	mac_sup_mcs_set_stru

typedef struct mac_ext_cap	mac_ext_cap_stru

typedef struct mac_asel_cap	mac_asel_cap_stru

typedef struct mac_ht_opern	mac_ht_opern_stru

typedef struct mac_opmode_notify	mac_opmode_notify_stru

typedef struct mac_vht_opern	mac_vht_opern_stru

typedef struct mac_ts_info	mac_ts_info_stru

typedef struct mac_assoc_retry_delay_attr_mbo_ie	mac_assoc_retry_delay_attr_mbo_ie_stru

typedef struct mac_reported_frame_body_fragment_id	mac_reported_frame_body_fragment_id_stru

typedef struct mac_last_beacon_report_indication	mac_last_beacon_report_indication_stru

typedef osal_void(*	set_ext_cap_ie) (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

typedef osal_void(*	set_ht_cap_ie) (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

typedef osal_void(*	set_ht_opern_ie) (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

typedef osal_void(*	set_rsn_ie) (osal_void vap, osal_u8 pmkid, osal_u8 buffer, osal_u8 ie_len)

typedef osal_void(*	set_vht_cap_ie) (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

typedef osal_void(*	set_vht_opern_ie) (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

typedef osal_void(*	set_wpa_ie) (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

typedef osal_void(*	set_nb_ie) (osal_u8 buffer, osal_u8 ie_len)

typedef osal_void(*	set_vht_capinfo_field) (osal_void vap, osal_u8 buffer)

typedef osal_u32(*	hmac_set_he_capabilities_ie_resv) (const osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

枚举
enum	mac_msdu_proc_status_enum { MAC_PROC_ERROR = 0 , MAC_PROC_LAST_MSDU , MAC_PROC_MORE_MSDU , MAC_PROC_LAST_MSDU_ODD , MAC_PROC_BUTT }

enum	mac_ht_action_type_enum { MAC_HT_ACTION_NOTIFY_CHANNEL_WIDTH = 0 , MAC_HT_ACTION_SMPS = 1 , MAC_HT_ACTION_PSMP = 2 , MAC_HT_ACTION_SET_PCO_PHASE = 3 , MAC_HT_ACTION_CSI = 4 , MAC_HT_ACTION_NON_COMPRESSED_BEAMFORMING = 5 , MAC_HT_ACTION_COMPRESSED_BEAMFORMING = 6 , MAC_HT_ACTION_ASEL_INDICES_FEEDBACK = 7 , MAC_HT_ACTION_BUTT }

enum	mac_timeout_interval_type_enum { MAC_TIE_REASSOCIATION_DEADLINE_INTERVAL = 1 , MAC_TIE_KEY_LIFETIME_INTERVAL = 2 , MAC_TIE_ASSOCIATION_COMEBACK_TIME = 3 , MAC_TIE_BUTT }

enum	mac_sa_query_action_type_enum { MAC_SA_QUERY_ACTION_REQUEST = 0 , MAC_SA_QUERY_ACTION_RESPONSE = 1 }

enum	mac_ft_action_type_enum { MAC_FT_ACTION_REQUEST = 1 , MAC_FT_ACTION_RESPONSE = 2 , MAC_FT_ACTION_CONFIRM = 3 , MAC_FT_ACTION_ACK = 4 , MAC_FT_ACTION_BUTT = 5 }

enum	mac_protected_he_action_type { MAC_PROTECTED_HE_ACTION_HE_BSS_COLOR_CHANGE_ANNOUNCEMENT = 0 , MAC_PROTECTED_HE_ACTION_MU_EDCA_CONTROL = 1 , MAC_PROTECTED_HE_ACTION_MAX }

enum	mac_wnm_action_type_enum { MAC_WNM_ACTION_EVENT_REQUEST = 0 , MAC_WNM_ACTION_EVENT_REPORT = 1 , MAC_WNM_ACTION_DIALGNOSTIC_REQUEST = 2 , MAC_WNM_ACTION_DIALGNOSTIC_REPORT = 3 , MAC_WNM_ACTION_LOCATION_CONF_REQUEST = 4 , MAC_WNM_ACTION_LOCATION_CONF_RESPONSE = 5 , MAC_WNM_ACTION_BSS_TRANSITION_MGMT_QUERY = 6 , MAC_WNM_ACTION_BSS_TRANSITION_MGMT_REQUEST = 7 , MAC_WNM_ACTION_BSS_TRANSITION_MGMT_RESPONSE = 8 , MAC_WNM_ACTION_FMS_REQUEST = 9 , MAC_WNM_ACTION_FMS_RESPONSE = 10 , MAC_WNM_ACTION_COLLOCATED_INTER_REQUEST = 11 , MAC_WNM_ACTION_COLLOCATEC_INTER_REPORT = 12 , MAC_WNM_ACTION_TFS_REQUEST = 13 , MAC_WNM_ACTION_TFS_RESPONSE = 14 , MAC_WNM_ACTION_TFS_NOTIFY = 15 , MAC_WNM_ACTION_SLEEP_MODE_REQUEST = 16 , MAC_WNM_ACTION_SLEEP_MODE_RESPONSE = 17 , MAC_WNM_ACTION_TIM_BROADCAST_REQUEST = 18 , MAC_WNM_ACTION_TIM_BROADCAST_RESPONSE = 19 , MAC_WNM_ACTION_QOS_TRAFFIC_CAP_UPDATE = 20 , MAC_WNM_ACTION_CHANNEL_USAGE_REQUEST = 21 , MAC_WNM_ACTION_CHANNEL_USAGE_RESPONSE = 22 , MAC_WNM_ACTION_DMS_REQUEST = 23 , MAC_WNM_ACTION_DMS_RESPONSE = 24 , MAC_WNM_ACTION_TIMING_MEAS_REQUEST = 25 , MAC_WNM_ACTION_NOTIFICATION_REQUEST = 26 , MAC_WNM_ACTION_NOTIFICATION_RESPONSE = 27 , MAC_WNM_ACTION_BUTT }

enum	mac_txbf_clb_enum { MAC_NOT_SURPPORT_CLB = 0 , MAC_RSP_CLB_ONLY = 1 , MAC_SUPPOTR_CLB = 3 , MAC_CLB_BUTT }

enum	mac_specmgmt_action_type_enum { MAC_SPEC_CH_SWITCH_ANNOUNCE = 4 }

enum	mac_capability_enum { MAC_CAP_ESS = 0x01 , MAC_CAP_IBSS = 0x02 , MAC_CAP_POLLABLE = 0x04 , MAC_CAP_POLL_REQ = 0x08 , MAC_CAP_PRIVACY = 0x10 , MAC_CAP_SHORT_PREAMBLE = 0x20 , MAC_CAP_SHORT_SLOT = 0x400 , MAC_CAP_PBCC = 0x40 , MAC_CAP_CHANNEL_AGILITY = 0x80 , MAC_CAP_SPECTRUM_MGMT = 0x100 , MAC_CAP_RADIO_MEAS = 0x1000 , MAC_CAP_DSSS_OFDM = 0x2000 }

enum	mac_eid_extension_enum { MAC_EID_EXT_FTMSI = 9 }

enum	mac_p2p_attribute_enum { MAC_P2P_ATTRIBUTE_CAP = 2 , MAC_P2P_ATTRIBUTE_GROUP_OI = 4 , MAC_P2P_ATTRIBUTE_CFG_TIMEOUT = 5 , MAC_P2P_ATTRIBUTE_LISTEN_CHAN = 6 }

enum	mac_mimo_power_save_enum { MAC_SMPS_STATIC_MODE = 0 , MAC_SMPS_DYNAMIC_MODE = 1 , MAC_SMPS_MIMO_MODE = 3 , MAC_SMPS_MODE_BUTT }

enum	mac_sec_ch_off_enum { MAC_SCN = 0 , MAC_SCA = 1 , MAC_SCB = 3 , MAC_SEC_CH_BUTT }

enum	attribute_id_t { P2P_STATUS = 0 , P2P_MINOR_REASON_CODE = 1 , P2P_CAPABILITY = 2 , P2P_DEVICE_ID = 3 , GROUP_OWNER_INTENT = 4 , CONFIG_TIMEOUT = 5 , LISTEN_CHANNEL = 6 , P2P_GROUP_BSSID = 7 , EXTENDED_LISTEN_TIMING = 8 , INTENDED_P2P_IF_ADDR = 9 , P2P_MANAGEABILITY = 10 , P2P_CHANNEL_LIST = 11 , NOTICE_OF_ABSENCE = 12 , P2P_DEVICE_INFO = 13 , P2P_GROUP_INFO = 14 , P2P_GROUP_ID = 15 , P2P_INTERFACE = 16 , P2P_OPERATING_CHANNEL = 17 , INVITATION_FLAGS = 18 }

enum	p2p_pub_act_frm_off { P2P_PUB_ACT_OUI_OFF1 = 2 , P2P_PUB_ACT_OUI_OFF2 = 3 , P2P_PUB_ACT_OUI_OFF3 = 4 , P2P_PUB_ACT_OUI_TYPE_OFF = 5 , P2P_PUB_ACT_OUI_SUBTYPE_OFF = 6 , P2P_PUB_ACT_DIALOG_TOKEN_OFF = 7 , P2P_PUB_ACT_TAG_PARAM_OFF = 8 }

enum	p2p_gen_act_frm_off { P2P_GEN_ACT_OUI_OFF1 = 1 , P2P_GEN_ACT_OUI_OFF2 = 2 , P2P_GEN_ACT_OUI_OFF3 = 3 , P2P_GEN_ACT_OUI_TYPE_OFF = 4 , P2P_GEN_ACT_OUI_SUBTYPE_OFF = 5 , P2P_GEN_ACT_DIALOG_TOKEN_OFF = 6 , P2P_GEN_ACT_TAG_PARAM_OFF = 7 }

enum	p2p_gen_action_frm_type { P2P_NOA = 0 , P2P_PRESENCE_REQ = 1 , P2P_PRESENCE_RESP = 2 , GO_DISC_REQ = 3 }

enum	p2p_status_code_t { P2P_STAT_SUCCESS = 0 , P2P_STAT_INFO_UNAVAIL = 1 , P2P_STAT_INCOMP_PARAM = 2 , P2P_STAT_LMT_REACHED = 3 , P2P_STAT_INVAL_PARAM = 4 , P2P_STAT_UNABLE_ACCO_REQ = 5 , P2P_STAT_PREV_PROT_ERROR = 6 , P2P_STAT_NO_COMMON_CHAN = 7 , P2P_STAT_UNKNW_P2P_GRP = 8 , P2P_STAT_GO_INTENT_15 = 9 , P2P_STAT_INCOMP_PROV_ERROR = 10 , P2P_STAT_USER_REJECTED = 11 }

enum	mac_rm_action_type_enum { MAC_RM_ACTION_RADIO_MEASUREMENT_REQUEST = 0 , MAC_RM_ACTION_RADIO_MEASUREMENT_REPORT = 1 , MAC_RM_ACTION_LINK_MEASUREMENT_REQUEST = 2 , MAC_RM_ACTION_LINK_MEASUREMENT_REPORT = 3 , MAC_RM_ACTION_NEIGHBOR_REPORT_REQUEST = 4 , MAC_RM_ACTION_NEIGHBOR_REPORT_RESPONSE = 5 }

enum	mac_mbo_attr_id_enum { MBO_ATTR_ID_AP_CAPA_IND = 1 , MBO_ATTR_ID_NON_PREF_CHAN_REPORT = 2 , MBO_ATTR_ID_CELL_DATA_CAPA = 3 , MBO_ATTR_ID_ASSOC_DISALLOW = 4 , MBO_ATTR_ID_CELL_DATA_PREF = 5 , MBO_ATTR_ID_TRANSITION_REASON = 6 , MBO_ATTR_ID_TRANSITION_REJECT_REASON = 7 , MBO_ATTR_ID_ASSOC_RETRY_DELAY = 8 }

函数
OAL_STATIC OAL_INLINE osal_u16	mac_get_ft_status (osal_u8 *mac_hdr)

osal_u8 *	hmac_find_ie_etc (osal_u8 eid, osal_u8 *ies, osal_s32 l_len)

osal_u8 *	hmac_find_vendor_ie_etc (osal_u32 oui, osal_u8 oui_type, osal_u8 *ies, osal_s32 len)

osal_void	hmac_set_beacon_interval_field_etc (osal_void vap, osal_u8 buffer)

osal_void	hmac_set_cap_info_ap_etc (osal_void vap, osal_u8 cap_info)

osal_void	mac_set_cap_info_sta_etc (osal_void vap, osal_u8 cap_info)

osal_void	hmac_set_ssid_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len, osal_u16 frm_type)

osal_void	hmac_set_supported_rates_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_exsup_rates_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	mac_set_timeout_interval_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len, osal_u32 type, osal_u32 timeout)

osal_void	hmac_set_ht_capabilities_ie_etc (osal_void vap, osal_u8 buf, osal_u8 *ie_len)

osal_void	hmac_set_ht_opern_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_obss_scan_params_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_ext_capabilities_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_wmm_params_ie_etc (osal_void vap, osal_u8 buffer, oal_bool_enum_uint8 is_qos, osal_u8 *ie_len)

osal_u8 *	hmac_get_ssid_etc (osal_u8 beacon_body, osal_s32 frame_body_len, osal_u8 ssid_len)

osal_u8 *	mac_get_ext_ie_body (osal_u8 beacon_body, osal_s32 frame_body_len, osal_u8 ext_ie_body_len, osal_u8 ext_eid)

osal_u16	hmac_get_beacon_period_etc (const osal_u8 *beacon_body)

osal_u8	hmac_get_dtim_period_etc (osal_u8 *frame_body, osal_u16 frame_body_len)

osal_u8	hmac_get_dtim_cnt_etc (osal_u8 *frame_body, osal_u16 frame_body_len)

osal_u8 *	hmac_get_wmm_ie_etc (osal_u8 *beacon_body, osal_u16 frame_len)

osal_void	mac_set_power_cap_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_supported_channel_ie_etc (osal_void vap, osal_u8 buf, osal_u8 *ie_len)

osal_void	hmac_set_wmm_ie_sta_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_listen_interval_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_rsn_ie_etc (osal_void vap, osal_u8 pmkid, osal_u8 buffer, osal_u8 ie_len)

osal_void	hmac_set_wpa_ie_etc (osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	hmac_set_status_code_ie_etc (osal_u8 *buffer, mac_status_code_enum_uint16 status_code)

osal_void	hmac_set_aid_ie_etc (osal_u8 *buffer, osal_u16 assoc_id)

osal_u8	hmac_get_bss_type_etc (osal_u16 cap_info)

osal_u32	hmac_check_mac_privacy_etc (osal_u16 cap_info, osal_void *vap)

oal_bool_enum_uint8	hmac_is_wmm_ie_etc (const osal_u8 *ie)

osal_void	hmac_set_vht_capabilities_ie_etc (osal_void vap, osal_u8 buf, osal_u8 *ie_len)

osal_void	hmac_set_vht_opern_ie_etc (osal_void vap, osal_u8 buf, osal_u8 *ie_len)

osal_u8 *	hmac_find_ie_ext_ie (osal_u8 eid, osal_u8 ext_eid, osal_u8 *ie_addr, osal_s32 frame_len)

osal_u16	hmac_get_rsn_capability_etc (const osal_u8 *rsn_ie)

osal_void	hmac_add_app_ie_etc (osal_void vap, osal_u8 buffer, osal_u16 *ie_len, app_ie_type_uint8 type)

osal_u16	hmac_encap_2040_coext_mgmt_etc (osal_void vap, oal_netbuf_stru buffer, osal_u8 coext_info, osal_u32 chan_report)

osal_void	mac_set_vendor_vht_ie (osal_void hmac_vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	mac_set_vendor_novht_ie (osal_void hmac_vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	mac_set_dsss_params_etc (const osal_void vap, osal_u8 buffer, osal_u8 *ie_len, osal_u8 chan_num)

osal_void	mac_set_pwrconstraint_ie_etc (const osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	mac_set_quiet_ie_etc (const osal_void vap, osal_u8 buffer, const mac_quiet_info quiet_info, osal_u8 ie_len)

osal_void	mac_set_erp_ie_etc (const osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	mac_set_bssload_ie (const osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_void	mac_set_tpc_report_ie_etc (const osal_void vap, osal_u8 buffer, osal_u8 *ie_len)

osal_u8 const *	mac_frame_get_p2p_oui (osal_void)

osal_void	mac_add_wps_ie_etc (const osal_void vap, osal_u8 buffer, osal_u16 *ie_len, app_ie_type_uint8 type)

osal_void	mac_add_extend_app_ie_etc (const osal_void vap, osal_u8 *buffer, app_ie_type_uint8 type)

oal_bool_enum_uint8	mac_frame_is_null_data (oal_netbuf_stru *net_buf)

变量
const osal_u8	g_wmm_oui_etc [3]

const osal_u8	g_p2p_oui_etc [3]

const osal_u8	g_mac_vendor_oui [3]

宏定义说明

◆ HTC_INVALID_VALUE

#define HTC_INVALID_VALUE 0x3

◆ MAC_11N_TXBF_CAP_OFFSET

#define MAC_11N_TXBF_CAP_OFFSET 23

◆ MAC_2040_COEX_LEN

#define MAC_2040_COEX_LEN 1 /* 20/40 BSS Coexistence element */

◆ MAC_2040_INTOLCHREPORT_LEN_MIN

#define MAC_2040_INTOLCHREPORT_LEN_MIN 1 /* 20/40 BSS Intolerant Channel Report element */

◆ MAC_80211_4ADDR_FRAME_LEN

#define MAC_80211_4ADDR_FRAME_LEN 30

◆ MAC_80211_CTL_HEADER_LEN

#define MAC_80211_CTL_HEADER_LEN 16 /* 控制帧帧头长度 */

◆ MAC_80211_QOS_4ADDR_FRAME_LEN

#define MAC_80211_QOS_4ADDR_FRAME_LEN 32

◆ MAC_80211_QOS_FRAME_LEN

#define MAC_80211_QOS_FRAME_LEN 26

◆ MAC_80211_QOS_HTC_4ADDR_FRAME_LEN

#define MAC_80211_QOS_HTC_4ADDR_FRAME_LEN 36

◆ MAC_80211_QOS_HTC_FRAME_LEN

#define MAC_80211_QOS_HTC_FRAME_LEN 30

◆ MAC_ACTION_CATEGORY_AND_CODE_LEN

#define MAC_ACTION_CATEGORY_AND_CODE_LEN 2

◆ MAC_AID_LEN

#define MAC_AID_LEN 2

◆ MAC_ARP_REQUEST

#define MAC_ARP_REQUEST 0x0001

◆ MAC_ARP_RESPONSE

#define MAC_ARP_RESPONSE 0x0002

◆ MAC_AUTH_ALG_LEN

#define MAC_AUTH_ALG_LEN 2

◆ MAC_AUTH_TRANS_SEQ_NUM_LEN

#define MAC_AUTH_TRANS_SEQ_NUM_LEN 2 /* transaction seq num信息元素长度 */

◆ MAC_BSS_LOAD_IE_LEN

#define MAC_BSS_LOAD_IE_LEN 5

◆ MAC_BW_CHANGE

#define MAC_BW_CHANGE (BIT3)

◆ MAC_BW_DIFF_AP_USER

#define MAC_BW_DIFF_AP_USER (BIT5)

◆ MAC_BW_OPMODE_CHANGE

#define MAC_BW_OPMODE_CHANGE (BIT6)

◆ MAC_CHANSWITCHANN_IE_LEN

#define MAC_CHANSWITCHANN_IE_LEN 3

◆ MAC_CHANSWITCHANN_LEN

#define MAC_CHANSWITCHANN_LEN 3 /* Channel Switch Announcement element */

◆ MAC_CHARIOT_NETIF_PORT

#define MAC_CHARIOT_NETIF_PORT 10115

◆ MAC_CONTRY_CODE_LEN

#define MAC_CONTRY_CODE_LEN 3 /* 国家码长度为3 */

◆ MAC_COUNTRY_REG_FIELD_LEN

#define MAC_COUNTRY_REG_FIELD_LEN 3

◆ MAC_CSI_LOCATION_INFO_LEN

#define MAC_CSI_LOCATION_INFO_LEN 57

◆ MAC_CSI_MAX_REPORT_LEN

#define MAC_CSI_MAX_REPORT_LEN 1400

◆ MAC_CSI_REPORT_HEADER_LEN

#define MAC_CSI_REPORT_HEADER_LEN 53

◆ MAC_DEFAULT_TIM_LEN

#define MAC_DEFAULT_TIM_LEN 4

◆ MAC_DEVICE_BEACON_OFFSET

#define MAC_DEVICE_BEACON_OFFSET (MAC_TIME_STAMP_LEN + MAC_BEACON_INTERVAL_LEN + MAC_CAP_INFO_LEN)

◆ MAC_DHCPV6_ADVERTISE

#define MAC_DHCPV6_ADVERTISE 2

◆ MAC_DHCPV6_CONFIRM

#define MAC_DHCPV6_CONFIRM 4

◆ MAC_DHCPV6_DECLINE

#define MAC_DHCPV6_DECLINE 9

◆ MAC_DHCPV6_INFORM_REQ

#define MAC_DHCPV6_INFORM_REQ 11

◆ MAC_DHCPV6_LEASEQUERY

#define MAC_DHCPV6_LEASEQUERY 14

◆ MAC_DHCPV6_LQ_REPLY

#define MAC_DHCPV6_LQ_REPLY 15

◆ MAC_DHCPV6_REBIND

#define MAC_DHCPV6_REBIND 6

◆ MAC_DHCPV6_RECONFIGURE

#define MAC_DHCPV6_RECONFIGURE 10

◆ MAC_DHCPV6_RELAY_FORW

#define MAC_DHCPV6_RELAY_FORW 12

◆ MAC_DHCPV6_RELAY_REPLY

#define MAC_DHCPV6_RELAY_REPLY 13

◆ MAC_DHCPV6_RELEASE

#define MAC_DHCPV6_RELEASE 8

◆ MAC_DHCPV6_RENEW

#define MAC_DHCPV6_RENEW 5

◆ MAC_DHCPV6_REPLY

#define MAC_DHCPV6_REPLY 7

◆ MAC_DHCPV6_REQUEST

#define MAC_DHCPV6_REQUEST 3

◆ MAC_DHCPV6_SOLICIT

#define MAC_DHCPV6_SOLICIT 1

◆ MAC_DSPARMS_LEN

#define MAC_DSPARMS_LEN 1 /* ds parameter set 长度 */

◆ MAC_ERP_IE_LEN

#define MAC_ERP_IE_LEN 1

◆ MAC_EXT_CHANSWITCHANN_IE_LEN

#define MAC_EXT_CHANSWITCHANN_IE_LEN 4

◆ MAC_EXT_VENDER_IE

#define MAC_EXT_VENDER_IE 0xAC853D /* 打桩HW IE */

◆ MAC_FRAME_REQ_TYPE

#define MAC_FRAME_REQ_TYPE 1

◆ MAC_FTM_LOCATION_INFO_LEN

#define MAC_FTM_LOCATION_INFO_LEN 52

◆ MAC_FTM_REPORT_HEADER_LEN

#define MAC_FTM_REPORT_HEADER_LEN 51

◆ MAC_FTMP_LEN

#define MAC_FTMP_LEN 9

◆ MAC_HE_BSS_COLOR_CHANGE

#define MAC_HE_BSS_COLOR_CHANGE (BIT7)

◆ MAC_HE_BSS_COLOR_CHANGE_ANNOUNCEMENT_LEN

#define MAC_HE_BSS_COLOR_CHANGE_ANNOUNCEMENT_LEN 3

◆ MAC_HE_BSS_COLOR_DISALLOW

#define MAC_HE_BSS_COLOR_DISALLOW (BIT9)

◆ MAC_HE_CAP_MIN_LEN

#define MAC_HE_CAP_MIN_LEN 20

◆ MAC_HE_CHANGE

#define MAC_HE_CHANGE (BIT4)

◆ MAC_HE_MAC_CAP_LEN

#define MAC_HE_MAC_CAP_LEN 6

◆ MAC_HE_MCS_NSS_MIN_LEN

#define MAC_HE_MCS_NSS_MIN_LEN 2

◆ MAC_HE_MU_EDCA_PARAMETER_SET_LEN

#define MAC_HE_MU_EDCA_PARAMETER_SET_LEN 14

◆ MAC_HE_NFR_PARAM_DEFAULT_VAL

#define MAC_HE_NFR_PARAM_DEFAULT_VAL 8

◆ MAC_HE_NFR_PARAM_HEADER_LEN

#define MAC_HE_NFR_PARAM_HEADER_LEN 3

◆ MAC_HE_NFR_PARAM_PAYLOAD_LEN

#define MAC_HE_NFR_PARAM_PAYLOAD_LEN 2

◆ MAC_HE_OPE_BASIC_MCS_NSS_LEN

#define MAC_HE_OPE_BASIC_MCS_NSS_LEN 2

◆ MAC_HE_OPE_PARAM_LEN

#define MAC_HE_OPE_PARAM_LEN 3

◆ MAC_HE_OPERAION_MIN_LEN

#define MAC_HE_OPERAION_MIN_LEN 7

◆ MAC_HE_OPERAION_WITH_VHT_LEN

#define MAC_HE_OPERAION_WITH_VHT_LEN 10

◆ MAC_HE_PARTIAL_BSS_COLOR_CHANGE

#define MAC_HE_PARTIAL_BSS_COLOR_CHANGE (BIT8)

◆ MAC_HE_PHY_CAP_LEN

#define MAC_HE_PHY_CAP_LEN 11

◆ MAC_HE_SRG_BSS_COLOR_BITMAP_LEN

#define MAC_HE_SRG_BSS_COLOR_BITMAP_LEN 8

◆ MAC_HE_SRG_PARTIAL_BSSID_BITMAP_LEN

#define MAC_HE_SRG_PARTIAL_BSSID_BITMAP_LEN 8

◆ MAC_HE_SRG_PD_MAX

#define MAC_HE_SRG_PD_MAX (-62)

◆ MAC_HE_SRG_PD_MIN

#define MAC_HE_SRG_PD_MIN (-82)

◆ MAC_HE_VHT_OPERATION_INFO_LEN

#define MAC_HE_VHT_OPERATION_INFO_LEN 3

◆ MAC_HT_AMPDU_PARAMS_LEN

#define MAC_HT_AMPDU_PARAMS_LEN 1 /* A-MPDU parameters域长度为1 */

◆ MAC_HT_ASEL_LEN

#define MAC_HT_ASEL_LEN 1 /* ASEL Cap.域长度为1 */

◆ MAC_HT_BASIC_MCS_SET_LEN

#define MAC_HT_BASIC_MCS_SET_LEN 16 /* HT info中的basic mcs set信息的长度 */

◆ MAC_HT_CAP_LEN

#define MAC_HT_CAP_LEN 26 /* HT能力信息长度为26 */

◆ MAC_HT_CAPINFO_LEN

#define MAC_HT_CAPINFO_LEN 2 /* HT Capabilities Info域长度为2 */

◆ MAC_HT_CHANGE

#define MAC_HT_CHANGE (BIT2)

◆ MAC_HT_CTL_LEN

#define MAC_HT_CTL_LEN 4 /* HT CONTROL字段的长度 */

◆ MAC_HT_EXT_CAP_LEN

#define MAC_HT_EXT_CAP_LEN 2 /* Extended cap.域长度为2 */

◆ MAC_HT_EXT_CAP_OPMODE_LEN

#define MAC_HT_EXT_CAP_OPMODE_LEN 8 /* 宣称支持OPMODE的字段是extended cap的第8个字节 */

◆ MAC_HT_NOTIFY_CHANNEL_WIDTH_LEN

#define MAC_HT_NOTIFY_CHANNEL_WIDTH_LEN 3

◆ MAC_HT_OPERN_LEN

#define MAC_HT_OPERN_LEN 22 /* HT Operation信息长度为22 */

◆ MAC_HT_SUP_MCS_SET_LEN

#define MAC_HT_SUP_MCS_SET_LEN 16 /* Supported MCS Set域长度为16 */

◆ MAC_HT_TXBF_CAP_LEN

#define MAC_HT_TXBF_CAP_LEN 4 /* Transmit Beamforming Cap.域长度为4 */

◆ MAC_IE_EXT_HDR_LEN

#define MAC_IE_EXT_HDR_LEN 3 /* 信息元素头部 1字节EID + 1字节长度 + 1字节EXT_EID */

◆ MAC_IEEE80211_FC0_SUBTYPE_SHIFT

#define MAC_IEEE80211_FC0_SUBTYPE_SHIFT 4

◆ MAC_IEEE80211_FCTL_FTYPE

#define MAC_IEEE80211_FCTL_FTYPE 0x000c /* 帧类型掩码 */

◆ MAC_IEEE80211_FCTL_STYPE

#define MAC_IEEE80211_FCTL_STYPE 0x00f0 /* 帧子类型掩码 */

◆ MAC_IEEE80211_FTYPE_CTL

#define MAC_IEEE80211_FTYPE_CTL 0x0004 /* 控制帧 */

◆ MAC_IEEE80211_FTYPE_DATA

#define MAC_IEEE80211_FTYPE_DATA 0x0008 /* 数据帧 */

◆ MAC_IEEE80211_FTYPE_MGMT

#define MAC_IEEE80211_FTYPE_MGMT 0x0000 /* 管理帧 */

◆ MAC_IP_HDR_LEN_MASK

#define MAC_IP_HDR_LEN_MASK 0xF0

◆ MAC_IPV6_UDP_DES_PORT

#define MAC_IPV6_UDP_DES_PORT 547

◆ MAC_IPV6_UDP_SRC_PORT

#define MAC_IPV6_UDP_SRC_PORT 546

◆ mac_is_belkin_ap

#define mac_is_belkin_ap ( bssid ) ((0x14 == (bssid)[0]) && (0x91 == (bssid)[1]) && (0x82 == (bssid)[2]))

◆ mac_is_dlink_ap

#define mac_is_dlink_ap ( bssid ) ((0xcc == (bssid)[0]) && (0xb2 == (bssid)[1]) && (0x55 == (bssid)[2]))

◆ mac_is_golden_ap

#define mac_is_golden_ap ( bssid ) ((0x0 == (bssid)[0]) && (0x13 == (bssid)[1]) && (0xE9 == (bssid)[2]))

◆ mac_is_haier_ap

#define mac_is_haier_ap ( bssid ) ((0x08 == (bssid)[0]) && (0x10 == (bssid)[1]) && (0x79 == (bssid)[2]))

◆ mac_is_netgear_wndr_ap

#define mac_is_netgear_wndr_ap ( bssid ) ((0x08 == (bssid)[0]) && (0xbd == (bssid)[1]) && (0x43 == (bssid)[2]))

◆ mac_is_trendnet_ap

#define mac_is_trendnet_ap ( bssid ) ((0xd8 == (bssid)[0]) && (0xeb == (bssid)[1]) && (0x97 == (bssid)[2]))

◆ mac_is_wavetest_sta

#define mac_is_wavetest_sta ( bssid ) ((0x0 == ((bssid)[0])) && ((0x1 == ((bssid)[1])) || (0x2 == ((bssid)[1]))) && (0x1 == ((bssid)[2])))

◆ MAC_LIS_INTERVAL_IE_LEN

#define MAC_LIS_INTERVAL_IE_LEN 2 /* listen interval信息元素长度 */

◆ MAC_LISTEN_INT_LEN

#define MAC_LISTEN_INT_LEN 2

◆ MAC_MAX_BSS_INFO_TRANS

#define MAC_MAX_BSS_INFO_TRANS 5

◆ MAC_MAX_COUNTRY_LEN

#define MAC_MAX_COUNTRY_LEN 254

◆ MAC_MAX_RSN_LEN

#define MAC_MAX_RSN_LEN 64

◆ MAC_MAX_SUPRATES

#define MAC_MAX_SUPRATES 8 /* WLAN_EID_RATES最大支持8个速率 */

◆ MAC_MBO_ASSOC_DIS_ATTR_LEN

#define MAC_MBO_ASSOC_DIS_ATTR_LEN 3

◆ MAC_MBO_ATTRIBUTE_HDR_LEN

#define MAC_MBO_ATTRIBUTE_HDR_LEN 2 /* Attribute ID + Attribute Length */

◆ MAC_MBO_IE_OUI_TYPE

#define MAC_MBO_IE_OUI_TYPE 0x16 /* Identifying the type and version of the MBO-OCE IE */

◆ MAC_MBO_OUI_LENGTH

#define MAC_MBO_OUI_LENGTH 3

◆ MAC_MBO_VENDOR_IE

#define MAC_MBO_VENDOR_IE 0x506F9A /* WFA specific OUI */

◆ MAC_MEASUREMENT_REQUEST_IE_OFFSET

#define MAC_MEASUREMENT_REQUEST_IE_OFFSET 5

◆ MAC_MIN_COUNTRY_LEN

#define MAC_MIN_COUNTRY_LEN 6

◆ MAC_MIN_RATES_LEN

#define MAC_MIN_RATES_LEN 1

◆ MAC_MIN_RSN_LEN

#define MAC_MIN_RSN_LEN 12

◆ MAC_MIN_WPA_LEN

#define MAC_MIN_WPA_LEN 12

◆ MAC_MIN_WPS_IE_LEN

#define MAC_MIN_WPS_IE_LEN 5

◆ MAC_MIN_XCAPS_LEN

#define MAC_MIN_XCAPS_LEN 1

◆ MAC_MIN_XRATE_LEN

#define MAC_MIN_XRATE_LEN 1

◆ MAC_MOBILITY_DOMAIN_LEN

#define MAC_MOBILITY_DOMAIN_LEN 5

◆ MAC_ND_NADVT

#define MAC_ND_NADVT 136 /* Neighbor Advertisement */

◆ MAC_ND_NSOL

#define MAC_ND_NSOL 135 /* Neighbor Solicitation */

◆ MAC_ND_RADVT

#define MAC_ND_RADVT 134 /* Router Advertisement */

◆ MAC_ND_RMES

#define MAC_ND_RMES 137 /* Redirect Message */

◆ MAC_ND_RSOL

#define MAC_ND_RSOL 133 /* Router Solicitation */

◆ MAC_NEIGHBOR_REPORT_IE_LEN

#define MAC_NEIGHBOR_REPORT_IE_LEN 13 /* NEIGHBOR_REPORT长度 */

◆ MAC_NO_CHANGE

#define MAC_NO_CHANGE (0)

◆ MAC_OBSS_SCAN_IE_LEN

#define MAC_OBSS_SCAN_IE_LEN 14

◆ MAC_OSAL_1024QAM_IE

#define MAC_OSAL_1024QAM_IE 0xbd /* 1024QAM IE */

◆ MAC_OUI_LEN

#define MAC_OUI_LEN 3

◆ MAC_OUI_WMM_VERSION

#define MAC_OUI_WMM_VERSION 1

◆ MAC_OUISUBTYPE_WFA

#define MAC_OUISUBTYPE_WFA 0x00

◆ MAC_OUISUBTYPE_WMM_INFO

#define MAC_OUISUBTYPE_WMM_INFO 0

◆ MAC_OUISUBTYPE_WMM_PARAM

#define MAC_OUISUBTYPE_WMM_PARAM 1

◆ MAC_OUISUBTYPE_WMM_PARAM_OFFSET

#define MAC_OUISUBTYPE_WMM_PARAM_OFFSET 6 /* wmm 字段中EDCA_INFO位置,表示是否携带EDCA参数偏移6 */

◆ MAC_OUITYPE_LEN

#define MAC_OUITYPE_LEN 1

◆ MAC_OUITYPE_P2P

#define MAC_OUITYPE_P2P 9

◆ MAC_OUITYPE_WFA

#define MAC_OUITYPE_WFA 8

◆ MAC_OUITYPE_WMM

#define MAC_OUITYPE_WMM 2

◆ MAC_OUITYPE_WPA

#define MAC_OUITYPE_WPA 1

◆ MAC_OUITYPE_WPS

#define MAC_OUITYPE_WPS 4

◆ MAC_P2P_ATTRIBUTE_HDR_LEN

#define MAC_P2P_ATTRIBUTE_HDR_LEN 3 /* P2P_ATTRIBUTE信息元素头部 1字节ATTRIBUTE + 2字节长度 */

◆ MAC_P2P_LISTEN_CHN_ATTR_LEN

#define MAC_P2P_LISTEN_CHN_ATTR_LEN 5 /* LISTEN CHANNEL ATTRIBUTE长度 */

◆ MAC_P2P_MIN_IE_LEN

#define MAC_P2P_MIN_IE_LEN 4 /* P2P IE的最小长度 */

◆ MAC_PMKID_LEN

#define MAC_PMKID_LEN 16

◆ MAC_PRIV_CAP_IE

#define MAC_PRIV_CAP_IE 0x20

◆ MAC_PRIV_HIEX_IE

#define MAC_PRIV_HIEX_IE 0x81

◆ MAC_PWR_CAP_LEN

#define MAC_PWR_CAP_LEN 2

◆ MAC_PWR_CONSTRAINT_LEN

#define MAC_PWR_CONSTRAINT_LEN 1 /* 功率限制ie长度为1 */

◆ MAC_QOS_CTL_LEN

#define MAC_QOS_CTL_LEN 2 /* QOS CONTROL字段的长度 */

◆ MAC_QOS_INFO_LEN

#define MAC_QOS_INFO_LEN 1

◆ MAC_QUIET_COUNT

#define MAC_QUIET_COUNT MAC_QUIET_PERIOD

◆ MAC_QUIET_DURATION

#define MAC_QUIET_DURATION 0x0000

◆ MAC_QUIET_IE_LEN

#define MAC_QUIET_IE_LEN 6 /* quiet信息元素长度 */

◆ MAC_QUIET_OFFSET

#define MAC_QUIET_OFFSET 0x0000

◆ MAC_QUIET_PERIOD

#define MAC_QUIET_PERIOD 0

◆ MAC_RADIO_MEAS_START_TIME_LEN

#define MAC_RADIO_MEAS_START_TIME_LEN 8

◆ MAC_RARP_REQUEST

#define MAC_RARP_REQUEST 0x0003

◆ MAC_RARP_RESPONSE

#define MAC_RARP_RESPONSE 0x0004

◆ MAC_REPORT_RSSIINFO_LEN

#define MAC_REPORT_RSSIINFO_LEN 8

◆ MAC_REPORT_RSSIINFO_SNR_LEN

#define MAC_REPORT_RSSIINFO_SNR_LEN 10

◆ MAC_REPORT_SNR_LEN

#define MAC_REPORT_SNR_LEN 2

◆ MAC_RM_MEASUREMENT_REQUEST_IE_OFFSET

#define MAC_RM_MEASUREMENT_REQUEST_IE_OFFSET 5

◆ MAC_RRM_ENABLE_CAP_IE_LEN

#define MAC_RRM_ENABLE_CAP_IE_LEN 5

◆ MAC_RSN_CAP_LEN

#define MAC_RSN_CAP_LEN 2

◆ MAC_RSN_CIPHER_COUNT_LEN

#define MAC_RSN_CIPHER_COUNT_LEN 2 /* RSN IE Cipher count len */

◆ MAC_RSN_IE_VERSION

#define MAC_RSN_IE_VERSION 1

◆ MAC_RSN_VERSION_LEN

#define MAC_RSN_VERSION_LEN 2 /* wpa/RSN version len */

◆ MAC_RTS_TXOP_THRED_CHANGE

#define MAC_RTS_TXOP_THRED_CHANGE (BIT10)

◆ MAC_SA_QUERY_LEN

#define MAC_SA_QUERY_LEN 4 /* SA Query element len */

◆ MAC_SEC_CH_OFFSET_IE_LEN

#define MAC_SEC_CH_OFFSET_IE_LEN 1

◆ MAC_SSID_OFFSET

#define MAC_SSID_OFFSET 12

◆ MAC_STATUS_CODE_LEN

#define MAC_STATUS_CODE_LEN 2

◆ MAC_SUBMSDU_DA_OFFSET

#define MAC_SUBMSDU_DA_OFFSET 0 /* submsdu的目的地址的偏移值 */

◆ MAC_SUBMSDU_LENGTH_OFFSET

#define MAC_SUBMSDU_LENGTH_OFFSET 12 /* submsdu的长度字段的偏移值 */

◆ MAC_SUBMSDU_SA_OFFSET

#define MAC_SUBMSDU_SA_OFFSET 6 /* submsdu的源地址的偏移值 */

◆ MAC_TAG_PARAM_OFFSET

#define MAC_TAG_PARAM_OFFSET (MAC_80211_FRAME_LEN + MAC_TIME_STAMP_LEN + MAC_BEACON_INTERVAL_LEN + MAC_CAP_INFO_LEN)

◆ MAC_TIM_LEN_EXCEPT_PVB

#define MAC_TIM_LEN_EXCEPT_PVB 3 /* DTIM Period、DTIM Count与BitMap Control三个字段的长度 */

◆ MAC_TIMEOUT_INTERVAL_INFO_LEN

#define MAC_TIMEOUT_INTERVAL_INFO_LEN 5

◆ MAC_TPCREP_IE_LEN

#define MAC_TPCREP_IE_LEN 2

◆ MAC_TSC_REQ_BIN0_RANGE

#define MAC_TSC_REQ_BIN0_RANGE 10

◆ MAC_TSC_TID_MASK

#define MAC_TSC_TID_MASK ( _tid ) (((_tid)<<4)&0xF)

◆ MAC_VHT_CAP_IE_LEN

#define MAC_VHT_CAP_IE_LEN 12

◆ MAC_VHT_CAP_INFO_FIELD_LEN

#define MAC_VHT_CAP_INFO_FIELD_LEN 4

◆ MAC_VHT_CAP_RX_HIGHEST_DATA_FIELD_LEN

#define MAC_VHT_CAP_RX_HIGHEST_DATA_FIELD_LEN 2 /* vht cap ie rx_highest_data field length */

◆ MAC_VHT_CAP_RX_MCS_MAP_FIELD_LEN

#define MAC_VHT_CAP_RX_MCS_MAP_FIELD_LEN 2 /* vht cap ie rx_mcs_map field length */

◆ MAC_VHT_CAP_TX_MCS_MAP_FIELD_LEN

#define MAC_VHT_CAP_TX_MCS_MAP_FIELD_LEN 2 /* vht cap ie tx_mcs_map field length */

◆ MAC_VHT_CHANGE

#define MAC_VHT_CHANGE (BIT1)

◆ MAC_VHT_INFO_IE_LEN

#define MAC_VHT_INFO_IE_LEN 5

◆ MAC_VHT_OPERN_INFO_FIELD_LEN

#define MAC_VHT_OPERN_INFO_FIELD_LEN 3 /* vht opern ie infomation field length */

◆ MAC_VHT_OPERN_LEN

#define MAC_VHT_OPERN_LEN 5 /* vht opern ie length */

◆ MAC_WFA_TPC_RPT_LEN

#define MAC_WFA_TPC_RPT_LEN 7

◆ MAC_WFD_RTSP_PORT

#define MAC_WFD_RTSP_PORT 7236

◆ MAC_WIDE_BW_CH_SWITCH_IE_LEN

#define MAC_WIDE_BW_CH_SWITCH_IE_LEN 3

◆ MAC_WLAN_CHIP_OUI_ATHEROSC

#define MAC_WLAN_CHIP_OUI_ATHEROSC 0x00037f

◆ MAC_WLAN_CHIP_OUI_RALINK

#define MAC_WLAN_CHIP_OUI_RALINK 0x000c43

◆ MAC_WLAN_CHIP_OUI_TYPE_ATHEROSC

#define MAC_WLAN_CHIP_OUI_TYPE_ATHEROSC 0x1

◆ MAC_WLAN_CHIP_OUI_TYPE_RALINK

#define MAC_WLAN_CHIP_OUI_TYPE_RALINK 0x3

◆ MAC_WLAN_CHIP_OUI_TYPE_RALINK1

#define MAC_WLAN_CHIP_OUI_TYPE_RALINK1 0x7

◆ MAC_WLAN_OUI_BROADCOM_EPIGRAM

#define MAC_WLAN_OUI_BROADCOM_EPIGRAM 0x00904c /* Broadcom (Epigram) */

◆ MAC_WLAN_OUI_MICROSOFT

#define MAC_WLAN_OUI_MICROSOFT 0x0050f2

◆ MAC_WLAN_OUI_PUBLIC

#define MAC_WLAN_OUI_PUBLIC 0x00E0fC

◆ MAC_WLAN_OUI_TYPE_4ADDR

#define MAC_WLAN_OUI_TYPE_4ADDR 0x40 /* 4地址IE的OUI TYPE字段 */

◆ MAC_WLAN_OUI_TYPE_CASCADE

#define MAC_WLAN_OUI_TYPE_CASCADE 0xA0

◆ MAC_WLAN_OUI_TYPE_MICROSOFT_WMM

#define MAC_WLAN_OUI_TYPE_MICROSOFT_WMM 2

◆ MAC_WLAN_OUI_TYPE_MICROSOFT_WPA

#define MAC_WLAN_OUI_TYPE_MICROSOFT_WPA 1

◆ MAC_WLAN_OUI_TYPE_MICROSOFT_WPS

#define MAC_WLAN_OUI_TYPE_MICROSOFT_WPS 4

◆ MAC_WLAN_OUI_TYPE_WFA_P2P

#define MAC_WLAN_OUI_TYPE_WFA_P2P 9

◆ MAC_WLAN_OUI_VENDOR_HT_CAPAB_OUI_TYPE

#define MAC_WLAN_OUI_VENDOR_HT_CAPAB_OUI_TYPE 0x33 /* 00-90-4c:0x33 */

◆ MAC_WLAN_OUI_VENDOR_VHT_HEADER

#define MAC_WLAN_OUI_VENDOR_VHT_HEADER 5

◆ MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE

#define MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE 0x08

◆ MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE2

#define MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE2 0x00

◆ MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE3

#define MAC_WLAN_OUI_VENDOR_VHT_SUBTYPE3 0x07

◆ MAC_WLAN_OUI_VENDOR_VHT_TYPE

#define MAC_WLAN_OUI_VENDOR_VHT_TYPE 0x04

◆ MAC_WLAN_OUI_WFA

#define MAC_WLAN_OUI_WFA 0x506f9a

◆ MAC_WMM_INFO_LEN

#define MAC_WMM_INFO_LEN 7 /* WMM info ie */

◆ MAC_WMM_OUI_BYTE_ONE

#define MAC_WMM_OUI_BYTE_ONE 0x00

◆ MAC_WMM_OUI_BYTE_THREE

#define MAC_WMM_OUI_BYTE_THREE 0xF2

◆ MAC_WMM_OUI_BYTE_TWO

#define MAC_WMM_OUI_BYTE_TWO 0x50

◆ MAC_WMM_PARAM_LEN

#define MAC_WMM_PARAM_LEN 24 /* WMM parameters ie */

◆ MAC_WMM_QOS_INFO_POS

#define MAC_WMM_QOS_INFO_POS 8 /* wmm 字段中qos info位置，偏移8 */

◆ MAC_WMM_QOS_PARAM_ACI_BIT_OFFSET

#define MAC_WMM_QOS_PARAM_ACI_BIT_OFFSET 5

◆ MAC_WMM_QOS_PARAM_ACI_MASK

#define MAC_WMM_QOS_PARAM_ACI_MASK 0x03

◆ MAC_WMM_QOS_PARAM_AIFSN_MASK

#define MAC_WMM_QOS_PARAM_AIFSN_MASK 0x0F

◆ MAC_WMM_QOS_PARAM_BIT_NUMS_OF_ONE_BYTE

#define MAC_WMM_QOS_PARAM_BIT_NUMS_OF_ONE_BYTE 8

◆ MAC_WMM_QOS_PARAM_ECWMAX_BIT_OFFSET

#define MAC_WMM_QOS_PARAM_ECWMAX_BIT_OFFSET 4

◆ MAC_WMM_QOS_PARAM_ECWMAX_MASK

#define MAC_WMM_QOS_PARAM_ECWMAX_MASK 0xF0

◆ MAC_WMM_QOS_PARAM_ECWMIN_MASK

#define MAC_WMM_QOS_PARAM_ECWMIN_MASK 0x0F

◆ MAC_WMM_QOS_PARAM_TXOPLIMIT_MASK

#define MAC_WMM_QOS_PARAM_TXOPLIMIT_MASK 0x00FF

◆ MAC_WMM_QOS_PARAM_TXOPLIMIT_SAVE_TO_TRANS_TIMES

#define MAC_WMM_QOS_PARAM_TXOPLIMIT_SAVE_TO_TRANS_TIMES 5

◆ MAC_WMM_SWITCH_TID

#define MAC_WMM_SWITCH_TID 6

◆ MAC_WMM_UAPSD_ALL

#define MAC_WMM_UAPSD_ALL (BIT0 | BIT1 | BIT2 | BIT3)

◆ MAC_WPA_IE_VERSION

#define MAC_WPA_IE_VERSION 1

◆ MAC_WPS_ATTRIBUTE_HDR_LEN

#define MAC_WPS_ATTRIBUTE_HDR_LEN 4 /* WPS_ATTRIBUTE信息元素头部 2字节ATTRIBUTE TYPE + 2字节长度 */

◆ MAC_WPS_ATTRIBUTE_REQUEST_TYPE

#define MAC_WPS_ATTRIBUTE_REQUEST_TYPE 0x103a /* ATTRIBUTE_REQUEST_TYPE 0x103a */

◆ MAC_WPS_REQUEST_TYPE_ATTR_LEN

#define MAC_WPS_REQUEST_TYPE_ATTR_LEN 1 /* ATTRIBUTE_REQUEST_TYPE长度 */

◆ MAC_XCAPS_EX_FTM_LEN

#define MAC_XCAPS_EX_FTM_LEN 9 /* 初始值为5，由于11ac Operating Mode Notification特性标志为bit62长度修改为8,ftm特性需要长度为9 */

◆ MAC_XCAPS_EX_LEN

#define MAC_XCAPS_EX_LEN 8 /* 初始值为5，由于11ac Operating Mode Notification特性标志为bit62长度修改为8,ftm特性需要长度为9 */

◆ MBO_IE_HEADER

#define MBO_IE_HEADER 6 /* type + length + oui + oui type */

◆ P2P_ATTR_HDR_LEN

#define P2P_ATTR_HDR_LEN 3

◆ P2P_ATTR_ID_SIZE

#define P2P_ATTR_ID_SIZE 1

◆ P2P_ELEMENT_ID_SIZE

#define P2P_ELEMENT_ID_SIZE 1

◆ P2P_IE_HDR_LEN

#define P2P_IE_HDR_LEN 6

◆ P2P_OUI_LEN

#define P2P_OUI_LEN 4

◆ P2P_PAF_GON_CONF

#define P2P_PAF_GON_CONF 2

◆ P2P_PAF_GON_REQ

#define P2P_PAF_GON_REQ 0

◆ P2P_PAF_GON_RSP

#define P2P_PAF_GON_RSP 1

◆ P2P_PAF_PD_REQ

#define P2P_PAF_PD_REQ 7

◆ WFA_OUI_BYTE1

#define WFA_OUI_BYTE1 0x50

◆ WFA_OUI_BYTE2

#define WFA_OUI_BYTE2 0x6F

◆ WFA_OUI_BYTE3

#define WFA_OUI_BYTE3 0x9A

◆ WFA_P2P_V1_0

#define WFA_P2P_V1_0 0x09

◆ WLAN_AKM_SUITE_WAPI_CERT

#define WLAN_AKM_SUITE_WAPI_CERT 0x000FAC12

◆ WPS_IE_HDR_LEN

#define WPS_IE_HDR_LEN 6

类型定义说明

◆ hmac_color_event_rpt_elements_stru

typedef struct hmac_color_event_rpt_elements hmac_color_event_rpt_elements_stru

◆ hmac_set_he_capabilities_ie_resv

typedef osal_u32(* hmac_set_he_capabilities_ie_resv) (const osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

◆ mac_11ntxbf_info_stru

typedef struct mac_11ntxbf_info mac_11ntxbf_info_stru

◆ mac_11ntxbf_vendor_ie_stru

typedef struct mac_11ntxbf_vendor_ie mac_11ntxbf_vendor_ie_stru

◆ mac_ampdu_params_stru

typedef struct mac_ampdu_params mac_ampdu_params_stru

◆ mac_asel_cap_stru

typedef struct mac_asel_cap mac_asel_cap_stru

◆ mac_assoc_retry_delay_attr_mbo_ie_stru

typedef struct mac_assoc_retry_delay_attr_mbo_ie mac_assoc_retry_delay_attr_mbo_ie_stru

◆ mac_ba_parameterset_stru

typedef struct mac_ba_parameterset mac_ba_parameterset_stru

◆ mac_ba_seqctrl_stru

typedef struct mac_ba_seqctrl mac_ba_seqctrl_stru

◆ mac_bss_load_stru

typedef struct mac_bss_load mac_bss_load_stru

◆ mac_cap_info_stru

typedef struct mac_cap_info mac_cap_info_stru

◆ mac_capability_enum_uint16

typedef osal_u16 mac_capability_enum_uint16

◆ mac_country_reg_field_stru

typedef struct mac_country_reg_field mac_country_reg_field_stru

◆ mac_eid_extension_enum_uint8

typedef osal_u8 mac_eid_extension_enum_uint8

◆ mac_erp_params_stru

typedef struct mac_erp_params mac_erp_params_stru

◆ mac_ext_cap_stru

typedef struct mac_ext_cap mac_ext_cap_stru

◆ mac_frame_bss_color_change_annoncement_ie_stru

typedef struct mac_frame_bss_color_change_annoncement_ie mac_frame_bss_color_change_annoncement_ie_stru

◆ mac_frame_he_spatial_reuse_parameter_set_ie_stru

typedef struct mac_frame_he_spatial_reuse_parameter_set_ie mac_frame_he_spatial_reuse_parameter_set_ie_stru

◆ mac_frame_he_sr_control_stru

typedef struct mac_frame_he_sr_control mac_frame_he_sr_control_stru

◆ mac_frame_ht_cap_stru

typedef struct mac_frame_ht_cap mac_frame_ht_cap_stru

◆ mac_ft_action_type_enum_uint8

typedef osal_u8 mac_ft_action_type_enum_uint8

◆ mac_hiex_cap_stru

typedef struct mac_hiex_cap mac_hiex_cap_stru

◆ mac_hiex_vendor_ie_stru

typedef struct mac_hiex_vendor_ie mac_hiex_vendor_ie_stru

◆ mac_ht_action_type_enum_uint8

typedef osal_u8 mac_ht_action_type_enum_uint8

◆ mac_ht_opern_stru

typedef struct mac_ht_opern mac_ht_opern_stru

◆ mac_ieee80211_frame_addr4_stru

typedef struct mac_ieee80211_frame_addr4 mac_ieee80211_frame_addr4_stru

◆ mac_ieee80211_qos_frame_addr4_stru

typedef struct mac_ieee80211_qos_frame_addr4 mac_ieee80211_qos_frame_addr4_stru

◆ mac_ieee80211_qos_htc_frame_addr4_stru

typedef struct mac_ieee80211_qos_htc_frame_addr4 mac_ieee80211_qos_htc_frame_addr4_stru

◆ mac_ieee80211_vendor_ie_stru

typedef struct mac_ieee80211_vendor_ie mac_ieee80211_vendor_ie_stru

◆ mac_last_beacon_report_indication_stru

typedef struct mac_last_beacon_report_indication mac_last_beacon_report_indication_stru

◆ mac_mbo_attr_id_enum_uint8

typedef osal_u8 mac_mbo_attr_id_enum_uint8

◆ mac_mimo_power_save_mode_enum_uint8

typedef osal_u8 mac_mimo_power_save_mode_enum_uint8

◆ mac_msdu_proc_status_enum_uint8

typedef osal_u8 mac_msdu_proc_status_enum_uint8

◆ mac_obss_scan_params_stru

typedef struct mac_obss_scan_params mac_obss_scan_params_stru

◆ mac_opmode_notify_stru

typedef struct mac_opmode_notify mac_opmode_notify_stru

◆ mac_p2p_attribute_enum_uint8

typedef osal_u8 mac_p2p_attribute_enum_uint8

◆ mac_priv_cap_stru

typedef struct mac_priv_cap mac_priv_cap_stru

◆ mac_priv_vendor_ie_stru

typedef struct mac_priv_vendor_ie mac_priv_vendor_ie_stru

◆ mac_protected_he_action_type_enum_uint8

typedef osal_u8 mac_protected_he_action_type_enum_uint8

◆ mac_qos_info_stru

typedef struct mac_qos_info mac_qos_info_stru

◆ mac_quiet_ie_stru

typedef struct mac_quiet_ie mac_quiet_ie_stru

◆ mac_reported_frame_body_fragment_id_stru

typedef struct mac_reported_frame_body_fragment_id mac_reported_frame_body_fragment_id_stru

◆ mac_rm_action_type_enum_uint8

typedef osal_u8 mac_rm_action_type_enum_uint8

◆ mac_rsn_cap_stru

typedef struct mac_rsn_cap mac_rsn_cap_stru

◆ mac_sa_query_action_type_enum_uint8

typedef osal_u8 mac_sa_query_action_type_enum_uint8

◆ mac_sec_ch_off_enum_uint8

typedef osal_u8 mac_sec_ch_off_enum_uint8

◆ mac_specmgmt_action_type_enum_uint8

typedef osal_u8 mac_specmgmt_action_type_enum_uint8

◆ mac_sup_mcs_set_stru

typedef struct mac_sup_mcs_set mac_sup_mcs_set_stru

◆ mac_timeout_interval_type_enum_uint8

typedef osal_u8 mac_timeout_interval_type_enum_uint8

◆ mac_ts_info_stru

typedef struct mac_ts_info mac_ts_info_stru

◆ mac_txbf_clb_enum_uint8

typedef osal_u8 mac_txbf_clb_enum_uint8

◆ mac_vht_cap_info_stru

typedef struct mac_vht_cap_info mac_vht_cap_info_stru

◆ mac_vht_opern_stru

typedef struct mac_vht_opern mac_vht_opern_stru

◆ mac_wnm_action_type_enum_uint8

typedef osal_u8 mac_wnm_action_type_enum_uint8

◆ set_ext_cap_ie

typedef osal_void(* set_ext_cap_ie) (osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

◆ set_ht_cap_ie

typedef osal_void(* set_ht_cap_ie) (osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

◆ set_ht_opern_ie

typedef osal_void(* set_ht_opern_ie) (osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

◆ set_nb_ie

typedef osal_void(* set_nb_ie) (osal_u8 *buffer, osal_u8 *ie_len)

◆ set_rsn_ie

typedef osal_void(* set_rsn_ie) (osal_void *vap, osal_u8 *pmkid, osal_u8 *buffer, osal_u8 *ie_len)

◆ set_vht_cap_ie

typedef osal_void(* set_vht_cap_ie) (osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

◆ set_vht_capinfo_field

typedef osal_void(* set_vht_capinfo_field) (osal_void *vap, osal_u8 *buffer)

◆ set_vht_opern_ie

typedef osal_void(* set_vht_opern_ie) (osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

◆ set_wpa_ie

typedef osal_void(* set_wpa_ie) (osal_void *vap, osal_u8 *buffer, osal_u8 *ie_len)

枚举类型说明

◆ attribute_id_t

enum attribute_id_t

枚举值
P2P_STATUS
P2P_MINOR_REASON_CODE
P2P_CAPABILITY
P2P_DEVICE_ID
GROUP_OWNER_INTENT
CONFIG_TIMEOUT
LISTEN_CHANNEL
P2P_GROUP_BSSID
EXTENDED_LISTEN_TIMING
INTENDED_P2P_IF_ADDR
P2P_MANAGEABILITY
P2P_CHANNEL_LIST
NOTICE_OF_ABSENCE
P2P_DEVICE_INFO
P2P_GROUP_INFO
P2P_GROUP_ID
P2P_INTERFACE
P2P_OPERATING_CHANNEL
INVITATION_FLAGS

◆ mac_capability_enum

enum mac_capability_enum

枚举值
MAC_CAP_ESS
MAC_CAP_IBSS
MAC_CAP_POLLABLE
MAC_CAP_POLL_REQ
MAC_CAP_PRIVACY
MAC_CAP_SHORT_PREAMBLE
MAC_CAP_SHORT_SLOT
MAC_CAP_PBCC
MAC_CAP_CHANNEL_AGILITY
MAC_CAP_SPECTRUM_MGMT
MAC_CAP_RADIO_MEAS
MAC_CAP_DSSS_OFDM

◆ mac_eid_extension_enum

enum mac_eid_extension_enum

枚举值
MAC_EID_EXT_FTMSI

◆ mac_ft_action_type_enum

enum mac_ft_action_type_enum

枚举值
MAC_FT_ACTION_REQUEST
MAC_FT_ACTION_RESPONSE
MAC_FT_ACTION_CONFIRM
MAC_FT_ACTION_ACK
MAC_FT_ACTION_BUTT

◆ mac_ht_action_type_enum

enum mac_ht_action_type_enum

枚举值
MAC_HT_ACTION_NOTIFY_CHANNEL_WIDTH
MAC_HT_ACTION_SMPS
MAC_HT_ACTION_PSMP
MAC_HT_ACTION_SET_PCO_PHASE
MAC_HT_ACTION_CSI
MAC_HT_ACTION_NON_COMPRESSED_BEAMFORMING
MAC_HT_ACTION_COMPRESSED_BEAMFORMING
MAC_HT_ACTION_ASEL_INDICES_FEEDBACK
MAC_HT_ACTION_BUTT

◆ mac_mbo_attr_id_enum

enum mac_mbo_attr_id_enum

枚举值
MBO_ATTR_ID_AP_CAPA_IND
MBO_ATTR_ID_NON_PREF_CHAN_REPORT
MBO_ATTR_ID_CELL_DATA_CAPA
MBO_ATTR_ID_ASSOC_DISALLOW
MBO_ATTR_ID_CELL_DATA_PREF
MBO_ATTR_ID_TRANSITION_REASON
MBO_ATTR_ID_TRANSITION_REJECT_REASON
MBO_ATTR_ID_ASSOC_RETRY_DELAY

◆ mac_mimo_power_save_enum

enum mac_mimo_power_save_enum

枚举值
MAC_SMPS_STATIC_MODE
MAC_SMPS_DYNAMIC_MODE
MAC_SMPS_MIMO_MODE
MAC_SMPS_MODE_BUTT

◆ mac_msdu_proc_status_enum

enum mac_msdu_proc_status_enum

枚举值
MAC_PROC_ERROR
MAC_PROC_LAST_MSDU
MAC_PROC_MORE_MSDU
MAC_PROC_LAST_MSDU_ODD
MAC_PROC_BUTT

◆ mac_p2p_attribute_enum

enum mac_p2p_attribute_enum

枚举值
MAC_P2P_ATTRIBUTE_CAP
MAC_P2P_ATTRIBUTE_GROUP_OI
MAC_P2P_ATTRIBUTE_CFG_TIMEOUT
MAC_P2P_ATTRIBUTE_LISTEN_CHAN

◆ mac_protected_he_action_type

enum mac_protected_he_action_type

枚举值
MAC_PROTECTED_HE_ACTION_HE_BSS_COLOR_CHANGE_ANNOUNCEMENT
MAC_PROTECTED_HE_ACTION_MU_EDCA_CONTROL
MAC_PROTECTED_HE_ACTION_MAX

◆ mac_rm_action_type_enum

enum mac_rm_action_type_enum

枚举值
MAC_RM_ACTION_RADIO_MEASUREMENT_REQUEST
MAC_RM_ACTION_RADIO_MEASUREMENT_REPORT
MAC_RM_ACTION_LINK_MEASUREMENT_REQUEST
MAC_RM_ACTION_LINK_MEASUREMENT_REPORT
MAC_RM_ACTION_NEIGHBOR_REPORT_REQUEST
MAC_RM_ACTION_NEIGHBOR_REPORT_RESPONSE

◆ mac_sa_query_action_type_enum

enum mac_sa_query_action_type_enum

枚举值
MAC_SA_QUERY_ACTION_REQUEST
MAC_SA_QUERY_ACTION_RESPONSE

◆ mac_sec_ch_off_enum

enum mac_sec_ch_off_enum

枚举值
MAC_SCN
MAC_SCA
MAC_SCB
MAC_SEC_CH_BUTT

◆ mac_specmgmt_action_type_enum

enum mac_specmgmt_action_type_enum

枚举值
MAC_SPEC_CH_SWITCH_ANNOUNCE

◆ mac_timeout_interval_type_enum

enum mac_timeout_interval_type_enum

枚举值
MAC_TIE_REASSOCIATION_DEADLINE_INTERVAL
MAC_TIE_KEY_LIFETIME_INTERVAL
MAC_TIE_ASSOCIATION_COMEBACK_TIME
MAC_TIE_BUTT

◆ mac_txbf_clb_enum

enum mac_txbf_clb_enum

枚举值
MAC_NOT_SURPPORT_CLB
MAC_RSP_CLB_ONLY
MAC_SUPPOTR_CLB
MAC_CLB_BUTT

◆ mac_wnm_action_type_enum

enum mac_wnm_action_type_enum

枚举值
MAC_WNM_ACTION_EVENT_REQUEST
MAC_WNM_ACTION_EVENT_REPORT
MAC_WNM_ACTION_DIALGNOSTIC_REQUEST
MAC_WNM_ACTION_DIALGNOSTIC_REPORT
MAC_WNM_ACTION_LOCATION_CONF_REQUEST
MAC_WNM_ACTION_LOCATION_CONF_RESPONSE
MAC_WNM_ACTION_BSS_TRANSITION_MGMT_QUERY
MAC_WNM_ACTION_BSS_TRANSITION_MGMT_REQUEST
MAC_WNM_ACTION_BSS_TRANSITION_MGMT_RESPONSE
MAC_WNM_ACTION_FMS_REQUEST
MAC_WNM_ACTION_FMS_RESPONSE
MAC_WNM_ACTION_COLLOCATED_INTER_REQUEST
MAC_WNM_ACTION_COLLOCATEC_INTER_REPORT
MAC_WNM_ACTION_TFS_REQUEST
MAC_WNM_ACTION_TFS_RESPONSE
MAC_WNM_ACTION_TFS_NOTIFY
MAC_WNM_ACTION_SLEEP_MODE_REQUEST
MAC_WNM_ACTION_SLEEP_MODE_RESPONSE
MAC_WNM_ACTION_TIM_BROADCAST_REQUEST
MAC_WNM_ACTION_TIM_BROADCAST_RESPONSE
MAC_WNM_ACTION_QOS_TRAFFIC_CAP_UPDATE
MAC_WNM_ACTION_CHANNEL_USAGE_REQUEST
MAC_WNM_ACTION_CHANNEL_USAGE_RESPONSE
MAC_WNM_ACTION_DMS_REQUEST
MAC_WNM_ACTION_DMS_RESPONSE
MAC_WNM_ACTION_TIMING_MEAS_REQUEST
MAC_WNM_ACTION_NOTIFICATION_REQUEST
MAC_WNM_ACTION_NOTIFICATION_RESPONSE
MAC_WNM_ACTION_BUTT

◆ p2p_gen_act_frm_off

enum p2p_gen_act_frm_off

枚举值
P2P_GEN_ACT_OUI_OFF1
P2P_GEN_ACT_OUI_OFF2
P2P_GEN_ACT_OUI_OFF3
P2P_GEN_ACT_OUI_TYPE_OFF
P2P_GEN_ACT_OUI_SUBTYPE_OFF
P2P_GEN_ACT_DIALOG_TOKEN_OFF
P2P_GEN_ACT_TAG_PARAM_OFF

◆ p2p_gen_action_frm_type

enum p2p_gen_action_frm_type

枚举值
P2P_NOA
P2P_PRESENCE_REQ
P2P_PRESENCE_RESP
GO_DISC_REQ

◆ p2p_pub_act_frm_off

enum p2p_pub_act_frm_off

枚举值
P2P_PUB_ACT_OUI_OFF1
P2P_PUB_ACT_OUI_OFF2
P2P_PUB_ACT_OUI_OFF3
P2P_PUB_ACT_OUI_TYPE_OFF
P2P_PUB_ACT_OUI_SUBTYPE_OFF
P2P_PUB_ACT_DIALOG_TOKEN_OFF
P2P_PUB_ACT_TAG_PARAM_OFF

◆ p2p_status_code_t

enum p2p_status_code_t

枚举值
P2P_STAT_SUCCESS
P2P_STAT_INFO_UNAVAIL
P2P_STAT_INCOMP_PARAM
P2P_STAT_LMT_REACHED
P2P_STAT_INVAL_PARAM
P2P_STAT_UNABLE_ACCO_REQ
P2P_STAT_PREV_PROT_ERROR
P2P_STAT_NO_COMMON_CHAN
P2P_STAT_UNKNW_P2P_GRP
P2P_STAT_GO_INTENT_15
P2P_STAT_INCOMP_PROV_ERROR
P2P_STAT_USER_REJECTED

函数说明

◆ hmac_add_app_ie_etc()

osal_void hmac_add_app_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u16 *	ie_len,
		app_ie_type_uint8	type
	)

◆ hmac_check_mac_privacy_etc()

osal_u32 hmac_check_mac_privacy_etc	(	osal_u16	cap_info,
		osal_void *	vap
	)

◆ hmac_encap_2040_coext_mgmt_etc()

osal_u16 hmac_encap_2040_coext_mgmt_etc	(	osal_void *	vap,
		oal_netbuf_stru *	buffer,
		osal_u8	coext_info,
		osal_u32	chan_report
	)

◆ hmac_find_ie_etc()

osal_u8 * hmac_find_ie_etc	(	osal_u8	eid,
		osal_u8 *	ies,
		osal_s32	l_len
	)

◆ hmac_find_ie_ext_ie()

osal_u8 * hmac_find_ie_ext_ie	(	osal_u8	eid,
		osal_u8	ext_eid,
		osal_u8 *	ie_addr,
		osal_s32	frame_len
	)

◆ hmac_find_vendor_ie_etc()

osal_u8 * hmac_find_vendor_ie_etc	(	osal_u32	oui,
		osal_u8	oui_type,
		osal_u8 *	ies,
		osal_s32	len
	)

◆ hmac_get_beacon_period_etc()

osal_u16 hmac_get_beacon_period_etc ( const osal_u8 * beacon_body )

◆ hmac_get_bss_type_etc()

osal_u8 hmac_get_bss_type_etc ( osal_u16 cap_info )

◆ hmac_get_dtim_cnt_etc()

osal_u8 hmac_get_dtim_cnt_etc	(	osal_u8 *	frame_body,
		osal_u16	frame_body_len
	)

◆ hmac_get_dtim_period_etc()

osal_u8 hmac_get_dtim_period_etc	(	osal_u8 *	frame_body,
		osal_u16	frame_body_len
	)

◆ hmac_get_rsn_capability_etc()

osal_u16 hmac_get_rsn_capability_etc ( const osal_u8 * rsn_ie )

◆ hmac_get_ssid_etc()

osal_u8 * hmac_get_ssid_etc	(	osal_u8 *	beacon_body,
		osal_s32	frame_body_len,
		osal_u8 *	ssid_len
	)

◆ hmac_get_wmm_ie_etc()

osal_u8 * hmac_get_wmm_ie_etc	(	osal_u8 *	beacon_body,
		osal_u16	frame_len
	)

◆ hmac_is_wmm_ie_etc()

oal_bool_enum_uint8 hmac_is_wmm_ie_etc ( const osal_u8 * ie )

◆ hmac_set_aid_ie_etc()

osal_void hmac_set_aid_ie_etc	(	osal_u8 *	buffer,
		osal_u16	assoc_id
	)

◆ hmac_set_beacon_interval_field_etc()

osal_void hmac_set_beacon_interval_field_etc	(	osal_void *	vap,
		osal_u8 *	buffer
	)

◆ hmac_set_cap_info_ap_etc()

osal_void hmac_set_cap_info_ap_etc	(	osal_void *	vap,
		osal_u8 *	cap_info
	)

◆ hmac_set_exsup_rates_ie_etc()

osal_void hmac_set_exsup_rates_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_ext_capabilities_ie_etc()

osal_void hmac_set_ext_capabilities_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_ht_capabilities_ie_etc()

osal_void hmac_set_ht_capabilities_ie_etc	(	osal_void *	vap,
		osal_u8 *	buf,
		osal_u8 *	ie_len
	)

◆ hmac_set_ht_opern_ie_etc()

osal_void hmac_set_ht_opern_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_listen_interval_ie_etc()

osal_void hmac_set_listen_interval_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_obss_scan_params_etc()

osal_void hmac_set_obss_scan_params_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_rsn_ie_etc()

osal_void hmac_set_rsn_ie_etc	(	osal_void *	vap,
		osal_u8 *	pmkid,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_ssid_ie_etc()

osal_void hmac_set_ssid_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len,
		osal_u16	frm_type
	)

◆ hmac_set_status_code_ie_etc()

osal_void hmac_set_status_code_ie_etc	(	osal_u8 *	buffer,
		mac_status_code_enum_uint16	status_code
	)

◆ hmac_set_supported_channel_ie_etc()

osal_void hmac_set_supported_channel_ie_etc	(	osal_void *	vap,
		osal_u8 *	buf,
		osal_u8 *	ie_len
	)

◆ hmac_set_supported_rates_ie_etc()

osal_void hmac_set_supported_rates_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_vht_capabilities_ie_etc()

osal_void hmac_set_vht_capabilities_ie_etc	(	osal_void *	vap,
		osal_u8 *	buf,
		osal_u8 *	ie_len
	)

◆ hmac_set_vht_opern_ie_etc()

osal_void hmac_set_vht_opern_ie_etc	(	osal_void *	vap,
		osal_u8 *	buf,
		osal_u8 *	ie_len
	)

◆ hmac_set_wmm_ie_sta_etc()

osal_void hmac_set_wmm_ie_sta_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ hmac_set_wmm_params_ie_etc()

osal_void hmac_set_wmm_params_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		oal_bool_enum_uint8	is_qos,
		osal_u8 *	ie_len
	)

◆ hmac_set_wpa_ie_etc()

osal_void hmac_set_wpa_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_add_extend_app_ie_etc()

osal_void mac_add_extend_app_ie_etc	(	const osal_void *	vap,
		osal_u8 **	buffer,
		app_ie_type_uint8	type
	)

◆ mac_add_wps_ie_etc()

osal_void mac_add_wps_ie_etc	(	const osal_void *	vap,
		osal_u8 *	buffer,
		osal_u16 *	ie_len,
		app_ie_type_uint8	type
	)

◆ mac_frame_get_p2p_oui()

osal_u8 const * mac_frame_get_p2p_oui ( osal_void )

◆ mac_frame_is_null_data()

oal_bool_enum_uint8 mac_frame_is_null_data ( oal_netbuf_stru * net_buf )

◆ mac_get_ext_ie_body()

osal_u8 * mac_get_ext_ie_body	(	osal_u8 *	beacon_body,
		osal_s32	frame_body_len,
		osal_u8 *	ext_ie_body_len,
		osal_u8	ext_eid
	)

◆ mac_get_ft_status()

OAL_STATIC OAL_INLINE osal_u16 mac_get_ft_status ( osal_u8 * mac_hdr )

◆ mac_set_bssload_ie()

osal_void mac_set_bssload_ie	(	const osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_set_cap_info_sta_etc()

osal_void mac_set_cap_info_sta_etc	(	osal_void *	vap,
		osal_u8 *	cap_info
	)

◆ mac_set_dsss_params_etc()

osal_void mac_set_dsss_params_etc	(	const osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len,
		osal_u8	chan_num
	)

◆ mac_set_erp_ie_etc()

osal_void mac_set_erp_ie_etc	(	const osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_set_power_cap_ie_etc()

osal_void mac_set_power_cap_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_set_pwrconstraint_ie_etc()

osal_void mac_set_pwrconstraint_ie_etc	(	const osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_set_quiet_ie_etc()

osal_void mac_set_quiet_ie_etc	(	const osal_void *	vap,
		osal_u8 *	buffer,
		const mac_quiet_info *	quiet_info,
		osal_u8 *	ie_len
	)

◆ mac_set_timeout_interval_ie_etc()

osal_void mac_set_timeout_interval_ie_etc	(	osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len,
		osal_u32	type,
		osal_u32	timeout
	)

◆ mac_set_tpc_report_ie_etc()

osal_void mac_set_tpc_report_ie_etc	(	const osal_void *	vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_set_vendor_novht_ie()

osal_void mac_set_vendor_novht_ie	(	osal_void *	hmac_vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

◆ mac_set_vendor_vht_ie()

osal_void mac_set_vendor_vht_ie	(	osal_void *	hmac_vap,
		osal_u8 *	buffer,
		osal_u8 *	ie_len
	)

变量说明

◆ g_mac_vendor_oui

const osal_u8 g_mac_vendor_oui[3]

extern

◆ g_p2p_oui_etc

const osal_u8 g_p2p_oui_etc[3]

extern

◆ g_wmm_oui_etc

const osal_u8 g_wmm_oui_etc[3]

extern

结构体

宏定义

类型定义

枚举

函数

变量

宏定义说明

◆ HTC_INVALID_VALUE

◆ MAC_11N_TXBF_CAP_OFFSET

◆ MAC_2040_COEX_LEN

◆ MAC_2040_INTOLCHREPORT_LEN_MIN

◆ MAC_80211_4ADDR_FRAME_LEN

◆ MAC_80211_CTL_HEADER_LEN

◆ MAC_80211_QOS_4ADDR_FRAME_LEN

◆ MAC_80211_QOS_FRAME_LEN

◆ MAC_80211_QOS_HTC_4ADDR_FRAME_LEN

◆ MAC_80211_QOS_HTC_FRAME_LEN

◆ MAC_ACTION_CATEGORY_AND_CODE_LEN

◆ MAC_AID_LEN

◆ MAC_ARP_REQUEST

◆ MAC_ARP_RESPONSE

◆ MAC_AUTH_ALG_LEN

◆ MAC_AUTH_TRANS_SEQ_NUM_LEN

◆ MAC_BSS_LOAD_IE_LEN

◆ MAC_BW_CHANGE

◆ MAC_BW_DIFF_AP_USER

◆ MAC_BW_OPMODE_CHANGE

◆ MAC_CHANSWITCHANN_IE_LEN

◆ MAC_CHANSWITCHANN_LEN

◆ MAC_CHARIOT_NETIF_PORT

◆ MAC_CONTRY_CODE_LEN

◆ MAC_COUNTRY_REG_FIELD_LEN

◆ MAC_CSI_LOCATION_INFO_LEN

◆ MAC_CSI_MAX_REPORT_LEN

◆ MAC_CSI_REPORT_HEADER_LEN

◆ MAC_DEFAULT_TIM_LEN

◆ MAC_DEVICE_BEACON_OFFSET

◆ MAC_DHCPV6_ADVERTISE

◆ MAC_DHCPV6_CONFIRM

◆ MAC_DHCPV6_DECLINE

◆ MAC_DHCPV6_INFORM_REQ

◆ MAC_DHCPV6_LEASEQUERY

◆ MAC_DHCPV6_LQ_REPLY

◆ MAC_DHCPV6_REBIND

◆ MAC_DHCPV6_RECONFIGURE

◆ MAC_DHCPV6_RELAY_FORW

◆ MAC_DHCPV6_RELAY_REPLY

◆ MAC_DHCPV6_RELEASE

◆ MAC_DHCPV6_RENEW

◆ MAC_DHCPV6_REPLY

◆ MAC_DHCPV6_REQUEST

◆ MAC_DHCPV6_SOLICIT

◆ MAC_DSPARMS_LEN

◆ MAC_ERP_IE_LEN

◆ MAC_EXT_CHANSWITCHANN_IE_LEN

◆ MAC_EXT_VENDER_IE

◆ MAC_FRAME_REQ_TYPE

◆ MAC_FTM_LOCATION_INFO_LEN

◆ MAC_FTM_REPORT_HEADER_LEN

◆ MAC_FTMP_LEN

◆ MAC_HE_BSS_COLOR_CHANGE

◆ MAC_HE_BSS_COLOR_CHANGE_ANNOUNCEMENT_LEN

◆ MAC_HE_BSS_COLOR_DISALLOW

◆ MAC_HE_CAP_MIN_LEN

◆ MAC_HE_CHANGE

◆ MAC_HE_MAC_CAP_LEN

◆ MAC_HE_MCS_NSS_MIN_LEN

◆ MAC_HE_MU_EDCA_PARAMETER_SET_LEN

◆ MAC_HE_NFR_PARAM_DEFAULT_VAL

◆ MAC_HE_NFR_PARAM_HEADER_LEN

◆ MAC_HE_NFR_PARAM_PAYLOAD_LEN

◆ MAC_HE_OPE_BASIC_MCS_NSS_LEN

◆ MAC_HE_OPE_PARAM_LEN

◆ MAC_HE_OPERAION_MIN_LEN

◆ MAC_HE_OPERAION_WITH_VHT_LEN

◆ MAC_HE_PARTIAL_BSS_COLOR_CHANGE

◆ MAC_HE_PHY_CAP_LEN

◆ MAC_HE_SRG_BSS_COLOR_BITMAP_LEN

◆ MAC_HE_SRG_PARTIAL_BSSID_BITMAP_LEN

◆ MAC_HE_SRG_PD_MAX
