log_oml_exception.h 文件参考

#include "log_oam_logger.h"
#include "vectors.h"

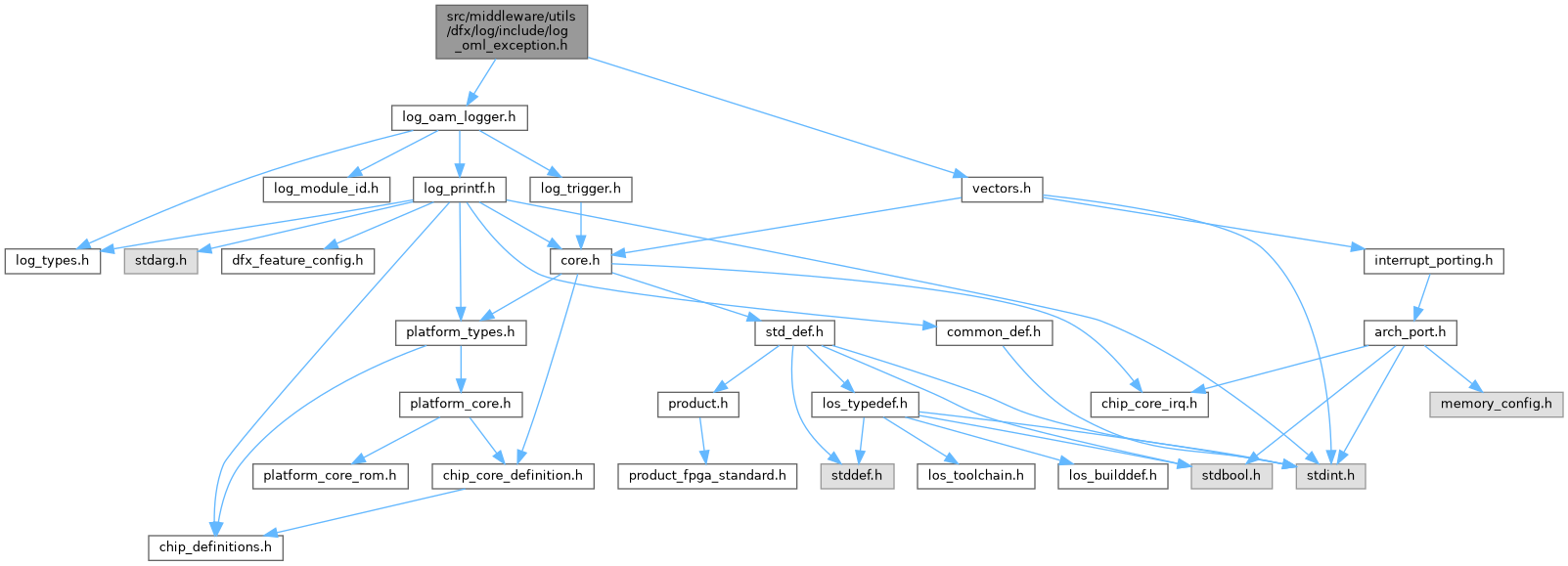

log_oml_exception.h 的引用(Include)关系图:

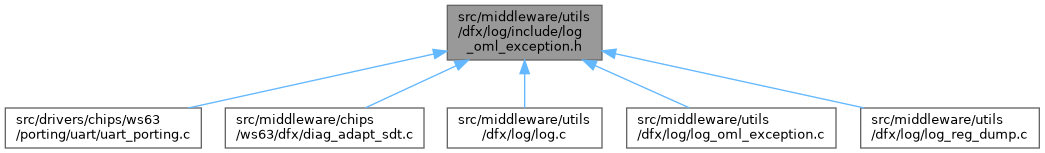

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	__attribute__
	Log message information header. 更多...

宏定义
#define	AULREG_VALUE_INDEX   32
#define	DUMP_MAX_LENGTH_PER_TRANS   (5000U - 15U)

枚举
enum	OM_FAULT_TYPE_ENUM {   OM_HARD_FAULT , OM_MEM_FAULT , OM_BUS_FAULT , OM_USAGE_FAULT ,   OM_LOOP_DEAD , OM_WDT_TIMEOUT , OM_INDEX_BUTT }
enum	OM_RISCV_FAULT_TYPE_ENMU {   OM_UNKNOW_FAULT , OM_INSTRUCTION_ADDRESS_MISALIGNED , OM_INSTRUCTION_ACCESS_FAULT , OM_ILLEGAL_INSTRUCTION ,   OM_BREAKPOINT , OM_LOAD_ADDERSS_MISALIGNED , OM_LOAD_ACCESS_FAULT , OM_STORE_OR_AMO_ADDRESS_MISALIGNED ,   OM_STORE_OR_AMO_ACCESS_FALUT , OM_ENVIRONMENT_CALL_FROM_UMODE , OM_ENVIRONMENT_CALL_FROM_SMODE , OM_RESERVED_0 ,   OM_ENVIRONMENT_CALL_FROM_MMODE , OM_INSTRUCTION_PAGE_FAULT , OM_LOAD_PAGE_FAULT , OM_RESERVED_1 ,   OM_STORE_OR_AMO_PAGE_FAULT , OM_RISCV_HARD_FAULT , OM_LOCK_UP , OM_NMI_INTERRUPT ,   OM_WDT_TIMEOUT_INTERRUPT , OM_APPLICATION_XIP_CTRL_INTERRUPT , OM_APPLICATION_XIP_CACHE_INTERRUPT , OM_APPLICATION_MDMA_INTERRUPT ,   OM_APPLICATION_SMDMA_INTERRUPT }
enum	REG_NUM_INDEX {   REG_NUM_0 , REG_NUM_1 , REG_NUM_2 , REG_NUM_3 ,   REG_NUM_4 , REG_NUM_5 , REG_NUM_6 , REG_NUM_7 ,   REG_NUM_8 , REG_NUM_9 , REG_NUM_10 , REG_NUM_11 ,   REG_NUM_12 , REG_NUM_13 , REG_NUM_14 , REG_NUM_15 ,   REG_NUM_16 , REG_NUM_17 , REG_NUM_18 , REG_NUM_19 ,   REG_NUM_20 , REG_NUM_21 , REG_NUM_22 , REG_NUM_23 ,   REG_NUM_24 , REG_NUM_25 , REG_NUM_26 , REG_NUM_27 ,   REG_NUM_28 , REG_NUM_29 , REG_NUM_30 , REG_NUM_31 }
enum	PARA1_INDEX {   PARA1_INDEX_0 , PARA1_INDEX_1 , PARA1_INDEX_2 , PARA1_INDEX_3 ,   PARA1_INDEX_4 , PARA1_INDEX_5 , PARA1_INDEX_6 , PARA1_INDEX_7 }
enum	PARA2_INDEX {   PARA2_INDEX_0 , PARA2_INDEX_1 , PARA2_INDEX_2 , PARA2_INDEX_3 ,   PARA2_INDEX_4 , PARA2_INDEX_5 , PARA2_INDEX_6 , PARA2_INDEX_7 }

函数
void	log_oml_dump_stack (void)
	Dump the current task stack when in systemfaults and watchdog timeout.
void	log_exception_send_data (const uint8_t *data, uint16_t length)
	Dump the ram when hardfault or watchdog.
void	log_oml_memory_dump (void)
	Dump the whole rom when hardfault or watchdog.
void	log_exception_dump (uint32_t irq_id, exc_context_t *exc_buf_addr)
	Invoked by exception to dump exception information.
void	log_oml_exception_info_send (uint32_t irq_id, const exc_context_t *exc_buf_addr)
	SDT interface to send SDT format fault message.
void	default_register_hal_exception_dump_callback (void)
	Register exception dump to fault interrupt.

宏定义说明

AULREG_VALUE_INDEX

#define AULREG_VALUE_INDEX   32

DUMP_MAX_LENGTH_PER_TRANS

#define DUMP_MAX_LENGTH_PER_TRANS   (5000U - 15U)

枚举类型说明

OM_FAULT_TYPE_ENUM

enum OM_FAULT_TYPE_ENUM

枚举值
OM_HARD_FAULT
OM_MEM_FAULT
OM_BUS_FAULT
OM_USAGE_FAULT
OM_LOOP_DEAD
OM_WDT_TIMEOUT
OM_INDEX_BUTT

OM_RISCV_FAULT_TYPE_ENMU

enum OM_RISCV_FAULT_TYPE_ENMU

枚举值
OM_UNKNOW_FAULT
OM_INSTRUCTION_ADDRESS_MISALIGNED
OM_INSTRUCTION_ACCESS_FAULT
OM_ILLEGAL_INSTRUCTION
OM_BREAKPOINT
OM_LOAD_ADDERSS_MISALIGNED
OM_LOAD_ACCESS_FAULT
OM_STORE_OR_AMO_ADDRESS_MISALIGNED
OM_STORE_OR_AMO_ACCESS_FALUT
OM_ENVIRONMENT_CALL_FROM_UMODE
OM_ENVIRONMENT_CALL_FROM_SMODE
OM_RESERVED_0
OM_ENVIRONMENT_CALL_FROM_MMODE
OM_INSTRUCTION_PAGE_FAULT
OM_LOAD_PAGE_FAULT
OM_RESERVED_1
OM_STORE_OR_AMO_PAGE_FAULT
OM_RISCV_HARD_FAULT
OM_LOCK_UP
OM_NMI_INTERRUPT
OM_WDT_TIMEOUT_INTERRUPT
OM_APPLICATION_XIP_CTRL_INTERRUPT
OM_APPLICATION_XIP_CACHE_INTERRUPT
OM_APPLICATION_MDMA_INTERRUPT
OM_APPLICATION_SMDMA_INTERRUPT

PARA1_INDEX

enum PARA1_INDEX

枚举值
PARA1_INDEX_0
PARA1_INDEX_1
PARA1_INDEX_2
PARA1_INDEX_3
PARA1_INDEX_4
PARA1_INDEX_5
PARA1_INDEX_6
PARA1_INDEX_7

PARA2_INDEX

enum PARA2_INDEX

枚举值
PARA2_INDEX_0
PARA2_INDEX_1
PARA2_INDEX_2
PARA2_INDEX_3
PARA2_INDEX_4
PARA2_INDEX_5
PARA2_INDEX_6
PARA2_INDEX_7

REG_NUM_INDEX

enum REG_NUM_INDEX

枚举值
REG_NUM_0
REG_NUM_1
REG_NUM_2
REG_NUM_3
REG_NUM_4
REG_NUM_5
REG_NUM_6
REG_NUM_7
REG_NUM_8
REG_NUM_9
REG_NUM_10
REG_NUM_11
REG_NUM_12
REG_NUM_13
REG_NUM_14
REG_NUM_15
REG_NUM_16
REG_NUM_17
REG_NUM_18
REG_NUM_19
REG_NUM_20
REG_NUM_21
REG_NUM_22
REG_NUM_23
REG_NUM_24
REG_NUM_25
REG_NUM_26
REG_NUM_27
REG_NUM_28
REG_NUM_29
REG_NUM_30
REG_NUM_31

函数说明

default_register_hal_exception_dump_callback()

void default_register_hal_exception_dump_callback

(

void

)

Register exception dump to fault interrupt.

log_exception_dump()

void log_exception_dump	(	uint32_t	irq_id,
		exc_context_t *	exc_buf_addr
	)

Invoked by exception to dump exception information.

参数

irq_id	Interrupt ID.
exc_buf_addr	Exception buff addr.

log_exception_send_data()

void log_exception_send_data	(	const uint8_t *	data,
		uint16_t	length
	)

Dump the ram when hardfault or watchdog.

参数

addr	Dump ram start addr.
length	Dump ram length.

log_oml_dump_stack()

void log_oml_dump_stack

(

void

)

Dump the current task stack when in systemfaults and watchdog timeout.

log_oml_exception_info_send()

void log_oml_exception_info_send	(	uint32_t	irq_id,
		const exc_context_t *	exc_buf_addr
	)

SDT interface to send SDT format fault message.

参数

irq_id	Interrupt ID.
exc_buf_addr	Exception buff addr.

log_oml_memory_dump()

void log_oml_memory_dump

(

void

)

Dump the whole rom when hardfault or watchdog.
