hal_gpio_v150_regs_def.h 文件参考

#include <stdint.h>

hal_gpio_v150_regs_def.h 的引用(Include)关系图:

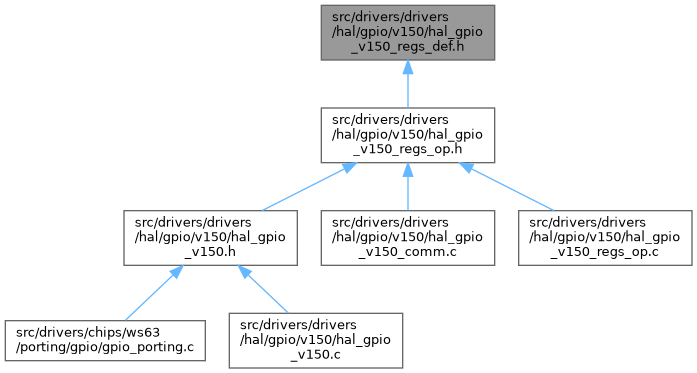

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	gpio_idx_info
	GPIO pin idx info, including the channel, the group, and group pin number to which this pin belongs. 更多...
struct	gpio_info_regs
	Register definition of each GPIO group. 更多...
struct	gpio_v150_regs
	Register definition of GPIO channel. A GPIO channel contains a maximum of 8 groups of pin. Each GPIO group contains a maximum of 32 pins. 更多...

宏定义
#define	RESERVED_MAX_NUM   2

类型定义
typedef struct gpio_idx_info	gpio_idx_info_t
	GPIO pin idx info, including the channel, the group, and group pin number to which this pin belongs.
typedef struct gpio_info_regs	gpio_group_regs_t
	Register definition of each GPIO group.
typedef struct gpio_v150_regs	gpio_v150_regs_t
	Register definition of GPIO channel. A GPIO channel contains a maximum of 8 groups of pin. Each GPIO group contains a maximum of 32 pins.

枚举
enum	gpio_group_t {   GPIO_GROUP_0 = 0 , GPIO_GROUP_1 , GPIO_GROUP_2 , GPIO_GROUP_3 ,   GPIO_GROUP_4 , GPIO_GROUP_5 , GPIO_GROUP_6 , GPIO_GROUP_7 ,   GPIO_GROUP_MAX_NUM }
	GPIO pin group definition. A GPIO channel contains a maximum of 8 groups of pin. 更多...
enum	gpio_group_pin_t {   GPIO_GROUP_PIN_00 = 0 , GPIO_GROUP_PIN_01 , GPIO_GROUP_PIN_02 , GPIO_GROUP_PIN_03 ,   GPIO_GROUP_PIN_04 , GPIO_GROUP_PIN_05 , GPIO_GROUP_PIN_06 , GPIO_GROUP_PIN_07 ,   GPIO_GROUP_PIN_08 , GPIO_GROUP_PIN_09 , GPIO_GROUP_PIN_10 , GPIO_GROUP_PIN_11 ,   GPIO_GROUP_PIN_12 , GPIO_GROUP_PIN_13 , GPIO_GROUP_PIN_14 , GPIO_GROUP_PIN_15 ,   GPIO_GROUP_PIN_16 , GPIO_GROUP_PIN_17 , GPIO_GROUP_PIN_18 , GPIO_GROUP_PIN_19 ,   GPIO_GROUP_PIN_20 , GPIO_GROUP_PIN_21 , GPIO_GROUP_PIN_22 , GPIO_GROUP_PIN_23 ,   GPIO_GROUP_PIN_24 , GPIO_GROUP_PIN_25 , GPIO_GROUP_PIN_26 , GPIO_GROUP_PIN_27 ,   GPIO_GROUP_PIN_28 , GPIO_GROUP_PIN_29 , GPIO_GROUP_PIN_30 , GPIO_GROUP_PIN_31 ,   GPIO_GROUP_PIN_MAX_NUM }
	GPIO pin definition in group. Each GPIO group contains a maximum of 32 pins. 更多...
