crypto_symc_struct.h 文件参考

#include "crypto_common_struct.h"

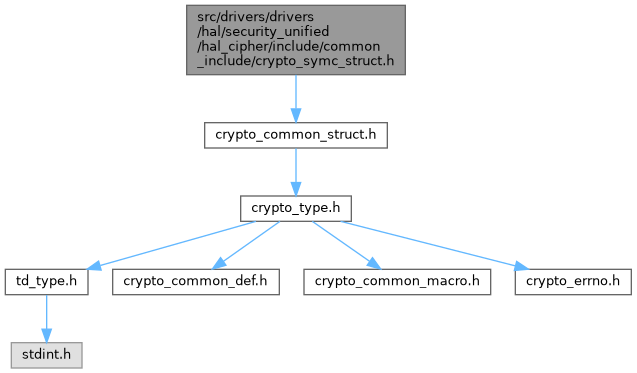

crypto_symc_struct.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	crypto_symc_attr
struct	crypto_symc_pack
struct	crypto_symc_cenc_subsample
struct	crypto_symc_cenc_param
struct	crypto_symc_config_aes_ccm_gcm
struct	crypto_symc_ctrl_t
struct	crypto_symc_proc_info
struct	crypto_symc_module_info
struct	crypto_symc_mac_attr

枚举
enum	crypto_symc_type { CRYPTO_SYMC_TYPE_NORMAL = 0x0 , CRYPTO_SYMC_TYPE_REG , CRYPTO_SYMC_TYPE_MAX , CRYPTO_SYMC_TYPE_INVALID = 0xffffffff }
enum	crypto_symc_alg {   CRYPTO_SYMC_ALG_TDES = 0x0 , CRYPTO_SYMC_ALG_AES = 0x1 , CRYPTO_SYMC_ALG_SM4 = 0x2 , CRYPTO_SYMC_ALG_LEA = 0x3 ,   CRYPTO_SYMC_ALG_DMA = 0x4 , CRYPTO_SYMC_ALG_MAX , CRYPTO_SYMC_ALG_INVALID = 0xffffffff }
enum	crypto_symc_work_mode {   CRYPTO_SYMC_WORK_MODE_ECB = 0x0 , CRYPTO_SYMC_WORK_MODE_CBC , CRYPTO_SYMC_WORK_MODE_CTR , CRYPTO_SYMC_WORK_MODE_OFB ,   CRYPTO_SYMC_WORK_MODE_CFB , CRYPTO_SYMC_WORK_MODE_CCM , CRYPTO_SYMC_WORK_MODE_GCM , CRYPTO_SYMC_WORK_MODE_CBC_MAC ,   CRYPTO_SYMC_WORK_MODE_CMAC , CRYPTO_SYMC_WORK_MODE_MAX , CRYPTO_SYMC_WORK_MODE_INVALID = 0xffffffff }
enum	crypto_symc_key_length {   CRYPTO_SYMC_KEY_64BIT = 0x0 , CRYPTO_SYMC_KEY_128BIT = 0x1 , CRYPTO_SYMC_KEY_192BIT = 0x2 , CRYPTO_SYMC_KEY_256BIT = 0x3 ,   CRYPTO_SYMC_KEY_LENGTH_MAX , CRYPTO_SYMC_KEY_LENGTH_INVALID = 0xffffffff }
enum	crypto_symc_key_parity { CRYPTO_SYMC_KEY_EVEN = 0x0 , CRYPTO_SYMC_KEY_ODD = 0x1 , CRYPTO_SYMC_KEY_PARITY_MAX , CRYPTO_SYMC_KEY_PARITY_INVALID = 0xffffffff }
enum	crypto_symc_bit_width {   CRYPTO_SYMC_BIT_WIDTH_1BIT = 0x0 , CRYPTO_SYMC_BIT_WIDTH_8BIT = 0x1 , CRYPTO_SYMC_BIT_WIDTH_64BIT = 0x2 , CRYPTO_SYMC_BIT_WIDTH_128BIT = 0x3 ,   CRYPTO_SYMC_BIT_WIDTH_MAX , CRYPTO_SYMC_BIT_WIDTH_INVALID = 0xffffffff }
enum	crypto_symc_iv_change_type {   CRYPTO_SYMC_IV_DO_NOT_CHANGE = 0 , CRYPTO_SYMC_IV_CHANGE_ONE_PKG , CRYPTO_SYMC_IV_CHANGE_ALL_PKG , CRYPTO_SYMC_GCM_IV_DO_NOT_CHANGE ,   CRYPTO_SYMC_GCM_IV_CHANGE_START , CRYPTO_SYMC_GCM_IV_CHANGE_UPDATE , CRYPTO_SYMC_GCM_IV_CHANGE_FINISH , CRYPTO_SYMC_CCM_IV_DO_NOT_CHANGE ,   CRYPTO_SYMC_CCM_IV_CHANGE_START , CRYPTO_SYMC_CCM_IV_CHANGE_UPDATE , CRYPTO_SYMC_CCM_IV_CHANGE_FINISH , CRYPTO_SYMC_IV_CHANGE_MAX ,   CRYPTO_SYMC_IV_CHANGE_INVALID = 0xffffffff }

枚举类型说明

crypto_symc_alg

enum crypto_symc_alg

枚举值
CRYPTO_SYMC_ALG_TDES
CRYPTO_SYMC_ALG_AES
CRYPTO_SYMC_ALG_SM4
CRYPTO_SYMC_ALG_LEA
CRYPTO_SYMC_ALG_DMA
CRYPTO_SYMC_ALG_MAX
CRYPTO_SYMC_ALG_INVALID

crypto_symc_bit_width

enum crypto_symc_bit_width

枚举值
CRYPTO_SYMC_BIT_WIDTH_1BIT
CRYPTO_SYMC_BIT_WIDTH_8BIT
CRYPTO_SYMC_BIT_WIDTH_64BIT
CRYPTO_SYMC_BIT_WIDTH_128BIT
CRYPTO_SYMC_BIT_WIDTH_MAX
CRYPTO_SYMC_BIT_WIDTH_INVALID

crypto_symc_iv_change_type

enum crypto_symc_iv_change_type

枚举值
CRYPTO_SYMC_IV_DO_NOT_CHANGE
CRYPTO_SYMC_IV_CHANGE_ONE_PKG
CRYPTO_SYMC_IV_CHANGE_ALL_PKG
CRYPTO_SYMC_GCM_IV_DO_NOT_CHANGE
CRYPTO_SYMC_GCM_IV_CHANGE_START
CRYPTO_SYMC_GCM_IV_CHANGE_UPDATE
CRYPTO_SYMC_GCM_IV_CHANGE_FINISH
CRYPTO_SYMC_CCM_IV_DO_NOT_CHANGE
CRYPTO_SYMC_CCM_IV_CHANGE_START
CRYPTO_SYMC_CCM_IV_CHANGE_UPDATE
CRYPTO_SYMC_CCM_IV_CHANGE_FINISH
CRYPTO_SYMC_IV_CHANGE_MAX
CRYPTO_SYMC_IV_CHANGE_INVALID

crypto_symc_key_length

enum crypto_symc_key_length

枚举值
CRYPTO_SYMC_KEY_64BIT
CRYPTO_SYMC_KEY_128BIT
CRYPTO_SYMC_KEY_192BIT
CRYPTO_SYMC_KEY_256BIT
CRYPTO_SYMC_KEY_LENGTH_MAX
CRYPTO_SYMC_KEY_LENGTH_INVALID

crypto_symc_key_parity

enum crypto_symc_key_parity

枚举值
CRYPTO_SYMC_KEY_EVEN
CRYPTO_SYMC_KEY_ODD
CRYPTO_SYMC_KEY_PARITY_MAX
CRYPTO_SYMC_KEY_PARITY_INVALID

crypto_symc_type

enum crypto_symc_type

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved.

Description: crypto symc struct header.
History:
2023-03-22, Create file.

枚举值
CRYPTO_SYMC_TYPE_NORMAL
CRYPTO_SYMC_TYPE_REG
CRYPTO_SYMC_TYPE_MAX
CRYPTO_SYMC_TYPE_INVALID

crypto_symc_work_mode

enum crypto_symc_work_mode

枚举值
CRYPTO_SYMC_WORK_MODE_ECB
CRYPTO_SYMC_WORK_MODE_CBC
CRYPTO_SYMC_WORK_MODE_CTR
CRYPTO_SYMC_WORK_MODE_OFB
CRYPTO_SYMC_WORK_MODE_CFB
CRYPTO_SYMC_WORK_MODE_CCM
CRYPTO_SYMC_WORK_MODE_GCM
CRYPTO_SYMC_WORK_MODE_CBC_MAC
CRYPTO_SYMC_WORK_MODE_CMAC
CRYPTO_SYMC_WORK_MODE_MAX
CRYPTO_SYMC_WORK_MODE_INVALID
