hmac_roam_alg.h 文件参考

#include "hmac_roam_connect.h"

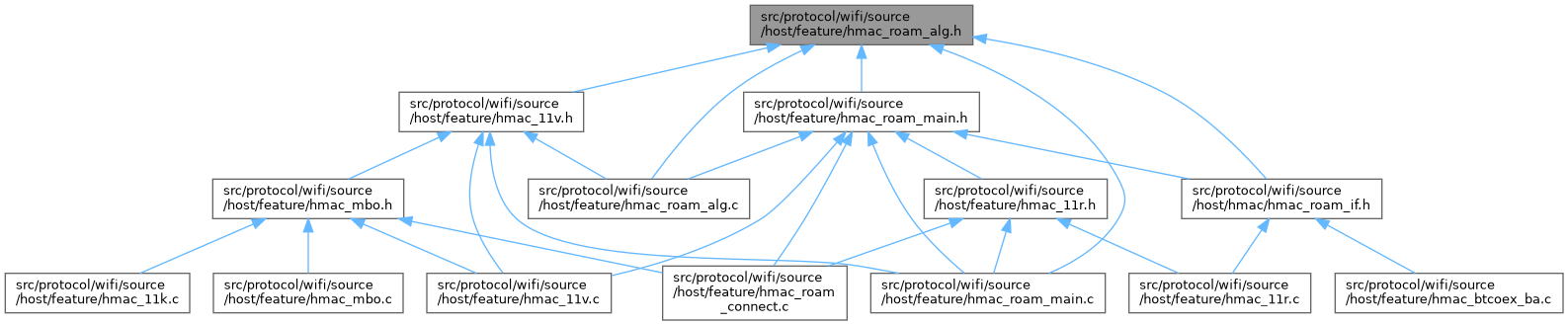

hmac_roam_alg.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	hmac_roam_config_stru
struct	hmac_roam_static_stru
struct	hmac_roam_bss_info_stru
struct	hmac_roam_bss_list_stru
struct	hmac_roam_alg_stru
struct	hmac_roam_connect_stru
struct	hmac_roam_rssi_capacity_stru
struct	hmac_roam_old_bss_stru
struct	hmac_vap_roam_trigger_stru
struct	hmac_roam_info_stru
struct	mac_h2d_roam_sync_stru

宏定义
#define	THIS_FILE_ID   OAM_FILE_ID_HMAC_ROAM_ALG_H
#define	ROAM_LIST_MAX   (4) /* 名单规格 */
#define	ROAM_BLACKLIST_NORMAL_AP_TIME_OUT   (30000) /* 黑名单正常超时时间 */
#define	ROAM_BLACKLIST_REJECT_AP_TIME_OUT   (30000) /* 黑名单拒绝模式超时时间 */
#define	ROAM_BLACKLIST_COUNT_LIMIT   (1) /* 黑名单超时次数限制 */
#define	ROAM_HISTORY_BSS_TIME_OUT   (20000) /* 历史优选名单超时时间 */
#define	ROAM_HISTORY_COUNT_LIMIT   (1) /* 历史优选超时次数限制 */
#define	ROAM_RSSI_LEVEL   (3)
#define	ROAM_CONCURRENT_USER_NUMBER   (10)
#define	ROAM_THROUGHPUT_THRESHOLD   (1000)
#define	ROAM_RSSI_NE80_DB   (-80)
#define	ROAM_RSSI_NE75_DB   (-75)
#define	ROAM_RSSI_NE70_DB   (-70)
#define	ROAM_RSSI_NE68_DB   (-68)
#define	ROAM_RSSI_DIFF_4_DB   (4)
#define	ROAM_RSSI_DIFF_6_DB   (6)
#define	ROAM_RSSI_DIFF_8_DB   (8)
#define	ROAM_RSSI_DIFF_10_DB   (10)
#define	ROAM_RSSI_CMD_TYPE   (-128)
#define	ROAM_RSSI_LINKLOSS_TYPE   (-121)
#define	ROAM_RSSI_MAX_TYPE   (-126)
#define	ROAM_TRIGGER_COUNT_THRESHOLD   (5)
#define	ROAM_TRIGGER_RSSI_NE80_DB   (-80)
#define	ROAM_TRIGGER_RSSI_NE75_DB   (-75)
#define	ROAM_TRIGGER_RSSI_NE70_DB   (-70)
#define	ROAM_TRIGGER_INTERVAL_10S   (10 * 1000)
#define	ROAM_TRIGGER_INTERVAL_15S   (15 * 1000)
#define	ROAM_TRIGGER_INTERVAL_20S   (20 * 1000)
#define	ROAM_WPA_CONNECT_INTERVAL_TIME   (5 * 1000) /* 漫游与正常关联之间的时间间隔，WIFI+ 上层切换频繁 */

类型定义
typedef osal_u8	roam_blacklist_type_enum_uint8
typedef osal_u8	roam_trigger_enum_uint8
typedef osal_u8	roam_scenario_enum_uint8
typedef osal_u8	roam_main_state_enum_uint8
typedef osal_u8	roam_channel_org_enum_uint8
typedef osal_u32	wpas_connect_state_enum_uint32
typedef osal_u32(*	hmac_roam_fsm_func) (hmac_roam_info_stru *roam_info, osal_void *p_param)

枚举
enum	roam_blacklist_type_enum { ROAM_BLACKLIST_TYPE_NORMAL_AP = 0 , ROAM_BLACKLIST_TYPE_REJECT_AP = 1 , ROAM_BLACKLIST_TYPE_BUTT }
enum	roam_trigger_condition_enum {   ROAM_TRIGGER_DMAC = 0 , ROAM_TRIGGER_APP = 1 , ROAM_TRIGGER_COEX = 2 , ROAM_TRIGGER_11V = 3 ,   ROAM_TRIGGER_BUTT }
enum	roam_scenario_enum { ROAM_ENV_SPARSE_AP = 0 , ROAM_ENV_LINKLOSS = 1 , ROAM_ENV_DENSE_AP = 2 , ROAM_ENV_BUTT }
enum	roam_main_state_enum {   ROAM_MAIN_STATE_INIT = 0 , ROAM_MAIN_STATE_FAIL = ROAM_MAIN_STATE_INIT , ROAM_MAIN_STATE_SCANING = 1 , ROAM_MAIN_STATE_CONNECTING = 2 ,   ROAM_MAIN_STATE_UP = 3 , ROAM_MAIN_STATE_BUTT }
enum	roam_main_fsm_event_type_enum {   ROAM_MAIN_FSM_EVENT_START = 0 , ROAM_MAIN_FSM_EVENT_SCAN_RESULT = 1 , ROAM_MAIN_FSM_EVENT_START_CONNECT = 2 , ROAM_MAIN_FSM_EVENT_CONNECT_FAIL = 3 ,   ROAM_MAIN_FSM_EVENT_HANDSHAKE_FAIL = 4 , ROAM_MAIN_FSM_EVENT_CONNECT_SUCC = 5 , ROAM_MAIN_FSM_EVENT_TIMEOUT = 6 , ROAM_MAIN_FSM_EVENT_TYPE_BUTT }
enum	roam_channel_org_enum {   ROAM_SCAN_CHANNEL_ORG_0 = 0 , ROAM_SCAN_CHANNEL_ORG_1 = 1 , ROAM_SCAN_CHANNEL_ORG_3 = 2 , ROAM_SCAN_CHANNEL_ORG_4 = 3 ,   ROAM_SCAN_CHANNEL_ORG_BUTT }
enum	wpas_connect_state_enum {   WPAS_CONNECT_STATE_INIT = 0 , WPAS_CONNECT_STATE_START = 1 , WPAS_CONNECT_STATE_ASSOCIATED = 2 , WPAS_CONNECT_STATE_HANDSHAKED = 3 ,   WPAS_CONNECT_STATE_IPADDR_OBTAINED = 4 , WPAS_CONNECT_STATE_IPADDR_REMOVED = 5 , WPAS_CONNECT_STATE_BUTT }

函数
osal_u32	hmac_roam_alg_add_blacklist_etc (hmac_roam_info_stru *roam_info, osal_u8 *bssid, roam_blacklist_type_enum_uint8 list_type)
osal_u32	hmac_roam_alg_add_history_etc (hmac_roam_info_stru *roam_info, osal_u8 *bssid)
osal_u32	hmac_roam_alg_bss_check_etc (hmac_roam_info_stru *roam_info, mac_bss_dscr_stru *bss_dscr)
osal_u32	hmac_roam_alg_scan_channel_init_etc (hmac_roam_info_stru *roam_info, mac_scan_req_stru *scan_params)
osal_void	hmac_roam_alg_init_etc (hmac_roam_info_stru *roam_info, osal_s8 c_current_rssi)
mac_bss_dscr_stru *	hmac_roam_alg_select_bss_etc (hmac_roam_info_stru *roam_info)
oal_bool_enum_uint8	hmac_roam_alg_find_in_blacklist_etc (hmac_roam_info_stru *roam_info, osal_u8 *bssid)
oal_bool_enum_uint8	hmac_roam_alg_need_to_stop_roam_trigger_etc (hmac_roam_info_stru *roam_info)
osal_u32	hmac_roam_alg_bss_in_ess_etc (hmac_roam_info_stru *roam_info, mac_bss_dscr_stru *bss_dscr)

宏定义说明

ROAM_BLACKLIST_COUNT_LIMIT

#define ROAM_BLACKLIST_COUNT_LIMIT   (1) /* 黑名单超时次数限制 */

ROAM_BLACKLIST_NORMAL_AP_TIME_OUT

#define ROAM_BLACKLIST_NORMAL_AP_TIME_OUT   (30000) /* 黑名单正常超时时间 */

ROAM_BLACKLIST_REJECT_AP_TIME_OUT

#define ROAM_BLACKLIST_REJECT_AP_TIME_OUT   (30000) /* 黑名单拒绝模式超时时间 */

ROAM_CONCURRENT_USER_NUMBER

#define ROAM_CONCURRENT_USER_NUMBER   (10)

ROAM_HISTORY_BSS_TIME_OUT

#define ROAM_HISTORY_BSS_TIME_OUT   (20000) /* 历史优选名单超时时间 */

ROAM_HISTORY_COUNT_LIMIT

#define ROAM_HISTORY_COUNT_LIMIT   (1) /* 历史优选超时次数限制 */

ROAM_LIST_MAX

#define ROAM_LIST_MAX   (4) /* 名单规格 */

ROAM_RSSI_CMD_TYPE

#define ROAM_RSSI_CMD_TYPE   (-128)

ROAM_RSSI_DIFF_10_DB

#define ROAM_RSSI_DIFF_10_DB   (10)

ROAM_RSSI_DIFF_4_DB

#define ROAM_RSSI_DIFF_4_DB   (4)

ROAM_RSSI_DIFF_6_DB

#define ROAM_RSSI_DIFF_6_DB   (6)

ROAM_RSSI_DIFF_8_DB

#define ROAM_RSSI_DIFF_8_DB   (8)

ROAM_RSSI_LEVEL

#define ROAM_RSSI_LEVEL   (3)

ROAM_RSSI_LINKLOSS_TYPE

#define ROAM_RSSI_LINKLOSS_TYPE   (-121)

ROAM_RSSI_MAX_TYPE

#define ROAM_RSSI_MAX_TYPE   (-126)

ROAM_RSSI_NE68_DB

#define ROAM_RSSI_NE68_DB   (-68)

ROAM_RSSI_NE70_DB

#define ROAM_RSSI_NE70_DB   (-70)

ROAM_RSSI_NE75_DB

#define ROAM_RSSI_NE75_DB   (-75)

ROAM_RSSI_NE80_DB

#define ROAM_RSSI_NE80_DB   (-80)

ROAM_THROUGHPUT_THRESHOLD

#define ROAM_THROUGHPUT_THRESHOLD   (1000)

ROAM_TRIGGER_COUNT_THRESHOLD

#define ROAM_TRIGGER_COUNT_THRESHOLD   (5)

ROAM_TRIGGER_INTERVAL_10S

#define ROAM_TRIGGER_INTERVAL_10S   (10 * 1000)

ROAM_TRIGGER_INTERVAL_15S

#define ROAM_TRIGGER_INTERVAL_15S   (15 * 1000)

ROAM_TRIGGER_INTERVAL_20S

#define ROAM_TRIGGER_INTERVAL_20S   (20 * 1000)

ROAM_TRIGGER_RSSI_NE70_DB

#define ROAM_TRIGGER_RSSI_NE70_DB   (-70)

ROAM_TRIGGER_RSSI_NE75_DB

#define ROAM_TRIGGER_RSSI_NE75_DB   (-75)

ROAM_TRIGGER_RSSI_NE80_DB

#define ROAM_TRIGGER_RSSI_NE80_DB   (-80)

ROAM_WPA_CONNECT_INTERVAL_TIME

#define ROAM_WPA_CONNECT_INTERVAL_TIME   (5 * 1000) /* 漫游与正常关联之间的时间间隔，WIFI+ 上层切换频繁 */

THIS_FILE_ID

#define THIS_FILE_ID   OAM_FILE_ID_HMAC_ROAM_ALG_H

类型定义说明

hmac_roam_fsm_func

typedef osal_u32(* hmac_roam_fsm_func) (hmac_roam_info_stru *roam_info, osal_void *p_param)

roam_blacklist_type_enum_uint8

typedef osal_u8 roam_blacklist_type_enum_uint8

roam_channel_org_enum_uint8

typedef osal_u8 roam_channel_org_enum_uint8

roam_main_state_enum_uint8

typedef osal_u8 roam_main_state_enum_uint8

roam_scenario_enum_uint8

typedef osal_u8 roam_scenario_enum_uint8

roam_trigger_enum_uint8

typedef osal_u8 roam_trigger_enum_uint8

wpas_connect_state_enum_uint32

typedef osal_u32 wpas_connect_state_enum_uint32

枚举类型说明

roam_blacklist_type_enum

enum roam_blacklist_type_enum

枚举值
ROAM_BLACKLIST_TYPE_NORMAL_AP
ROAM_BLACKLIST_TYPE_REJECT_AP
ROAM_BLACKLIST_TYPE_BUTT

roam_channel_org_enum

enum roam_channel_org_enum

枚举值
ROAM_SCAN_CHANNEL_ORG_0
ROAM_SCAN_CHANNEL_ORG_1
ROAM_SCAN_CHANNEL_ORG_3
ROAM_SCAN_CHANNEL_ORG_4
ROAM_SCAN_CHANNEL_ORG_BUTT

roam_main_fsm_event_type_enum

enum roam_main_fsm_event_type_enum

枚举值
ROAM_MAIN_FSM_EVENT_START
ROAM_MAIN_FSM_EVENT_SCAN_RESULT
ROAM_MAIN_FSM_EVENT_START_CONNECT
ROAM_MAIN_FSM_EVENT_CONNECT_FAIL
ROAM_MAIN_FSM_EVENT_HANDSHAKE_FAIL
ROAM_MAIN_FSM_EVENT_CONNECT_SUCC
ROAM_MAIN_FSM_EVENT_TIMEOUT
ROAM_MAIN_FSM_EVENT_TYPE_BUTT

roam_main_state_enum

enum roam_main_state_enum

枚举值
ROAM_MAIN_STATE_INIT
ROAM_MAIN_STATE_FAIL
ROAM_MAIN_STATE_SCANING
ROAM_MAIN_STATE_CONNECTING
ROAM_MAIN_STATE_UP
ROAM_MAIN_STATE_BUTT

roam_scenario_enum

enum roam_scenario_enum

枚举值
ROAM_ENV_SPARSE_AP
ROAM_ENV_LINKLOSS
ROAM_ENV_DENSE_AP
ROAM_ENV_BUTT

roam_trigger_condition_enum

enum roam_trigger_condition_enum

枚举值
ROAM_TRIGGER_DMAC
ROAM_TRIGGER_APP
ROAM_TRIGGER_COEX
ROAM_TRIGGER_11V
ROAM_TRIGGER_BUTT

wpas_connect_state_enum

enum wpas_connect_state_enum

枚举值
WPAS_CONNECT_STATE_INIT
WPAS_CONNECT_STATE_START
WPAS_CONNECT_STATE_ASSOCIATED
WPAS_CONNECT_STATE_HANDSHAKED
WPAS_CONNECT_STATE_IPADDR_OBTAINED
WPAS_CONNECT_STATE_IPADDR_REMOVED
WPAS_CONNECT_STATE_BUTT

函数说明

hmac_roam_alg_add_blacklist_etc()

osal_u32 hmac_roam_alg_add_blacklist_etc	(	hmac_roam_info_stru *	roam_info,
		osal_u8 *	bssid,
		roam_blacklist_type_enum_uint8	list_type
	)

hmac_roam_alg_add_history_etc()

osal_u32 hmac_roam_alg_add_history_etc	(	hmac_roam_info_stru *	roam_info,
		osal_u8 *	bssid
	)

hmac_roam_alg_bss_check_etc()

osal_u32 hmac_roam_alg_bss_check_etc	(	hmac_roam_info_stru *	roam_info,
		mac_bss_dscr_stru *	bss_dscr
	)

hmac_roam_alg_bss_in_ess_etc()

osal_u32 hmac_roam_alg_bss_in_ess_etc	(	hmac_roam_info_stru *	roam_info,
		mac_bss_dscr_stru *	bss_dscr
	)

hmac_roam_alg_find_in_blacklist_etc()

oal_bool_enum_uint8 hmac_roam_alg_find_in_blacklist_etc	(	hmac_roam_info_stru *	roam_info,
		osal_u8 *	bssid
	)

hmac_roam_alg_init_etc()

osal_void hmac_roam_alg_init_etc	(	hmac_roam_info_stru *	roam_info,
		osal_s8	c_current_rssi
	)

hmac_roam_alg_need_to_stop_roam_trigger_etc()

oal_bool_enum_uint8 hmac_roam_alg_need_to_stop_roam_trigger_etc

(

hmac_roam_info_stru *

roam_info

)

hmac_roam_alg_scan_channel_init_etc()

osal_u32 hmac_roam_alg_scan_channel_init_etc	(	hmac_roam_info_stru *	roam_info,
		mac_scan_req_stru *	scan_params
	)

hmac_roam_alg_select_bss_etc()

mac_bss_dscr_stru * hmac_roam_alg_select_bss_etc

(

hmac_roam_info_stru *

roam_info

)
