at_bt_productline_cmd_table.h 文件参考

#include "at.h"
#include "bts_factory.h"

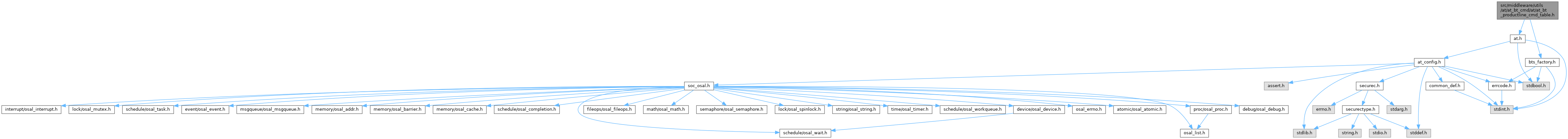

at_bt_productline_cmd_table.h 的引用(Include)关系图:

浏览源代码.

结构体
struct	bt_pdl_xo_trim_t
struct	bt_pdl_temp_wr_efuse_t
struct	bt_pdl_pwr_cali_set_pwr_t
struct	ble_rf_tx_param_args_t
struct	ble_rf_rx_param_args_t
struct	sle_rf_tx_param_args_t
struct	sle_rf_rx_param_args_t
struct	rf_single_tone_param_args_t

函数
at_ret_t	bt_at_enable_sle_cmd (void)
at_ret_t	bt_at_ble_register_callback_cmd (void)
at_ret_t	bt_at_sle_register_callback_cmd (void)
at_ret_t	bt_at_rf_single_tone_cmd (const rf_single_tone_param_args_t *args)
at_ret_t	bt_at_pdl_xo_trim_cmd (bt_pdl_xo_trim_t *args)
at_ret_t	bt_at_pdl_xo_trim_rd_cmd (void)
at_ret_t	bt_at_pdl_xo_trim_get_temp_cmd (void)
at_ret_t	bt_at_pdl_xo_trim_wr_efuse_cmd (void)
at_ret_t	bt_at_pdl_xo_trim_rd_efuse_cmd (void)
at_ret_t	bt_at_pdl_temp_wr_efuse_cmd (bt_pdl_temp_wr_efuse_t *args)
at_ret_t	bt_at_pdl_temp_rd_efuse_cmd (void)
at_ret_t	bt_at_pdl_pwr_cali_set_pwr_cmd (bt_pdl_pwr_cali_set_pwr_t *args)
at_ret_t	bt_at_pdl_pwr_cali_get_val_cmd (void)
at_ret_t	bt_at_pdl_pwr_cali_apply_cmd (void)
at_ret_t	bt_at_pdl_pwr_cali_wr_efuse_cmd (void)
at_ret_t	bt_at_pdl_pwr_cali_rd_efuse_cmd (void)
at_ret_t	bt_at_ble_reset_cmd (void)
at_ret_t	bt_at_ble_rf_tx_cmd (const ble_rf_tx_param_args_t *args)
at_ret_t	bt_at_ble_rf_rx_cmd (const ble_rf_rx_param_args_t *args)
at_ret_t	bt_at_ble_rf_trxend_cmd (void)
at_ret_t	bt_at_sle_reset_cmd (void)
at_ret_t	bt_at_sle_rf_tx_cmd (const sle_rf_tx_param_args_t *args)
at_ret_t	bt_at_sle_rf_rx_cmd (const sle_rf_rx_param_args_t *args)
at_ret_t	bt_at_sle_rf_trxend_cmd (void)
at_ret_t	cmd_get_bsle_pwr_cali_flag (void)

变量
const at_para_parse_syntax_t	pdl_xo_trim_param_syntax []
const at_para_parse_syntax_t	pdl_set_temp_efuse_param_syntax []
const at_para_parse_syntax_t	pdl_pwr_cali_set_pwr_param_syntax []
const int32_t	ble_pk_payload_type_values []
const int32_t	ble_rf_tx_phy_values []
const at_para_parse_syntax_t	ble_rf_tx_param_syntax []
const int32_t	ble_rf_rx_phy_values []
const int32_t	ble_modulation_index_values []
const at_para_parse_syntax_t	ble_rf_rx_param_syntax []
const int32_t	sle_rf_tx_power_values []
const int32_t	sle_rf_tx_payload_type_values []
const int32_t	sle_rf_tx_phy_values []
const int32_t	sle_rf_tx_format_values []
const int32_t	sle_rf_tx_rate_values []
const int32_t	sle_rf_tx_pilot_ratio_values []
const int32_t	sle_rf_tx_polar_r_values []
const at_para_parse_syntax_t	sle_rf_tx_param_syntax []
const int32_t	sle_rf_rx_phy_values []
const int32_t	sle_rf_rx_format_values []
const int32_t	sle_rf_rx_pilot_ratio_values []
const at_para_parse_syntax_t	sle_rf_rx_param_syntax []
const int32_t	rf_single_tone_mode []
const at_para_parse_syntax_t	rf_single_tone_param_syntax []
const at_cmd_entry_t	at_bt_productline_cmd_parse_table []

函数说明

bt_at_ble_register_callback_cmd()

at_ret_t bt_at_ble_register_callback_cmd

(

void

)

bt_at_ble_reset_cmd()

at_ret_t bt_at_ble_reset_cmd

(

void

)

bt_at_ble_rf_rx_cmd()

at_ret_t bt_at_ble_rf_rx_cmd

(

const ble_rf_rx_param_args_t *

args

)

bt_at_ble_rf_trxend_cmd()

at_ret_t bt_at_ble_rf_trxend_cmd

(

void

)

bt_at_ble_rf_tx_cmd()

at_ret_t bt_at_ble_rf_tx_cmd

(

const ble_rf_tx_param_args_t *

args

)

bt_at_enable_sle_cmd()

at_ret_t bt_at_enable_sle_cmd

(

void

)

bt_at_pdl_pwr_cali_apply_cmd()

at_ret_t bt_at_pdl_pwr_cali_apply_cmd

(

void

)

bt_at_pdl_pwr_cali_get_val_cmd()

at_ret_t bt_at_pdl_pwr_cali_get_val_cmd

(

void

)

bt_at_pdl_pwr_cali_rd_efuse_cmd()

at_ret_t bt_at_pdl_pwr_cali_rd_efuse_cmd

(

void

)

bt_at_pdl_pwr_cali_set_pwr_cmd()

at_ret_t bt_at_pdl_pwr_cali_set_pwr_cmd

(

bt_pdl_pwr_cali_set_pwr_t *

args

)

bt_at_pdl_pwr_cali_wr_efuse_cmd()

at_ret_t bt_at_pdl_pwr_cali_wr_efuse_cmd

(

void

)

bt_at_pdl_temp_rd_efuse_cmd()

at_ret_t bt_at_pdl_temp_rd_efuse_cmd

(

void

)

bt_at_pdl_temp_wr_efuse_cmd()

at_ret_t bt_at_pdl_temp_wr_efuse_cmd

(

bt_pdl_temp_wr_efuse_t *

args

)

bt_at_pdl_xo_trim_cmd()

at_ret_t bt_at_pdl_xo_trim_cmd

(

bt_pdl_xo_trim_t *

args

)

bt_at_pdl_xo_trim_get_temp_cmd()

at_ret_t bt_at_pdl_xo_trim_get_temp_cmd

(

void

)

bt_at_pdl_xo_trim_rd_cmd()

at_ret_t bt_at_pdl_xo_trim_rd_cmd

(

void

)

bt_at_pdl_xo_trim_rd_efuse_cmd()

at_ret_t bt_at_pdl_xo_trim_rd_efuse_cmd

(

void

)

bt_at_pdl_xo_trim_wr_efuse_cmd()

at_ret_t bt_at_pdl_xo_trim_wr_efuse_cmd

(

void

)

bt_at_rf_single_tone_cmd()

at_ret_t bt_at_rf_single_tone_cmd

(

const rf_single_tone_param_args_t *

args

)

bt_at_sle_register_callback_cmd()

at_ret_t bt_at_sle_register_callback_cmd

(

void

)

bt_at_sle_reset_cmd()

at_ret_t bt_at_sle_reset_cmd

(

void

)

bt_at_sle_rf_rx_cmd()

at_ret_t bt_at_sle_rf_rx_cmd

(

const sle_rf_rx_param_args_t *

args

)

bt_at_sle_rf_trxend_cmd()

at_ret_t bt_at_sle_rf_trxend_cmd

(

void

)

bt_at_sle_rf_tx_cmd()

at_ret_t bt_at_sle_rf_tx_cmd

(

const sle_rf_tx_param_args_t *

args

)

cmd_get_bsle_pwr_cali_flag()

at_ret_t cmd_get_bsle_pwr_cali_flag

(

void

)

变量说明

at_bt_productline_cmd_parse_table

const at_cmd_entry_t at_bt_productline_cmd_parse_table[]

ble_modulation_index_values

const int32_t ble_modulation_index_values[]

初始值:

= {
    0, 1
}

ble_pk_payload_type_values

const int32_t ble_pk_payload_type_values[]

初始值:

= {
    0, 1, 2, 3, 4, 5, 6, 7
}

ble_rf_rx_param_syntax

const at_para_parse_syntax_t ble_rf_rx_param_syntax[]

初始值:

= {
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0,
        .entry.int_range.max_val = 39,
        .offset = offsetof(ble_rf_rx_param_args_t, rx_freq)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_LIST_VALUE,
        .entry.int_list = {4, ble_rf_rx_phy_values},
        .offset = offsetof(ble_rf_rx_param_args_t, rx_phy)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .last = true,
        .attribute = AT_SYNTAX_ATTR_LIST_VALUE,
        .entry.int_list = {2, ble_modulation_index_values},
        .offset = offsetof(ble_rf_rx_param_args_t, modulation_index)
    },
}

ble_rf_rx_phy_values

const int32_t ble_rf_rx_phy_values[]

初始值:

= {
    1, 2, 3, 4
}

ble_rf_tx_param_syntax

const at_para_parse_syntax_t ble_rf_tx_param_syntax[]

初始值:

= {
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0,
        .entry.int_range.max_val = 39,
        .offset = offsetof(ble_rf_tx_param_args_t, tx_freq)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 37,
        .entry.int_range.max_val = 255,
        .offset = offsetof(ble_rf_tx_param_args_t, test_data_len)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_LIST_VALUE,
        .entry.int_list = {8, ble_pk_payload_type_values},
        .offset = offsetof(ble_rf_tx_param_args_t, pk_payload_type)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .last = true,
        .attribute = AT_SYNTAX_ATTR_LIST_VALUE,
        .entry.int_list = {4, ble_rf_tx_phy_values},
        .offset = offsetof(ble_rf_tx_param_args_t, tx_phy)
    },
}

ble_rf_tx_phy_values

const int32_t ble_rf_tx_phy_values[]

初始值:

= {
    1, 2, 3, 4
}

pdl_pwr_cali_set_pwr_param_syntax

const at_para_parse_syntax_t pdl_pwr_cali_set_pwr_param_syntax[]

初始值:

= {
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0,
        .entry.int_range.max_val = 300,
        .offset = offsetof(bt_pdl_pwr_cali_set_pwr_t, target_pwr)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .last = true,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0,
        .entry.int_range.max_val = 300,
        .offset = offsetof(bt_pdl_pwr_cali_set_pwr_t, msrd_pwr)
    },
}

pdl_set_temp_efuse_param_syntax

const at_para_parse_syntax_t pdl_set_temp_efuse_param_syntax[]

初始值:

= {
    {
        .type = AT_SYNTAX_TYPE_INT,
        .last = true,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = -40,
        .entry.int_range.max_val = 120,
        .offset = offsetof(bt_pdl_temp_wr_efuse_t, temp)
    },
}

pdl_xo_trim_param_syntax

const at_para_parse_syntax_t pdl_xo_trim_param_syntax[]

初始值:

= {
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0x0,
        .entry.int_range.max_val = 0xF,
        .offset = offsetof(bt_pdl_xo_trim_t, coarse_val)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .last = true,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0x0,
        .entry.int_range.max_val = 0xFF,
        .offset = offsetof(bt_pdl_xo_trim_t, fine_val)
    },
}

rf_single_tone_mode

const int32_t rf_single_tone_mode[]

初始值:

= {
    0, 1, 255
}

rf_single_tone_param_syntax

const at_para_parse_syntax_t rf_single_tone_param_syntax[]

初始值:

= {
    {
        .type = AT_SYNTAX_TYPE_INT,
        .attribute = AT_SYNTAX_ATTR_AT_MIN_VALUE | AT_SYNTAX_ATTR_AT_MAX_VALUE,
        .entry.int_range.min_val = 0,
        .entry.int_range.max_val = 79,
        .offset = offsetof(rf_single_tone_param_args_t, rf_freq)
    },
    {
        .type = AT_SYNTAX_TYPE_INT,
        .last = true,
        .attribute = AT_SYNTAX_ATTR_LIST_VALUE,
        .entry.int_list = {3, rf_single_tone_mode},
        .offset = offsetof(rf_single_tone_param_args_t, rf_mode)
    },
}

sle_rf_rx_format_values

const int32_t sle_rf_rx_format_values[]

初始值:

= {
    0, 2
}

sle_rf_rx_param_syntax

const at_para_parse_syntax_t sle_rf_rx_param_syntax[]

sle_rf_rx_phy_values

const int32_t sle_rf_rx_phy_values[]

初始值:

= {
    0, 1, 4
}

sle_rf_rx_pilot_ratio_values

const int32_t sle_rf_rx_pilot_ratio_values[]

初始值:

= {
    0, 1, 2, 3
}

sle_rf_tx_format_values

const int32_t sle_rf_tx_format_values[]

初始值:

= {
    0, 2, 3
}

sle_rf_tx_param_syntax

const at_para_parse_syntax_t sle_rf_tx_param_syntax[]

sle_rf_tx_payload_type_values

const int32_t sle_rf_tx_payload_type_values[]

初始值:

= {
    0, 1, 2, 3, 4, 5, 6, 7
}

sle_rf_tx_phy_values

const int32_t sle_rf_tx_phy_values[]

初始值:

= {
    0, 1, 4
}

sle_rf_tx_pilot_ratio_values

const int32_t sle_rf_tx_pilot_ratio_values[]

初始值:

= {
    0, 1, 2, 3
}

sle_rf_tx_polar_r_values

const int32_t sle_rf_tx_polar_r_values[]

初始值:

= {
    0, 1, 2, 3
}

sle_rf_tx_power_values

const int32_t sle_rf_tx_power_values[]

初始值:

= {
    0, 1, 2, 3, 4, 5, 6, 7
}

sle_rf_tx_rate_values

const int32_t sle_rf_tx_rate_values[]

初始值:

= {
    0, 2, 3
}
