pwm_v151_regs结构体 参考

#include <hal_pwm_v151_regs_def.h>

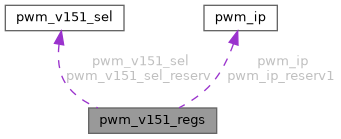

pwm_v151_regs 的协作图:

成员变量
volatile pwm_v151_sel_t	pwm_v151_sel [6]
volatile pwm_v151_sel_t	pwm_v151_sel_reserv [16 - 6]
volatile pwm_ip_t	pwm_ip [6]
volatile pwm_ip_t	pwm_ip_reserv1 [16 - 6]
volatile uint32_t	pwm_abnor_state0
volatile uint32_t	pwm_abnor_state1
volatile uint32_t	pwm_abnor_state_clr0
volatile uint32_t	pwm_abnor_state_clr1
volatile uint32_t	pwm_int_mask
volatile uint32_t	pwm_dma_en
volatile uint32_t	pwm_cfg_int_clr0

结构体成员变量说明

pwm_abnor_state0

volatile uint32_t pwm_v151_regs::pwm_abnor_state0

pwm_abnor_state0. Offset: 500h.

pwm_abnor_state1

volatile uint32_t pwm_v151_regs::pwm_abnor_state1

pwm_abnor_state1. Offset: 504h.

pwm_abnor_state_clr0

volatile uint32_t pwm_v151_regs::pwm_abnor_state_clr0

pwm_abnor_state_clr0.Offset: 508h.

pwm_abnor_state_clr1

volatile uint32_t pwm_v151_regs::pwm_abnor_state_clr1

pwm_abnor_state_clr1.Offset: 50Ch.

pwm_cfg_int_clr0

volatile uint32_t pwm_v151_regs::pwm_cfg_int_clr0

pwm_cfg_int_clr0. Offset: 518h.

pwm_dma_en

volatile uint32_t pwm_v151_regs::pwm_dma_en

pwm_dma_en. Offset: 514h.

pwm_int_mask

volatile uint32_t pwm_v151_regs::pwm_int_mask

pwm_int_mask. Offset: 510h.

pwm_ip

volatile pwm_ip_t pwm_v151_regs::pwm_ip[6]

PWM CHANNEL. Offset: 100h.

pwm_ip_reserv1

volatile pwm_ip_t pwm_v151_regs::pwm_ip_reserv1[16 - 6]

pwm_v151_sel

volatile pwm_v151_sel_t pwm_v151_regs::pwm_v151_sel[6]

PWM GROUP. Offset: 000h.

pwm_v151_sel_reserv

volatile pwm_v151_sel_t pwm_v151_regs::pwm_v151_sel_reserv[16 - 6]

---

该结构体的文档由以下文件生成:

• src/drivers/drivers/hal/pwm/v151/hal_pwm_v151_regs_def.h
