#include <stdint.h>
#include <stdbool.h>
#include "pwm.h"

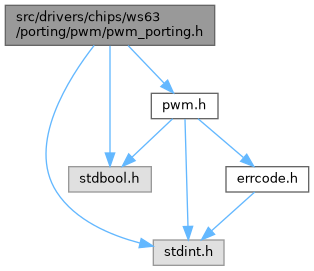

pwm_porting.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	PWM_MAX_NUMBER 6 /* < Max number of PWM available */

枚举
enum	pwm_channel_t { PWM_0 , PWM_1 , PWM_2 , PWM_3 , PWM_4 , PWM_5 , PWM_6 , PWM_7 , PWM_8 , PWM_9 , PWM_10 , PWM_11 , PWM_12 , PWM_13 , PWM_14 , PWM_15 , PWM_NONE = 6 }
	PWM v150 channel ID. 更多...

enum	pwm_v151_group_t { PWM_GROUP_0 , PWM_GROUP_1 , PWM_GROUP_2 , PWM_GROUP_3 , PWM_GROUP_4 , PWM_GROUP_5 , PWM_GROUP_6 , PWM_GROUP_7 , PWM_GROUP_8 , PWM_GROUP_9 , PWM_GROUP_10 , PWM_GROUP_11 , PWM_GROUP_12 , PWM_GROUP_13 , PWM_GROUP_14 , PWM_GROUP_15 }
	PWM v150 group ID. 更多...

函数
uintptr_t	pwm_porting_base_addr_get (void)
	Get the base address of a specified PWM.

void	pwm_port_register_hal_funcs (void)
	Register hal funcs objects into hal_pwm module.

void	pwm_port_unregister_hal_funcs (void)
	Unregister hal funcs objects from hal_pwm module.

void	pwm_port_register_irq (pwm_channel_t channel)
	Register the interrupt of pwm.

void	pwm_port_unregister_irq (pwm_channel_t channel)
	Unregister the interrupt of pwm.

void	pwm_port_clock_enable (bool on)
	Set the divider number of the peripheral device clock.

void	pwm_irq_lock (uint8_t channel)
	Lock of pwm interrupt.

void	pwm_irq_unlock (uint8_t channel)
	Unlock of pwm interrupt.

uint32_t	pwm_port_get_clock_value (pwm_channel_t channel)
	Get pwm clock value.

errcode_t	pwm_port_param_check (const pwm_config_t *cfg)
