ecc_ec_fp_sign_common.c 文件参考

#include "ecc_ec_fp.h"
#include "crypto_drv_common.h"
#include "drv_trng.h"
#include "hal_pke_reg.h"
#include "hal_pke.h"
#include "drv_common_pke.h"

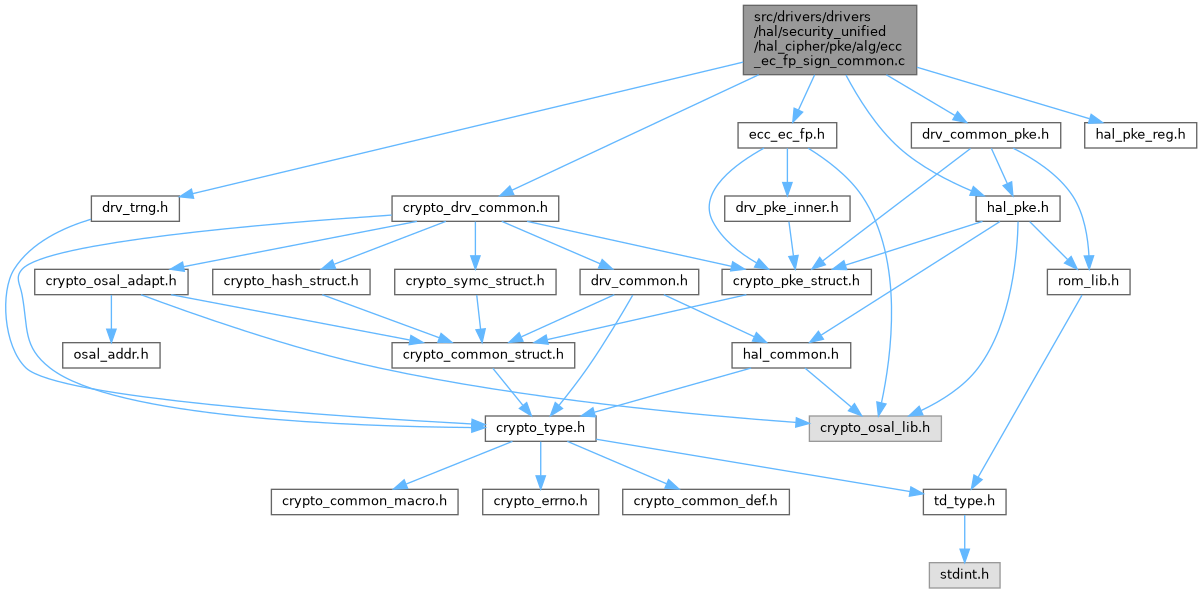

ecc_ec_fp_sign_common.c 的引用(Include)关系图:

宏定义
#define	ECC_MAX_LEN   (DRV_PKE_LEN_576 * 2)

函数
td_s32	get_random_key (const td_u8 *n, const td_u32 size, td_u8 *rand CIPHER_CHECK_WORD)
	Get the random key object range in [1, n-1]
td_s32	ecc_ecfp_aff_to_jac (const drv_pke_ecc_point *in, const drv_pke_data *mod_p, pke_ecc_point_jac *out)
	trans coordinate system from affine to jacobin, before call this API, you should have set mont_1_p and const_0 into ecc_addr_mont_1_p and ecc_addr_const_0. (ecc_addr_px, ecc_addr_py) -> (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz).
td_s32	ecc_ecfp_mul_naf_cal (td_u32 work_len, const drv_pke_data *k)
	R = k * G, point multiplication. Before call this API, you should have set curve initial parameters, and set point coordinate into the DRAM.
td_s32	ecc_ecfp_mul_naf (const drv_pke_ecc_curve *ecc, const drv_pke_data *k, const drv_pke_ecc_point *p, const drv_pke_ecc_point *r CIPHER_CHECK_WORD)
	R = k * G, point multiplication.

宏定义说明

ECC_MAX_LEN

#define ECC_MAX_LEN   (DRV_PKE_LEN_576 * 2)

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved. Description: sign common algorithm implementation

Create: 2023-06-05

函数说明

ecc_ecfp_aff_to_jac()

td_s32 ecc_ecfp_aff_to_jac	(	const drv_pke_ecc_point *	in,
		const drv_pke_data *	mod_p,
		pke_ecc_point_jac *	out
	)

trans coordinate system from affine to jacobin, before call this API, you should have set mont_1_p and const_0 into ecc_addr_mont_1_p and ecc_addr_const_0. (ecc_addr_px, ecc_addr_py) -> (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz).

参数

in	the input point in affine system.
mod_p	the modulur.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_mul_naf()

td_s32 ecc_ecfp_mul_naf	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_data *	k,
		const drv_pke_ecc_point *	p,
		const drv_pke_ecc_point *r	CIPHER_CHECK_WORD
	)

R = k * G, point multiplication.

参数

ecc	input ecc curve param.
k	the scalar.
p	the input point.
r	the output point.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_mul_naf_cal()

td_s32 ecc_ecfp_mul_naf_cal	(	td_u32	work_len,
		const drv_pke_data *	k
	)

R = k * G, point multiplication. Before call this API, you should have set curve initial parameters, and set point coordinate into the DRAM.

参数

work_len	work_len = align_len / ALIGNED_TO_WORK_LEN_IN_BYTE.
k	the scalar.

返回

td_s32 TD_SUCCESS or others.

get_random_key()

td_s32 get_random_key	(	const td_u8 *	n,
		const td_u32	size,
		td_u8 *rand	CIPHER_CHECK_WORD
	)

Get the random key object range in [1, n-1]

参数

n	range.
size	the byte length of number n.
rand	the output random data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.
