ecc_ec_fp.h 文件参考

#include "crypto_pke_struct.h"
#include "drv_pke_inner.h"
#include "crypto_osal_lib.h"

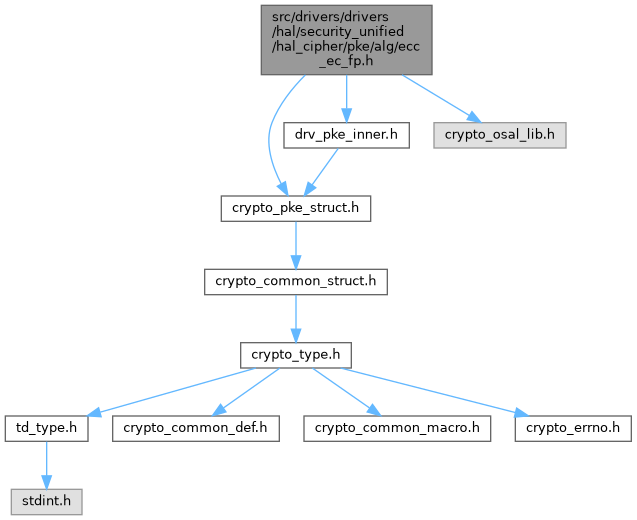

ecc_ec_fp.h 的引用(Include)关系图:

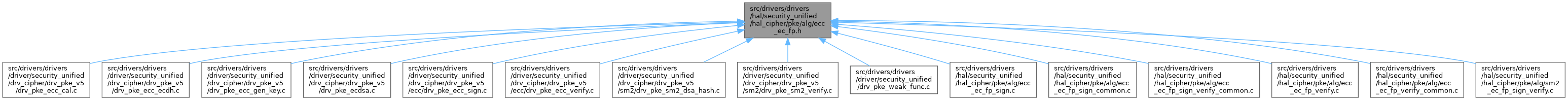

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	pke_ecc_point_jac

函数
td_s32	ecc_ecfp_jac_to_aff (const drv_pke_data *mod_p)
	Get final calculate result. trans (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz) from jac to aff. aff_x = jac_x * ((jac_z)^-2); aff_y = jac_y * ((jac_z)^-3)
td_s32	ecc_ecfp_demontgomery_data_jac_z (const drv_pke_data *z, td_u32 work_len)
td_s32	ecc_ecfp_aff_to_jac (const drv_pke_ecc_point *in, const drv_pke_data *mod_p, pke_ecc_point_jac *out)
	trans coordinate system from affine to jacobin, before call this API, you should have set mont_1_p and const_0 into ecc_addr_mont_1_p and ecc_addr_const_0. (ecc_addr_px, ecc_addr_py) -> (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz).
td_s32	ecc_ecfp_montgomery_data_aff_backup (const drv_pke_ecc_point *in, const drv_pke_data *mod_p, const drv_pke_ecc_point *out, const uintptr_t check_word)
	montgomery the point coordinate in affine coordinate system.
td_s32	ecc_ecfp_montgomery_data_aff (const drv_pke_ecc_point *in, const drv_pke_data *mod_p, const drv_pke_ecc_point *out CIPHER_CHECK_WORD)
	montgomery the point coordinate in affine coordinate system. Before call this API, you should have set curve initial parameters into the DRAM.
td_s32	ecc_ecfp_demontgomery_data_aff (const drv_pke_ecc_point *r, td_u32 work_len)
	demontgomery data, (ecc_addr_cx, ecc_addr_cy) -> (ecc_addr_cx, ecc_addr_cy). Before calculate demont, you should have set const_1 to ecc_addr_const_1.
td_s32	ecc_ecfp_mul_naf (const drv_pke_ecc_curve *ecc, const drv_pke_data *k, const drv_pke_ecc_point *p, const drv_pke_ecc_point *r CIPHER_CHECK_WORD)
	R = k * G, point multiplication.
td_s32	ecc_ecfp_mul_naf_cal (td_u32 work_len, const drv_pke_data *k)
	R = k * G, point multiplication. Before call this API, you should have set curve initial parameters, and set point coordinate into the DRAM.
td_s32	ecc_ecfp_mul_add (const drv_pke_ecc_curve *ecc, const drv_pke_data *u1, const drv_pke_data *u2, const drv_pke_ecc_point *q, const drv_pke_ecc_point *r CIPHER_CHECK_WORD)
	R = u1 * G + u2 * Q. Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_mont_a, ecc_addr_mont_1_p, ecc_addr_const_1, ecc_addr_const_0.
td_s32	ecc_ecfn_inv (const drv_pke_data *a, const drv_pke_data *n, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = ~a mod n, ecc_addr_s = 1/ecc_addr_k. Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_rrn, ecc_addr_mont_1_n.
td_s32	get_random_key (const td_u8 *n, const td_u32 size, td_u8 *rand CIPHER_CHECK_WORD)
	Get the random key object range in [1, n-1]
td_s32	update_modulus (const td_u8 *n, const td_u32 n_len CIPHER_CHECK_WORD)
	update modulus into ecc_addr_m, and set new montgomery parameter into reg. Before call this API, you should have set initial parameters into PKE DRAM.
td_s32	ecc_ecfn_sign_s (const drv_pke_data *k_inv, const drv_pke_data *e, const drv_pke_data *d, const drv_pke_data *r, const drv_pke_data *n, const drv_pke_data *s CIPHER_CHECK_WORD)
	calculate the s value of signature. s = k_inv * (e + d * r) mod n. montgomery multiplication modulurs and twice modulo reduction to demontgomery, and make sure s, r in [1, n-1] Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_rrn, ecc_addr_const_1.
td_s32	ecc_ecfn_verify_u (const drv_pke_data *s_inv, const drv_pke_data *e, const drv_pke_data *r, const drv_pke_data *n, const drv_pke_data *u1, const drv_pke_data *u2 CIPHER_CHECK_WORD)
	calculate the u1 = s_inv * e mod n & u2 = s_inv * r mod n. montgomery multiplication modulurs and twice modulo reduction to demontgomery. Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_rrn, ecc_addr_const_1.
td_s32	ecc_ecfn_verify_v (const drv_pke_ecc_curve *ecc, const drv_pke_ecc_sig *sig, td_u8 *out_v)
	verify whether the v == r.
td_s32	ecc_ecfp_point_valid_standard (drv_pke_ecc_curve_type curve_type, const drv_pke_ecc_point *pub_key, td_bool *is_on_curve CIPHER_CHECK_WORD)
	the standard method to check whether the point is on the curve.
td_s32	ecc_ecfn_add_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	calculate modular addition on prime n domain. Here use instr_sm2_verify_t_3 as common add_mod calculate to calculate both ecc and sm2 signature value r.
td_s32	sm2_ecfn_sign_s (const drv_pke_data *k, const drv_pke_data *d, const drv_pke_data *n, const drv_pke_data *r, const drv_pke_data *s)
	calculate s for sm2 signature. s = (1 + d) * (k - r *d) mod n. and the output is the demontgomeried r & s.
td_s32	sm2_ecfn_add_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c, uintptr_t const check_word)
td_s32	sm2_ecfn_verify_r (const drv_pke_data *rx, const drv_pke_data *hash, const drv_pke_data *r, const drv_pke_data *n, const drv_pke_data *out)
	calculate r= e + Rx mod n, and check whether r -r == 0?
td_s32	sign_verify_hash (const sm2_sign_verify_hash_pack *param, const drv_pke_msg *msg, drv_pke_data *hash CIPHER_CHECK_WORD)
	calculate hash for sm2.

函数说明

ecc_ecfn_add_mod()

td_s32 ecc_ecfn_add_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

calculate modular addition on prime n domain. Here use instr_sm2_verify_t_3 as common add_mod calculate to calculate both ecc and sm2 signature value r.

参数

a	the first data.
b	the second data.
p	the module.
c	the output result.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved. Description: sm2 common algorithm implementation

Create: 2023-06-05

ecc_ecfn_inv()

td_s32 ecc_ecfn_inv	(	const drv_pke_data *	a,
		const drv_pke_data *	n,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = ~a mod n, ecc_addr_s = 1/ecc_addr_k. Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_rrn, ecc_addr_mont_1_n.

参数

a	the input data.
n	the modulus.
c	the output data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfn_sign_s()

td_s32 ecc_ecfn_sign_s	(	const drv_pke_data *	k_inv,
		const drv_pke_data *	e,
		const drv_pke_data *	d,
		const drv_pke_data *	r,
		const drv_pke_data *	n,
		const drv_pke_data *s	CIPHER_CHECK_WORD
	)

calculate the s value of signature. s = k_inv * (e + d * r) mod n. montgomery multiplication modulurs and twice modulo reduction to demontgomery, and make sure s, r in [1, n-1] Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_rrn, ecc_addr_const_1.

参数

k_inv	the result of 1/k.
e	the input hash result of message.
d	the input private key.
r	the r value of signature.
n	the modulus.
s	the output data s of signature.

返回

td_s32 TD_SUCCESS or others.

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved. Description: ecc sign algorithm implementation

Create: 2023-06-05

ecc_ecfn_verify_u()

td_s32 ecc_ecfn_verify_u	(	const drv_pke_data *	s_inv,
		const drv_pke_data *	e,
		const drv_pke_data *	r,
		const drv_pke_data *	n,
		const drv_pke_data *	u1,
		const drv_pke_data *u2	CIPHER_CHECK_WORD
	)

calculate the u1 = s_inv * e mod n & u2 = s_inv * r mod n. montgomery multiplication modulurs and twice modulo reduction to demontgomery. Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_rrn, ecc_addr_const_1.

参数

s_inv	the input modular inverse of s value.
e	the input hash result of message.
r	the r value of signature.
n	the modulus.
u1	the output value u1 = s_inv * e.
u2	the output value u2 = s_inv * r mod n.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved. Description: ecc verify algorithm implementation

Create: 2023-06-05

ecc_ecfn_verify_v()

td_s32 ecc_ecfn_verify_v	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_ecc_sig *	sig,
		td_u8 *	out_v
	)

verify whether the v == r.

参数

ecc	the input ecc curve parameter.
sig	the signature to be verified.
out_v	the calculated verify value.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_aff_to_jac()

td_s32 ecc_ecfp_aff_to_jac	(	const drv_pke_ecc_point *	in,
		const drv_pke_data *	mod_p,
		pke_ecc_point_jac *	out
	)

trans coordinate system from affine to jacobin, before call this API, you should have set mont_1_p and const_0 into ecc_addr_mont_1_p and ecc_addr_const_0. (ecc_addr_px, ecc_addr_py) -> (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz).

参数

in	the input point in affine system.
mod_p	the modulur.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_demontgomery_data_aff()

td_s32 ecc_ecfp_demontgomery_data_aff	(	const drv_pke_ecc_point *	r,
		td_u32	work_len
	)

demontgomery data, (ecc_addr_cx, ecc_addr_cy) -> (ecc_addr_cx, ecc_addr_cy). Before calculate demont, you should have set const_1 to ecc_addr_const_1.

参数

r	store the result.
work_len	work_len = celing(aligned_len/64).

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_demontgomery_data_jac_z()

td_s32 ecc_ecfp_demontgomery_data_jac_z	(	const drv_pke_data *	z,
		td_u32	work_len
	)

ecc_ecfp_jac_to_aff()

td_s32 ecc_ecfp_jac_to_aff

(

const drv_pke_data *

mod_p

)

Get final calculate result. trans (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz) from jac to aff. aff_x = jac_x * ((jac_z)^-2); aff_y = jac_y * ((jac_z)^-3)

参数

work_len	aligned_len work_len = celing(bitWidth/64).
mod_p	the consistent of modulus n, n = p * q.

返回

td_s32 TD_SUCCESS or others.

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved. Description: ecc common algorithm implementation

Create: 2023-06-05

ecc_ecfp_montgomery_data_aff()

td_s32 ecc_ecfp_montgomery_data_aff	(	const drv_pke_ecc_point *	in,
		const drv_pke_data *	mod_p,
		const drv_pke_ecc_point *out	CIPHER_CHECK_WORD
	)

montgomery the point coordinate in affine coordinate system. Before call this API, you should have set curve initial parameters into the DRAM.

参数

in	intput point in affine coordinate system.
mod_p	modulus.
out	output point in affine coordinate system.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_montgomery_data_aff_backup()

td_s32 ecc_ecfp_montgomery_data_aff_backup	(	const drv_pke_ecc_point *	in,
		const drv_pke_data *	mod_p,
		const drv_pke_ecc_point *	out,
		const uintptr_t	check_word
	)

montgomery the point coordinate in affine coordinate system.

参数

in	intput point in affine coordinate system.
mod_p	modulus.
out	output point in affine coordinate system.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_mul_add()

td_s32 ecc_ecfp_mul_add	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_data *	u1,
		const drv_pke_data *	u2,
		const drv_pke_ecc_point *	q,
		const drv_pke_ecc_point *r	CIPHER_CHECK_WORD
	)

R = u1 * G + u2 * Q. Before call this API, you should have set curve initial parameters into DRAM, which must include ecc_addr_mont_a, ecc_addr_mont_1_p, ecc_addr_const_1, ecc_addr_const_0.

参数

ecc	input ecc curve param.
u1	the scalar.
u2	the scalar.
q	the input point(public key), which is in affine coordinate system.
r	the output point. result is in (ecc_addr_cx, ecc_addr_cy, ecc_addr_cz).
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_mul_naf()

td_s32 ecc_ecfp_mul_naf	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_data *	k,
		const drv_pke_ecc_point *	p,
		const drv_pke_ecc_point *r	CIPHER_CHECK_WORD
	)

R = k * G, point multiplication.

参数

ecc	input ecc curve param.
k	the scalar.
p	the input point.
r	the output point.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_mul_naf_cal()

td_s32 ecc_ecfp_mul_naf_cal	(	td_u32	work_len,
		const drv_pke_data *	k
	)

R = k * G, point multiplication. Before call this API, you should have set curve initial parameters, and set point coordinate into the DRAM.

参数

work_len	work_len = align_len / ALIGNED_TO_WORK_LEN_IN_BYTE.
k	the scalar.

返回

td_s32 TD_SUCCESS or others.

ecc_ecfp_point_valid_standard()

td_s32 ecc_ecfp_point_valid_standard	(	drv_pke_ecc_curve_type	curve_type,
		const drv_pke_ecc_point *	pub_key,
		td_bool *is_on_curve	CIPHER_CHECK_WORD
	)

the standard method to check whether the point is on the curve.

参数

ecc	the input ecc curve parameter.
pub_key	the input public key to be checked.
is_on_curve	the output result, true: is on the curve, false: is not on the curve.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

get_random_key()

td_s32 get_random_key	(	const td_u8 *	n,
		const td_u32	size,
		td_u8 *rand	CIPHER_CHECK_WORD
	)

Get the random key object range in [1, n-1]

参数

n	range.
size	the byte length of number n.
rand	the output random data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

sign_verify_hash()

td_s32 sign_verify_hash	(	const sm2_sign_verify_hash_pack *	param,
		const drv_pke_msg *	msg,
		drv_pke_data *hash	CIPHER_CHECK_WORD
	)

calculate hash for sm2.

参数

param	the other data that is used for sm2 hash calculate.
msg	the input message that need to be calculate hash.
hash	the hash result.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

sm2_ecfn_add_mod()

td_s32 sm2_ecfn_add_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *	c,
		uintptr_t const	check_word
	)

sm2_ecfn_sign_s()

td_s32 sm2_ecfn_sign_s	(	const drv_pke_data *	k,
		const drv_pke_data *	d,
		const drv_pke_data *	n,
		const drv_pke_data *	r,
		const drv_pke_data *	s
	)

calculate s for sm2 signature. s = (1 + d) * (k - r *d) mod n. and the output is the demontgomeried r & s.

参数

k	the input data k.
d	the input private key.
n	the order of G point of the curve.
r	the input r of signature and the output r(demontgomeried) of signature.
s	the result s(demontgomeried) of the signature.

返回

td_s32 TD_SUCCESS or others.

sm2_ecfn_verify_r()

td_s32 sm2_ecfn_verify_r	(	const drv_pke_data *	rx,
		const drv_pke_data *	hash,
		const drv_pke_data *	r,
		const drv_pke_data *	n,
		const drv_pke_data *	out
	)

calculate r= e + Rx mod n, and check whether r -r == 0?

参数

rx	the input Rx.
hash	the input hash value.
r	the input r of signature.
n	the input modulo.
out	the output value of r` - r.

返回

td_s32 TD_SUCCESS or others.

update_modulus()

td_s32 update_modulus	(	const td_u8 *	n,
		const td_u32 n_len	CIPHER_CHECK_WORD
	)

update modulus into ecc_addr_m, and set new montgomery parameter into reg. Before call this API, you should have set initial parameters into PKE DRAM.

参数

n	the new modulus
n_len	the byte length of new modulus.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.
