dfx_os_st.h 文件参考

#include <stdint.h>
#include <stdbool.h>

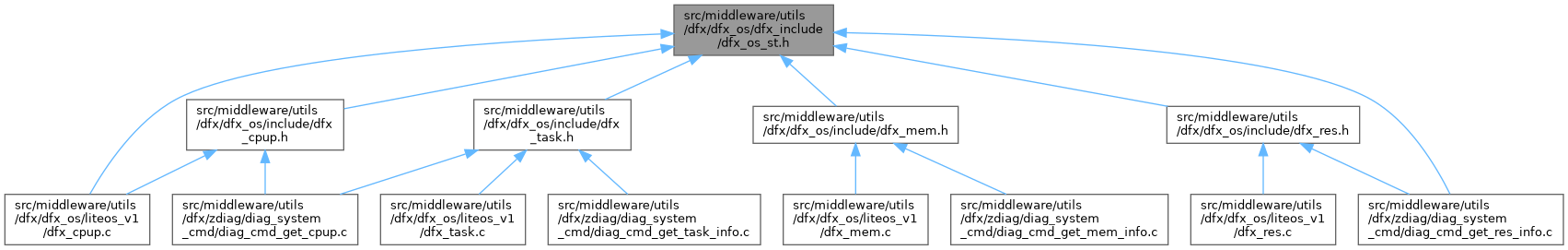

dfx_os_st.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	task_info_t
struct	os_resource_use_stat_t
struct	mdm_mem_info_t
struct	diag_cpup_cmd_t
struct	dfx_cpup_item_ind_t
struct	cpup_item_t
struct	dfx_cpup_item_usage_info_t
struct	osal_os_resource_use_stat_t

宏定义
#define	EXT_OS_STAT_MSG_WAIT_FAIL   0x1 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */
#define	EXT_OS_STAT_MSG_SEND_FAIL
#define	EXT_OS_STAT_SEM_WAIT_FAIL   0x4 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */
#define	EXT_OS_STAT_SEM_SIGNAL_FAIL   0x8 /* Repeated release.CNcomment:重复释放CNend */
#define	EXT_OS_STAT_MUX_PEND_FAIL   0x10 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */
#define	EXT_OS_STAT_MUX_POST_FAIL   0x20 /* Cross-task use, not created.CNcomment:跨任务使用，未创建CNend */
#define	EXT_OS_STAT_EVENT_WAIT_FAIL   0x40 /* Used in the interrupt context.CNcomment:中断上下文使用 CNend */
#define	EXT_OS_STAT_EVENT_SEND_FAIL
#define	EXT_OS_STAT_EVENT_CLR_FAIL   0x100 /* Invalid input argument.CNcomment:入参错误 CNend */
#define	EXT_OS_STAT_SLEEP_FAIL   0x200 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */
#define	EXT_OS_STAT_START_TIMER_FAIL   0x400 /* Invalid input argument.CNcomment:入参错误 CNend */
#define	EXT_OS_STAT_CREATE_TIMER_FAIL   0x800 /* WorkQueue used up.CNcomment:创建定时器句柄失败 CNend */
#define	DFX_TASK_NAME_LEN   32

宏定义说明

DFX_TASK_NAME_LEN

#define DFX_TASK_NAME_LEN   32

EXT_OS_STAT_CREATE_TIMER_FAIL

#define EXT_OS_STAT_CREATE_TIMER_FAIL   0x800 /* WorkQueue used up.CNcomment:创建定时器句柄失败 CNend */

EXT_OS_STAT_EVENT_CLR_FAIL

#define EXT_OS_STAT_EVENT_CLR_FAIL   0x100 /* Invalid input argument.CNcomment:入参错误 CNend */

EXT_OS_STAT_EVENT_SEND_FAIL

#define EXT_OS_STAT_EVENT_SEND_FAIL

值:

                                              0x80  /* Initialized EVT resources used up.
                                              CNcomment:初始化EVT资源已经用完 CNend */

EXT_OS_STAT_EVENT_WAIT_FAIL

#define EXT_OS_STAT_EVENT_WAIT_FAIL   0x40 /* Used in the interrupt context.CNcomment:中断上下文使用 CNend */

EXT_OS_STAT_MSG_SEND_FAIL

#define EXT_OS_STAT_MSG_SEND_FAIL

值:

                                              0x2   /* The timeout period of the interrupt context configuration is not 0,
                                              and the queue is full.CNcomment:中断上下文配置超时时间不为0, 队列满 CNend */

EXT_OS_STAT_MSG_WAIT_FAIL

#define EXT_OS_STAT_MSG_WAIT_FAIL   0x1 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */

EXT_OS_STAT_MUX_PEND_FAIL

#define EXT_OS_STAT_MUX_PEND_FAIL   0x10 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */

EXT_OS_STAT_MUX_POST_FAIL

#define EXT_OS_STAT_MUX_POST_FAIL   0x20 /* Cross-task use, not created.CNcomment:跨任务使用，未创建CNend */

EXT_OS_STAT_SEM_SIGNAL_FAIL

#define EXT_OS_STAT_SEM_SIGNAL_FAIL   0x8 /* Repeated release.CNcomment:重复释放CNend */

EXT_OS_STAT_SEM_WAIT_FAIL

#define EXT_OS_STAT_SEM_WAIT_FAIL   0x4 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */

EXT_OS_STAT_SLEEP_FAIL

#define EXT_OS_STAT_SLEEP_FAIL   0x200 /* Used in the interrupt context.CNcomment:中断上下文使用CNend */

EXT_OS_STAT_START_TIMER_FAIL

#define EXT_OS_STAT_START_TIMER_FAIL   0x400 /* Invalid input argument.CNcomment:入参错误 CNend */
