alg_common_rom.h 文件参考

#include "alg_autorate_common_rom.h"
#include "alg_common_macros_rom.h"
#include "hal_commom_ops_type_rom.h"
#include "hal_ops_common_rom.h"
#include "oal_types_device_rom.h"
#include "osal_types.h"
#include "wlan_types_base_rom.h"

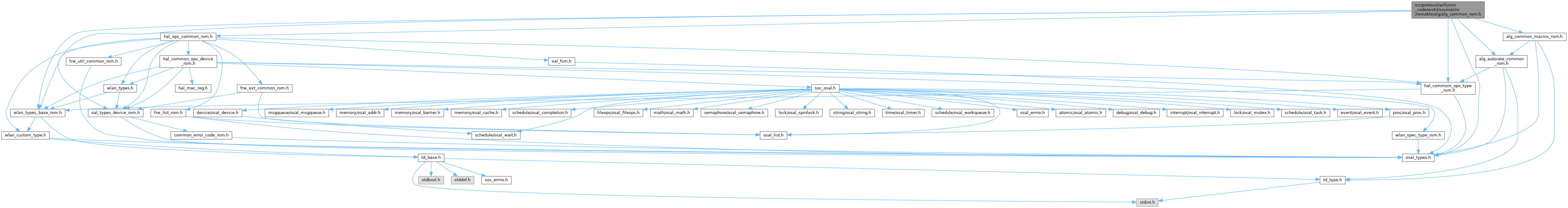

alg_common_rom.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	mac_ioctl_alg_txbf_log_param_stru
struct	mac_ioctl_alg_config_stru
struct	mac_ioctl_alg_tpc_log_param_stru
struct	mac_ioctl_alg_intfdet_log_param_stru
struct	alg_intf_det_notify_info_stru
struct	alg_param_sync_tpc_stru
struct	alg_traffic_rx_ctl_stru
struct	alg_traffic_tx_ctl_stru
struct	alg_traffic_vap_stats
struct	alg_traffic_stats_stru
struct	alg_traffic_status_stru
struct	alg_tpc_common_info_stru
struct	alg_tpc_user_rssi_stru
struct	alg_tpc_user_distance_stru
struct	alg_tpc_user_query_status_stru
struct	alg_param_sync_traffic_ctl_stru
struct	alg_dbac_vap_stats_info
struct	alg_dbac_dev_stats_info
struct	alg_dbac_stats_info
struct	alg_rts_rate_elem_stru
struct	alg_rts_rate_tbl_stru
struct	alg_param_sync_rts_stru
struct	alg_config_param_sync_rts_stru
struct	alg_param_sync_dbac_stru
struct	alg_param_sync_common_stru
struct	alg_param_sync_aggr_stru
struct	alg_param_sync_tx_tb_stru
struct	alg_param_sync_autorate_stru
struct	alg_param_sync_sch_stru
struct	alg_param_sync_stru
struct	alg_edca_det_ac_info_stru

类型定义
typedef osal_u32	alg_gla_id_enum_uint32
typedef osal_u32(*	p_alg_anti_intf_switch_func) (hal_to_dmac_device_stru *hal_device, oal_bool_enum_uint8 alg_enable)
typedef osal_u32(*	p_alg_anti_intf_tx_time_notify_func) (hal_to_dmac_device_stru *hal_device)
typedef osal_u32(*	p_alg_bfee_report_pow_adjust_notify) (hal_to_dmac_device_stru *hal_device)
typedef osal_u8	alg_tpc_dbg_enum_uint8
typedef osal_u8	alg_dbac_vap_idx_enum_uint8

枚举
enum	alg_gla_id_enum {   ALG_GLA_ID_AUTORATE = 0x00000001 , ALG_GLA_ID_RTS = 0x00000002 , ALG_GLA_ID_AGGR = 0x00000004 , ALG_GLA_ID_DBAC = 0x00000008 ,   ALG_GLA_ID_TPC = 0x00000010 , ALG_GLA_ID_TRAFFIC_CTL = 0x00000020 , ALG_GLA_ID_SCHEDULE = 0x00000040 , ALG_GLA_ID_INTF_DET = 0x00000080 ,   ALG_GLA_ID_WEAK_IMMUNE = 0x00000100 , ALG_GLA_ID_CCA = 0x00000200 , ALG_GLA_ID_EDCA = 0x00000400 , ALG_GLA_ID_TEMP_PRTECT = 0x00000800 ,   ALG_GLA_ID_TXBF = 0x00001000 , ALG_GLA_ID_BUTT }
enum	alg_tpc_query_type_enum {   ALG_TPC_QUERY_CONFIG_PARA = 0 , ALG_TPC_QUERY_STATUS = 1 , ALG_TPC_QUERY_ALL_POWER = 2 , ALG_TPC_QUERY_TPC_CODE_TABLE = 3 ,   ALG_TPC_QUERY_ACK_MODE_OPEN = 4 , ALG_TPC_QUERY_ACK_MODE_CLOSE = 5 , ALG_TPC_QUERY_STUB_INTF = 6 , ALG_TPC_QUERY_STUB_INTF_CLEAR = 7 ,   ALG_TPC_QUERY_STUB_OVER_TEMP = 8 , ALG_TPC_QUERY_STUB_OVER_TEMP_CLEAR = 9 , ALG_TPC_QUERY_STUB_CHANGE_CHANNEL = 10 , ALG_TPC_QUERY_STUB_ACK_RSSI_NEAR = 11 ,   ALG_TPC_QUERY_STUB_ACK_RSSI_FAR = 12 , ALG_TPC_QUERY_STUB_ACK_RSSI_CLEAR = 13 , ALG_TPC_QUERY_TYPE_BUTT }
enum	alg_tpc_dbg_enum {   ALG_TPC_DBG_OFF = 0 , ALG_TPC_DBG_DIST = 1 , ALG_TPC_DBG_PROBE = 2 , ALG_TPC_DBG_PKT = 3 ,   ALG_TPC_DBG_BUTT }
enum	alg_dbac_vap_idx_enum { CFG_DBAC_LED_VAP_IDX = 0 , CFG_DBAC_FLW_VAP_IDX , CFG_DBAC_VAP_IDX_BUTT }

类型定义说明

alg_dbac_vap_idx_enum_uint8

typedef osal_u8 alg_dbac_vap_idx_enum_uint8

alg_gla_id_enum_uint32

typedef osal_u32 alg_gla_id_enum_uint32

alg_tpc_dbg_enum_uint8

typedef osal_u8 alg_tpc_dbg_enum_uint8

p_alg_anti_intf_switch_func

typedef osal_u32(* p_alg_anti_intf_switch_func) (hal_to_dmac_device_stru *hal_device, oal_bool_enum_uint8 alg_enable)

p_alg_anti_intf_tx_time_notify_func

typedef osal_u32(* p_alg_anti_intf_tx_time_notify_func) (hal_to_dmac_device_stru *hal_device)

p_alg_bfee_report_pow_adjust_notify

typedef osal_u32(* p_alg_bfee_report_pow_adjust_notify) (hal_to_dmac_device_stru *hal_device)

枚举类型说明

alg_dbac_vap_idx_enum

enum alg_dbac_vap_idx_enum

枚举值
CFG_DBAC_LED_VAP_IDX
CFG_DBAC_FLW_VAP_IDX
CFG_DBAC_VAP_IDX_BUTT

alg_gla_id_enum

enum alg_gla_id_enum

枚举值
ALG_GLA_ID_AUTORATE
ALG_GLA_ID_RTS
ALG_GLA_ID_AGGR
ALG_GLA_ID_DBAC
ALG_GLA_ID_TPC
ALG_GLA_ID_TRAFFIC_CTL
ALG_GLA_ID_SCHEDULE
ALG_GLA_ID_INTF_DET
ALG_GLA_ID_WEAK_IMMUNE
ALG_GLA_ID_CCA
ALG_GLA_ID_EDCA
ALG_GLA_ID_TEMP_PRTECT
ALG_GLA_ID_TXBF
ALG_GLA_ID_BUTT

alg_tpc_dbg_enum

enum alg_tpc_dbg_enum

枚举值
ALG_TPC_DBG_OFF
ALG_TPC_DBG_DIST
ALG_TPC_DBG_PROBE
ALG_TPC_DBG_PKT
ALG_TPC_DBG_BUTT

alg_tpc_query_type_enum

enum alg_tpc_query_type_enum

枚举值
ALG_TPC_QUERY_CONFIG_PARA
ALG_TPC_QUERY_STATUS
ALG_TPC_QUERY_ALL_POWER
ALG_TPC_QUERY_TPC_CODE_TABLE
ALG_TPC_QUERY_ACK_MODE_OPEN
ALG_TPC_QUERY_ACK_MODE_CLOSE
ALG_TPC_QUERY_STUB_INTF
ALG_TPC_QUERY_STUB_INTF_CLEAR
ALG_TPC_QUERY_STUB_OVER_TEMP
ALG_TPC_QUERY_STUB_OVER_TEMP_CLEAR
ALG_TPC_QUERY_STUB_CHANGE_CHANNEL
ALG_TPC_QUERY_STUB_ACK_RSSI_NEAR
ALG_TPC_QUERY_STUB_ACK_RSSI_FAR
ALG_TPC_QUERY_STUB_ACK_RSSI_CLEAR
ALG_TPC_QUERY_TYPE_BUTT
