service_event.h 文件参考

#include "wifi_event.h"

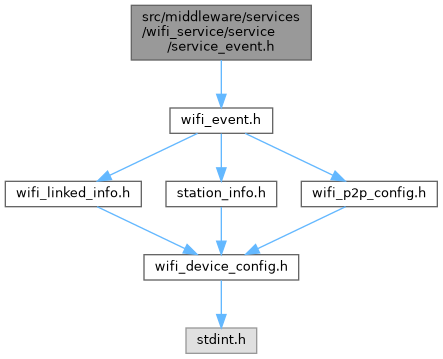

service_event.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	dl_list
struct	service_event_cb

宏定义
#define	WPS_USBA   0x0001
#define	WPS_ETHERNET   0x0002
#define	WPS_LABEL   0x0004
#define	WPS_DISPLAY   0x0008
#define	WPS_EXT_NFC_TOKEN   0x0010
#define	WPS_INT_NFC_TOKEN   0x0020
#define	WPS_NFC_INTERFACE   0x0040
#define	WPS_PUSHBUTTON   0x0080
#define	WPS_KEYPAD   0x0100
#define	WPS_VIRT_PUSHBUTTON   0x0280
#define	WPS_PHY_PUSHBUTTON   0x0480
#define	WPS_P2PS   0x1000
#define	WPS_VIRT_DISPLAY   0x2008
#define	WPS_PHY_DISPLAY   0x4008
#define	off_set_of(type, member)   ((unsigned int)&((type *)0)->member)
#define	dl_list_entry(item, type, member)    ((type *)(void *)((char *)(item) - off_set_of(type, member)))
#define	dl_list_for_each_entry(item, list, type, member)
#define	dl_list_for_each_entry_safe(item, next, list, type, member)
#define	dl_list_first(object)   ((object)->next)
#define	service_error_log0(msg_level, fmt)   printf(fmt"\r\n")
#define	service_error_log1(msg_level, fmt, p1)   printf(fmt"\r\n", p1)
#define	service_error_log2(msg_level, fmt, p1, p2)   printf(fmt"\r\n", p1, p2)
#define	service_error_log3(msg_level, fmt, p1, p2, p3)   printf(fmt"\r\n", p1, p2, p3)
#define	service_error_log4(msg_level, fmt, p1, p2, p3, p4)   printf(fmt"\r\n", p1, p2, p3, p4)

类型定义
typedef struct dl_list	dl_list
typedef struct service_event_cb	service_event_cb

枚举
enum	{   SERVICE_EXCESSIVE , SERVICE_MSGDUMP , SERVICE_DEBUG , SERVICE_INFO ,   SERVICE_WARNING , SERVICE_ERROR }

宏定义说明

dl_list_entry

#define dl_list_entry	(		item,
			type,
			member
	)		((type *)(void *)((char *)(item) - off_set_of(type, member)))

dl_list_first

#define dl_list_first

(

object

)

((object)->next)

dl_list_for_each_entry

#define dl_list_for_each_entry	(		item,
			list,
			type,
			member
	)

值:

    for ((item) = dl_list_entry((list)->next, type, member);       \
        &(item)->member != (list);                               \
        (item) = dl_list_entry((item)->member.next, type, member))

dl_list_for_each_entry_safe

#define dl_list_for_each_entry_safe	(		item,
			next,
			list,
			type,
			member
	)

值:

    for ((item) = dl_list_entry((list)->next, type, member),                     \
        (next) = dl_list_entry((item)->member.next, type, member);              \
        &(item)->member != (list);                                                   \
        (item) = (next), (next) = dl_list_entry((item)->member.next, type, member))

off_set_of

#define off_set_of	(		type,
			member
	)		((unsigned int)&((type *)0)->member)

service_error_log0

#define service_error_log0	(		msg_level,
			fmt
	)		printf(fmt"\r\n")

service_error_log1

#define service_error_log1	(		msg_level,
			fmt,
			p1
	)		printf(fmt"\r\n", p1)

service_error_log2

#define service_error_log2	(		msg_level,
			fmt,
			p1,
			p2
	)		printf(fmt"\r\n", p1, p2)

service_error_log3

#define service_error_log3	(		msg_level,
			fmt,
			p1,
			p2,
			p3
	)		printf(fmt"\r\n", p1, p2, p3)

service_error_log4

#define service_error_log4	(		msg_level,
			fmt,
			p1,
			p2,
			p3,
			p4
	)		printf(fmt"\r\n", p1, p2, p3, p4)

WPS_DISPLAY

#define WPS_DISPLAY   0x0008

WPS_ETHERNET

#define WPS_ETHERNET   0x0002

WPS_EXT_NFC_TOKEN

#define WPS_EXT_NFC_TOKEN   0x0010

WPS_INT_NFC_TOKEN

#define WPS_INT_NFC_TOKEN   0x0020

WPS_KEYPAD

#define WPS_KEYPAD   0x0100

WPS_LABEL

#define WPS_LABEL   0x0004

WPS_NFC_INTERFACE

#define WPS_NFC_INTERFACE   0x0040

WPS_P2PS

#define WPS_P2PS   0x1000

WPS_PHY_DISPLAY

#define WPS_PHY_DISPLAY   0x4008

WPS_PHY_PUSHBUTTON

#define WPS_PHY_PUSHBUTTON   0x0480

WPS_PUSHBUTTON

#define WPS_PUSHBUTTON   0x0080

WPS_USBA

#define WPS_USBA   0x0001

WPS_VIRT_DISPLAY

#define WPS_VIRT_DISPLAY   0x2008

WPS_VIRT_PUSHBUTTON

#define WPS_VIRT_PUSHBUTTON   0x0280

类型定义说明

dl_list

typedef struct dl_list dl_list

service_event_cb

typedef struct service_event_cb service_event_cb

枚举类型说明

anonymous enum

anonymous enum

枚举值
SERVICE_EXCESSIVE
SERVICE_MSGDUMP
SERVICE_DEBUG
SERVICE_INFO
SERVICE_WARNING
SERVICE_ERROR
