#include "log_memory_definitions.h"
#include "log_oam_msg.h"

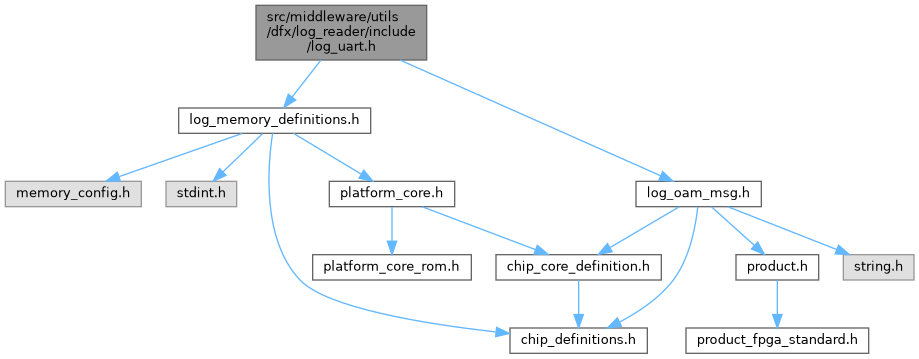

log_uart.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	LOG_UART_LOG_WATERMARK_VALUE_ON_INIT 0

#define	LOG_UART_BT_LOG_WATERMARK_VALUE_HIGH ((BT_CORE_LOGGING_LENGTH)*8 / 10)

类型定义
typedef void(*	log_uart_output_response_to_at_uart_callback) (const char *at_string, uint16_t len)
	output response to at uart callback

枚举
enum	nxlog_operation_t { NXLOG_OPERATION_ENABLE = 0 , NXLOG_OPERATION_DISABLE , NXLOG_OPERATION_DELETE , NXLOG_OPERATION_DUMP_TO_AT_UART , NXLOG_OPERATION_DUMP_TO_DEBUG_UART }

函数
void	log_register_default_rx_callback (void)

void	log_uart_init (void)
	Initialises the uart logger before RTOS functions are available.

void	log_uart_send_buffer (const uint8_t *buffer, uint16_t length)
	Send buffer used log uart by write uart tx FIFO

void	log_uart_write_blocking (const void *buf, uint32_t len)
	Send buffer used log uart by write uart tx FIFO

void	log_uart_init_after_rtos (void)
	Initialises the UART logging when RTOS functions are available. This should be called before the RTOS scheduler starts, but when we can create mutexes.

void	log_uart_trigger (void)
	Triggers the uart logger. It can be called from program context or ISR.

uint32_t	log_uart_get_nxlog_state (void)
	Check if the xlog is enabled.

void	log_uart_reset_baud_rate (void)
	Reconfigure the baud rate when the frequency changes.

void	log_main (const void *unused_p)
	Main log uart task

void	log_uart_update_watermark_level (log_memory_region_section_t log_mem_region, uint16_t new_watermark_val)
	Update the watermark level for a given logging region.
