#include "exception.h"
#include "chip_core_definition.h"
#include "memory_config.h"
#include "panic.h"
#include "non_os_reboot.h"

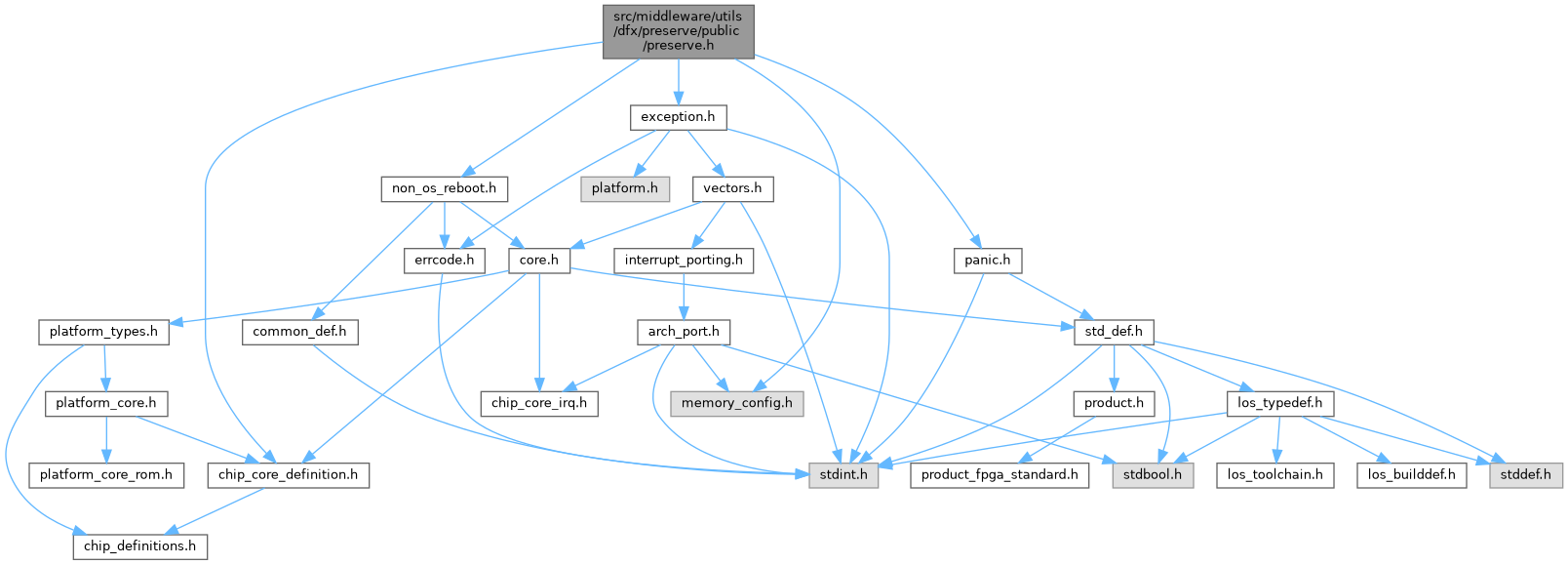

preserve.h 的引用(Include)关系图:

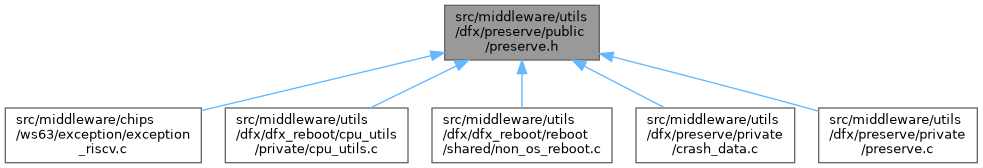

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

宏定义
#define	PRESERVE var_segment("preserve")

枚举
enum	dump_panic_step_t { STEP_DUMP_START = 1 << 0 , STEP_BT_DUMP_RAM_FLASH_ERASE = 1 << 1 , STEP_BT_DUMP_RAM_FLASH_WRITE = 1 << 2 , STEP_APP_DUMP_RAM_FLASH_ERASE = 1 << 3 , STEP_APP_DUMP_RAM_FLASH_WRITE = 1 << 4 , STEP_HIFI_DUMP_RAM_FLASH_ERASE = 1 << 5 , STEP_HIFI_DUMP_RAM_FLASH_WRITE = 1 << 6 , STEP_DUMP_SHAREMEM_FLASH_ERASE = 1 << 7 , STEP_DUMP_SHAREMEM_FLASH_WRITE = 1 << 8 , STEP_SYSTEM_CORE_DUMP_BIT_ERASE = 1 << 9 , STEP_SYSTEM_CORE_DUMP_BIT_WRITE = 1 << 10 , STEP_DUMP_END = 1 << 31 }

函数
bool	is_preserve_data_saved (uintptr_t preserve_ptr)

void	system_boot_status_init (void)

unsigned int	get_system_boot_status (void)

panic_desc_t *	get_last_panic_handle (void)

void	set_last_panic (panic_desc_t *last_panic)

void	set_exception_info_riscv (exc_context_t *exc_data)

task_context_t *	get_exception_info_riscv (void)

void	set_exception_stack_frame (exception_stack_frame_t *exception_stack_frame_src)

void	set_exception_info (exception_info_t *exception_info)

void	set_fault_address (uint32_t address)

void	set_fault_reason (uint32_t reason)

void	set_fault_intid (uint32_t intid)

void	set_exception_dump_step (dump_panic_step_t step)

uint32_t	get_fault_address (void)

uint32_t	get_fault_reason (void)

uint32_t	get_cpu_utils_check_sha_value (void)

void	set_cpu_utils_check_sha_fault_value (void)

uint32_t	get_exception_dump_step (void)

void	clear_exception_dump_step (void)

uint8_t	get_last_panic_id (void)

uint32_t	get_last_panic_code (void)

uint32_t	get_last_panic_caller (void)

uint32_t	get_cpu_utils_exc_pc (void)

uint32_t	get_cpu_utils_exc_lr (void)

void	set_system_boot_status (unsigned int reboot_status)

void	set_cpu_utils_system_boot_magic (void)

void	set_cpu_utils_reset_cause (reboot_cause_t reset_cause)

unsigned int	get_cpu_utils_reset_count (void)

unsigned int	get_cpu_utils_epreset_count (void)

reboot_cause_t	get_cpu_utils_reset_cause (void)

void	set_update_reset_cause_on_boot (bool reset_cause_on_boot)

bool	get_update_reset_cause_on_boot (void)

void	set_pc_lr_sp_value (uint32_t pc_value, uint32_t lr_value, uint32_t sp_value)

void	get_pc_lr_sp_value (uint32_t pc_value, uint32_t lr_value, uint32_t *sp_value)

void	set_entry_sleep_time (uint64_t time)

void	set_rtc_delay_count (uint64_t time)

void	set_excepted_sleep_time (uint32_t time)

void	set_exception_time_stamp (void)

uint8_t	get_last_slave_panic_id (cores_t core)

uint32_t	get_last_slave_panic_code (cores_t core)

uint32_t	get_last_slave_panic_caller (cores_t core)

void	system_boot_reason_print (void)

void	system_boot_reason_process (void)

uint32_t	get_system_magic (void)

void	show_reboot_info (void)
