log_oam_status.h 文件参考

#include "log_oam_logger.h"
#include "log_printf.h"

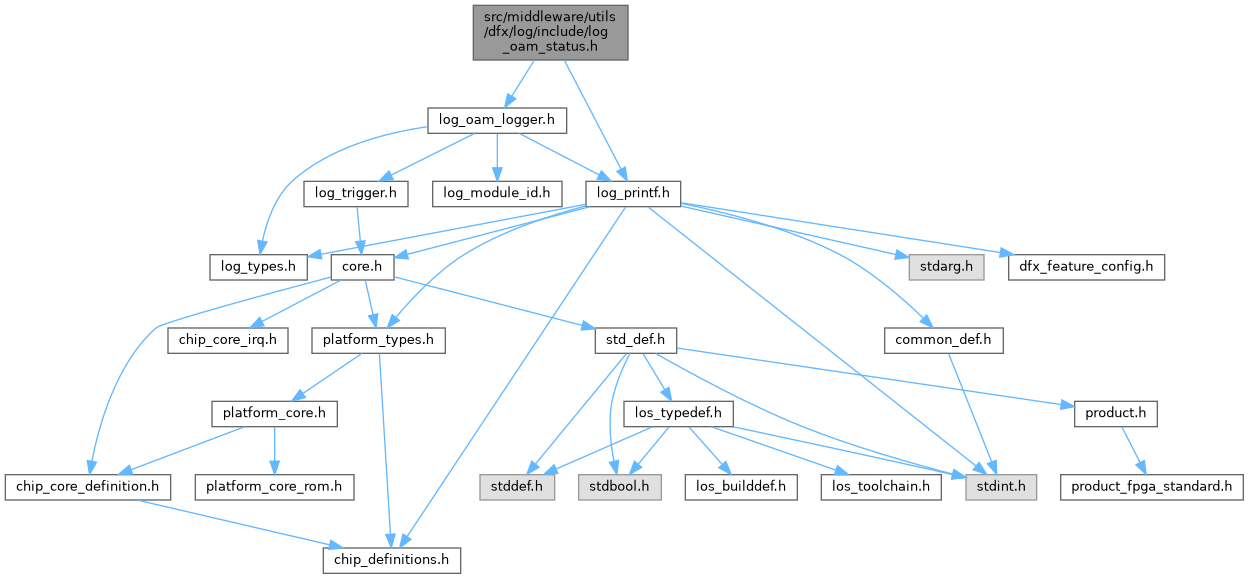

log_oam_status.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	_om_status_data_stru_t

宏定义
#define	OML_STATUS_ADD_LENGTH   (13)
#define	OM_STATUS_DATA_MAX_SIZE   (60)
#define	OML_BT_STATE_STORE(msg_id, length, ulparam1, ulparam2, ulparam3, ulparam4)
#define	OML_BT_MESSAGE_STORE(msg_id, length, ulparam1, ulparam2, ulparam3, ulparam4)
#define	OML_BT_DATA_STORE(msg_id, length, data)
#define	OML_BT_STRUCT_STORE(prime_id, msg_id, length, data)

类型定义
typedef struct _om_status_data_stru_t	om_status_data_stru_t
typedef void(*	log_oam_status_store_handler) (uint8_t prime_id, uint16_t msg_id, uint16_t mode, uint16_t length, const uint32_t *param)

枚举
enum	OM_STATUS_PRIME_ID { OM_STATUS_STATE , OM_STATUS_MESG , OM_STATUS_DATA , OM_STATUS_BUTT }

函数
int32_t	pf_feature_set (uint32_t feature, uint8_t set)
int32_t	pf_feature_get (uint32_t feature)
void	log_oml_status_packet (om_status_data_stru_t *status_entry, uint8_t prime_id, uint16_t msg_id, uint16_t length, const uint8_t *buffer)
uint32_t	log_oml_status_write (uint8_t prime_id, uint16_t msg_id, uint16_t mode, uint16_t length, const uint8_t *buffer)
void	log_oam_status_store_init (void)
void	log_oam_status_store (uint8_t prime_id, uint16_t msg_id, uint16_t mode, uint32_t length,...)
void	log_oam_status_store_deal (uint8_t prime_id, uint16_t msg_id, uint16_t mode, uint16_t length, const uint32_t *param)
void	log_oam_status_store_register_callback (log_oam_status_store_handler callback)
void	log_oam_status_store_unregister_callback (void)
void	log_oam_status_store_trigger_callback (uint8_t prime_id, uint16_t msg_id, uint16_t mode, uint16_t length, const uint32_t *param)

宏定义说明

OM_STATUS_DATA_MAX_SIZE

#define OM_STATUS_DATA_MAX_SIZE   (60)

OML_BT_DATA_STORE

#define OML_BT_DATA_STORE	(		msg_id,
			length,
			data
	)

值:

        {                          \
        log_oml_status_write(OM_STATUS_DATA, msg_id, OM_BT, length, data); \
    }

OML_BT_MESSAGE_STORE

#define OML_BT_MESSAGE_STORE	(		msg_id,
			length,
			ulparam1,
			ulparam2,
			ulparam3,
			ulparam4
	)

值:

        {                       \
        log_oam_status_store(OM_STATUS_MESG, msg_id, OM_BT, length, ulparam1, ulparam2, ulparam3, ulparam4); \
    }

OML_BT_STATE_STORE

#define OML_BT_STATE_STORE	(		msg_id,
			length,
			ulparam1,
			ulparam2,
			ulparam3,
			ulparam4
	)

值:

        {                          \
        log_oam_status_store(OM_STATUS_STATE, msg_id, OM_BT, length, ulparam1, ulparam2, ulparam3, ulparam4); \
    }

OML_BT_STRUCT_STORE

#define OML_BT_STRUCT_STORE	(		prime_id,
			msg_id,
			length,
			data
	)

值:

        {        \
        log_oml_status_write(prime_id, msg_id, OM_BT, length, data); \
    }

OML_STATUS_ADD_LENGTH

#define OML_STATUS_ADD_LENGTH   (13)

类型定义说明

log_oam_status_store_handler

typedef void(* log_oam_status_store_handler) (uint8_t prime_id, uint16_t msg_id, uint16_t mode, uint16_t length, const uint32_t *param)

om_status_data_stru_t

typedef struct _om_status_data_stru_t om_status_data_stru_t

枚举类型说明

OM_STATUS_PRIME_ID

enum OM_STATUS_PRIME_ID

枚举值
OM_STATUS_STATE
OM_STATUS_MESG
OM_STATUS_DATA
OM_STATUS_BUTT

函数说明

log_oam_status_store()

void log_oam_status_store	(	uint8_t	prime_id,
		uint16_t	msg_id,
		uint16_t	mode,
		uint32_t	length,
			...
	)

log_oam_status_store_deal()

void log_oam_status_store_deal	(	uint8_t	prime_id,
		uint16_t	msg_id,
		uint16_t	mode,
		uint16_t	length,
		const uint32_t *	param
	)

log_oam_status_store_init()

void log_oam_status_store_init

(

void

)

log_oam_status_store_register_callback()

void log_oam_status_store_register_callback

(

log_oam_status_store_handler

callback

)

log_oam_status_store_trigger_callback()

void log_oam_status_store_trigger_callback	(	uint8_t	prime_id,
		uint16_t	msg_id,
		uint16_t	mode,
		uint16_t	length,
		const uint32_t *	param
	)

log_oam_status_store_unregister_callback()

void log_oam_status_store_unregister_callback

(

void

)

log_oml_status_packet()

void log_oml_status_packet	(	om_status_data_stru_t *	status_entry,
		uint8_t	prime_id,
		uint16_t	msg_id,
		uint16_t	length,
		const uint8_t *	buffer
	)

log_oml_status_write()

uint32_t log_oml_status_write	(	uint8_t	prime_id,
		uint16_t	msg_id,
		uint16_t	mode,
		uint16_t	length,
		const uint8_t *	buffer
	)

pf_feature_get()

int32_t pf_feature_get

(

uint32_t

feature

)

pf_feature_set()

int32_t pf_feature_set	(	uint32_t	feature,
		uint8_t	set
	)
